Quoizel NY8416K Montageanleitung
Part Description Quantity
A Crossbar 1pc.
1pc.
2 pcs.
2 pcs.
2 pcs.
2 pcs.
Fixture Body
B
C
D
E
F
Hex Nut
Lock Washer

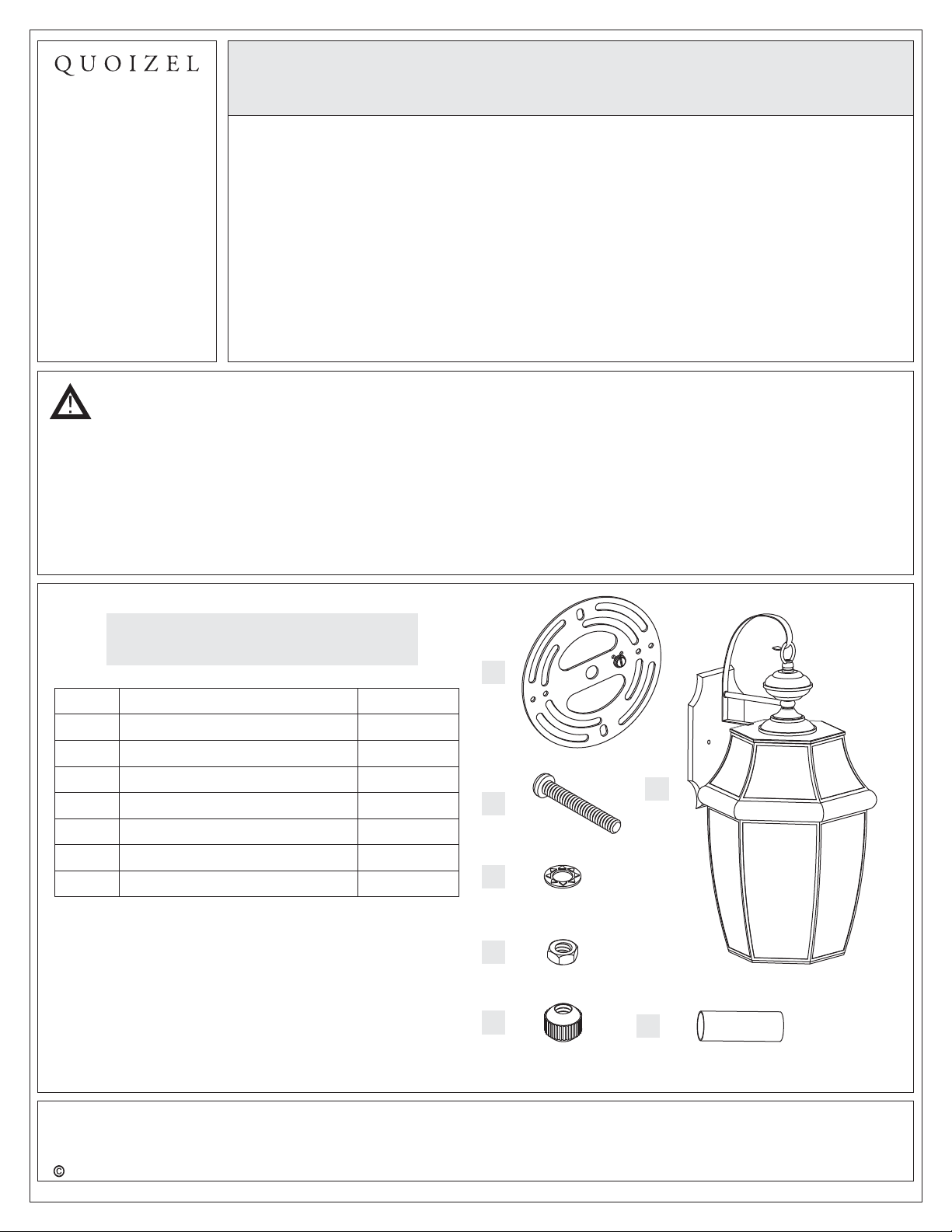

Package Contents
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
Mounting Ball
Mounting Screw
1of5
A
B
C
D
E
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
F
Assembly Instruction Sheet #IS-NY8416
For Styles NY8416K, NY8416P and NY8416Z
Pleasegoto forproductcleaningtips.Gotothe
selection.
(4)CandelabraBase60WMaximum
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage
contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissingor
damaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer
serviceforreplacementparts.
www.quoizel.com Care+Maintenance
LightSource:
EstimatedAssemblyTime:
Preparation:
Fixturecanonlybemountedinthedirectionindicatedonpage2.
ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wire
strippers,electricaltape,safetyglasses.
2015 QuoizelInc. June2015
G
4 pcs.
GCandle Cover
1
PART NUMBER

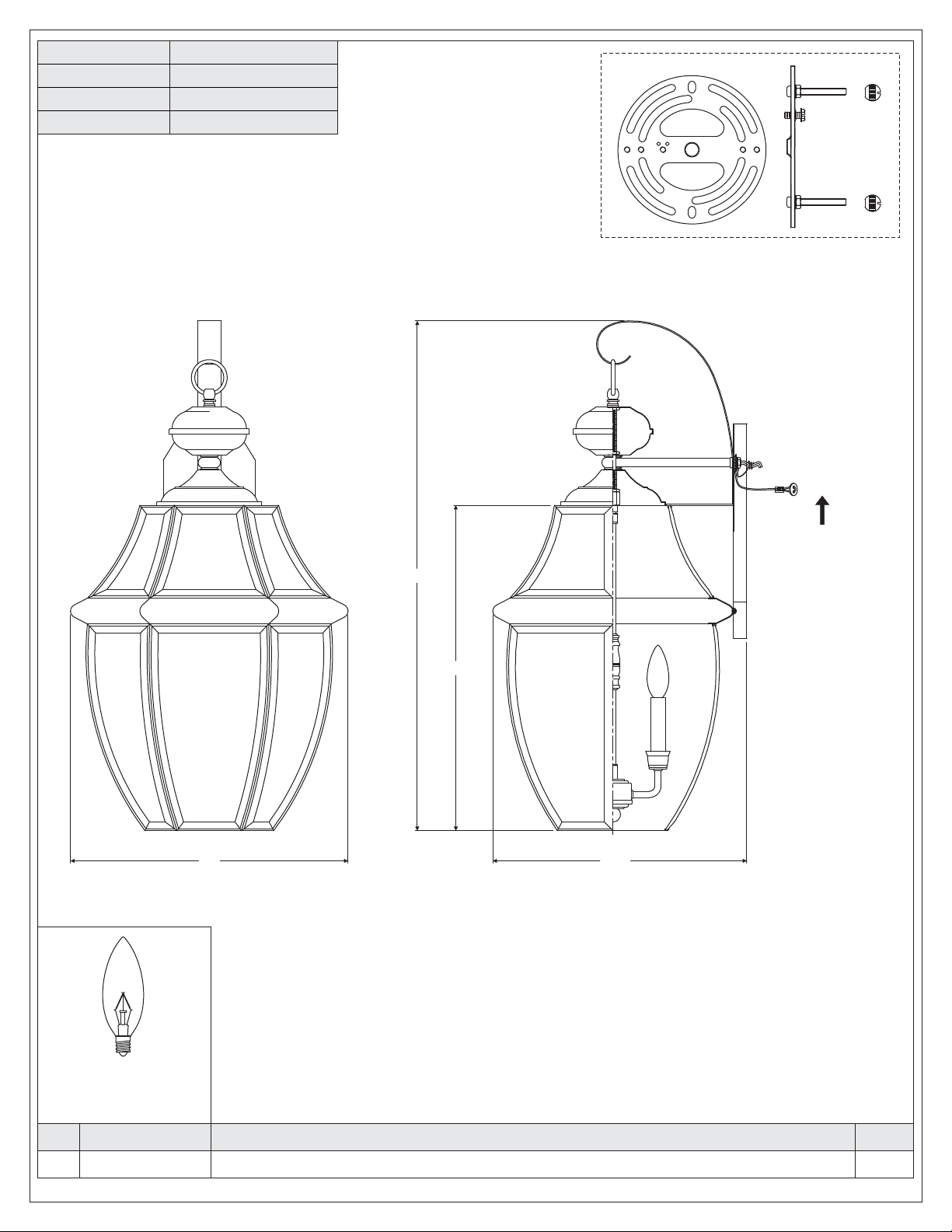

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION REQ.
NO.
2of5
(4) 60W Candelabra
base bulbs
(not Supplied)
GND
2.4mm
13Ga
QUOIZEL R
29.5”
19”
15”16”
1
STYLE NUMBER
NY8416K
NY8416P
NY8416Z MEDICI BRONZE
PEWTER
MYSTIC BLACK
FINISH
Fixture can only be
mounted in the
direction indicated
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
3of5

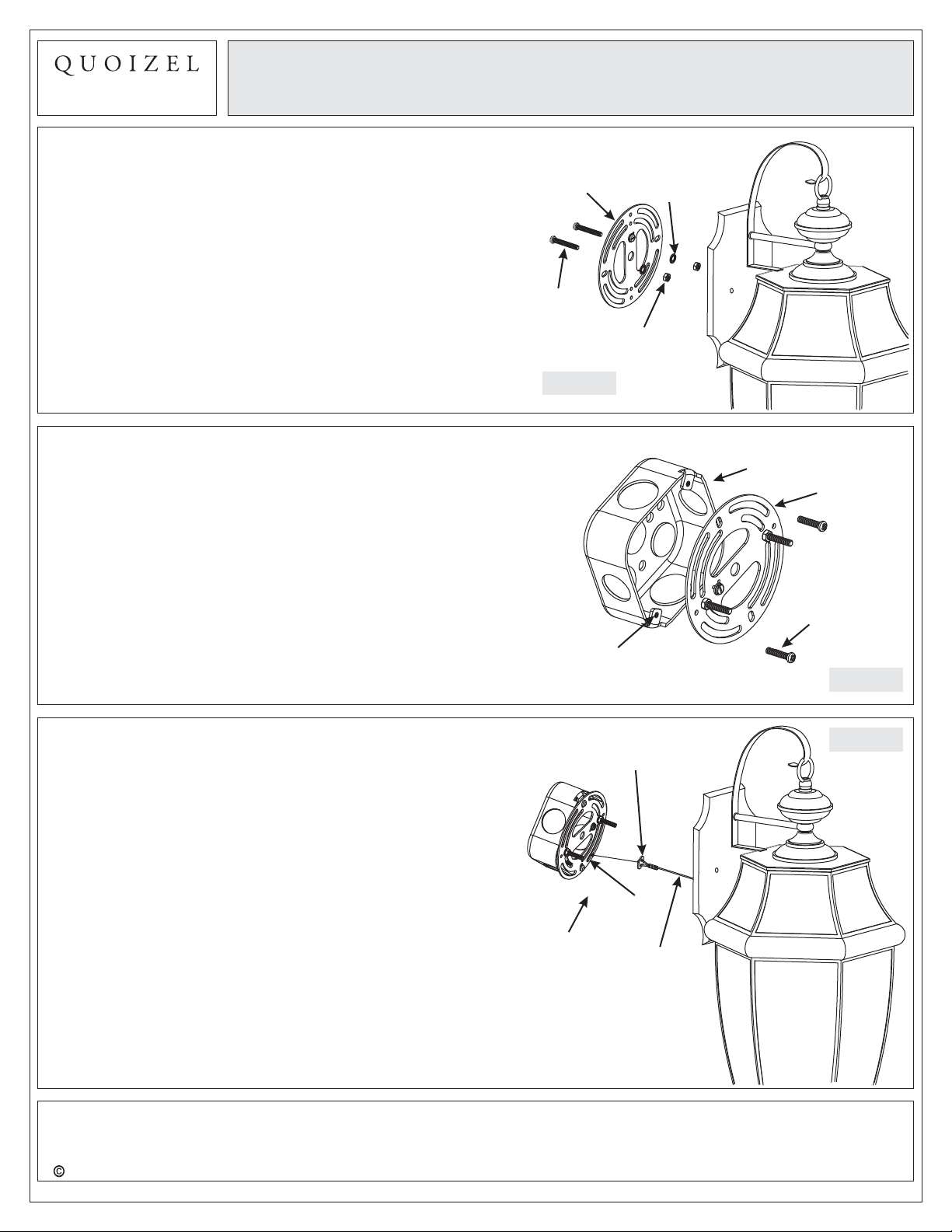

STEP 1 -Attach Mounting Screws, Lock
Washers and Hex Nuts to Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the backplate of the Fixture Body (K).
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex
Nut (D) onto the Mounting Screws (B). Hand tighten
until snug.
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
Figure 1
Crossbar
Mounting
Screw
Lock Washer
Hex Nut
STEP 2 -Attach Crossbar to Outlet Box
A. Attach the Crossbar (A) to Outlet Box and secure by
threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
Crossbar
Outlet
Box
Outlet Box
Screw
Mounting
Hole
Figure 2
Figure 3
STEP 3 Attach Lanyard-
A. The purpose of the lanyard is to provide the installer a
means to support the fixture from the junction box while
connecting the electrical wires. This enables the fixture
to hang from the junction box and your hands are free to
make the wire connections.
B. Turn the Button Stop so it may be inserted into the Inner
Backplate slot. Make sure the Button Stop is completely
inside the crossbar. Slowly release the fixture to make
sure it is supported by the Button Stop. Proceed to the
wiring steps. Once you are complete with the wiring
there is nothing to do with Lanyard. The Lanyard will
push into the junction box when the fixture is placed for
final mounting.
Slot
Lanyard
Button Stop
Inner Backplate
2015 QuoizelInc. June2015
Assembly Instruction Sheet #IS-NY8416
For Styles NY8416K, NY8416P and NY8416Z
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
4of5

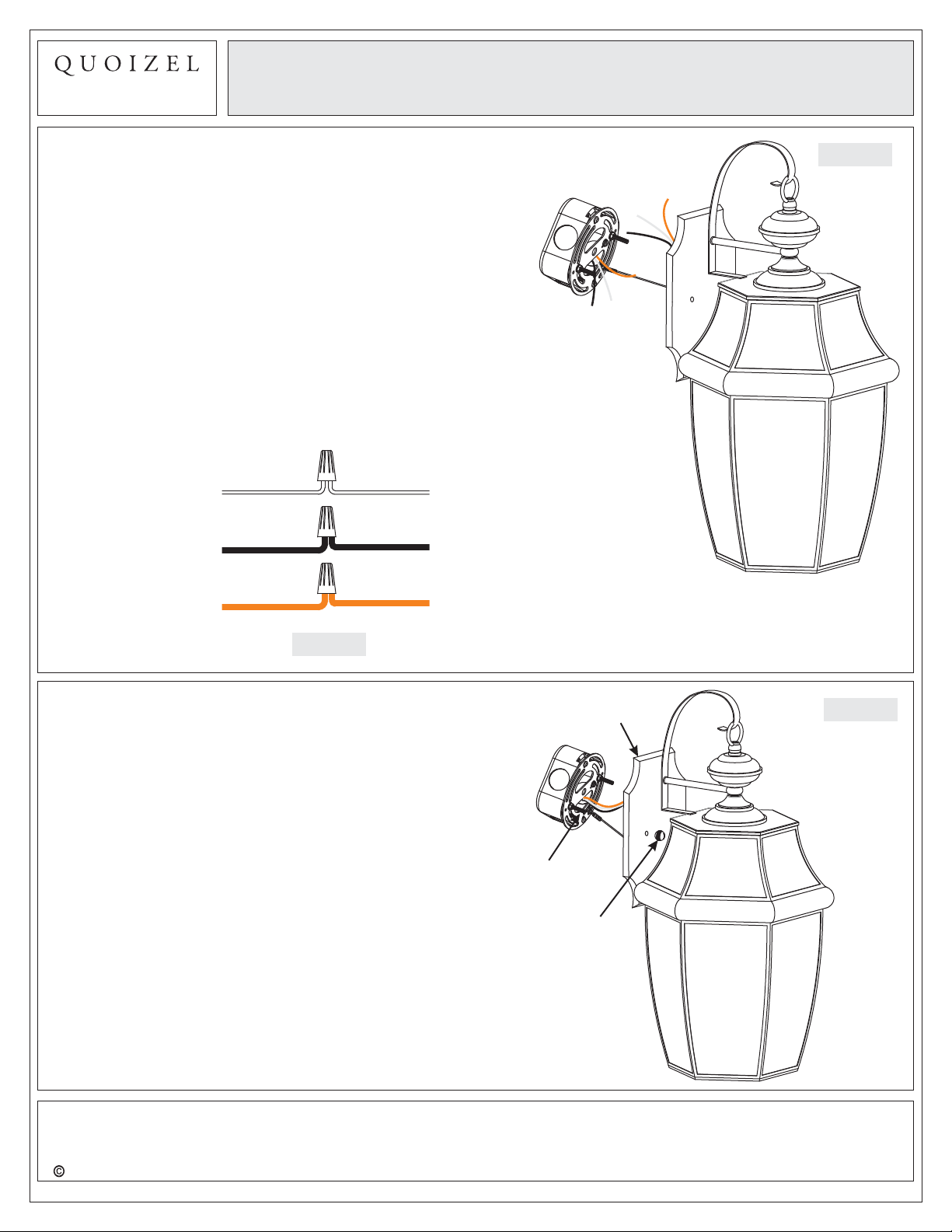

STEP 4 Make Wire Connections-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
Figure 4
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Black wire from fixture
Ground wire from supply Ground wire from fixture
STEP 5 -Attach Fixture Body to Mounting
Screw
A. Place the backplate of the Fixture Body (F) over the
Mounting Screws (B) and secure with Mounting Balls
(E). Hand tighten until snug.
Figure 6
Mounting
Screw
Mounting Ball
Backplate
Figure 5
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
2015 QuoizelInc. June2015
Assembly Instruction Sheet #IS-NY8416
For Styles NY8416K, NY8416P and NY8416Z
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
5of5
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..

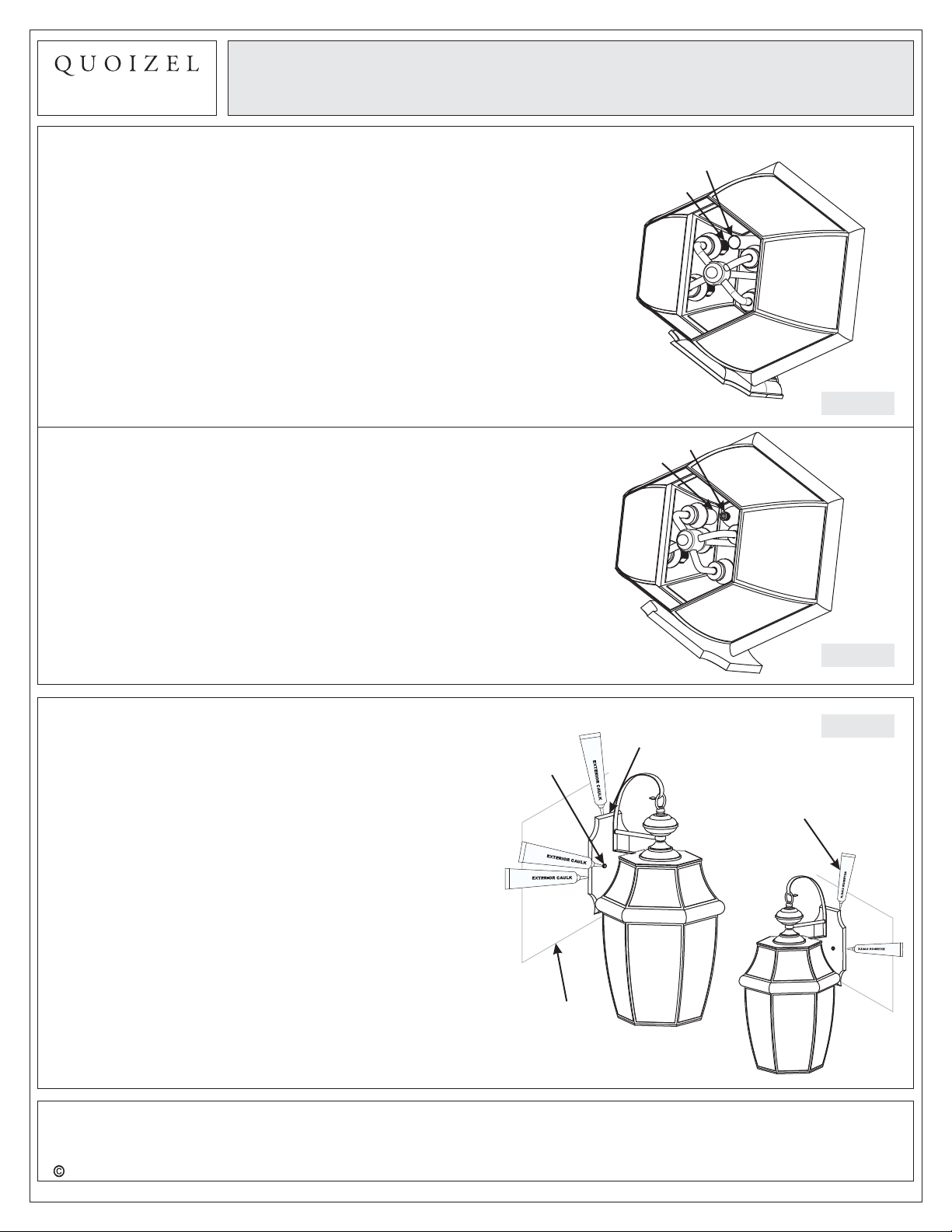

STEP 8 -Apply Silicone Sealer
A. To prevent moisture from entering the wire
compartment, apply a small amount of silicone sealer
(not included) to the threaded side of the mounting
balls (H) and then install them onto the mounting
screws (D/E). Wipe off excess caulk.
B. Make sure exterior wall surface and fixture backplate
are free of dirt before applying caulk. Using exterior
grade caulk, start on one side of fixture backplate and
follow contour, where the fixture backplate meets the
exterior wall surface upward. Proceed to caulk over top
of backplate and down other side. Do not caulk bottom
of fixture backplate to ensure proper moisture
drainage.
Your fixture is now assembled and ready to use.
Enjoy!
STEP 7 -Install Bulb
A. This fixture uses standard bulb with a candelabra screw
base. Maximum 60 watts.
B. Place the bulb from the bottom of the glass frame. Insert
bulb and screw snugly into place.
Figure 8
Figure 9
Socket
Bulb
Exterior
Grade Caulk
Outdoor Fixture
Backplate
Exterior
Wall Surface
Mounting
Ball
2015 QuoizelInc. June2015
Assembly Instruction Sheet #IS-NY8416
For Styles NY8416K, NY8416P and NY8416Z
Figure 7
STEP 6 Attach Candle Cover to Socket
Assembly
-
A. Place the Candle Cover (G) over the Socket properly.
Socket
Candle
Cover
