Quoizel TML9008K Montageanleitung

Quoizel, Inc.

6 Corporate Parkway

Goose Creek, SC 29445

Customer Service

Phone 631.273.2700

Fax 631.231.7102

www.quoizel.com

ToolsRequired:Flathead screwdriver,Phillips screwdriver,pliers, wirecutters, wirestrippers, electricaltape,

safetyglasses.

EstimatedAssemblyTime:30-45minutes

Preparation:Identify andinspect allparts beforebeginning installation.Check packagecontent listand diagrams

belowto besure allparts arepresent. Ifany partsare missingor damaged,do notattempt toassemble, install,or

operatethe fixture.Contact customerservice forreplacement parts.

Warnings and Cautions

1of2

Assembly Instruction Sheet #IS-TML9008K

For Style TML9008K

BulbRecommended: (3) CandelabraBase 60WMaximum,Alternatebulb(3) 13WCFL

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2014 QuoizelInc. February2014

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly

recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject

glass parts to any shock while in operation or shattering may result.

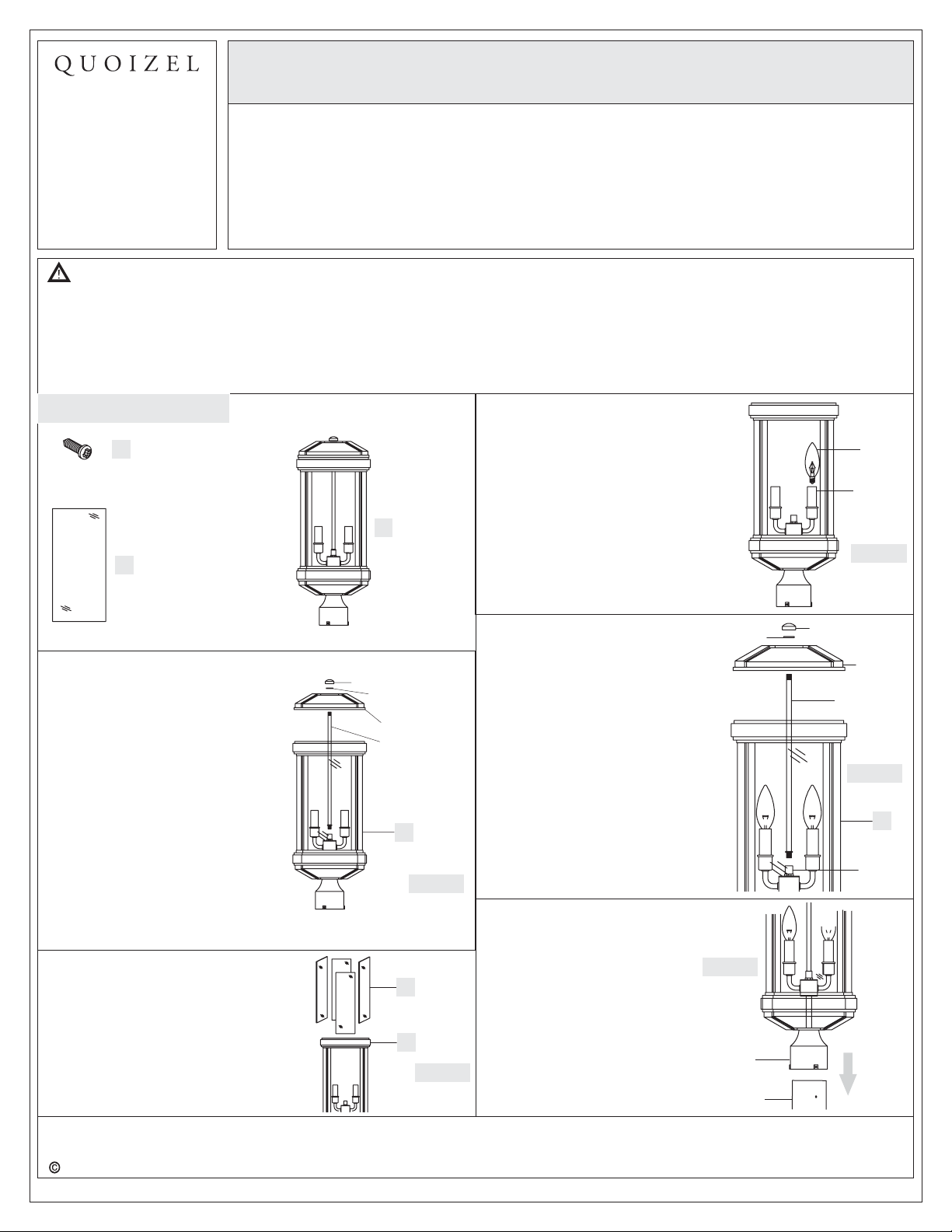

Package Contents

Fixture

Body

Mounting

Screw

BGlass Panel

STEP 2 -Attach Glass to Fixture

Body

A. Attach Glass Panels (B) on the

Fixture Body (C).

Figure 2

STEP 4 -Attach Fixture Hood

A. Thread the Stem onto the

Coupling inside of Fixture Body

(C), hand tighten until sung.

B. Place the Fixture Hood and the

Waterproof Washer over the

Stem. Secure by threading the

Finial onto the Stem. Hand

tighten until snug.

Figure 4

Coupling

STEP 5 Drill Pilot Holes on

Post

A. Carefully fit the Post Fitter over

the end of the Post (not

supplied), making sure the

Post Fitter is fully seated.

B. Mark the drill point for the (3)

Mounting Screws, using (3)

Mounting Holes as reference.

After marking hole locations,

remove fixture from post and

drill 1/16” pilot holes for

screws. Post

Post Fitter

Figure 5

STEP 3 Install Bulb-

A. This fixture uses candelabra bulb

with a candelabra screw base.

Maximum 60 watts.

B. Insert bulb and screw snugly into

place.

Figure 3

Bulb

Socket

STEP 1 Seperate the parts from

the fixture

A. Unscrew the Finial, remove the

Waterproof Washer, the Cap

and the Stem from the fixture

(C).

Figure 1

Finial

Cap

Waterproof

Washer

Stem

Finial

Cap

Waterproof

Washer

Stem

2of2

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2014 QuoizelInc. February2014

TML9008K

PART NUMBER

G3839PA

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"

REPLACEMENT PART DESCRIPTION

CLEAR SEEDY GLASS PANEL

REQ.

NO.

FINISH: MYSTIC BLACK

(3)

(Not Supplied)

60W Candelabra

base bulbs

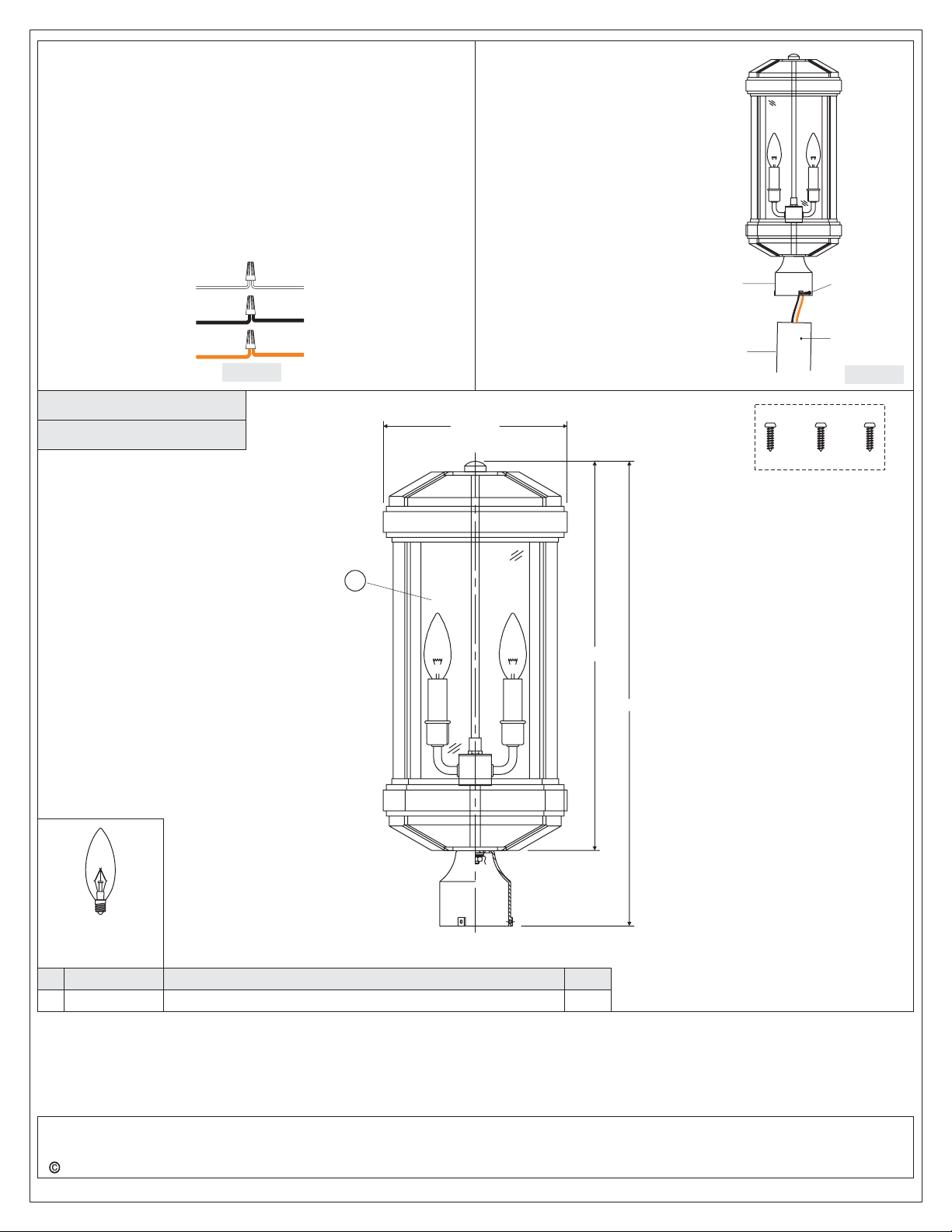

STEP 5 - Wire Connections

A. Use standard wire connectors (not included) to make all wire

connections. (Connectors are not included with fixture.) Strip and

prepare wire ends according to instructions supplied with

connectors.

B. Connect White Supply Wire from the Outlet Box to Ribbed side

Wire from fixture.

C. Connect Black (or Red) Supply Wire from the Outlet Box to Smooth

side Wire from fixture.

D. Connect Ground Wire from the Outlet Box to Ground Wire from

fixture.

E. Twist connectors until wires are tightly joined together.

F. Wrap each connection with approved electrical tape and carefully

stuff all the connected wires into the Outlet Box.

White wire

from supply Ribbed side wire

from fixture

Black wire from

supply (or Red)

Smooth side wire

from fixture

Ground wire

from supply

Ground wire

from fixture

Figure 5

STEP 6 Attach Fixture Body to

Post

A. Coat the top 1” of the Post with

Clear Silicone Caulk (not

supplied) and position the Post

FitterontothePost.Besureto

seat it completely, aligning the

holes in the Fitter with the 1/16”

Pilot Holes drilled into the Post.

B. Secure the Fixture to Post with

(3) Mounting Screws.

Your fixture is now assembled

and ready to use. Enjoy!

Mounting

Hole

Post

Fitter

Mounting

Screw

Post

Figure 6

8.5” Sq.

18”

21.5”
