SOHORAID Series SR3500

User’s Guide

Date : Sep, 10, 2003

Version: 1.0

STARDOM IDE RAID Solution

Index

Chapter 1:Introduction…………………………………………..3

1-1. Functions and Features… .…………………………..4

1-2. Product Specifications………………………………..6

Chapter 2:Hardware Installation………………………………7

2-1. Package Contents………………………………………..7

2-2. System Requirements…………………………….…….8

2-3. Environment Requirements and Cautions…….….9

2-4. Installing HDD in the Carrier…………………………10

2-5. Connect SR3500 to Computer……………………….11

Chapter 3:How to use SR3500…………………………………12

3-1. RAID Level Setup……………………………………….12

3-2. Windows PC Operation……………………………….16

3-3. Macintosh Operation…………………………………..18

3-4. HDD Status on LCD…………………………………….19

Chapter 4:System maintenance.......................................22

4-1. Hot Swappable and Auto Rebuilding of RAID1.21

Appendix A: Questions and Answer........................................25

STARDOM IDE RAID Solution

Chapter 1

Introduction

SOHORAID (Redundant Arrays of Independent Drives) SR3500

provides disk mirror function (RAID Level 1) to secure data or RAID 0

to combine two drives’capacity for small offices or home offices.

SR3500 provides you the most economic and reliable external IDE

RAID subsystem connected with 1394a/1394b and USB2.0 interfaces

to expand capacity or ensure the data security for enjoying digital IT

network.

STARDOM IDE RAID Solution

1-1Functions and Features

With individual microprocessor hardware RAID design, SR3500 is the

most economic and beneficial choice for you to expand capacity that

assure the data security and will not reduce system efficiency.

By connecting host interface of Firewire (1394a or 1394b) and USB 2.0

which enable SR3500 system not only easy to have the transfer rate

up to 50~80MB/sec but also plug and play function with double

advantages.

Human factor interface

※Plug & play

Designing for removable, easy installation and maintenance.

Using high quality stainless handle (SUS 302) for Removable.

Carrier to Hot plugto EIDE connector without interface card.

The two IDE hard disks can simultaneously perform mirroring or

RAID 0 with synchronization.

※Hot Swap Design

Once the hard disk failed, SR3500 allows replacement when the

system is online at RAID Level 1.

※Auto Rebuilding

One of the two hard disks can function as source, and the other

as target for back up purpose. Providing online rebuilding function

without gives any command and without interrupting system

STARDOM IDE RAID Solution

operation at RAID Level 1.

※Duplication Hard Disk

SR3500 can also use as hard disk duplication, fit on the usage of

system duplicate and monitoring system offline data reserve at

RAID 1.

※Independent OS, Easy Installation

Compatible with all systems which support firewire (1394a or

1394b) and USB2.0 operation system like Windows 98 SE,

Windows Me, Windows XP, Windows 2000 and Mac 8.6 later.

※LCD (Liquid crystal display) Screen

LCD screen providing HDD operating status, Fan status, and

temperature status in order to monitor the system.

STARDOM IDE RAID Solution

1-2Product Specifications

SR3500-WA SR3500-WB

Hardware RAID 8032 microprocessor RAID ASIC

RAID level RAID 0, 1

Host interface 1394a 1394b+ USB2.0

Host transfer rate 50/56 MB/sec 80/56 MB/sec

HDD interface ATA133/UDMA133 E-IDE

Hot swappable trays 2 x (1” height E-IDE drive)

Cooling Fan 6cm Ball Bearing Fan

Operating temperature

0℃∼55℃

Input voltage 90 –240V

Dimension (mm) 147(W) x 270(L) x 115(H)

Weight 4.5kg(HDD excluded)

Material Aluminum Case

LCD display Blue light

HD Hot swappable Yes

Auto rebuilding Yes

STARDOM IDE RAID Solution

Chapter 2

Hardware Installation

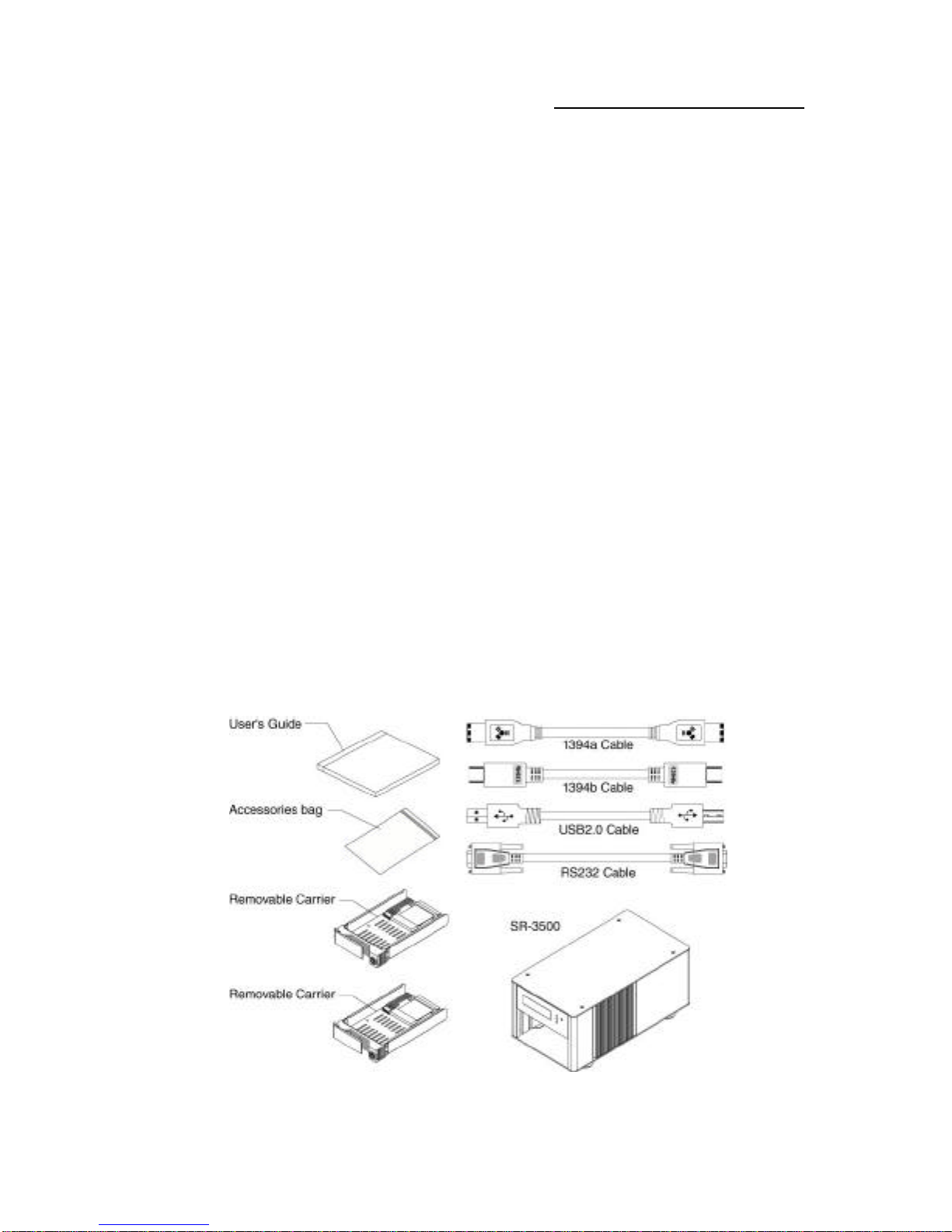

2-1Package Contents

Your SR3500 package includes the following：please contact our

distributors in case of any missing or damaged items.

Item Quantity

SR3500 1

1394 cable and USB cable 2

Removable Carrier 2

Simple User's Guide 1

RAIDGuide CD 1

Power code 1

Accessories bag 1

(Including 8 x 6#-32 screwsand key x 1 )

STARDOM IDE RAID Solution

2-2 System Requirements

※Hardware Requirements

1. Macintosh or PCs with FireWire IEEE-1394 Interface or USB

2.0 interface

2. HDD with standard EIDE/IDE Interface

※O.S. Requirements

1394a: Mac OS 8.6 or higher

Windows 98SE/ME/2000/XP

USB2.0: Mac 10.2.6 or higher

Window 98SE/ME/2000/XP

1394b : Mac 10.1.2or higher

Window2000/XP

STARDOM IDE RAID Solution

2-3 Environment Requirements and Cautions

1. Certainly, you can use two different drives in SR3500, but it will

get optimum performance and greatest convenience to use two

identical hard disks. We highly recommend using HDDs with the

same brand name at RAID 0 Mode.

2. We highly recommend you to decide the RAID Mode before

using SR3500. Unless you want to expand the capacity of

external hard disk, we recommend you to use the factory default

RAID 1 Mode for data security.

3. Use two hard disks in perfect conditions without any damaged

sectors with a minimum capacity of 3.2GB Ultra DMA 33/66.

4. No matter the primary or secondary disk, please set up both

Hard Disks in SR3500 to MASTER mode,or else HDD will not be

detected.

STARDOM IDE RAID Solution

2-4 Installing HDD in the Carrier

ŸSet Master/Slave jumpers to MASTER (factory default).

ŸConnect the power cord and the Removable Carrier’s EIDE/IDE

interface cable to the HDD.

ŸInset the HDD into the Removable Carrier.

ŸFasten the HDD with the attached 6#-32 screws in their four

locations. Place the power cord and the EIDE/IDE interface cable

right than the surface of the HDD in order to avoid any hindrance

when taking out the HDD. Please refer to the following illustration.
