Rail King Fire Station Bedienungsanleitung

M.T.H.

7020 Columbia Gateway Drive

Columbia, MD 21046-1532

www.mth-railking.com

The RailKing Operating Fire Station adds a splash of

life to your O Gauge layout. Constructed from sturdy

ABS plastic and brightly painted, the fire station

features a moving fire truck and fire fighter sliding

down the pole.

The fire station is pre-assembled, so set up is quick and

easy when you follow the diagram and instructions

inside.

ELECTRIC TRAINS, INC.

Station

Fire

WIRING INSTRUCTIONS

The RailKing® Fire Station is made up of three components: the fire station

building and base, the fire truck, and the activation button. Before you

place the fire station on the layout, you must wire the station to the

activation button and power source. In order to connect power to each

component, the six (6) enclosed wires must be connected to the wiring posts

located on the underside of the fire station and the activation button. Wires

from ports A-C control the fire truck operation. Wires from ports D-E control

the lights. Follow the diagram (Fig 1) shown to make the correct

connections.

Connect Red wire to

transformer AC and

connect Black wire to

activation button

Connect Black wire to

transformer ground

Connect Black wire to

activation button

Connect Red wire to

transformer AC

Connect Black wire to

transformer ground

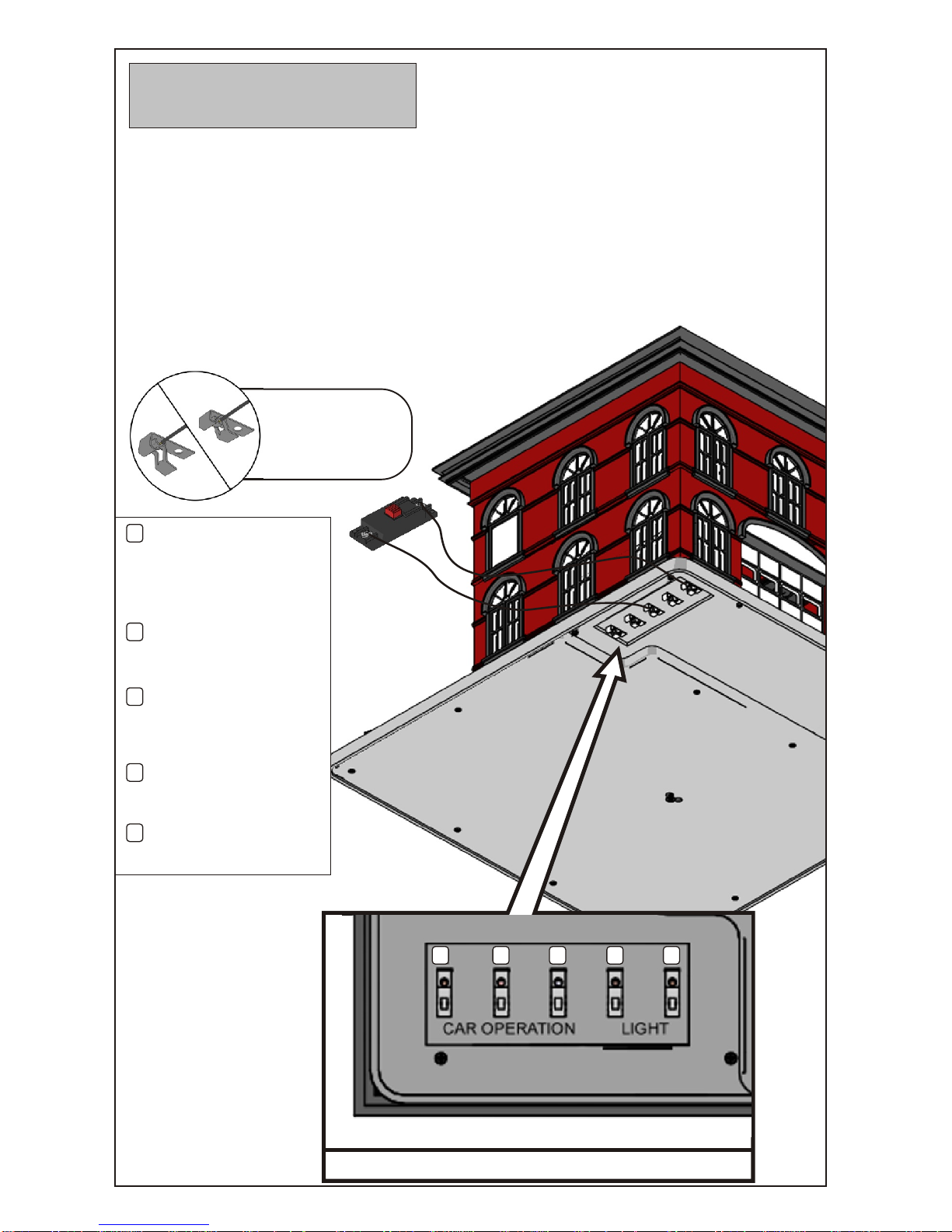

Fig 1. Wiring Diagram

A B C D E

Strip Z-wire cable harness

insulation to reveal 1/4” of

bare wire.

Final Touches: To protect some of the trim from breaking during transit, M.T.H.

has packaged it separately, in a small plastic bag. To complete set up, insert the

silver siren into the hole on the top of the fire house and insert the chrome

plated light housing into the small holes at the back of the fire truck. You may

choose to set up the Dalmatian and fire hydrant wherever you want or not use it

at all.

Operating Instructions: Once the fire station is wired to receive a 14-20 volt

minimum power supply from the transformer and the transformer is turned on,

simply press the activation button to start the fire station sequence.

In order to get the fire truck into the fire house, you must press the activation

button to begin the cycle. Once the small tab that will carry the truck along its

track has exited the fire house and come to a stop, place the truck onto the tab.

When you play the return sequence, the truck will be taken into the fire house.

In the beginning sequence, the red warning lights above the garage door will

begin blinking. Then the door will open, as a light comes on and a fire fighter

slides down the pole in the front window. Next, you will hear the fire truck start

and see it pull out of the station. The truck will leave the bay completely before

making a right hand turn and coming to a complete stop. After the truck has

stopped, it will remain stationary until the operator pushes the activation button

to return it to the station.

When you press the activation button a second time, the truck will start up and

roll backward into the fire station bay. Once it is in the bay, the motor sound

will shut off and the bay door will close, concluding the operation.

You can stop the motion and sound at any time by turning the power off or by

pressing the transformer's "Direction" button. Once the power is returned, the

truck will return to its starting position without sound effects.

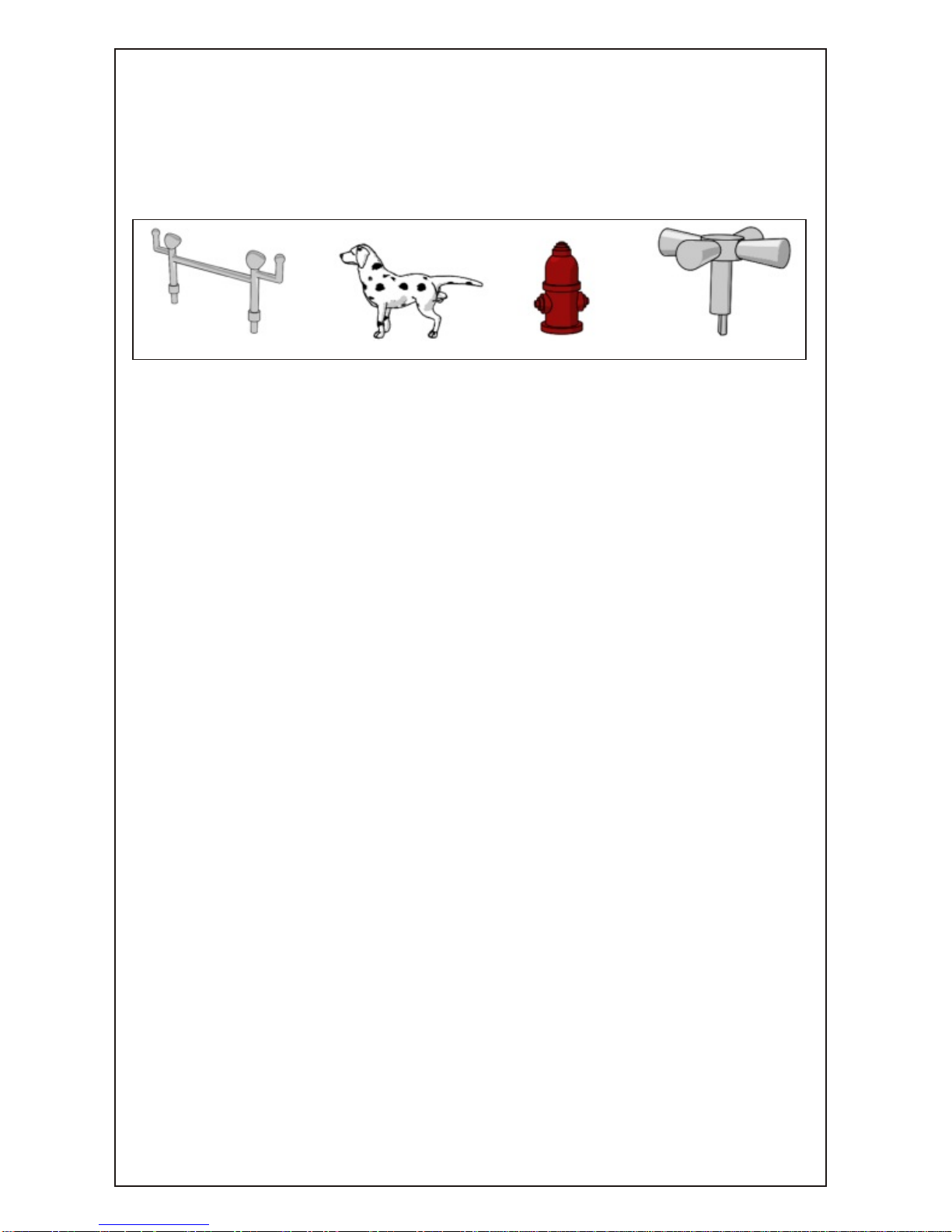

Chrome Plated Light Housing Dalmatian Hydrant Siren

Replacing the Light Bulbs: There are several easy-to-change light bulbs located

in the fire station. Follow the instructions below to change them.

1. Remove the fire truck from the station.

2. Turn the building and base upside down, propping it carefully, and remove

the ten (10) screws from the base cover. Then remove the three (3) gear

screws clustered at the center of the base (See Fig. 2)

3. Carefully remove the base cover.

4. Taking careful note of how the gear fits and remove it.

5. Remove the ten (10) housing screws (See Fig. 2)

6. Carefully turn the fire station back over and tilt the housing away from the

base.

7. Replace the lights bulbs as described below (See Fig. 3):

•Building Lights: Twist the light bulb counterclockwise to remove it.

Push the replacement bulb in and twist it clockwise.

•Fire Pole Light: Pull the light out and gently snap the new one in to

replace it (like Christmas tree lights).

Reassemble in the opposite order, taking care to align the gear and its screw

holes before replacing the bottom of the base.

You can obtain replacement bulbs directly from the M.T.H. parts department

(phone: 410-381-2580; e-mail: [email protected]; mail: 7020 Columbia

Gateway Drive, Columbia MD 21046-1532).

Remove these

ten screws Remove the ten

housing screws

Remove three

gear screws

Fig 2. Removing the two sets of ten screws to reveal the inside of the building

Fig 3. Locations of the interior bulbs of the Fire Station

Remove these

ten screws Remove the ten

housing screws

Remove three

gear screws

Fig 2. Removing the two sets of ten screws to reveal the inside of the building

Fig 3. Locations of the interior bulbs of the Fire Station

Remove these

ten screws Remove the ten

housing screws

Remove three

gear screws

Fig 2. Removing the two sets of ten screws to reveal the inside of the building

Fig 3. Locations of the interior bulbs of the Fire Station

Remove these

ten screws Remove the ten

housing screws

Remove three

gear screws

Fig 2. Removing the two sets of ten screws to reveal the inside of the building

Fig 3. Locations of the interior bulbs of the Fire Station

Building

Lights Fire Pole

Light

CAUTION: ELECTRICALLY OPERATED PRODUCT:

Not recommended for children under 8 years of age without adult supervision. As

with all electric products, precautions should be observed during handling and use to

reduce the risk of electric shock.

WARNING: When using electrical products, basic safety precautions should be

followed including the following:

• Read this manual thoroughly before using this device.

• M.T.H. recommends that all users and persons supervising use examine the unit

periodically for conditions that may result in the risk of fire, electric shock, or injury

to persons, such as damage to the primary cord, plug blades, housing, output jacks

or other parts. In the event such conditions exist, the unit should not be used until

properly repaired.

• This unit is intended for indoor use. Do not use if water is present. Serious injury or

fatality may result.

• Do not operate with damaged wires or clips.

• Do not use this unit for other than its intended purpose. This unit was designed to

operate with any AC or DC output toy train transformer. See the transformer's

operating instructions for more operating and safety information.

Notes:______________________________________________

___________________________________________________

How to Get Service Under the Terms of the Limited One-Year Warranty

For warranty repair, do not return your product to the place of purchase. Instead, follow the

instructions below to obtain warranty service, as our dealer network is not prepared to service

the product under the terms of this warranty.

1. First, write, call or FAX M.T.H. Electric Trains, 7020 Columbia Gateway Drive, Columbia,

MD 21046, (Tel: 410-381-2580; FAX : 410-423-0009; e-mail: [email protected]),

stating when it was purchased and what seems to be the problem. You will be given a return

authorization number to assure that your merchandise will be properly handled upon its receipt.

2. CAUTION: Make sure the product is packed in its original factory packaging including its

foam and plastic wrapping material so as to prevent damage to the merchandise. The shipment

must be prepaid and we recommend that it be insured. A cover letter including your name,

address, daytime phone number, e-mail address (if available), Return Authorization number,

a copy of your sales receipt and a full description of the problem must be included to facilitate

the repairs. Please include the description regardless of whether you discussed the problem

with one of our service technicians when contacting M.T.H. for your Return Authorization

number.

3. Please make sure you have followed the instructions carefully before returning any

merchandise for service.

Limited One-Year Warranty

All M.T.H. products purchased from an Authorized M.T.H. Train Merchant are covered

by this warranty.

See our website at or call 1-888-640-3700 to identify an Authorized

M.T.H. Train Merchant near you.

M.T.H. products are warrantied for one year from the date of purchase against defects in

material or workmanship, excluding light bulbs and traction tires. We will repair or replace (at

our option) the defective part without charge for the parts or labor, if the item is returned to

M.T.H. Electric Trains within one year of the original date of purchase. This warranty does not

cover damages caused by improper care, handling, or use. Transportation costs incurred by the

customer are not covered under this warranty.

Items sent for repair must be accompanied by a return authorization number, a description of the

problem, and the original sales receipt from an Authorized M.T.H. Train Merchant, which

gives the date of purchase. Call 410-381-2580, fax 410-423-0009, or e-mail the Service

Department at to obtain a return authorization number.

This warranty gives you specific legal rights, and you may have other rights that vary from state

to state.

Service Department

M.T.H. Electric Trains

7020 Columbia Gateway Drive

Columbia MD 21046-1532

www.mth-railking.com

[email protected]
