Ravelli Francesca Bedienungsanleitung
Brochure for
Francesca model
Brochure for Francesca model

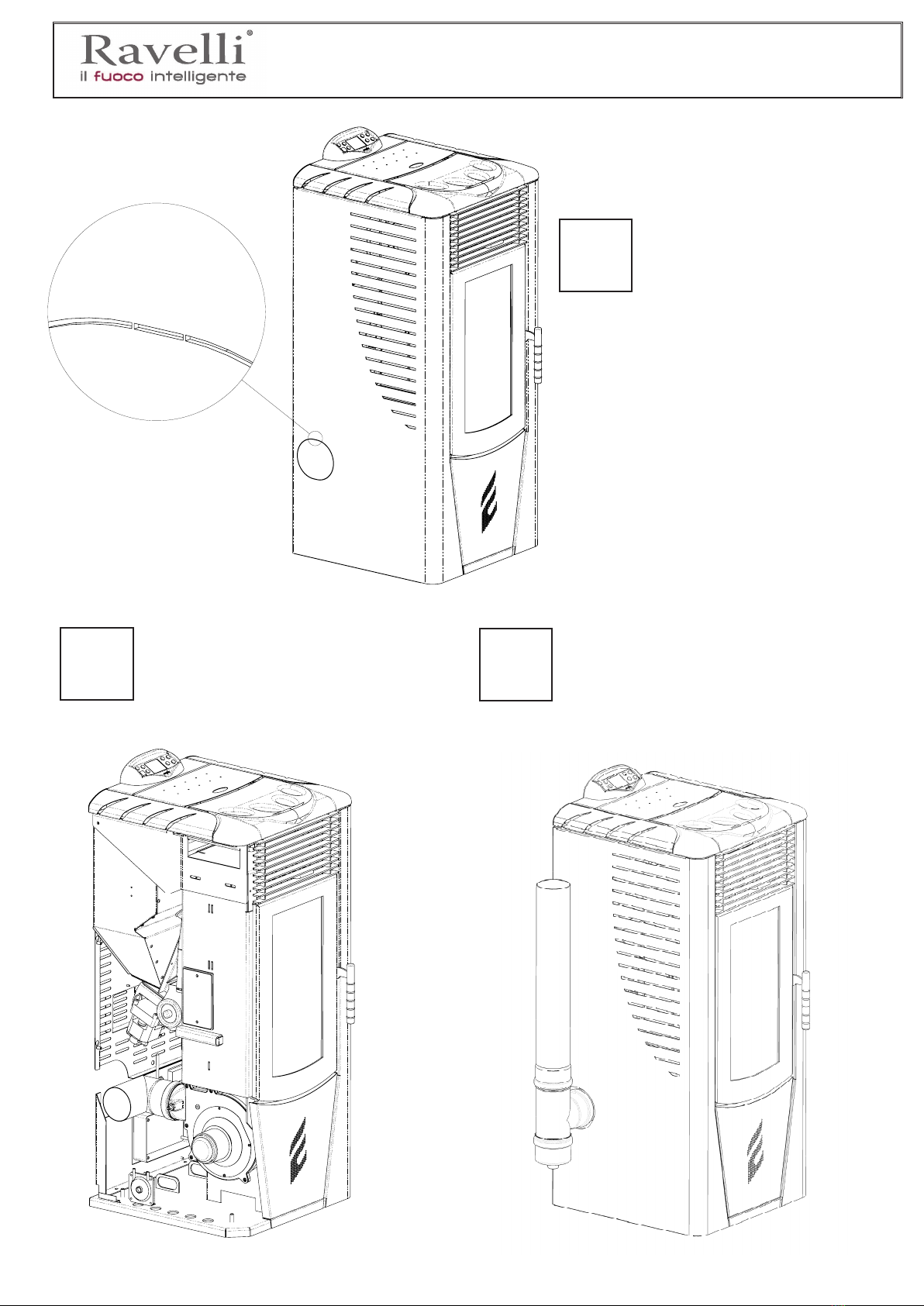

Preparing the stove: installation with side discharge
1
Remove the micro-connections
shown in the illustration
2
After removing the left side panel (see
points 1 to 5 in section “Access to
inspection hatches“), insert the 90° elbow
code ecoteck “5700-00-106“ 3
Remove the side panel, and then the
“T“ union with relevant extension
Brochure for Francesca model
Maintenance and cleaning:
Before carrying out any maintenance operation take the following precautions:
- Make sure that the general power switch has been disconnected.
- Make sure that all the parts of the stove are cold.
- Make sure that the ashes have cooled completely.
- Always use appropriate tools for maintenance.
- When you have nished maintenance reinstall all the safety guards before using the stove again.
The stove requires little maintenance if a quality pellet is used. Therefore it is difcult to establish how often the stove needs to be cleaned. The quality of the
pellet and the combustion adjustment are crucial.

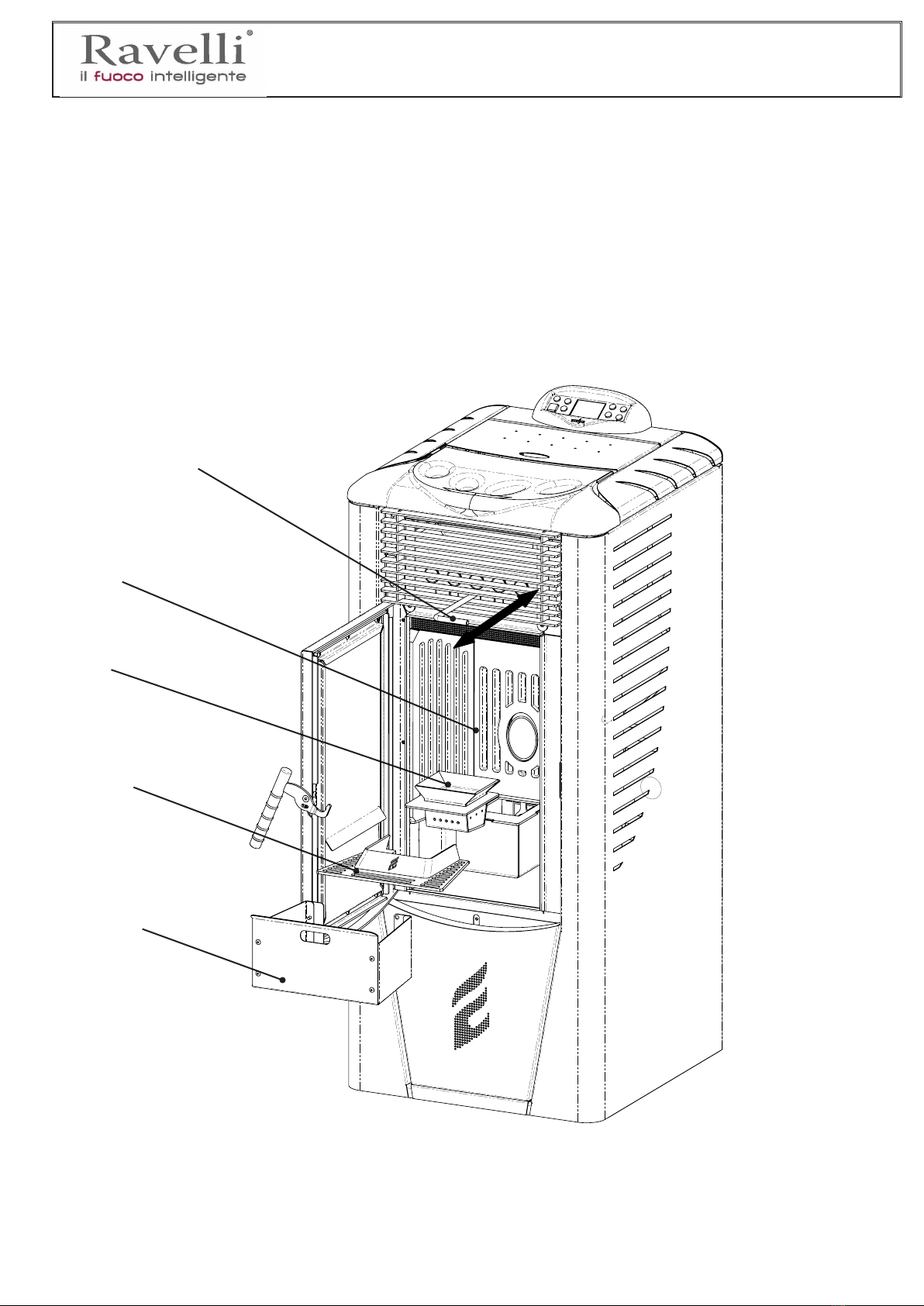

Cleaning the combustion chamber:
The stove requires simple but frequent cleaning to guarantee an efcient yield and correct functioning.
Therefore, clean the combustion chamber every day using a drum-type vacuum cleaner, making sure that the ashes have gone out completely.
Combustion chamber
Fire pot
Ashes drawer
Cleaning the re pot:
Clean the re pot as described in the dedicated chapter of the instruction manual.
Only a clean and tidy re pot can guarantee that the pellet stove will run without any problems.
Deposits may form while it is running and these must be eliminated immediately.
Correct, daily cleaning will allow the stove to burn properly and to give a good yield, avoiding problems that in the long term could require
the intervention of a technician to repair the stove.
Fire pot grill
Scraper
Brochure for Francesca model
Cleaning the ashes drawer:
The ashes drawer must be cleaned every 2 days, depending on the length of time the stove is used and the type of pellet used.
To access the drawer, open the door (see gure 1) and extract the ashes drawer (see gure 2).
N.B.: The operation must be carried out when the stove is cold, using a drum-type vacuum cleaner.
12
HOW TO REMOVE THE FLAME TRAP:
N.B.: REMOVE AND CLEAN THE FLAME TRAP
REGULARLY.
Phase A Phase B
POSITION OF
THE
FLAME TRAP
SLOT
FRONT FLAME TRAP REST
REAR FLAME TRAP REST
Brochure for Francesca model
Cleaning the suction duct (every 1000 hours):
The suction duct must be cleaned once every 3 months (the time may vary depending on the quality of the pellet used). Follow the opera-
tions illustrated in the images below to access the inspection hatches.
You are advised to agree this type of cleaning with your Ecoteck assistance centre.
N.B.: Use a drum-type vacuum cleaner only.
How to access the inspection hatches:
12
3
Remove the 4 screws that le attach
the rear grill to the side panels.
Remove the screws that
attach the side panels to
the stove.
Lift up the ceramic top
Brochure for Francesca model
4
5
Remove the screws that attach
the side panels to the top of the
stove
Remove the side
panel.
Brochure for Francesca model
INSPECTION HATCH
(2 ON THE RIGHT SIDE)
INSPECTION HATCH
(1 ON THE LEFT SIDE)
GASKET
GASKET
GASKET
SCRAPER
PARTS / FREQUENCY 1 DAY 2-3 DAYS 30 DAYS 60-90 DAYS 1 SEASON
Fire pot
Ashes drawer
Glass
Suction duct
Door gasket
Tube bundle scraper
Flue
Combustion chamber
Vacuum clean the pellet tank
Brochure for Francesca model
TECHNICAL DIAGRAM
981
257
578
43458
85,520
1029,4
749,5
385
190
432
257
80
35
399
10782
438
16 461
Mod.
DESCRIZIONE
Data
Dis.
Appr.
MODIFICHE
57000-00-001
-
MOD.
_
_
A1
(SCHEET)
FORMATO
FRANCESCA 2007
----
COMPLESSIVO STUFA "FRANCESCA 2007"
TOLLERANZE GENERALI PER QUOTE LINEARI, ANGOLARI, SMUSSI E
RACCORDI, CLASSE FINE UNI EN 22768-1, DOVE NON INDICATE
1:5
FCH
C.Facecchia
martedì 11 settembre 2007
SCALA
(SCALE
)
DENOMINAZIONE
(DENOMINATION
)
s.r.l
ECOTECK
MATRICE DI PIEGA
will be legally pursued.
diritti a rigore di legge.
and must not be released to other parties without written consent any infringement
in any way utilized for the manifacture of the component of unit herein illustrated
All proprietary right reserved by Society ECOTECK s.r.l. This drawing shall not be reproduced or
ne venire comunicato a terzi o riprodotto. La Societa' proprietaria tutela i propri
disegno non potra' essere comunque utilizzato per la costruzione dell' oggetto rappresentato
Proprieta' della Societa' ECOTECK s.r.l. Senza autorizzazione scitta della stessa, il presente
MODIFICARE SOLO SU CAD
(CHECKED)
CONTR.
(WEIGHT)
PESO Kg
DIS.
MATERIALE
(MATERIAL)
(DESIGNER)
DATA
(DRWG NR.)
N. DISEGNO
(DATE)
CAD DRAWNING HANDLING ON CAD SYSTEM ONLY
MODELLO
(MODEL)
TRATTAM. SUPERFICIALE
