Raven SmarTrax Bedienungsanleitung
Universal Hydraulic Steering Kit
SmarTrax™ Installation Manual
P/N 016-9001-008 Rev D 09/15
Copyright 2009, 2015
While every effort has been made to ensure the accuracy of this document,
Raven Industries assumes no responsibility for omissions and errors. Nor is any
liability assumed for damages resulting from the use of information contained
herein.
Raven Industries shall not be held responsible or liable for the effects of
atmospheric conditions and sunspot activity on the performance of our products.
Raven Industries cannot guarantee the accuracy, integrity, continuity, or
availability of the GPS signal from the U.S. Department of Defense/NAVSTAR
GPS satellites, the OmniSTAR correction service or the WAAS correction
service.
Raven Industries accepts no responsibility for the use of the signal for other than
the stated purpose. Raven Industries shall not be responsible or liable for
incidental or consequential damages or a loss of anticipated benefits or profits,
work stoppage or loss or impairment of data arising out of the use, or inability to
use, the SmarTrax or any of its components.
Disclaimer
Manual # 016-9001-008
1
C H A P T E R
1
INTRODUCTION
About this Guide
The aim of this guide is to provide up to date reference information about installation of
SmarTrax.
Who is it for
This guide is intended for use by distributors who install new SmarTrax systems for Raven
Industries.
What it covers
This guide presents:
•a parts checklist for steering installation
•installation procedures for SmarTrax hydraulic kit and cable routing
Updates
This guide will be updated periodically to reflect changes and additions to the range of
SmarTrax products and to ensure that this guide fulfills user’s needs for reference
information. Updates will be supplied as soon as they are available.
Univ. Hyd. Steering Kit Install Guid for Open Center Hydraulic Systems
2
Notes:
Manual # 016-9001-008
3
C H A P T E R
2
SAFETY REQIUREMENTS
This section is divided between general safety precautions, specific safety
measures for hydraulic and electrical system, and safety symbols used in this
document.
The machine must remain stationary and switched off, and Steering
AssistTM disengaged while installation or maintenance is being carried
out.
Safety Precautions
•When working with or near a machine with SmarTrax installed, the following
safety measures must be observed. The operator must:
•Be alert and aware of surroundings.
•Avoid operating the SmarTrax while under the influence of alcohol or an
illeagal substance.
•Remain in the operator’s positon at all times when SmarTrax is engaged.
•Be in complete control of machine at all times when SmarTrax is
engaged.
•Remain with boundaries of a defined field when SmarTrax is engaged.
•Avoid driving the machine with SmarTrax engaged on any public
thoroughfare or main road.
•Determine and remain a safe working distance from other machinery,
equipment, and obtacles. The operator is responsible for disengaging
SmarTrax when safe working distance has dimished.
Univ. Hyd. Steering Kit Install Guid for Open Center Hydraulic Systems
4
•Dtermine and remain a safe working distance from other farm personnel
or bystanders. The operator is responsible for disengaging SmarTrax
when safe working distnace has dimished.
•Ensure SmarTrax is disengaged prior to starting any maintenance work
on SmarTrax or machine.
Hydraulic Safety Precautions
When disconnecting hydraulic hoses or when purging is required, be aware that
hydraulic oil may be hot and under high pressure. Caution must be exercised.
Any work carried out on the hydraulics system must be performed in accordance
with machine manufacturer’s approved maintenance instructions.
Raven Industries recommends that appropriate protective equipment be worn.
It is imperative that, during installation, diagnostics, maintenance, or routine
machine servicing, all precautions are taken to prevent foreigm material or
contaminants from being introduced into the hydraulic system.
Objects or materials that are able to bypass the machine’s hydraulic filtration
system will adversely reduce performance, and possible damage hydraulic
valves.
Electrical Safety Precautions
Do not reverse power leads. Doing so will cause severe damage to equipment.
Always check to macke sure that power leads are connected to the correct
polarity as marked.
Ensure that power cable is the last cable to be connected.
Safety Symbols
WARNING: Identifies information about practives or
circumstances that can lead to personal injury or death, property
damage or economic loss.
Warning statements help you:
•Identify a hazard
•Avoid a hazard
•Recognize consequences
NOTE: Identifies information that is critical for successful
application and understanding of the product.
WARNING
Manual # 016-9001-008
5

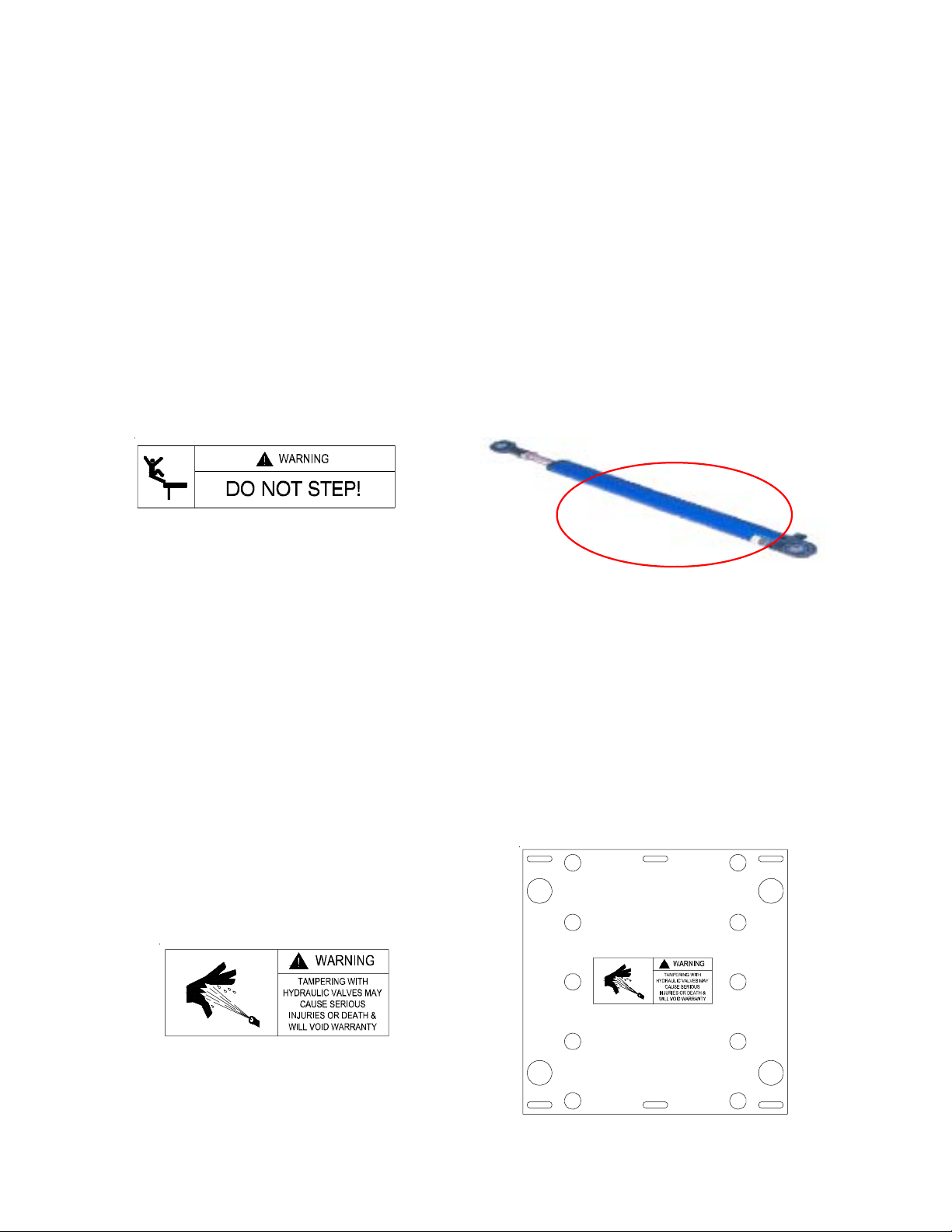

Safety Warning Labels have been provided to highlight to users the importance of:
•Avoiding damage to Steering Position Sensor
•Not tampering with SmarTrax hydraulic valves
These warning labels are to be placed in the specified locations as indicated
below.
Steering Position Sensor Warning Label
It is essential to avoid damage to Steering Position Sensor (SPS). Raven
Industries has provided a ‘Do Not Step’ warning label. Place label on top
surface of Steering Position Sensor (as shown below) facing up and visible
to operator.
Hydraulic Warning Label
This label should be placed on the steering assist manifold or on the Hydraulic
Valve Mounting Bracket as shown below. ‘Tampering with hydraulic valves
may cause serious injuries or death & will void warranty’.
NOTE: The picture below is only an example of where to place the hydraulic
warning label on the steering assist manifold. Placement will vary depending on
the valve used.
Steering Position Sensor Warning label
Hydraulic Warning label
Safety
Warning
Labels
Univ. Hyd. Steering Kit Install Guid for Open Center Hydraulic Systems
6
This section outlines the safety requirements used when driving a vehicle using
the SmarTrax system.
Areas of Operation
SmarTrax must only be used on private property without public access and within
cleared fields. It must NOT be used on any public roads or access ways. Raven
Industries advise that users familiarize themselves with SmarTrax operations by
first reading the Machine Operator Guide.
Avoidance of People
The SmarTrax must not be operated in the vicinity of bystanders. Bystanders
must be well away from the machine’s path while it is operating with SmarTrax
engaged.
Avoidance of Machinery and Equipment
The SmarTrax operator must allow a safe distance between the machine’s path
and other machinery or equipment. To determine a safe distance, consider
possible incorrect operation, loss of GPS and the distance required for the
machine to stop.
Avoidance of Obstacles
SmarTrax CANNOT detect obstacles such as fences, trees or boulders that are
located within a defined field. SmarTrax assists the machine operator to steer
the machine in straight lines in cleared fields. The machine operator must be
conscious of and avoid obstacles.
Responsibilities of Operator
The machine operator must remain in complete control of the machine at all times.
Hands free operation occurs only when SmarTrax is enabled.
The machine operator remains fully responsible for machine operation and must
remain in the operator’s position at all times while SmarTrax is engaged.
Disengaging SmarTrax
The operator must disengage SmarTrax if an obstacle is in the line of travel. The
operator must disengage SmarTrax by using one of the following methods listed
below:
•Turn steering wheel in the normal manner
•Stop machine
•Press remote activation switch
Driving
Safety
Requirements
Manual # 016-9001-008
7
We welcome your feedback about this manual. If you have any comments or
suggestions for improvement, please let us know by contacting our Customer
Support Center by any of the following methods:
Via phone: 1-800-243-5435
Viamail:
Raven Industries
FlowControlDivision
205 E. 6th St.
Sioux Falls, SD 57104
Via email: [email protected]
Contacting
Raven
Industries
Operational Emergeny Safety Steps
In case of an emergency, take one of the following steps to disengage SmarTrax:
•Press brake and decelerate to under 1.6 mph / 1 kph;
•Turn steering wheel in the normal manner; or
•Press remote activation switch
Univ. Hyd. Steering Kit Install Guid for Open Center Hydraulic Systems
8
Notes:
