Raven SmarTrax Bedienungsanleitung

MacDon M150, M155, M200, and

M205 Series Windrower

SmarTrax™ Installation Manual

P/N 016-5030-009 Rev B 09/15 E20834

While every effort has been made to ensure the accuracy of this document,

Raven Industries assumes no responsibility for omissions and errors. Nor is any

liability assumed for damages resulting from the use of information contained

herein.

Raven Industries shall not be responsible or liable for incidental or consequential

damages or a loss of anticipated benefits or profits, work stoppage or loss, or

impairment of data arising out of the use, or inability to use, this system or any of

its components. Raven Industries shall not be held responsible for any

modifications or repairs made outside our facilities, nor damages resulting from

inadequate maintenance of this system.

As with all wireless and satellite signals, several factors may affect the availability

and accuracy of wireless and satellite navigation and correction services (e.g.

GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot guarantee the

accuracy, integrity, continuity, or availability of these services and cannot

guarantee the ability to use Raven systems, or products used as components of

systems, which rely upon the reception of these signals or availability of these

services. Raven Industries accepts no responsibility for the use of any of these

signals or services for other than the stated purpose.

Disclaimer

©Raven Industries, Inc. 2012, 2013

Table of Contents

Manual No. 016-5030-009 Rev. B i

Chapter 1 Important Safety Information................................................. 1

Hydraulic Safety ........................................................................................................................ 2

Electrical Safety ........................................................................................................................ 2

Chapter 2 Introduction............................................................................. 3

Preparing for Installation ........................................................................................................... 3

Recommendations .............................................................................................................. 4

Point of Reference ............................................................................................................... 4

Updates ..................................................................................................................................... 4

Kit Contents ............................................................................................................................... 5

Chapter 3 Cab Component Installation .................................................. 7

Install the SmarTrax Node ......................................................................................................... 7

Mount the SmarTrax Node .................................................................................................. 7

Node Mounting Locations .................................................................................................... 8

Install the Node Harness ........................................................................................................... 9

Install the Valve Harness ......................................................................................................... 11

Install the Chassis Cable ......................................................................................................... 13

Calibrate the SmarTrax System .............................................................................................. 13

System Diagram ...................................................................................................................... 14

Table of Contents

ii MacDon M150, M155, M200, and M205 Series Windrower SmarTrax™ Installation Manual

CHAPTER

Manual No. 016-5030-009 Rev. B 1

C hapt er 1

Important Safety

Information

Read this manual and the operation and safety instructions included with your implement and/or controller

carefully before installing the SmarTrax™ system.

•Follow all safety information presented within this manual.

•If you require assistance with any portion of the installation or service of your Raven equipment, contact

your local Raven dealer for support.

•Follow all safety labels affixed to the SmarTrax system components. Be sure to keep safety labels in good

condition and replace any missing or damaged labels. To obtain replacements for missing or damaged

safety labels, contact your local Raven dealer.

When operating the machine after installing SmarTrax, observe the following safety measures:

•Be alert and aware of surroundings.

•Do not operate SmarTrax or any agricultural equipment while under the influence of alcohol or an illegal

substance.

•Remain in the operator’s position in the machine at all times when SmarTrax is engaged.

•Disable SmarTrax when exiting the operator’s seat and machine.

•Do not drive the machine with SmarTrax enabled on any public road.

•Determine and remain a safe working distance from other individuals. The operator is responsible for

disabling SmarTrax when the safe working distance has diminished.

•Ensure SmarTrax is disabled prior to starting any maintenance work on SmarTrax or the machine.

•When starting the machine for the first time after installing SmarTrax, be sure that all persons stand clear in

case a hose has not been properly tightened.

•The machine must remain stationary and switched off during SmarTrax installation or maintenance.

NOTICE

WARNING

Chapter 1

2 MacDon M150, M155, M200, and M205 Series Windrower SmarTrax™ Installation Manual

Hydraulic Safety

•Raven Industries recommends that appropriate protective equipment be worn at all times when working on

the hydraulic system.

•Never attempt to open or work on a hydraulic system with the equipment running. Care should always be

taken when opening a system that has been previously pressurized.

•When disconnecting the hydraulic hoses or purging is required, be aware that the hydraulic fluid may be

extremely hot and under high pressure. Caution must be exercised.

•Any work performed on the hydraulic system must be done in accordance with the machine manufacturer’s

approved maintenance instructions.

•When installing SmarTrax hydraulics or performing diagnostics, maintenance, or routine service, ensure

that precautions are taken to prevent any foreign material or contaminants from being introduced into the

machine’s hydraulic system. Objects or materials that are able to bypass the machine’s hydraulic filtration

system will reduce performance and possibly damage the SmarTrax valve.

Electrical Safety

•Always verify that the power leads are connected to the correct polarity as marked. Reversing the power

leads could cause severe damage to the equipment.

•Ensure that the power cable is the last cable to be connected.

CAUTION

CHAPTER

Manual No. 016-5030-009 Rev. B 3

C hapt er 2

Introduction

Congratulations on your purchase of the SmarTrax system! This system is designed to provide cutting-edge,

hands-free steering of the machine via Global Positioning System (GPS) coordinates.

This manual applies to the following machines:

MAKE: MacDon Windrower

MODEL: M150, M155, M200, and M205

FIGURE 1. MacDon M205

Preparing for Installation

Important: Install the MacDon AutoSteer hydraulic interface kit (MacDon P/N B5589) on the machine before

installing the SmarTrax system. Contact your local MacDon dealer for ordering information.

Before installing the SmarTrax system, park the machine where the ground is level, clean, and dry. Turn off the

machine and leave it turned off for the duration of the installation process.

During the installation process, follow good safety practices. Be sure to carefully read the instructions in this

manual as you complete the installation process.

Chapter 2

4 MacDon M150, M155, M200, and M205 Series Windrower SmarTrax™ Installation Manual

Recommendations

Raven Industries recommends the following best practices when installing or operating the SmarTrax system

for the first time, at the start of the season, or when moving the SmarTrax system to another machine:

•Install the GPS antenna in the recommended location. Refer to the following table for the machine-specific

antenna mounting location.

•Ensure the machine’s hydraulic filters have been recently changed and there are no issues with the

machine’s hydraulic system (e.g., pump issues, faulty hydraulic motors, fine metal deposits in the hydraulic

hoses, etc.).

•Ensure the machine’s hydraulic system is using fresh oil and debris is flushed from the hydraulic hoses,

valves, and filters.

Raven Industries recommends the following best practices when installing the SmarTrax system:

•Use part numbers to identify the parts.

•Do not remove the plastic wrap from a part until it is necessary for installation.

•Do not remove plastic caps from a part until it is necessary for installation.

Point of Reference

The instructions in this manual assume that you are standing behind the machine, looking toward the cab.

Updates

Software and manual updates are available on the Raven Applied Technology website:

http://www.ravenhelp.com

Machine Preset Antenna X Position

(left to right)

Antenna Y Position

(front to back in

inches)

Antenna Z Position

(ground to top of

antenna in inches)

MacDon 205 Centered 159 135

Manual No. 016-5030-009 Rev. B 5

Introduction

Kit Contents

This section contains a list of the components that are included in the SmarTrax kit. Before beginning the

SmarTrax installation, compare the items in the kit with the components on this list. If you have questions about

the kit, contact your Raven dealer.

At Raven Industries, we strive to make your experience with our products as rewarding as

possible. One way to improve this experience is to provide us with feedback on this manual.

Your feedback will help shape the future of our product documentation and the overall service

we provide. We appreciate the opportunity to see ourselves as our customers see us and are

eager to gather ideas on how we have been helping or how we can do better.

To serve you best, please send an email with the following information to

[email protected]

-MacDon M150, M155, M200, and M205 Series Windrower SmarTrax™ Installation Manual

-Manual No. 016-5030-009 Rev. B

-Any comments or feedback (include chapter or page numbers if applicable).

-Let us know how long have you been using this or other Raven products.

We will not share your email or any information you provide with anyone else. Your feedback

is valued and extremely important to us.

Thank you for your time.

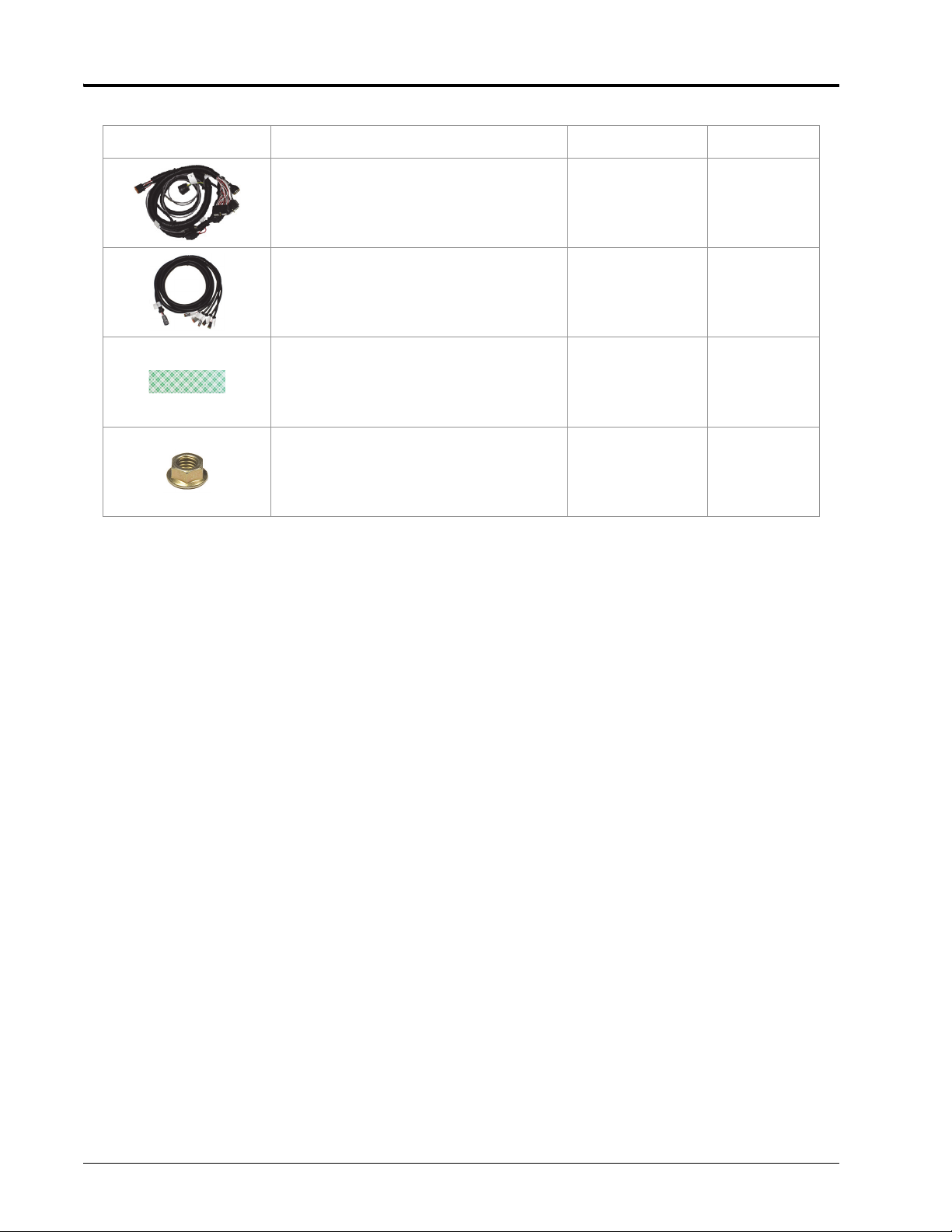

TABLE 1. SmarTrax Installation Kit (P/N 117-5030-009)

Picture Item Description Part Number Qty.

Not Pictured Manual - MacDon M-Series Windrower

SmarTrax Installation 016-5030-009 1

Not Pictured Manual - SmarTrax and SmartSteer

Calibration & Operation 016-0171-277 1

Node - SmarTrax 3D CAN Control 063-0173-484 1

Bracket - Node Mounting 107-0172-055 1

Chapter 2

6 MacDon M150, M155, M200, and M205 Series Windrower SmarTrax™ Installation Manual

Cable - Node Harness 115-4001-166 1

Cable - Valve Harness 115-4001-167 1

Tape - 3.5” Double-Sided 332-0000-019 6

Nut - 3/8”-16 Zinc Flanged Lock 312-1001-164 3

TABLE 1. SmarTrax Installation Kit (P/N 117-5030-009)

Picture Item Description Part Number Qty.
