Raven SmarTrax Bedienungsanleitung

Supplement & Installation Manual

GVM Prowler

RavenIndustries

FlowControls Division

P.O. Box 5107

Sioux Falls, SD 57117-5107

TollFree800-243-5435

Fax 605-331-0426

www.ravenprecision.com

[email protected]

DISCLAIMER

While every effort has been made to ensure the accuracy of this document, Raven

Industries assumes no responsibility for omissions and errors. Neither is any liability

assumed for damages resulting from the use of information contained herein.

Raven Industries shall not be held responsible or liable for the effects of atmospheric

conditions and sunspot activity on the performance of our products.

Raven Industries cannot guarantee the accuracy, integrity, continuity, or availability of

the GPS signal from the US Department of Defense/NAVSTAR GPS satellites, the

OmniSTAR correction service or the WAAS correction service.

Raven Industries accepts no responsibility for the use of the signal for other than the

stated purpose. Raven Industries shall not be responsible or liable for incidental or

consequential damages or a loss of anticipated benefits or profits, work stoppage or

loss or impairment of data arising out of the use or inability to use the Smartrax or any

of its components.

Manual # 016-0190-020

C H A P T E R

INTRODUCTION

Congratulations on your purchase of the Raven SmarTrax system! This system is designed

to provide cutting-edge, hands-free steering of your machine via GPS coordinates.

GVM Prowler SmarTrax Installation Manual

Basic Kit

Contents

Below you will see the kit contents that you should have received with this SmarTrax

kit.

GVM Prowler SmarTrax Kit Contents

ytitnauQnoitpircseDmetIrebmuNtraP

1SPS,tiK100-1810-360

1edirrevO/dioneloSciluardyH,elbaC664-1710-511

1"A"traP,.

gtM.dyH.vinU,tekcarB,tnemdleW725-9510-611

1.jdAraB001-51,DH,orciM,.sserP,hctiwS470-0000-224

1MWP,retneCnepO

,.dyH,evlaV460-3000-433

4xeH"8/7x81-61/5,tloB401-2500-113

4"1xCNU61-"8/3,xeH,tloB501-4500-113

461-8/3,tuN730-10

01-213

4"61/5,kcoL,rehsaW910-0001-313

4"8/3,tilpS,kcoL,rehsaW220-0001-313

4"8/3,talF,rehsaW310-0032-313

1noitall

atsnI,launaM020-0910-610

1xartramS,noitallatsnI,launaM800-1009-610

1petStoNoD,gninraW,lebaL886-9510-140

1gnire

pmaT,gninraW,lebaL986-9510-140

2F/MCIJ6-,leviwS°09,woblE,.gtF240-2100-333

3F/M/MCIJ6-,eeTnuRleviwS,retpadA,

.gtF340-2100-333

2F/MCIJ8-,leviwS°09,woblE,.gtF460-2100-333

1FJ8"848-FJ8,.dyH,esoH331-0001-412

1FJ6"066-S09FJ8

,.dyH,esoH431-0001-412

3FJ6"696-S09FJ8,.dyH,esoH531-0001-412

1FJ8"698-S09FJ8,.dyH,esoH631-0001-412

2FJ6"846-S0

9FJ6,.dyH,esoH931-0001-412

Manual # 016-0190-020

C H A P T E R

SAFETY

Important: Hydraulics are under pressure. Never attempt to

open or work on a hydraulic system with the equipment running.

Care should always be taken when first opening a system that

was previously pressurized.

When disconnecting the hydraulic hoses or when purging is required, be aware

that the hydraulic oil within the machine system may be extremely hot and under

high pressure. Caution must be exercised. Any work carried out on the hydraulic

system must be performed in accordance with the machine manufacturerer’s

approved maintenance instructions. Raven Industries recommends that appropri-

ate protective equipment be worn when working on the hydraulic system. Ob-

jects or materials that are able to bypass the machine’s hydraulic filtration system

will adversely reduce performance and possibly damage the hydraulic valves.

Do not reverse the power leads. Doing so will cause severe damage to the

equipement. Always check to make sure that the power leads are connected to

the right polarity as marked. Ensure that the power cable is the last cable to be

connected.

Hydraulic

Safety

Requirements

Electical

Safety

Requirements

GVM Prowler SmarTrax Installation Manual

We welcome your feedback about this manual. If you have any comments or

suggestions for improvement, please let us know by contacting our Customer

Support Center by any of the following methods:



Via phone: 1-800-243-5435



Viamail:

Raven Industries

FlowControl Division

205 E. 6th St.

Sioux Falls, SD 57104



Via email: [email protected]

Contacting

Raven

Industries

Manual # 016-0190-020

C H A P T E R

MOUNTING THE UNIVERSAL BRACKET AND VALVE

Attach the universal mounting bracket on the right side of the machine using the

provided 1/2” hex head bolts. (See pictures below). Drill holes to fit the

mounting bracket pattern in the welded gusset between the right side frame rail

and the cross-member support. The picture on page 6 shows the bracket

mounted to the machine with the valve attached.

Mounting the

Universal

Bracket

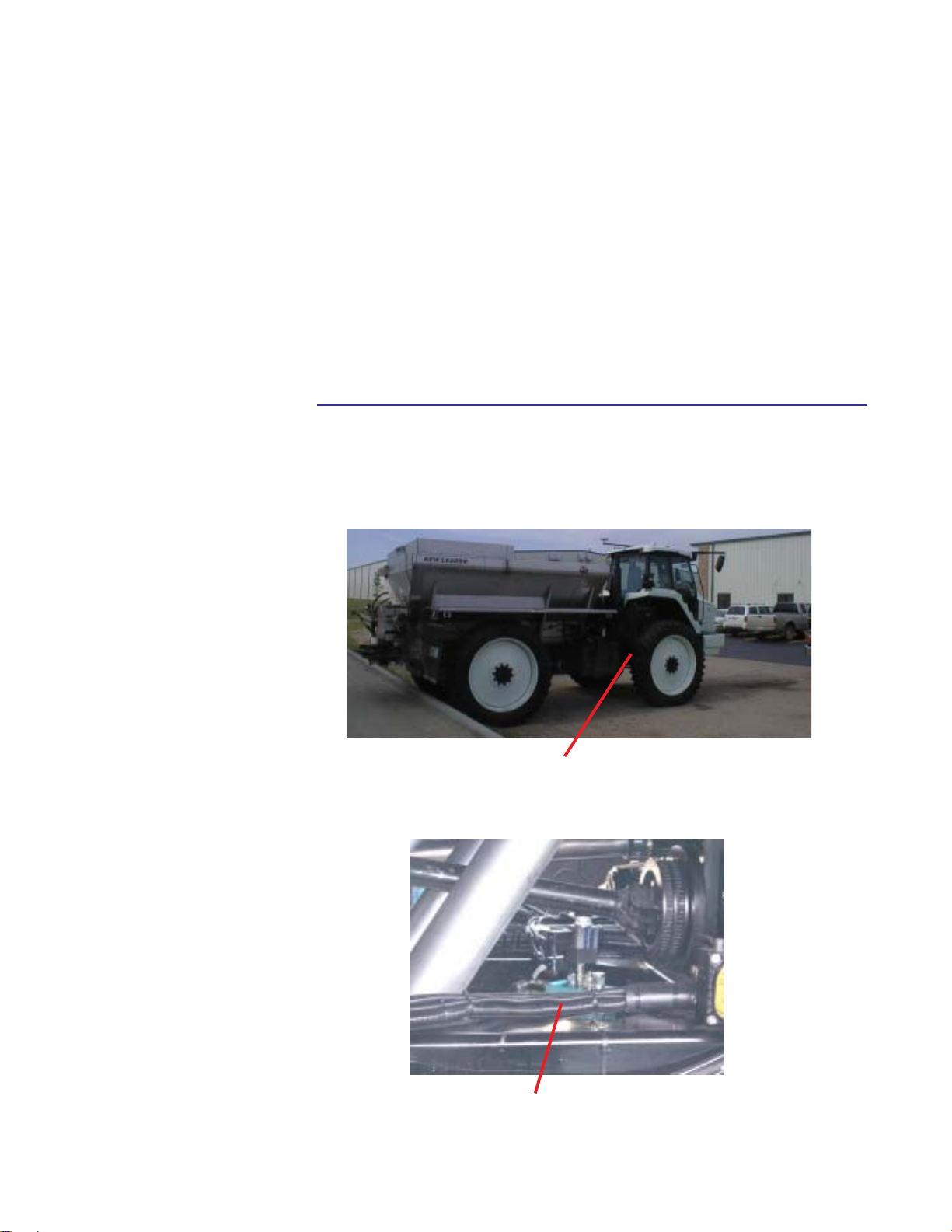

WheelAngle Sensor and hydraulic valve are mounted on the right

side of the machine. Valve control cables are run along the frame

up into the cab through the trap door in the floor board.

Hydraulic valve and pressure switch looking in

from left side wheel well.

GVM Prowler SmarTrax Installation Manual

Mounting the

Hydraulic Valve

and Pressure

Switch

Position the hydraulic valve on the universal bracket over the top of the proper

hole pattern. Secure the valve to the bracket using the provided metric bolts and

lock washers.

Helpful Hint: It may be necessary to drill additional holes

in the mounting bracket if the valve is not in an accessible

position.

Attach the pressure switch to the PS-port on the valve.

Manual # 016-0190-020

C H A P T E R

HYDRAULICS

New hoses should be run so they follow the routing of the old hoses. Use the

machines existing rubber-covered rings (shown in picture below) on the

underside of the frame to assist in routing.

Hose Routing &

Connections

Valve mounting

bracket attached to

frame gusset

Hoses routed

through rings

GVM Prowler SmarTrax Installation Manual

Pressure Hose

Remove the existing pump to orbital hose from the machine and connect the

provided pressure hose (P/N 214-1000-133) with the straight adapter end to

the pump. Route the hose along the frame to the P-Port on the Smartrax

valve. Attach the end to the P port on the Raven Smartrax valve using a 90°

fitting if necessary.

Excess Flow Hose

Attach a 90° elbow adapter fitting to the EF port on the Smartrax valve and

connect the straight end of the excess flow hose (P/N 214-1000-136) to the EF

port on the Smartrax valve. Connect the 90° fitting end of the hose to the open

pressure port on the steering orbital.
