Razer RZ03-0411 Bedienungsanleitung
.
RAZER WIRELESS KEYBOARD
MODEL: RZ03-0411
IMPORTANT PRODUCT INFORMATION GUIDE
11-NOV-2021
FOR GAMERS. BY GAMERS.
™
1
WHAT’S INSIDE
Razer RZ03-0411
A.
Volume control keys
B.
Mail key
C.
Refresh key
D.
Media keys
E.
Calculator key
F.
My Computer key
G.
Backlight control keys
H.
LED indicators*
I.
Reset button
J.
Type C port
K.
Mode switch
2.4Ghz
Off (wired)
Bluetooth
L.
Power indicator
M.
Magnetic dongle compartment
N.
Kickstand
*Limited functionality on selected devices.
FOR GAMERS. BY GAMERS.™
2

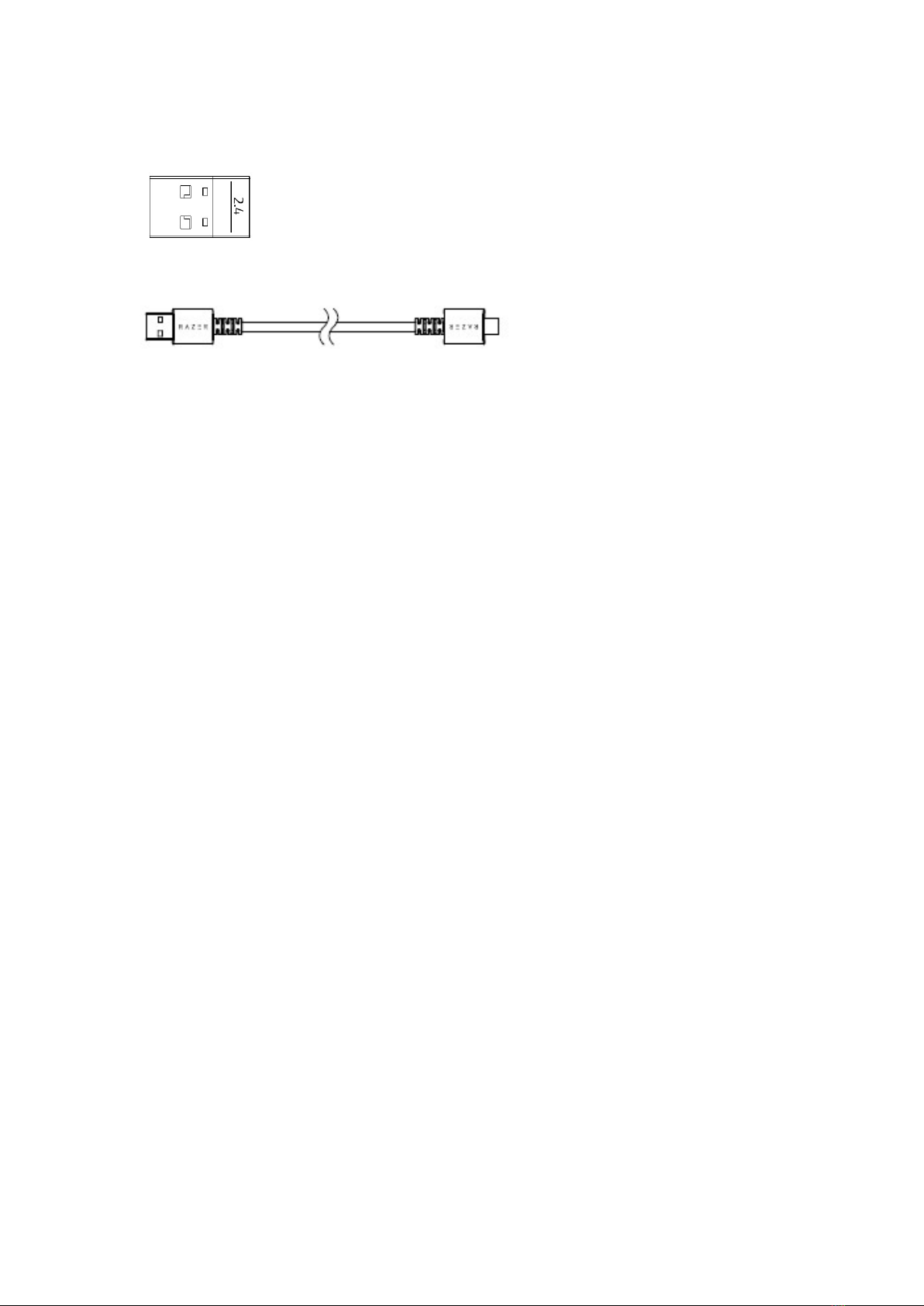

Razer™ HyperSpeed Multi-Device Dongle
Type C to Type A cable
Important Product Information Guide
FOR GAMERS. BY GAMERS.™
3
WHAT’S NEEDED
PRODUCT REQUIREMENTS
PC with a free USB port or Bluetooth 5.0 connectivity
RAZER SYNAPSE 3 REQUIREMENTS
Windows® 10 64-bit (or higher)
Internet connection for software installation
LET’S GET YOU COVERED
You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now
maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com
Got a question? Ask the Razer Support Team at support.razer.com
Your product’s serial
number can be found here.
FOR GAMERS. BY GAMERS.
™
4
SETTING UP YOUR RAZER RZ03-0411
1.
Connect your keyboard to a powered USB port using the Type C to Type A cable to charge
your keyboard. The power indicator will turn solid green when the keyboard is fully charged.
For best results, fully charge your keyboard before using it for the first time. It takes
approximately 2 hours to fully charge your keyboard. You may continue using the keyboard
while plugged in.
When your keyboard is not charging, the power indicator will only briefly display its battery
status.
Mode Charged Low Critical*
2.4 / BT
OFF
*Critical status indicates that the keyboard’s battery is less than 3%. This lighting sequence will
repeat until the battery is drained or the keyboard is being charged.
FOR GAMERS. BY GAMERS.™
5
2. Set the mode switch to your preferred mode.
2.4 GHz mode
1. Set the mode switch to 2.4.
2. Detach the Razer™ HyperSpeed Multi-Device Dongle from the magnetic dongle
compartment and connect it to your computer.
BT mode
1. Set the mode switch to BT.
FOR GAMERS. BY GAMERS.
™
6
2.
Up to 3 Bluetooth devices can be paired and registered to your keyboard (one for each
profile). To activate the pairing mode of your preferred profile, press and hold its
corresponding shortcut for 5 seconds. The LED indicators will then display which Profile
has been activated.
3.
Enable Bluetooth on your device and select Razer RZ03-0411 from the list of devices
found. The device will pair with your keyboard and the connection will be registered on
the active profile.
Pressing the fn key will display which profile is active on the LED indicators. Moreover,
when pairing new devices with your keyboard, it is recommended that you register the
new device on a different profile so you may still use the other profiles to reconnect
with previous devices. Learn more about Bluetooth profiles
Shortcut Profile Status
fn + 1 Profile 1
fn + 2 Profile 2
fn + 3 Profile 3
FOR GAMERS. BY GAMERS.
™
7
WIRED MODE
1.
Set the mode switch to OFF.
2.
Connect your Razer device to the USB port of your computer.
Install Razer Synapse 3 when prompted or download the installer from razer.com/synapse.
FOR GAMERS. BY GAMERS.
™
8
USING YOUR RAZER RZ03-0411
No need to press and hold the Function (FN) key, now all media keys are at the forefront of your
keyboard.
Primary keys Description
The Audio Volume Control keys allow you to mute ( ),
decrease ( ) and increase ( ) the audio output.
Pressing the Mail key will open your default mail app.
Pressing the Refresh key allows you to refresh the active
window, app, or browser.
The Media keys allow you to play/pause ( ) a track or
skip tracks backward ( ) and forward ( ).
Pressing the Calculator key will open the Windows
calculator app.
Pressing the My Computer key will open the system
window on your desktop.
FOR GAMERS. BY GAMERS.
™
9
The Backlight Control keys allow you to decrease ( ) or
increase ( ) the brightness of your keyboard’s LEDs.
The Sleep key allows you to suspend all operating
system activities. This function allows you to save
electricity while the computer is idle.
UNDERSTANDING BLUETOOTH PROFILES
Switching between profiles
To switch between any of the Bluetooth profiles available on your keyboard, simply press the
corresponding shortcut of the profile your device is registered to.
Activating a profile pairing mode
Press and hold the corresponding shortcut of the profile that you want to activate. The status of
the corresponding profile will start blinking to show that the profile is now in pairing mode.
Displaying the active profile
The LED indicators will display which profile is currently active while the fn key is pressed.
USING THE RESET BUTTON
If your keyboard freezes or suddenly stops responding, simply press the Reset button on the
keyboard using a paper clip or any similar object to restart your device.
