UserManual

RAZER

RZ01‐0155

_UD]HU



Theperfectcomplementforgamingonthego,isamousethatembodiestheexact

samequalities–portabilitywithoutcompromisingonpower.TheRazerOrochipushes

boundariesbygivingyougaming‐gradeperformanceinacompactandcomfortable

package.Withupto100hoursofbatterylifeandthedualwired/wirelessBluetooth4.0

technology,theRazerOrochideliversgaminggradeperformanceinwiredmode,while

beingincrediblyportable.Poweredbyan8,200DPIlasersensor‐themostprecise

foundinanotebookmousetodate‐theRazerOrochihasexactingaccuracy,soyou’ll

alwayshavethecompetitiveedgeevenwhenyou’regamingonthego.



_)RUJDPHUVE\JDPHUV



1.PACKAGECONTENTS/SYSTEMREQUIREMENTS



PACKAGECONTENTS

RazerOrochi2013

2xAABatteries

USBCable

TravelPouch

ImportantProductInformationGuide



SYSTEMREQUIREMENTS

PC/MacwithafreeUSBPort

Windows®8/Windows®7/WindowsVista®/Windows®XP(32‐bit)/

MacOSX(10.8‐10.10)

Bluetooth®SmartReady

Internetconnection

100MBoffreeharddiskspace



_UD]HU



2.REGISTRATION/TECHNICALSUPPORT



REGISTRATION

Visitwww.razerzone.com/razer‐idtosignupforaRazerIDnowtogetawiderangeof

Razerbenefits.Forexample,getreal‐timeinformationonyourproduct’swarranty

statusviaRazerSynapse.TolearnmoreaboutRazerSynapseandallitsfeatures,visit

www.razerzone.com/synapse.



IfyoualreadyhaveaRazerID,registeryourproductbyclickingonyouremailaddress

withintheRazerSynapseapplicationandselectWarrantyStatusfromthedropdown

list.



Toregisteryourproductonline,visitwww.razerzone.com/registration.Pleasenotethat

youwillnotbeabletoviewyourwarrantystatusifyouregisterviathewebsite.



TECHNICALSUPPORT

Whatyou’llget:

2yearslimitedmanufacturer’swarranty.

Freeonlinetechnicalsupportatwww.razersupport.com.



Yourproduct’sserialnumber

canbefoundhere.

_)RUJDPHUVE\JDPHUV



3.TECHNICALSPECIFICATIONS



TECHNICALSPECIFICATIONS

Dualwired/wirelessBluetooth4.0technology

1,000HzUltrapolling(Wired)/125HzUltrapolling(Wireless)

1msresponsetime(Wired)/8msresponsetime(Wireless)

8,200DPI4Glasersensor

210inchespersecond/50Gacceleration

Batterylife:Approximately100hrs(continuousgaming)or3months(normal

usage)

Ambidextrousformfactorwithtexturedrubbersidegrips

Chromalightingwithtrue16.8millioncustomizablecoloroptions

Inter‐devicecolorsynchronization

Sevenindependentlyprogrammablebuttons

RazerSynapseenabled

1m/3.28ftbraidedfiberUSBcable



APPROXIMATESIZE&WEIGHT:

Length99mm/3.90”

Width  67mm/2.64”

Height35mm/1.38”

Weight68g/0.15lbs



_UD]HU



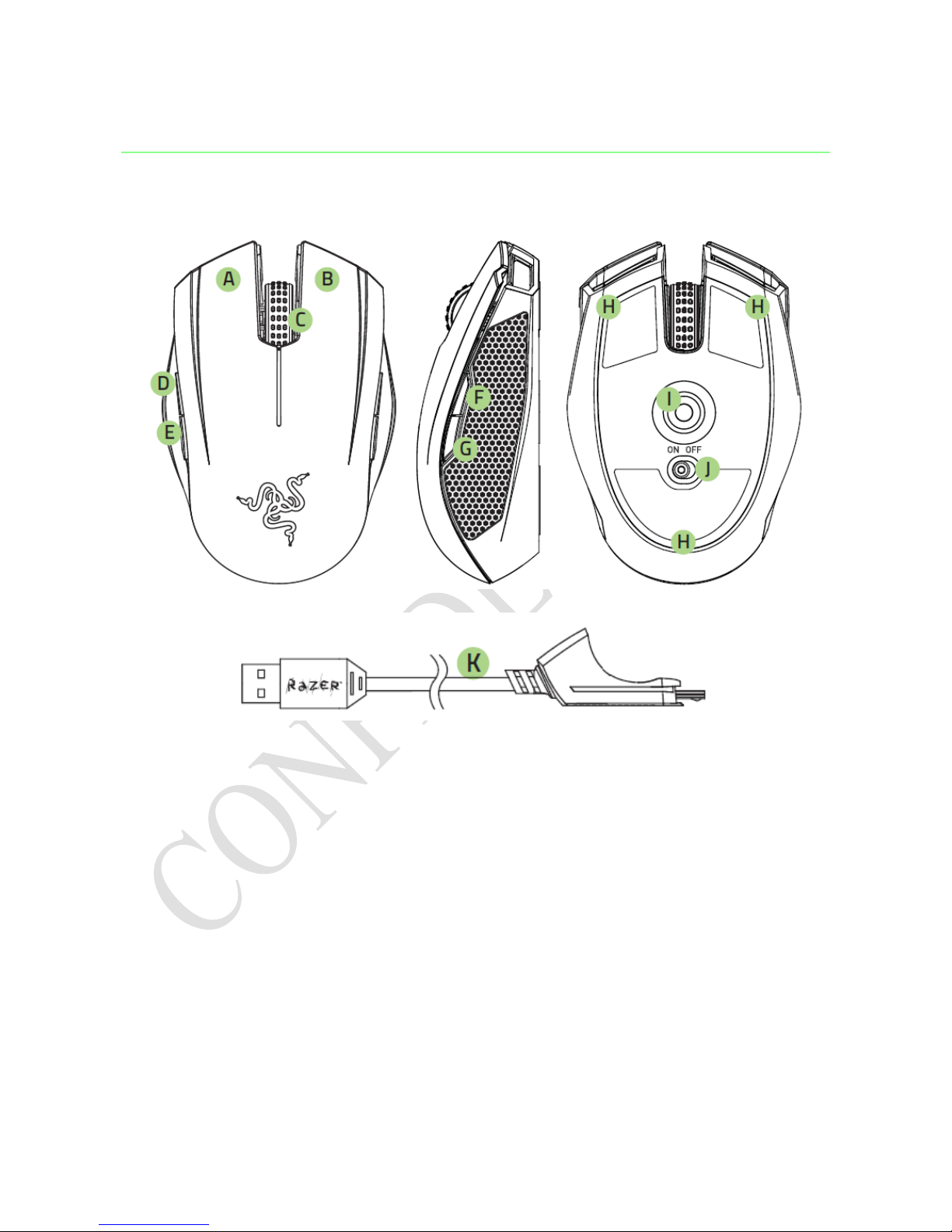

4.DEVICELAYOUT



A. Leftmousebutton

B. Rightmousebutton

C. Scrollwheel

D. Mousebutton5

E. Mousebutton4

F. Sensitivitystageup

G. Sensitivitystagedown

H. Ultraslickmousefeet

I. 100、4200、8200DPI4Glasersensor

J. Poweron/offswitch

K. USBcable

_)RUJDPHUVE\JDPHUV



5.SETTINGUPYOURRAZEROROCHI



WIRELESSMODE

1. RemovethetopcoveroftheRazerOrochi.



2. Insertthebatteries*intotheRazerOrochifollowingthedirectionsindicated.



*Caution:Foryoursafety,useonlyalkalinebatteriesanddonotmixoldbatterieswithnewones.



3. ReattachthetopcoverontotheRazerOrochi.Pleaseensureitissecured.



_UD]HU



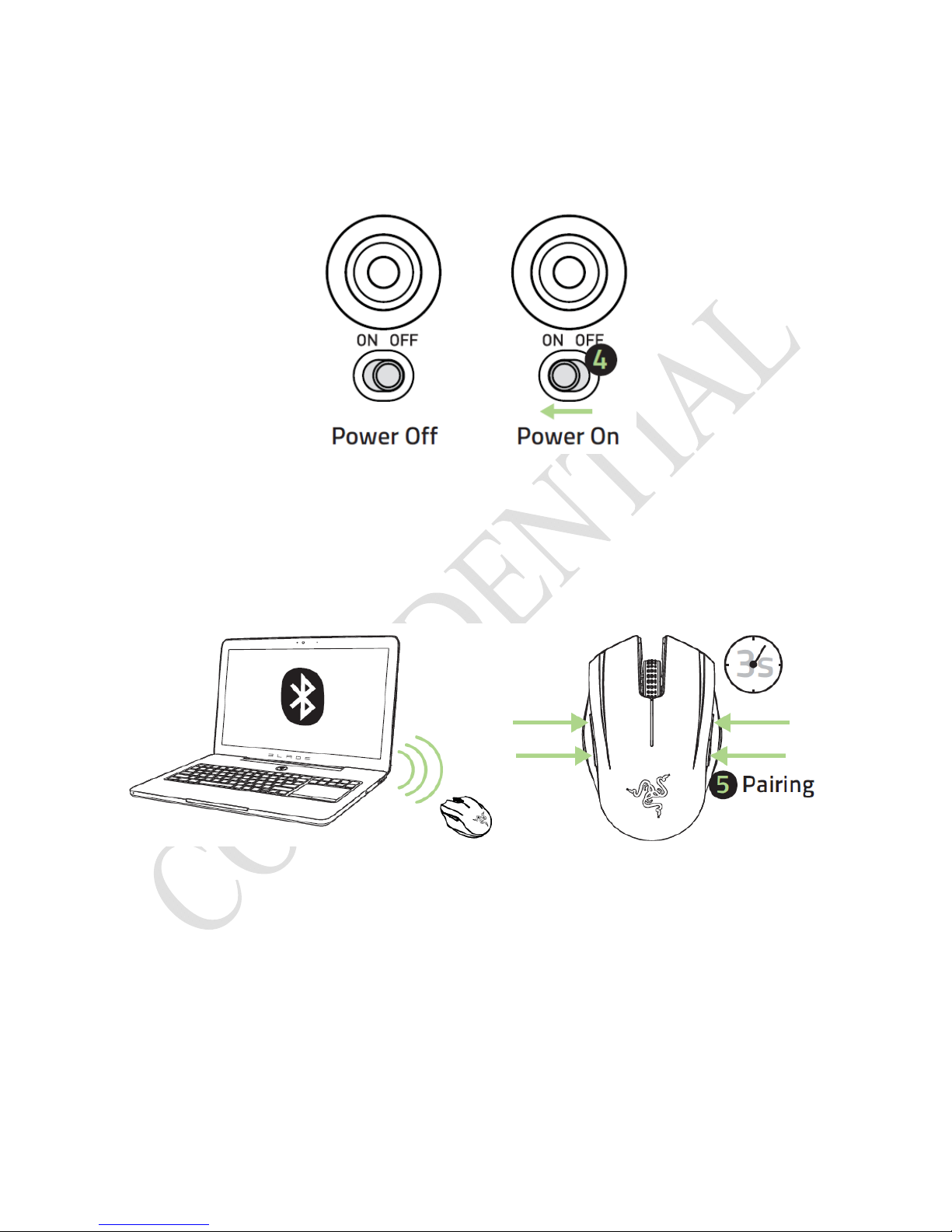

4. SwitchontheRazerOrochi.



5. PleaseensurethatBluetoothisactivatedonyourcomputer.“AddaBluetooth

device”byfollowingtheinstructionsforyouroperatingsystem.Activatethe

pairingprocessbydepressingallfoursidebuttonstogetherontheRazerOrochi

forfiveseconds.TheindicatorlightsonthetopoftheRazerOrochiwillblinkin

greentoindicatethepairingprocess.



6. Whenthepairingprocessiscompleted,theindicatorlightwillstopblinking.Your

RazerOrochiisthenreadyforuseinwirelessmode.



_)RUJDPHUVE\JDPHUV



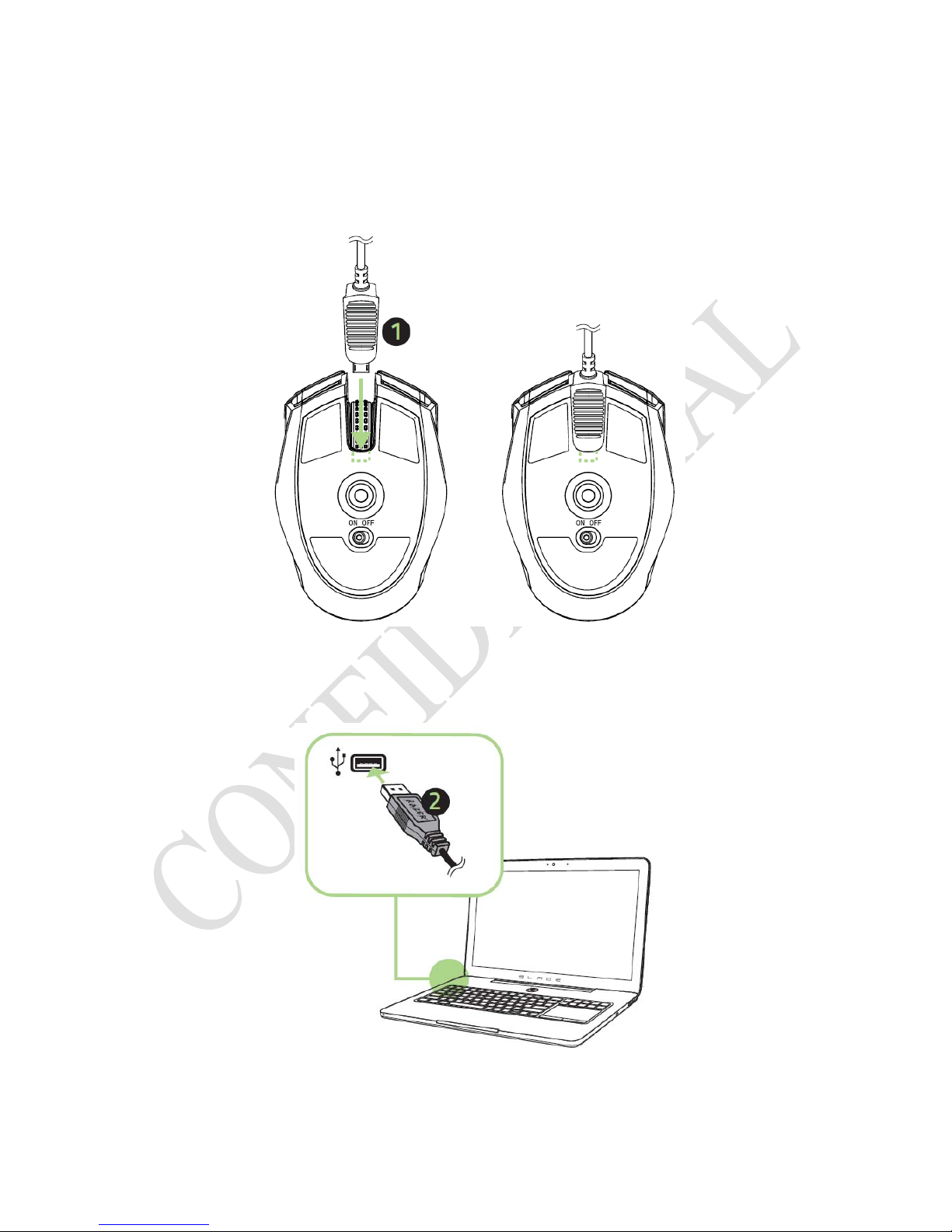

WIREDMODE

1. Connectthemicro‐USBendofthecabletotheRazerOrochi.



2. PlugthemouseintotheUSBportofyourcomputer.TheRazerOrochiisthen

readyforuseasahighperformancewiredgamingmouse.



_UD]HU



BATTERY/PAIRINGINDICATORBEHAVIOR

TheRazerOrochiusesaspecificlightingsequenceonitsscrollwheeltoindicateits

currentbatterystatus.



LowPowerIndication:



Blink2x  Offfor1second  Blink2x



Thislightingsequencewillrepeatevery10minutesuntilthepowerstatuschangesto

critical,thebatteriesarereplaced,orthemouseisconnectedtothePCviaUSBcable.



CriticalPowerIndication:



Blink5x  Offfor3seconds  Blink5x



Thislightingsequencewillrepeatevery3minutesuntilthebatteriesaredrained,the

batteriesarereplaced,orthemouseisconnectedtothePCviatheUSBcable.


