2018 JEEP WRANGLER JL 4-DOOR RX7 SIDE STEPS
INSTALLATION INSTRUCTIONS
2WWW.ROLLINGBIGPOWER.COM
STOP. DO NOT RETURN TO THE STORE. WE CAN HELP. QUESTIONS OR PROBLEMS, OUR TEAM OF
PROFESSIONALS ARE HERE TO HELP.
CALL TOLL FREE 1-877-519-9090, MON-FRI: 8:00AM - 5:00PM PST
2018 JEEP WRANGLER JL 4-DOOR RX7 SIDE STEPS
INSTALLATION INSTRUCTIONS
RBP-510B-RX7
RX-3 STEP BARS
Our RX-7 steps feature a one-piece welded steel construction, and the patented design that is truly original. The wheel to
wheel length design hugs your truck snugly, so they don’t reduce ground clearance. The paintable, textured inserts allow you
to customize your steps for a set truly your own. The RBP RX-7 step bars include all mounting brackets and instructions and
are easy to install. Featuring a new 3-year finish warranty, and a limited lifetime warranty for manufacturer defects – you can
be sure you are covered, no matter what.
Your Complete Satisfaction is Our Number One Goal
At Rolling Big Power, your satisfaction is why we’re in business. If for any reason your experience with our product was
anything less than satisfactory, please reach out to us. We’d love to have the opportunity to provide the product experience
and service you deserve.

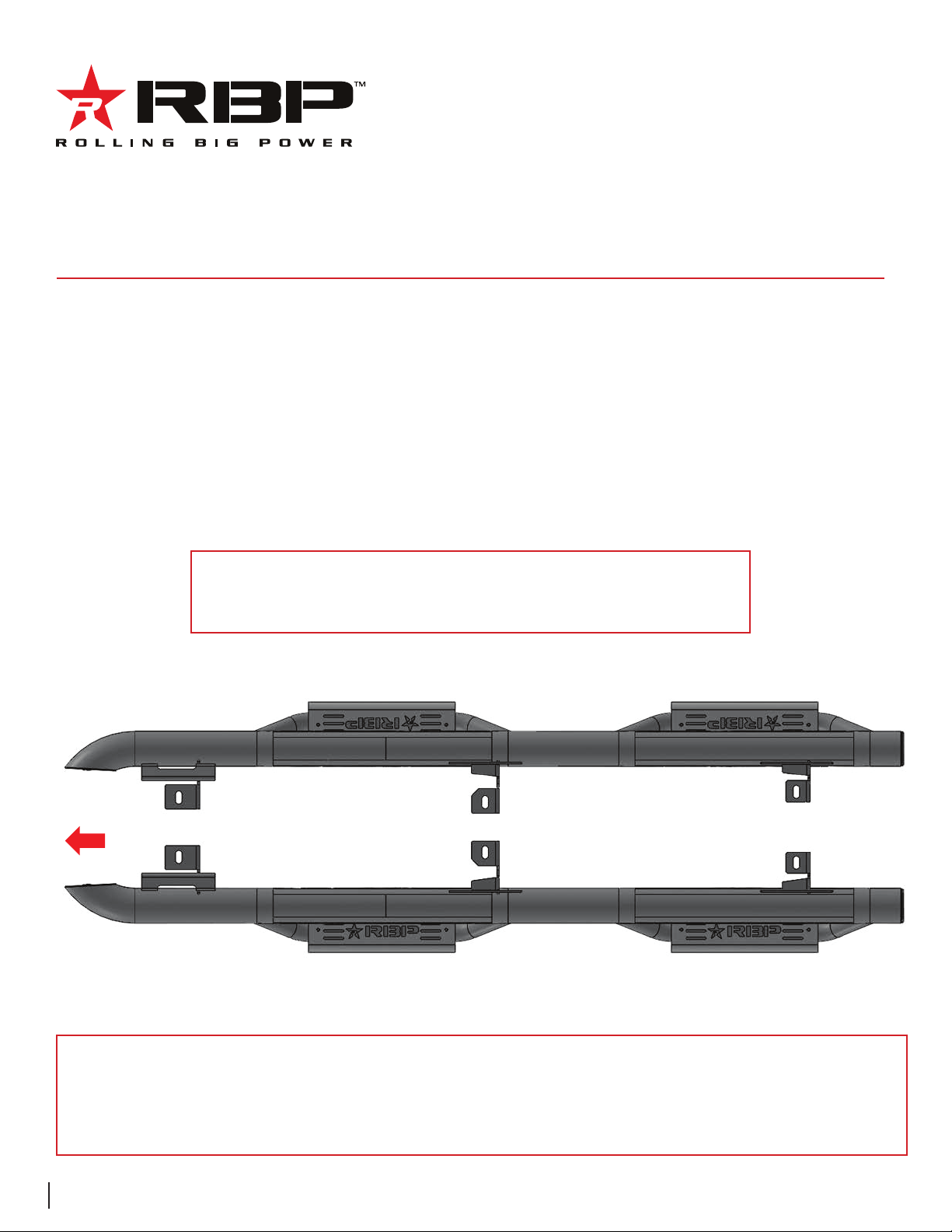

Passenger/right step assembly
Driver/left step assembly
PLEASE READ INSTRUCTIONS COMPLETELY BEFORE INSTALLATION. IF YOU DO NOT CLEARLY UNDERSTAND
ANY PART OF INSTALLATION INSTRUCTIONS, DO NOT ATTEMPT TO INSTALL YOURSELF. HAVE A QUALIFIED
PROFESSIONAL PERFORM INSTALLATION. RBP ASSUMES NO LIABILITY FOR ANY DAMAGE CAUSED BY IMPROPER
USE AND/OR INSTALLATION OF ITS PRODUCTS.
FRONT
3
1-877-519-9090
2018 JEEP WRANGLER JL 4-DOOR RX7 SIDE STEPS
INSTALLATION INSTRUCTIONS
HARDWARE INCLUDED
1- Driver/left RX7 Side Step
1- Passenger/right RX7 Side Step
6- 8-1.25mm x 35mm Hex Bolts
6- 8mm x 28mm x 3mm Flat Washers
6- 8mm Lock Washers
12- 6-1.0mm x 25mm Hex Bolts
24- 6mm x 22mm x 2mm Flat Washers
12- 6-1.0mm Nylon Lock Nuts
RECOMMENDED TOOLS
1- 13mm Wrench and/or Socket
1- 10mm Wrench and Socket
STEP 1:
Select the passenger side RX7 Step, (curved end goes toward the front of the vehicle).
STEP 2:
Remove any old steps or factory installed “Rock Rails” and hardware from vehicle.
STEP 3:
Start installation on the passenger side of the vehicle. Locate the (3) pairs of holes in the pinch weld, (Figure 1).
If necessary, hold the passenger side RX7 Step up in position to help determine correct mounting holes to use.
The mounting brackets on the Side Step attach to the holes in the pinch weld and the small factory threaded hole
directly behind the pinch weld, (Figures 2—4).
4WWW.ROLLINGBIGPOWER.COM
2018 JEEP WRANGLER JL 4-DOOR RX7 SIDE STEPS
INSTALLATION INSTRUCTIONS
STEP 4:
With assistance, hold the Passenger/right RX7 Side Step up in place against the back of the pinch weld.
Line up the (3) welded brackets with the (6) factory holes in the pinch weld. Bolt the brackets to the back
of the pinch weld with the included (6) 6mm x 25mm Hex Bolts, (12) 6mm Flat Washers and (6) 6mm
Nylon Lock Nuts, (Figures 5—7). Leave hardware loose at this time. NOTE: Insert Bolts from outside the
pinch weld and out through the Bracket.
STEP 5:
Bolt each top tab on the Side Step to the floor panel with the included (1) 8mm x 35mm Hex Bolt, (1) 8mm
Lock Washer and (1) 8mm Flat Washer, (Figures 5—7). Repeat for all locations.
STEP 6:
Level and adjust the Side Step and tighten all hardware.
STEP 7:
Repeat Steps 1—6 to install the Passenger/right side RX7 Step assembly.
Locate the (3) pairs of holes along the pinch weld (Driver/left side pictured)
FIGURE 1
FRONT
5
1-877-519-9090
2018 JEEP WRANGLER JL 4-DOOR RX7 SIDE STEPS
INSTALLATION INSTRUCTIONS
Passenger side front mounting location
Passenger side center mounting location
FIGURE 2
FIGURE 3
FRONT
FRONT
Threaded hole on floor panel
Pair of holes on pinch weld
Pair of holes on pinch weld
Threaded hole on floor panel
6
2018 JEEP WRANGLER JL 4-DOOR RX7 SIDE STEPS
INSTALLATION INSTRUCTIONS
FIGURE 4
FIGURE 5
REAR
Threaded hole on floor panel
Pair of holes on pinch weld
Passenger side rear mounting location
Passenger side front welded Bracket attached to pinch
weld and inner floor panel
(2) 6mm x 25mm Hex Bolts
(4) 6mm Flat Washers
(2) 6mm Nylon Lock Nuts
8mm Hex Bolt
8mm Lock Washer
8mm Flat Washer
FRONT
7
2018 JEEP WRANGLER JL 4-DOOR RX7 SIDE STEPS
INSTALLATION INSTRUCTIONS
FIGURE 6
FIGURE 7
Passenger side front welded Bracket installed
Passenger/right side Center & Rear Brackets attached to pinch weld and body panel
FRONT
FRONT
8mm Hex Bolt
8mm Lock Washer
8mm Flat Washer
(2) 6mm x 25mm Hex Bolts
(4) 6mm Flat Washers
(2) 6mm Nylon Lock Nuts
(2) 8mm Hex Bolts
(2) 8mm Lock Washers
(2) 8mm Flat Washers
(4) 6mm x 25mm Hex Bolts
(8) 6mm Flat Washers
(4) 6mm Nylon Lock Nuts
www.rollingbigpower.com
may have additional information about this product including the latest instructions,
videos, photos, etc.
For customer support, please call us at 1-877-519-9090 to speak directly with a RBP customer
service representative.
STRAIGHT DOIN’ IT™
