Important Information

WARNING

To reduce the risk of fire orshock

hazard, do not expose this TV to rain

or moisture.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

personal injury.

This symbol indicates

important instructions

accompanying the

product.

Cautions CAUTION:

Toreduce the risk of electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION:

Pour _viter les chocs _lectriques, introduirela lame la plus large

de la fiche dans la borne correspondante de la prise et pousser

jusqd aufond.

Operate TV only on 120 volts, 60 Hz AC power (normal house power).

FCC Regulations state that unauthorized changes or modifications to this equipment

may void the user's authority to operate it.

Note To Cable TV Installer This reminder is provided to call your attention to ArtMe 820-40 of the National

Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides

guidelines for proper grounding and, in particular, specifies that the cable ground shall

be connected to the grounding system of the building as close to the point of cable entry

as practical.

Product

Registration

Please fill out the product registration card and return it immediately. Returning this

card allows us to contact you if needed.

Keep your sales receipt to obtain warranty parts and service and for proof of

purchase. Attach it here and record the serial and model numbers in case you ever

need them. The numbers are located on the back of the TV.

Model No

Serial No

Purchase Date:

Dealer/Address/Phone

Introduction

Thank you for choosing RCA

Your television is designed for long

life and superior operation. Despite its

sophistication, your new TV is

amazingly simple to operate because it

has so many automatic features.

Table of Contents

Getting Started

First-Time Operation ................................................................... 2-3

Controlling Your TV

Front Panel ...................................................................................... 4

On-Screen Displays ........................................................................ 5

Remote Operation ........................................................................... 6

Operating Features

VIDEO Menu .................................................................................. 7

Closed Captioning .......................................................................... 8

Languages (English, French, Spanish) ........................................... 8

SETUP Menu .................................................................................. 9

Sleep Timer Operation .................................................................. 10

Alarm Timer Operation ................................................................ 11

Autoprogramming Channel Memory ........................................... 12

Editing Channel Memory .............................................................. 12

Connecting Your TV

Anterma/Cable Information .......................................................... 13

Dipole Antenna Connection .......................................................... 13

Home Antenna Connections ......................................................... 14

Cable-TV Connections ................................................................. 15

Cable-TV Operation ..................................................................... 16

Accessories

Accessories ................................................................................... 17

Order Form .............................................................................. 17-18

Caring for Your TV

Cleaning & Care ........................................................................... 19

Trouble Checks ..........................................................................20

Limited Warranty .....................................................................21

Getting Started

First-Time Operation

The steps below will help you get your TV connected and working quickly.

Page numbers arc also listed for more details.

:l. Unpack TV and accessories.

Shown below arethe accessories that

came packed with your TV.

Antenna Adapter

Replace adapter only with

stock #193983

Remote Control and

Two Batteries Dipole Antenna

2. Place batteries in remote.

1. Turn the remote control face down.

2. Press down on the ridged area of the

battery cover and slide it off.

3. Place two "AAA" batteries as shown

matching the + and - end of each

battery in the compartment.

4. Replace the cover.

3. Connect antenna or cable-TV

system.

Most antenna or cable-TV systems can

be connected as shown here.

Incoming Cable from Antenna or

Cable-TV System

Back of

Detail,; for connecting a home antenna

to your TV are onpage 14.

Detail:; for connecting a cable-TV

system to your "IV are on pages 15-16.

4. Plug in the 'IV.

Plug in the TV, matching the wide and

small blade of the plug with the outlet.

Getting Started

First-Time Operation

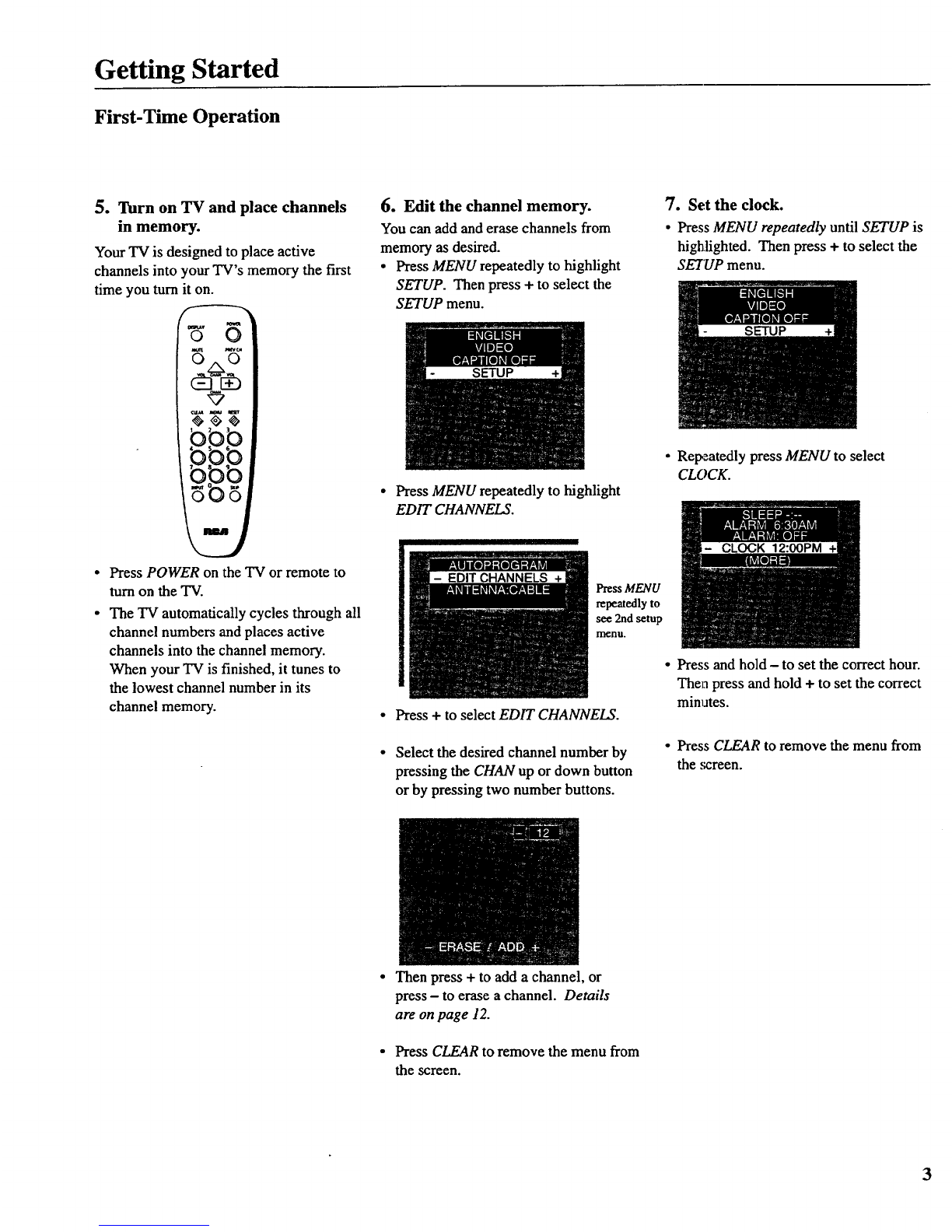

5. Turn on TV and place channels

in memory.

Your TV is designed to place active

channels into your TV's memory the first

time you turn it on.

0 0

99t

•Press POWER on the TV or remote to

turn on the TV.

•The TV automatically cycles through all

channel numbers and places active

channels into the channel memory.

When your TV is finished, it tunes to

the lowest channel number in its

channel memory.

6. Edit the channel memory.

You can add and erase channels from

memory as desired.

• Press MENU repeatedly to highlight

SETUP. Then press + to select the

SETUP menu.

SETUP

•Press MENU repeatedly to highlight

EDIT CHANNELS.

-EDIT CHANNELS Press MENU

repeatedly to

see 2rid setup

n_nlL

•Press +to select EDIT CHANNELS.

•Select the desired channel number by

pressing the CHAN up or down button

or by pressing two number buttons.

7. Set the clock.

•Press MENU repeatedly until SETUP is

highlighted. Then press + to select the

SETUP menu.

SETUP

• Repeatedly press MENU to select

CLOCK.

CLOCK 12:00PM

•Press and hold -to set the correcthour.

Then press and hold +to set the correct

minutes.

•Press CLEAR to remove the menu from

the ,screen.

Then press +to add a channel, or

press -to erase a channel. Details

are on page 12.

Press CLEAR to remove the menu from

the screen.

Controlling Your TV

Front Panel

Shown here are the front-panel buttons.

Remote Sensor _

Remote Sensor

•When using the remote control, point it toward this sensor.

MENU Button

• Press repeatedly until the item you want is highlighted, then

press + or- to enter the menu.

• Press repeatedly to move down each menu screen and then

press +or-to adjust each setting.

•To mute the TV, press once and then press +.

CH v and A Buttons (Channel Up and Down)

•Press Channel up to see the next higher channel in memory.

•Press Channel down to see the next lower channel in memory.

•You can add or erase channels in memory as desired. Details

are on page 12.

VOL Buttons (Volume Up and Down)

(Also +and - Buttons)

•Press VOL +to increase volume, or press VOL -to decrease

volume.

•Press +or - to adjust the setdng of an item that is highlighted

in the menu.

• The volume display will automatically appear on the screen

when you press the VOL buttons.

POWER Button

•Press to turn the TV on or off.

Controlling Your TV

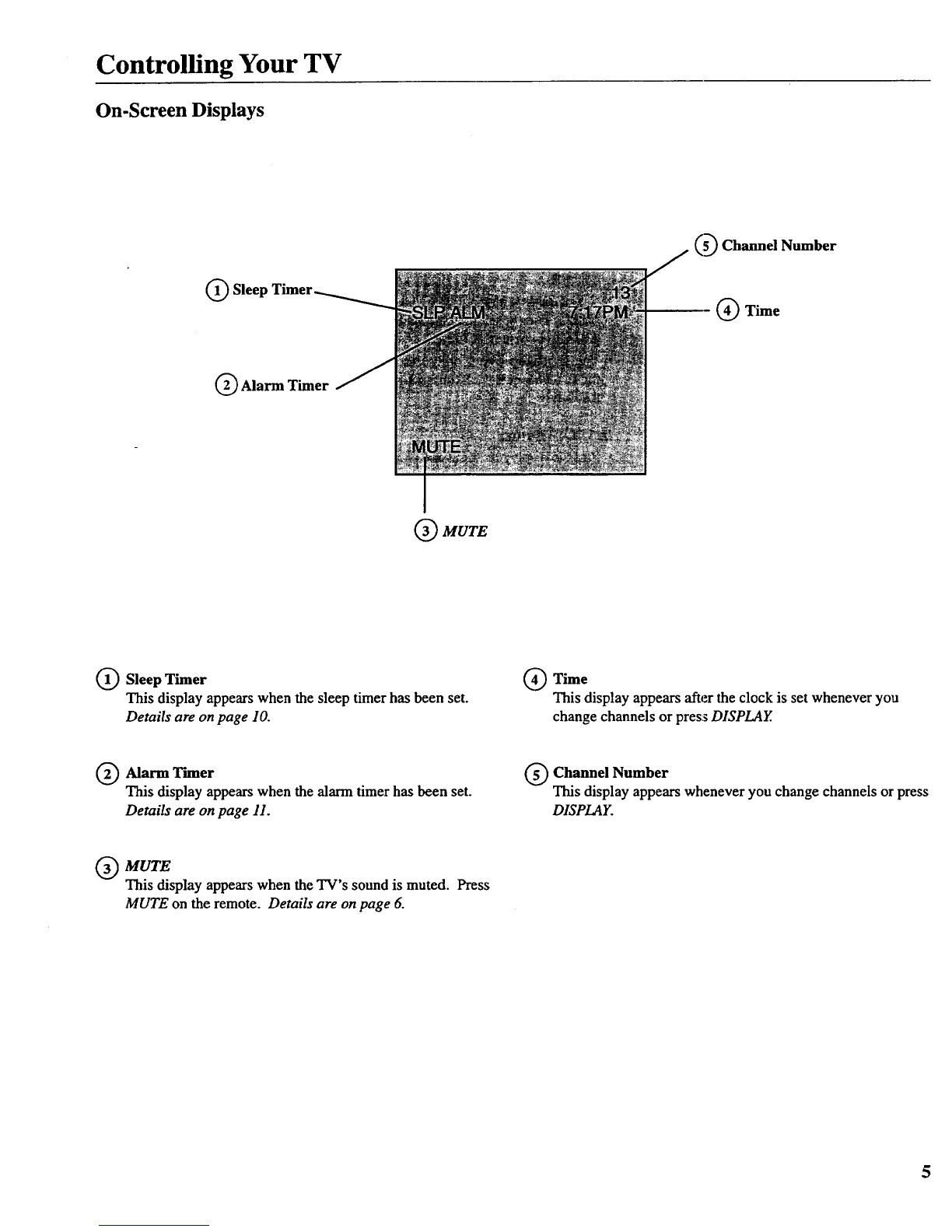

On-Screen Displays

Alarm Timer

(_ Channel Number

MUTE

Sleep Timer

This display appears when the sleep timer has been set.

Details are on page 10.

Time

This display appears after the clock is set whenever you

change channels or press DISPLAY

Alarm Tuner

This display appears when the alarm timer has been set.

Details are on page 11.

Channel Number

This display appears whenever you change channels or press

DISPLAY.

MUTE

This display appears when the TV's sound is muted. Press

MUTE on the remote. Details are on page 6.

Controlling Your TV

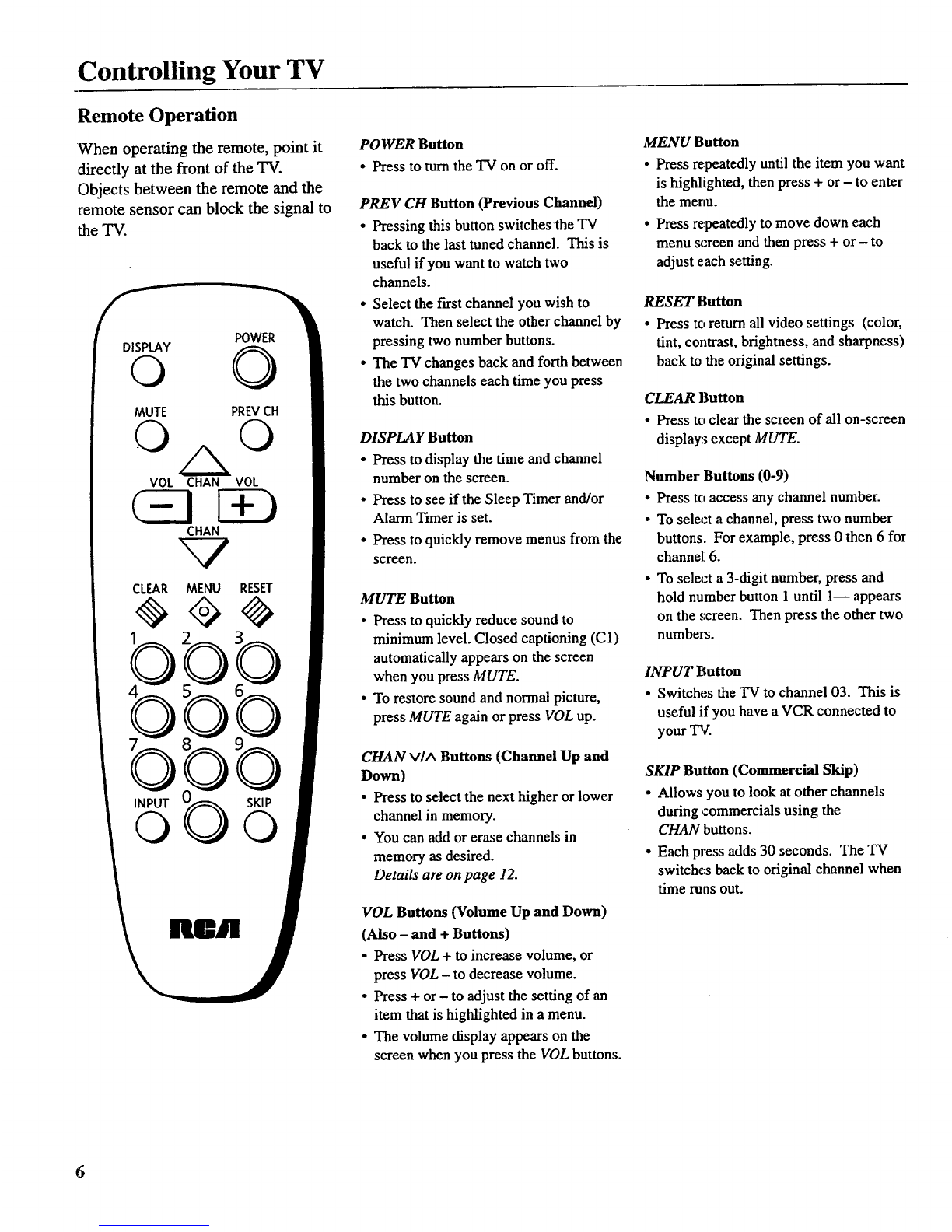

Remote Operation

When operating the remote, point it

directly at the front of the TV.

Objects between the remote and the

remote sensor can block the signal to

the TV.

POWER

MUTE PREVCH

VOL CHAN VOL

(ZISD

CHAN

CLEAR MENU

INPUT

RESET

SKIP

POWER Button

•Press to turn the TV on or off.

PREV CH Button (Previous Channel)

• Pressing this button switches the TV

back to the last tuned channel. This is

useful ifyou want to watch two

channels.

•Select the first channel you wish to

watch. Then select the other channel by

pressing two number buttons.

• The TV changes back and forth between

the two channels each time you press

this button.

DISPLAY Button

• Press to display the time and channel

number on the screen.

• Press to see if the Sleep Timer and/or

Alarm Timer is set.

•Press to quickly remove menus from the

screen.

MUTE Button

•Press to quickly reduce sound to

minimum level. Closed captioning (C1)

automatically appears on the screen

when you press MUTE.

•To restore sound and normal picture,

press MUTE again or press VOL up.

CHAN VIA Buttons (Channel Up and

Down)

• Press to select the next higher or lower

channel in memory.

• You can add or erase channels in

memory as desired.

Details are on page 12.

VOL Buttons (Volume Up and Down)

(Also - and + Buttons)

• Press VOL +to increase volume, or

press VOL - to decrease volume.

• Press + or - to adjust the setting of an

item that is highlighted in a menu.

• The volume display appears on the

screen when you press the VOL buttons.

MENU Button

• Press repeatedly until the item you want

is highlighted, then press + or - to enter

the menu.

•Press repeatedly to move down each

menu screen and then press + or- to

adjust each setting.

RESET Button

• Press to return all video settings (color,

tint, contrast, brightness, and sharpness)

back to the original settings.

CLEAR Button

• Press to clear the screen of all on-screen

displays except MUTE.

Number Buttons (0-9)

•Press to access any channel number.

• To select a channel, press two number

buttons. For example, press 0 then 6 for

channel: 6.

•To sele_:t a3-digit number, press and

hold number button 1 until 1-- appears

on the screen. Then press the other two

numbers.

INPUT Button

•Switches the TV to channel 03. This is

useful if you have aVCR connected to

your TV.

SKIP Button (Commercial Skip)

•Allows you to look at other channels

during commercials using the

CHAN buttons.

•Each press adds 30 seconds. The TV

switches back to original channel when

time runs out.

Operating Features

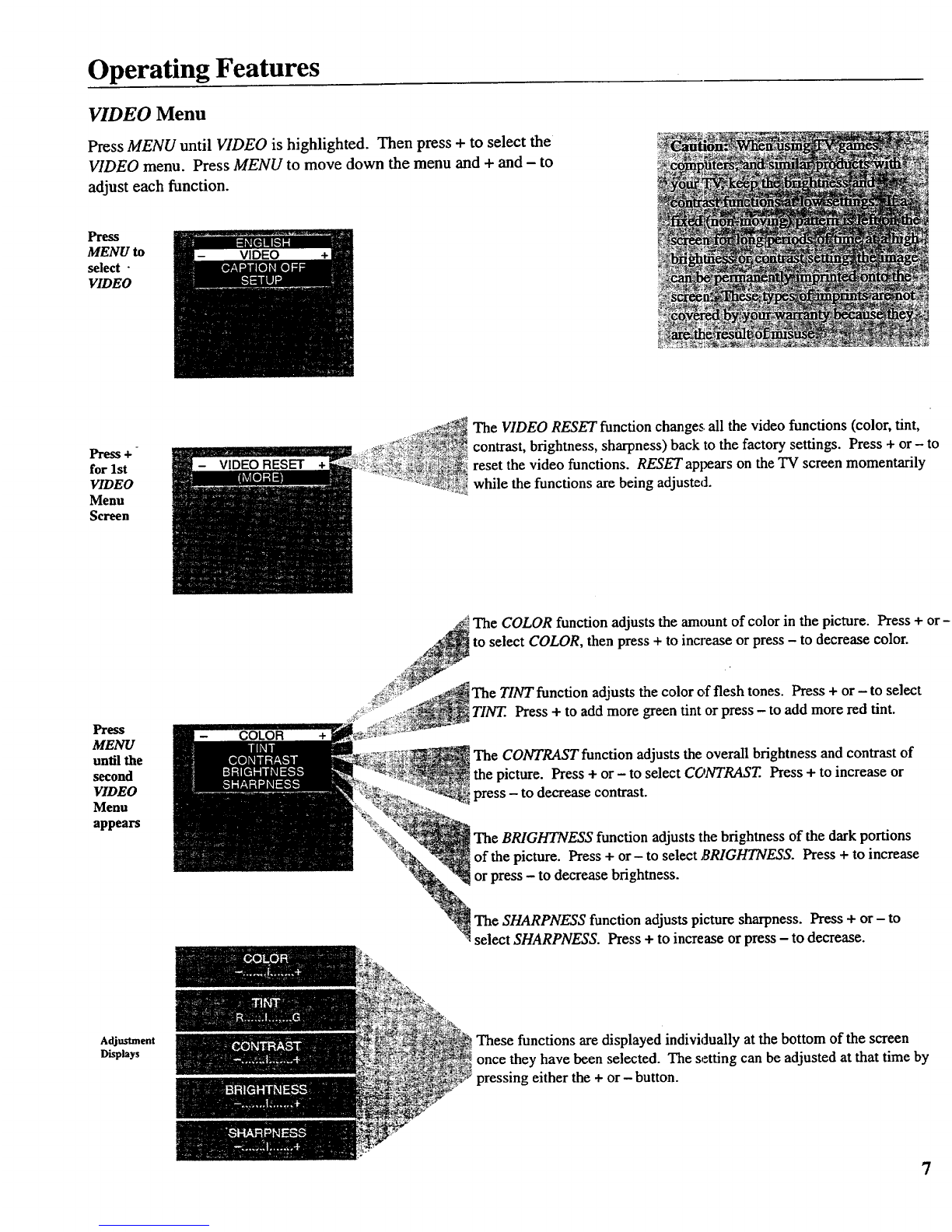

VIDEO Menu

Press MENU until VIDEO is highlighted. Then press +to select the

VIDEO menu. Press MENU to move down the menu and + and - to

adjust each function.

Press

MENU to

select -

VIDEO

Press+-

for 1st

VIDEO

Screen

The VIDEO RESET function changes, all the video functions (color, tint,

contrast, brightness, sharpness) back to the factory settings. Press + or- to

reset the video functions. RESET appears on the TV screen momentarily

while the functions are being adjusted.

Press

until the

second

VIDEO

appears

•The COLOR function adjusts the amount of color in the picture. Press + or-

to select COLOR, then press + to increase or press - to decrease color.

The TINT function adjusts the color of flesh tones. Press + or -to select

TINZ. Press + to add more green tint or press - to add more red tint.

The CONTRAST function adjusts the overall brightness and contrast of

the picture. Press + or - to select CONTRAST. Press + to increase or

press - to decrease contrast.

The BRIGHTNESS function adjusts the brightness of the darkportions

of the picture. Press + or - to select BRIGHTNESS. Press + to increase

or press - to decrease brightness.

The SHARPNESS function adjustspicture sharpness. Press +or -to

select SHARPNESS. Press + to increase or press - to decrease.

Adjustment

Displays These functions are displayed individually at the bottom of the screen

once they have been selected. The setting can be adjusted at that time by

pressing either the + or - button.

Operating Features

Languages

"/?heon-screen displays in this TV can

!:_ displayed in three languages:

English, French, and Spanish. When

you select a language, most of the

displays will be shown on the screen

in your preferred language.

Selecting a Language

1. Press MENU once to bring up the

main menu and highlight ENGLISH.

ENGLISH

.Press + or- to select FRANCAIS

(French), ESPANOL (Spanish),

or ENGLISH.

FRANCAIS

Closed Captioning

Closed captioning lets you display the

audio portion of aprogram as text on

the TV screen. This is useful to the

hearing impaired or anyone who wants

to watch a program without the sound.

There are two types of closed

captioning available: C1 (Caption 1)

and C2 (Caption 2). C1 displays the

full translation of the primary lan-

guage in your area. C2 may be used

as a source for secondary languages,

,;implified English, or other transla-

tions transmitted in your area.

The closed captioning feature in this

TV does not support aText Mode.

Typically, the Text Mode consists of

program information, weather

bulletins, local activities, etc.

Closed captioning is not available on

all channels or at all times. Only

specific programs are encoded with

closed captioning information (CC).

Setting Closed Captioning

1. Press MENU until CAPTION

OFF is highlighted.

-CAPTION OFF

2. Press + or- to select OFF, C1, or C2.

3. The screen displays the TV program's

audio portion as text if the program

has closed captioning.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere RCA Fernseher Handbücher

RCA

RCA E13320 Bedienungsanleitung

RCA

RCA P61300 Handbuch

RCA

RCA F27441 Bedienungsanleitung

RCA

RCA F35100ST Bedienungsanleitung

RCA

RCA 20V500T Bedienungsanleitung

RCA

RCA DRD222RD Bedienungsanleitung

RCA

RCA MMC101 Bedienungsanleitung

RCA

RCA F32676SBFM2CD2 Bedienungsanleitung

RCA

RCA RNSMU5036-B Bedienungsanleitung

RCA

RCA F27550 Bedienungsanleitung

RCA

RCA 5inch BLACK & WHITE TVwith CD Player and AM/FM... Bedienungsanleitung

RCA

RCA 13V420T Bedienungsanleitung

RCA

RCA E13710 colorView Bedienungsanleitung

RCA

RCA F27730 Bedienungsanleitung

RCA

RCA C33682 Bedienungsanleitung

RCA

RCA R32C9A-EU Bedienungsanleitung

RCA

RCA G27648YX1 Bedienungsanleitung

RCA

RCA RLDED3956A Bedienungsanleitung

RCA

RCA RT2412-C Bedienungsanleitung

RCA

RCA F27650 Bedienungsanleitung

RCA

RCA RTA3201 Bedienungsanleitung

RCA

RCA F36685YX1CN Bedienungsanleitung

RCA

RCA F20632 Bedienungsanleitung

RCA

RCA L WD250 Series Montageanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
