USER'S MANUAL

IMPORTANT IN F{}KM I

To reduce the risk of fire or shock

hazard, do not expose this TV to

rain or moisture.

Caution: To reduce the risk of electric shock, match wide

blade of plug to wide slot,fully insert.

Attention: Pour _viter les chocs _lectriques, introduire la lame

irge de la fiche dans la borne correspondante de la

located on the back

panel of y,.gurj_&gduct for_s I_il;_r,@_erating voltage.

FCC R_at_n_Jtho_ch_es _difications to this

equipment may void the user's autho_r'ffy tcili_iDrate it. I

If fixed (non-moving) images are left on the screen for long periods, they may

be permanently imprinted on the screen. Such images include network Iogos,

phone numbers, and video games. This damage is not covered by your

warranty. Extended viewing of channels displaying these images should be

avoided.

Cable TV Installer: This reminder is provided to call your attention to Article

820-40 of the National Electrical Code (Section 54 of the Canadian Electrical

Code, Part 1) which provides guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected to the grounding system of the

building as close to the point of cable entw as practical.

The GUIDE Plus+ Gold system is manufactured under license from Index I

Systems Inc. J

TABLE OF CONTENTS

SETUP AND CONNECTIONS .............. .............................. 3

Step 1: Unpack the TV .... 2............................................... 4

Step 2: Connecting your TV ............................................. 4

iV Only ..................................................................... 4

The Basic connection ................................................. 5

Advanced Connections .............................................. 6

Step 3:Connecting the IR Controller ................................. 9

Attaching the IR Controllers ................................. .'...... 9

Step 4: Plug in the TV .................................................... 10

Step 5: Place batteries in remote .................................... 10

Step 6: Turn on the TV ................................................... 10

On-Screen Program Guide ....................................... 10

Step 7: Program the TV .................................................. 10

INTERACTIVE SETUP .................................................... 22... 11

Using Point and Select ................................................... 12

Entering Setup ............................................ .................. _. 12

Select a Language .......................................................... 13

Auto Channel Search ..................................................... 13

GUIDE Plus+ System ..................................................... 14

Set the Time ................................................................... 14

Set the VCR1 Channel (auto tuning) ............................... 15

Set the VCR2 Channel (auto tuning) ............................... 15

Set the DVD Channel (auto tuning) ................................ 16

Set the SAT/CABLE Channel (auto tuning) ...................... 17

Label the Channels ........................................................ 18

What Now? ................................................................... 18

Program the Remote ................................................. 18

USING THE REMOTE .......................................................... 19

Remote Buttons ............................................................. 20

Using the WHOolNPUT button ............................... 21

Programming the Remote .............................................. 22

Testing the remote ........................................... ......... 22

Programming the remote .......................................... 22

Using the remote to control a device ........................ 23

Modes of Operation ................................................. 23

Front Panel ..................................................................... 23

TABLE OF CONTENTS

FEATURES AND MENUS .................................................... 25

Menus and Control Panels ............................................. 26

Menus ...................................................................... 26

Control Panels .......................................................... 27

Audio Menu .................................................................. 28

Using the remote to select an audio processor ............... 29

Picture Quality Menu .................................................... 30

Screen Menu ................................................................. 31

Using Closed Captioning .......................................... 32

Channel Menu ............................................................... 33

Time Menu .................................................................... 34

Parental Controls Menu ................................................. 35

GUIDE Plus+ Menu ....................................................... 36

Setup Menu ................................................................... 36

PIP (Picture-in-Picture) Operation .................................. 37

Channel Marker ............................................................. 38

TROUBLESHOOTING ........................................................39

CARE AND CLEANING ..................................................... 40

PROSCAN TV LIMITED WARRANTY ........................... 41

ACCESSORIES ........................................................................ 42

INDEX ....................................................................................... 45

SETUP AND CONNEC 'fON.S

GE1-FING STARTED

This manual isdesigned to get you _arlW auickly.

The first four sections of the mjmua_sl_w yq}unow

to get yourTV Setup and C_nnecte_n the

Interactive Setup,Prog_ she Remcl_. and use all'of

the Features and Me_'s of yourTV. I

The Reference secti_ in the back _he book

contains troubleshootin_ips, care am cleaning

instructions, accessory ordenn_oinfn_ation and your

warranty.

Well... if yourTV's out of the box, Dt's _t started.

1_kT_VE SETL_

3_H E REMO_

4FEATURES _MENUS

RE1}ERENCE

Check out the notes that have been I

added throughout the manual in these ]

Tip Boxes. There are some important

tips that will help you get the most from

your TV.

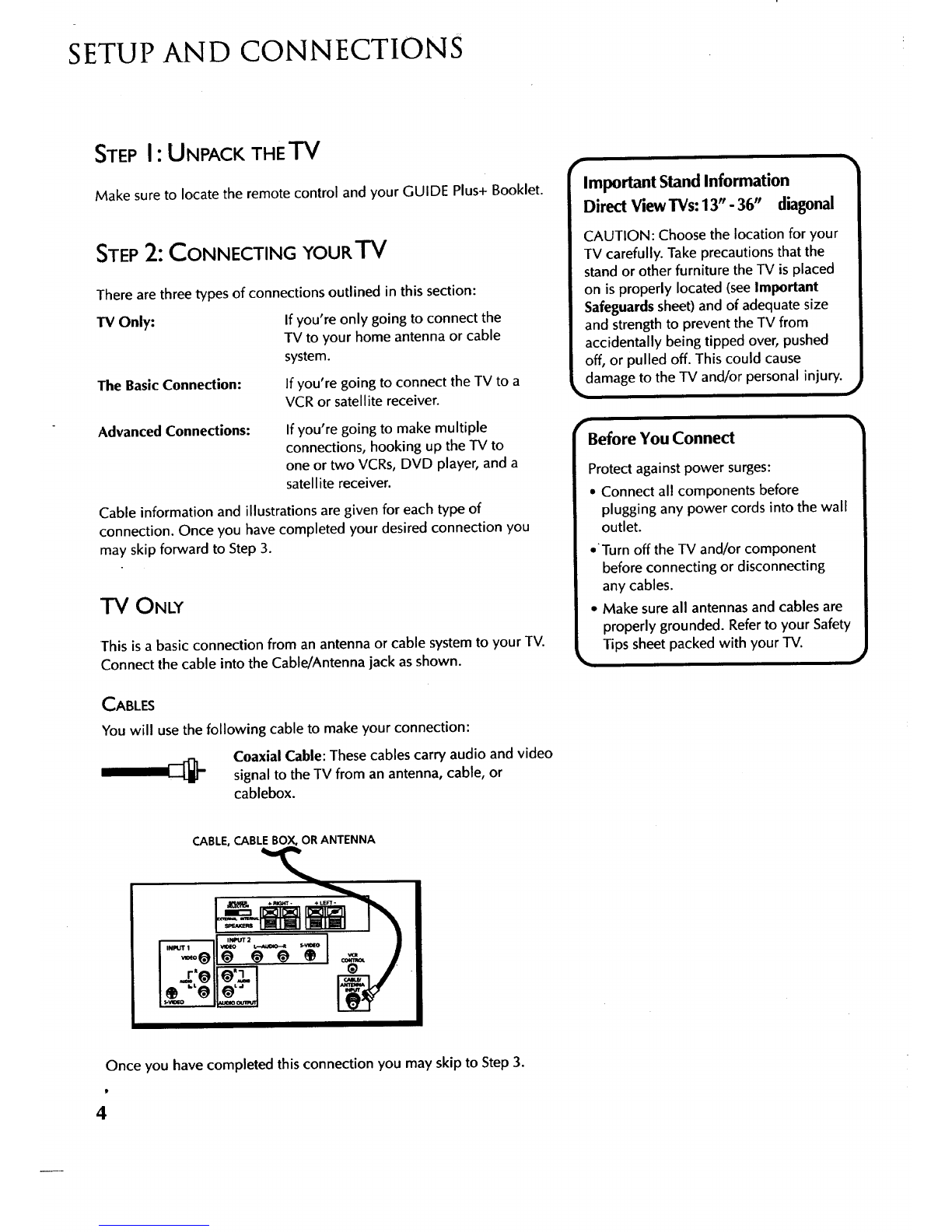

SETUP AND CONNECTIONS

STEPI: UNPACK THETV

Make sure to locate the remote control and your GUIDE Plus+ Booklet.

STEP2: CONNECTING YOUR'FV

There are three types of connections outlined in this section:

IV Only: If you're only goingto connect the

TV to your home antenna or cable

system.

The BasicConnection: If you're going to connect the TV to a

VCR or satellite receiver.

Advanced Connections: If you're going to make multiple

connections, hooking up the TV to

one or two VCRs, DVD player, and a

satellite receiver.

Cable information and illustrations are given for each type of

connection. Once you have completed your desired connection you

may skip forward to Step 3.

ONLY

This is a basic connection from an antenna or cable system to your TV.

Connect the cable into the Cable/Antenna jack as shown.

CABLES

You will use the following cable to make your connection:

Coaxial Cable: These cables carry audio and video

signal to the TV from an antenna, cable, or

cablebox.

Important Stand Information

Direct View TVs: 13" -36" diagonal

CAUTION: Choose the location for your

TV carefully. Take precautions that the

stand or other furniture the TV is placed

on is properly located (see Important

Safeguardssheet) and of adequate size

and strength to prevent the TV from

accidentally being tipped over, pushed

off, or pulled off. This could cause

damage to the TV and/or personal injury.

Before You Connect

Protect against power surges:

• Connect all components before |

plugging any power cords into the wall [

outlet. /

•"Turn off the TV and/or component |

before connecting or disconnecting [

any cables. /

• Make sure all antennas and cables are |

properly grounded. Refer to your Safety |

__ Tips sheet packed with your TV. )

CABLE, CABLE BOX, OR ANTENNA

Once you have completed this connection you may skip to Step 3.

SETUP AND CONNECTIONS

THE BASIC CONNECTION

The basic connection below (TV and VCR) is the most common

connection and is therefore used to illustrate a single component

connection with your TV. For better sound and picture quality and

multiple component connection information refer to the next section,

Advanced Connections.

CABLES

You will use the following cable to make your connection:

Coaxial Cables: These cables carry both the audio

and video signal to the TV from an antenna, cable,

or cablebox. In this connection, a second Coaxial

Cable carries the signal through the VCR to the TV.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

OUT

@ @

VIDEO AUDIO

IN FROM ANT CH3

c.4n

OUT TO TV

How ToVIE'W THEVCR

To watch the VCR in this connection tune TV to

Channel 3 or 4.

Later, in the Interactive Setup section you will

program the TV to automatically tune to Channel 3

or 4 when you turn on the VCR.

Once you have completed this connection you may skip to Step 3,

"Connecting the IR Controller."

SETUP AND CONNECTIONS

ADVANCED CONNECTIONS

Advanced connections give you better sound and video by separating

the audio and video signals and enable you to connect multiple

components.

This section describes the types of inputs available on the back of your

TV and suggestsways you can use them for optimum performance.

BACK OF THE TV

The diagram below describes each of the back panel jacks. When

connecting A/V cables, be sure to connect corresponding OUTPUTS

and INPUTS (Video to Video, Right Audio to Right Audio, etc.).

Once you have made your connections

you will need to program the TV to tune

to the correct Video INPUT channel in

order to seeand hear audio and video

from the component. You will program

this later in the Interactive Setup.

Input 1

Connect any of the following components:

• VCR • Internet Access Device

• Laserdisc Player • DVD Player

• Satellite Receiver

To View the component connected to Input 1:

Use the WHO•INPUT button on the remote.

\\i

\INPUT 1

VIDEO @

rR@

S-VIDEO

S-Video

This optional

connection

can be used

for better

video quality

picture.

Input 2

Connect any of the following components:

• VCR • Intemet Access Device

• Laserdisc Player • DVD Player

• Satellite Receiver

To view the component connected to Input 2:

Usethe WHO• INPUT button on the remote.

•#

•/• 1

SpeakerTerminals

Use to connect external

speakersfor surroundsound.

Make surethe Speaker

Selection issetto

EXTERNAL.

SPEAKERS

INPUT 2

VIDEO L---.AUDIO--R S-VIDEO f

(_L J be used for better video

I_ Audio Outputs

onnect to an audio receiver or

mplifier for variable controlled

r fixed level stereo output.

VCR

CONTROL

®-,.

fCable/Antenna 1

/Takes the signal input from a cable,

|cable box, or an off-air antenna. Can

|also be used for basic component

connections.

S-Video

This optional connection can

quality picture.

VCR Control

Connect Guide Plus+

controller for one-button

recording and channel

tuning from the Guide.

SETUP AND CONNECTIONS

SAMPLE CONNECTIONS

The following are sample connection scenarios which you may

encounter when connecting components to your TV. Note: those

components which offer an S-Video connection, such as DVD, VCR or

Satellite Receivers, must match their S-Video connection with their

audio INPUT connection.

CABLES

You will use the following cable to make your connection:

Coaxial Cables: Carries the signal from the

antenna or cable directly to the television or

through a cablebox, as needed by your cable

system.

Audio/Video Cables: Carries sound and video

from the component to the TV.

S-Video Cable: Carries video from an S-Video

capable component which provides best

picture quality.

TV AND STEREoVCR

CABLE,CABLE BOX, OR ANTENNA

CH3

0-14 u

Cautions:

Position cablesto Avoid Audio Hum or

Interference

• Insert all cables firmly into jacks.

• Place the audio/video cables to the

sides of the TV's back panel instead of

straight down the middle.

• Try not to coil any twin-lead cables

and keep them away from the audio/

video cables.

Protect your components from

Overheating

• Do not block ventilation holes in any

of the components. Arrange the

components so that air can circulate

freely.

• Do not stack components.

• Allow adequate ventilation when

placing your components in a stand.

• Place an amplifier on the top shelf of

the stand so heated air rising from it

will not flow around other

components.

How ToVIEwYouRVCR

To watch the VCR in this connection, press TV to put the

remote control into TV mode, then press WHO• INPUT to

scroll through the video input channels until you tune to

VlDI input.

In the Interactive Setup section you can program the TV

to automatically tune to the VlD1 input channel when

you turn on the VCR.

Compared to the BasicConnection, usingaudio, video and

S-Video (if available) cables will enhance the sound and picture quality

from a component.

)

SETUP AND CONNECTIONS

TV,VCR AND SATELLITERECEIVER

CABLE, CABLE BOX, OR ANTENNA

IGNAL

SATELLITE RECEIVER

VCR

eHow ToVIEWYOURCOMPONENTS

To watch the Satellite Receiver in this connection,

press TV to put the remote control into TV mode, then

press WHO.INPUT to scroll through the video input

channels until you tune to VID1 ( or S-VlD 1) input.

To watch the VCR in this connection, pressTV to put

the remote control into TV mode, then press

WHO. INPUT to scroll through the video input

channels until you tune to VlD2 (or S-VID 2) input.

In the Interactive Setup you can program the TV to

automatically tune to correct input channel when you

turn on your component.

TV,VCR, SATELLITE RECEIVERAND DVD

CABLE,CABLE BOX, OR ANTENNA SATELLITE SIGNAL

SATELLITE RECEIVER

VCR

DVD PLAYER

How TOVlEWYOURCOMPONENTS

To watch the Satellite Receiver in this connection, press

TV to put the remote control into TV mode, then press

WHO.INPUT to scroll through the video input

channels until you tune to VID1 ( or S-VID 1) input.

To watch the VCR in this connection tune to Channel 3

or4.

To watch the DVD player in this connection, press TV

to put the remote control into TV mode, then press

WHO.INPUT to scroll through the video input

channels Until you tune to VlD2 ( or S-VID 2) input.

In the Interactive Setup you can program the TV to

automatically tune to the correct input channel when

you turn on your component.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere RCA Fernseher Handbücher

RCA

RCA 27F530T Bedienungsanleitung

RCA

RCA F36685YX1CN Bedienungsanleitung

RCA

RCA 27F520T - 27" TruFlat Picture Tube TV Kurzanleitung

RCA

RCA F27630 Bedienungsanleitung

RCA

RCA MCR61TF30 Bedienungsanleitung

RCA

RCA RNSMU5036-B Bedienungsanleitung

RCA

RCA G27669YX2AX1 Bedienungsanleitung

RCA

RCA 24F650T Bedienungsanleitung

RCA

RCA F27628 Bedienungsanleitung

RCA

RCA F25216 Bedienungsanleitung

RCA

RCA P46770 Bedienungsanleitung

RCA

RCA G32710 Bedienungsanleitung

RCA

RCA F32730 Bedienungsanleitung

RCA

RCA 27V514T Bedienungsanleitung

RCA

RCA F27450 Bedienungsanleitung

RCA

RCA TruFlat F20TF20 Bedienungsanleitung

RCA

RCA 14F400T Bedienungsanleitung

RCA

RCA MR29410 Bedienungsanleitung

RCA

RCA F19202 Bedienungsanleitung

RCA

RCA 14F514T Bedienungsanleitung

RCA

RCA L WD250 Series Montageanleitung

RCA

RCA M29400 Bedienungsanleitung

RCA

RCA F36649 Bedienungsanleitung

RCA

RCA 31GT750YX3CA2 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
