USER'S

GUIDE

WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture. !To reduce the risk of electric shock, do not removecover (or back). No user serviceable parts inside.

SHOCKDO NOT OPENI Refer servicing to qualified service personnel.

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

personal injury.

This symbol indicates

important instructions

accompanying the product.

Caution: To reduce the risk of electric shock, match wide

blade of plug to wide slot, fully insert.

Attention: Pour _viter leschocs _lectriques, introduire la

lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusq_ au fond.

Refer to the identification/rating label located on the back panel of your

product for its proper operating voltage.

FCCRegulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

ff fixed (non-moving) images are left on the screen for long

periods, they may be permanently imprinted on the screen. Such

images include network Iogos, phone numbers, and video games.

This damage is not covered by your warranty. Extended viewing

of channels displaying these images should be avoided.

Cable lrv Installer: This reminder is provided to call your attention to

Article 820-40 of the National Electrical Code (Section 54 of the Canadian

Electrical Code, Part 1) which provides guidelines for proper grounding

and, in particular, specifies that the cable ground shall be connected to the

grounding system of the building as close to the point of cable entry as

practical.

The GUIDE Plus+Gold system is manufactured under license from Index |

Systems Inc. J

SETUP AND CONNECTIONS .......................................................... 3

Step 1: Unpack the TV ...................................................................... 4

Step 2: Connecting your TV ............................................................. 4

TV Only ....................................................................................... 4

The Basicconnection ................................................................. S

Advanced Connections .............................................................. 6

Step 3:Connecting the IR Controller ............................................... 9

Attaching the IR Controllers ..................................................... 9

Step 4: Plug.in the TV ..................................................................... 10

Step 5: Place batteries in remote .................................................. 10

Step 6: Turn on the TV ......... .......................................................... 10

On-Screen Program Guide ....................................................... 10

Step 7: Program the TV .................................................................. 10

INTERACTIVE SETUP .................................................................... 11

Using Point and Select ................................................................... 12

Entering Setup .......................................................... ...................... 12

Select aLanguage .......................................................................... 13

Auto Channel Search ..................................................................... 13

GUIDE Plus+ System ........................................................................ 14

Set the Time ......................................................... ........................... 14

Set the VCR1 Channel (auto tuning) ............................................. 1S

Set the VCR2 Channel (auto tuning) ............................................. 1S

Set the DVD Channel (auto tuning) .................................... ;......... 16

Set the SAT/CABLE Channel (auto tuning) .................................... 17

Label the Channels .............................................. :.......................... 18

What Now? ..................................................................................... 18

Program the Remote ............................................................... 18

USING THE REMOTE ..................................................................... 19

Remote Buttons ........................................................................ ...... 20

Using the WHO-INPUT button ................................................ 21

Programming the Remote ............................................................. 22

Testing the remote .................................................................. 22

Programming the remote .................................. ...._................ 22

Using the remote to control a device ..................................... 23

Modes of Operation ................................................................ 23

Front Panel ..................................................................................... 23

FEATURES AND MENUS ............................................................... 25

Menus and Control Panels ............................................................. 26

Menus ....................................................................................... 26

Control Panels .......................................................................... 27

Audio Menu .................................................................................... 28

Using the remote to select an audio processor ............................ 29

Picture Quality Menu ..................................................................... 30

Screen Menu ............................................................................ ,...... 31

Using Closed Captioning ............................ ............................. 32

Channel Menu ................................................................................ 33

Time Menu ...................................................................................... 34

Parental Controls Menu ................................................................. 35

GUIDE Plus+ Menu ......................................................................... 36

Setup Menu ......................................................................... !.......... 36

PIP (Picture-in-Picture) Operation ................................................. 37

Channel Marker, ............................................................................. 38

TROUBLESHOOTING .................................................................... 39

CARE AND CLEANING ................................................................. 40

RCA DIRECT VIEW 5"-36" TELEVISION LIMITED WARRANTY 41

RCA PROJECTION TV LIMITED WARRANTY ........................... 42

ACCESSORI ES ................................................................................. 43

INDEX ........................................................................................... ..45

G E'n'l NG STARTE D

This manual isdesigned to get you started quickly.

The first four sections of the manual show you how

to get your TV Setup and Connected, run the

Interactive Setup, Program the Remote, and use all of

the Features and Menus of your TV.

The Reference section in the back of the book

contains troubleshooting tips, care and cleaning

instructions, accessoryordering information and your.

warranty.

Well... if your TV'sout of the box, let's get started.

1SETUP AND CONNECTIONS

Checkout the notesthat have been added /

throughout the manual in theseTip 1

Boxes.There aresomeimportant

tips that will helpyou get the mostfrom

your TV.

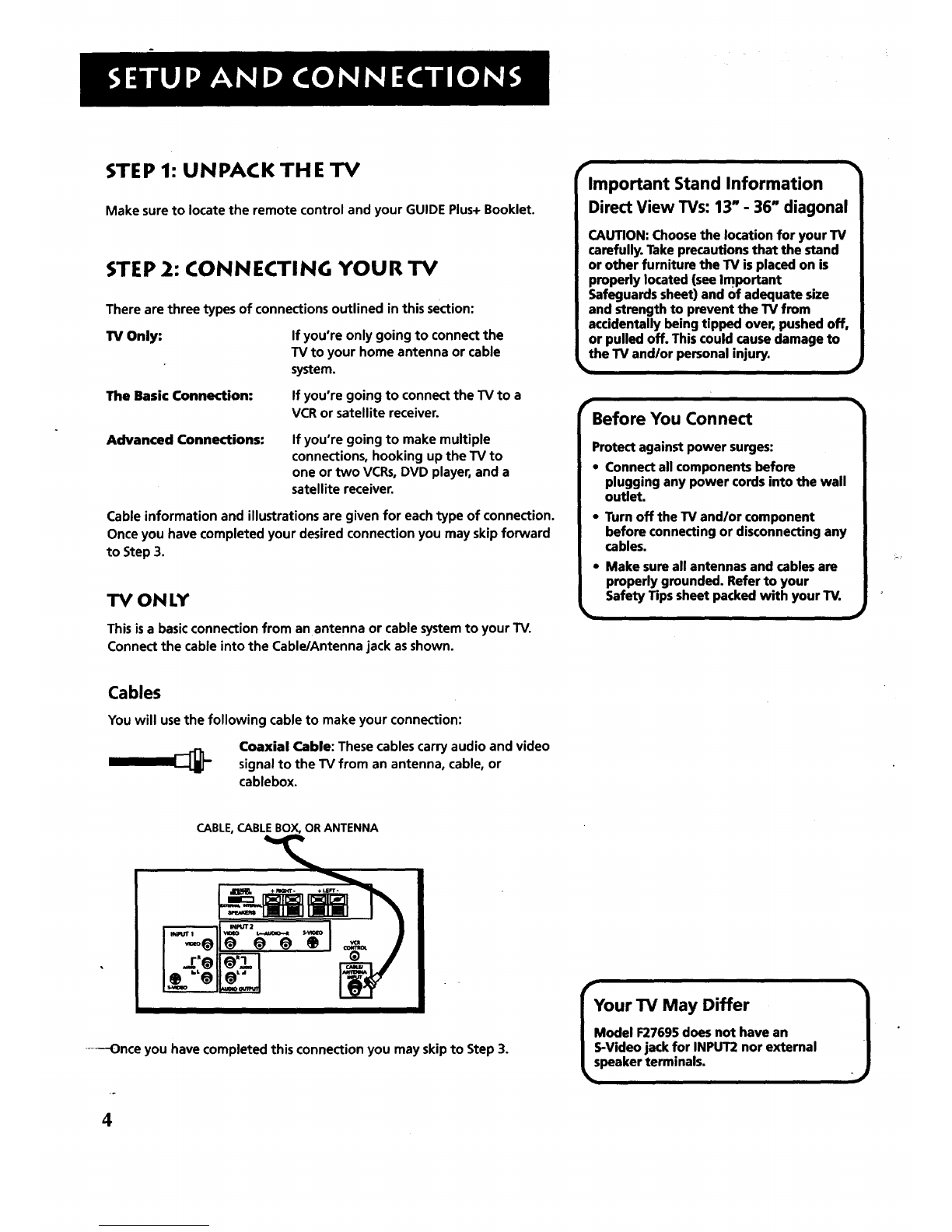

STEP 1: UNPACK THE TV

Make sure to locate the remote control and your GUIDE Plus+ Booklet.

STEP 2: CONNECTING YOUR TV

There are three types of connections outlined in this section:

lrv Only: If you're only going to connect the

TV to your home antenna or cable

system.

The Basic Connection: If you're going to connect the TV to a

VCR or satellite receiver.

Advanced Connections: If you're going to make multiple

connections, hooking up the TV to

one or two VCRs, DVD player, and a

satellite receiver.

Cable information and illustrations are given for each type of connection.

Once you have completed your desired connection you may skip forward

to Step 3.

TV ONLY

This isa basicconnection from an antenna or cable system to your TV.

Connect the cable into the Cable/Antenna jack as shown.

Important Stand Information

Direct View TVs: 13" - 36" diagonal

CAUTION: Choose the location for your TV

carefully. Take precautions that the stand

or other furniture the TV is placed on is

properly located (see ImPortant

Safeguards sheet) and of adequate size

and strength to prevent the TV from

accidentally being tipped over, pushed off,

or pulled off. This could cause damage to

the TV and/or personal injury.

Before You Connect

Protect against power surges:

•Connect all comPonents before

plugging any power cords into the wall

outlet.

Turn off the TV and/or component

before connecting or disconnecting any

cables.

Make sure all antennas and cables are

properly grounded. Refer to your

Safety Tips sheet packed with your TV.

Cables

You will use the following cable to make your connection:

Coaxial Cable: These cables carry audio and video

signal to the TV from an antenna, cable, or

cablebox.

CABLE, CABLE BOX, OR ANTENNA

-----Once you have completed this connection you may skip to Step 3. Iiour TV Differ

May

odel F27695 does not have an

Video jack for INPUT2 nor external

peaker terminals.

THE BASIC CONNECTION

The basic connection below (TV and VCR) isthe most common

connection and istherefore used to illustrate a single component

connection with your TV. For better sound and picture quality and

multiple component connection information refer to the next section,

Advanced Connections.

Cables

You will use the following cable to make your connection:

Coaxial Cables: These cables carry both the audio

and video signal to the TV from an antenna, cable,

or cablebox. In this connection, a second Coaxial

Cable carries the signal through the VCR to the TV.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

OUT

@ @

VIDEO AUDIO

IL -';J

IN FROM ANT CH3 I

How to View the VCR

To watch the VCR in this connection tune TV to

Channel 3 or 4.

Later, in the Interactive Setup section you will

program the TV to automatically tune to Channel 3 or

4 when you turn on the VCR.

Once you have completed this connection you may skip to Step 3,

"Connecting the IR Controller."

our TV May Differ

odel F27695 does not have an

-Video jack for INPUT2 nor external

peaker terminals. }

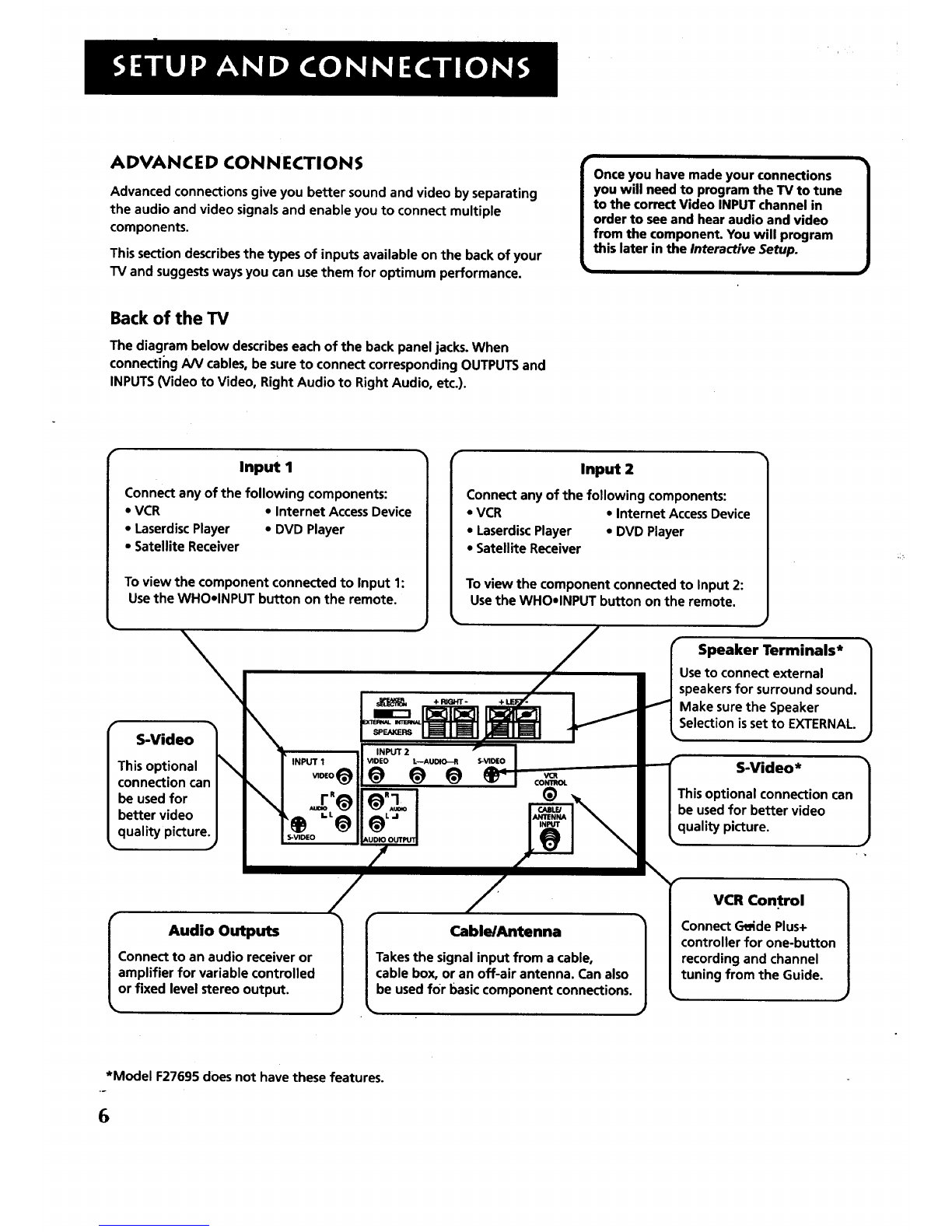

ADVANCED CONNECTIONS

Advanced connections give you better sound and video by separating

the audio and video signals and enable you to connect multiple

components.

This section describes the types of inputs available on the back of your

TV and suggests ways you can use them for optimum performance.

Once you have made your connections

you will need to program the TV to tune

to the correct Video INPUT channel in

order to see and hear audio and video

from the component. You will program

this later in the Interactive Setup.

Back of the TV

The diagram below describes each of the back panel jacks. When

connecting A/V cables, be sure to connect corresponding OUTPUTS and

INPUTS (Video to Video, Right Audio to Right Audio, etc.).

Input 1

Connect any of the following components:

•VCR •Internet AccessDevice

• Laserdisc Player •DVD Player

•Satellite Receiver

To view the component connected to Input 1:

Use the WHOelNPUT button on the remote.

S-Video

This optional

connection can

be used for

better video

quality picture.

Input 2

Connect any of the following components:

•VCR •Internet AccessDevice

•Laserdisc Player •DVD Player

•Satellite Receiver

To view the component connected to Input 2:

Usethe WHO•INPUT button on the remote.

I_ Audio Outputs

onnect to an audio receiver or

mplifier for variable controlled

r fixed level stereo output. lCable/Antenna 1

Takes the signal input from a cable,

cable box, or an off-air antenna. Can also

be used for basic component connections.

Speaker Terminals* 1

Use to connect external

speakers for surround sound.

Make sure the Speaker

Selection isset to EXTERNAL.

S-Video*

This optional connection can

be used for better video

quality picture.

VCR Control

Connect Cl_ide Plus+

controller for one-button

recording and channel

tuning from the Guide.

*Model F27695 does not have these features.

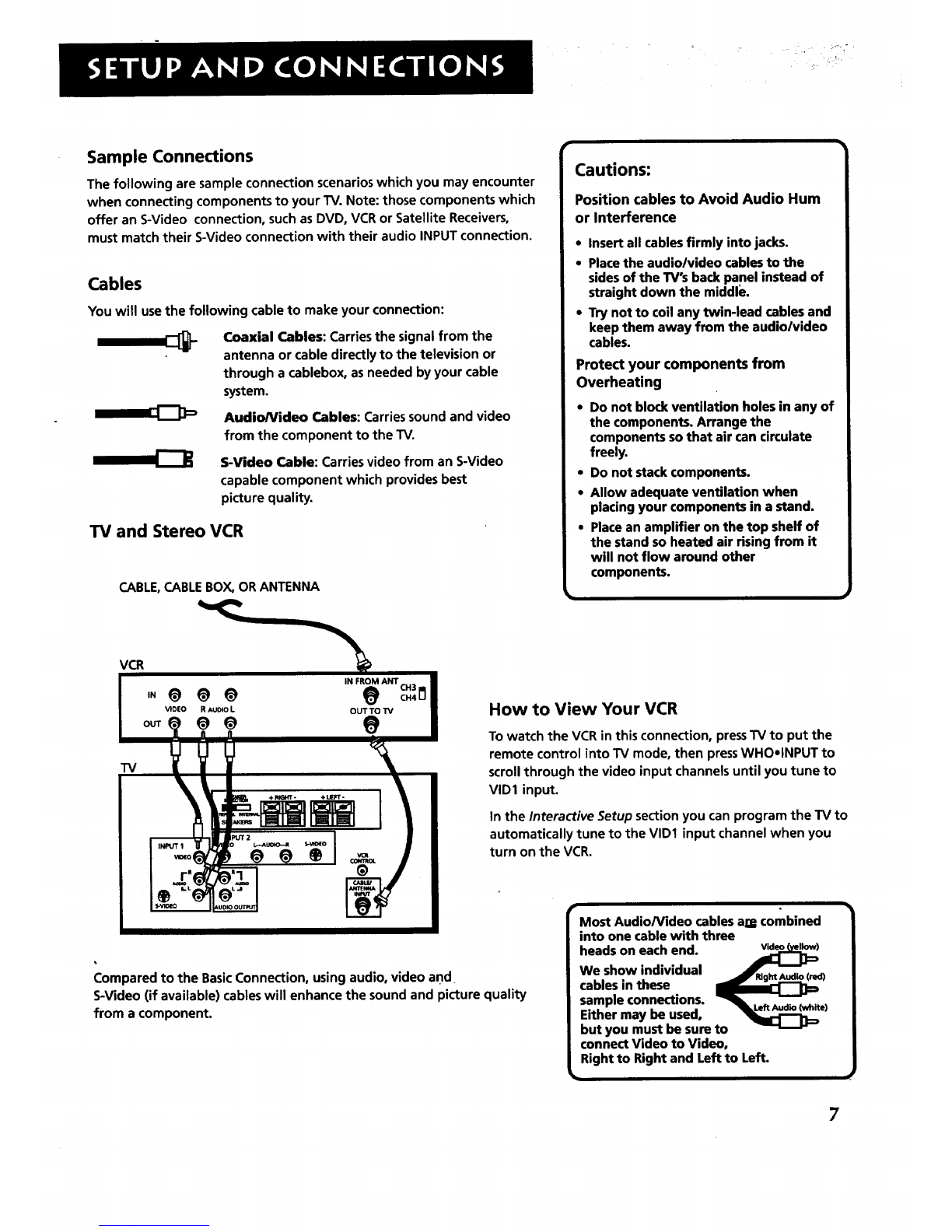

Sample Connections

The following are sample connection scenarios which you may encounter

when connecting components to your TV. Note: those components which

offer an S-Video connection, such as DVD0 VCR or Satellite Receivers,

must match their S-Video connection with their audio INPUT connection.

Cables

You will use the following cable to make your connection:

Coaxial Cables: Carries the signal from the

antenna or cable directly to the television or

through a cablebox, as needed by your cable

system.

Audio/Video Cables: Carries sound and video

from the component to the TV.

S-Video Cable: Carries video from an S-Video

capable component which provides best

picture quality.

TV and Stereo VCR

CABLE,CABLE BOX, OR ANTENNA

Cautions:

Position cables to Avoid Audio Hum

or Interference

•Insert all cables firmly into jacks.

•Place the audio/video cables to the

sides of the TV's back panel instead of

straight down the middle.

• Try not to coil any twin-lead cables and

keep them away from the audio/video

cables.

Protect your components from

Overheating

• Do not block ventilation holes in any of

the components. Arrange the

components so that air can circulate

freely.

•Do not stack components.

•Allow adequate ventilation when

placing your components in a stand.

• Place an amplifier on the top shelf of

the stand so heated air rising from it

will not flow around other

components.

VCR

IN FRC)M ANT CH3

VIDEO R AUOlO L OUT TO TV

.P22

Compared to the Basic Connection, using audio, video and

S-Video (if available) cables will enhance the sound and picture quality

from a component.

How to View Your VCR

To watch the VCR in this connection, press TV to put the

remote control into TV mode, then press WHOeINPUT to

scroll through the video input channels until you tune to

VID1 input.

In the Interactive Setup section you can program the TV to

automatically tune to the VID1 input channel when you

turn on the VCR.

Most Audio/Video cables am combined

into one cable with three

heads on each end.

We show individual

cables in these ___)

sample connections.

Either may be used, _-i_._ e)

but you must be sure to

connect Video to Video,

Right to Right and Left to Left.

TV, VCR and Satellite Receiver

CABLE, CABLE BOX, OR ANTENNA

SATELLITE RECEIVER

VCR

TV, VCR, Satellite Receiver and DVD

CABLE, CABLE BOX, OR ANTENNA

SATELLITE RECEIVER

Q @@@ OU'rTO'_

R L _,

VCR

o.o, . Jlll .

//11

SATELLITE SIGNAL

How to View Your Components

To watch the Satellite Receiver in this connection, press

TV to put the remote control into TV mode, then press

WHOolNPUT to scroll through the video input channels

until you tune to VID1 ( or S-VID 1) input.

To watch the VCR in this connection, pressTV to put the

remote control into TV mode, then press WHOelNPUT to

scroll through the video input channels until you tune

to VlD2 (or S-VlD 2) input.

In the Interactive Setup you can program the TV to

automatically tune to correct input channel when you

turn on your component.

How to View Your Components

To watch the Satellite Receiver in this connection, press

TV to put the remote control into TV mode, then press

WHOolNPUT to scroll through the video input channels

until you tune to VID1 ( or S-VID 1) input.

To watch the VCR in this connection tune to Channel 3 -

or4.

To watch the DVD player in this connection, press TV to

put the remote control into TV mode, then press

WHOolNPUT to scroll through the v_eo input channels

until you tune to VlD2 (or S-VlD 2) input.

In the Interactive Setup you can program the TV to

automatically tune to the correct input channel when

you turn on your component.

Inhaltsverzeichnis

Andere RCA Fernseher Handbücher

RCA

RCA P46770 Bedienungsanleitung

RCA

RCA F27675 Bedienungsanleitung

RCA

RCA T13072 Bedienungsanleitung

RCA

RCA CTC175 Bedienungsanleitung

RCA

RCA 14F514T Bedienungsanleitung

RCA

RCA RTRQ6522-US Bedienungsanleitung

RCA

RCA RLDED4350-UHD-B-SM Bedienungsanleitung

RCA

RCA F31665 Bedienungsanleitung

RCA

RCA F32674 Bedienungsanleitung

RCA

RCA G27646 Bedienungsanleitung

RCA

RCA F27242 Bedienungsanleitung

RCA

RCA 32V550TYX1GYV Bedienungsanleitung

RCA

RCA VPORT F36650 Bedienungsanleitung

RCA

RCA G35851 Bedienungsanleitung

RCA

RCA RLDED3956A Bedienungsanleitung

RCA

RCA 20V500T Bedienungsanleitung

RCA

RCA 20F514TD Bedienungsanleitung

RCA

RCA TruFlat F20TF20 Bedienungsanleitung

RCA

RCA RTDVD2409 Bedienungsanleitung

RCA

RCA F25625YX2AX1 Bedienungsanleitung

RCA

RCA P60100 Bedienungsanleitung

RCA

RCA G32705 Bedienungsanleitung

RCA

RCA Roku TV RTRU7028-CA Bedienungsanleitung

RCA

RCA Roku TV RHOR435 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
