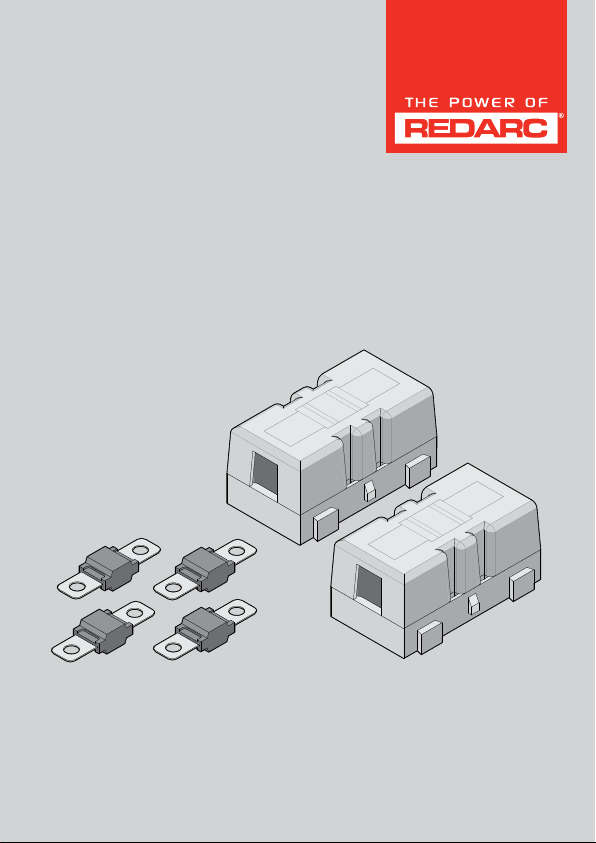

Redarc FK40 Bedienungsanleitung
40A MIDI Fuse Kit
FK40
40A MIDI FUSE KIT
The FK40 is designed to provide for a simple, neat fuse installation
for dual battery systems. The FK40 is perfect for the BCDC1225D,
BCDCN1225 and BCDC1220.
12mm
16mm²
40mm
6mm
spare fuses
KIT CONTENTS
No. Part Quantity
140 A MIDI Fuse 4
2Fuse Holder 2
3Nut and Spring Washer to suit Fuse Holder 4
4Lug 4
5Heatshrink 4
*The Lugs provided are intended for a 16mm² cable. If using a smaller cable gauge, insert with
conductor foldback; if using larger cable gauge, source a larger lug.
1
2
4
3
5
LIMITED WARRANTY
For full warranty terms and conditions, visit the
Warranty page of the REDARC website.
www.redarcelectronics.com/warranty
Australia, New Zealand & Europe
REDARC Electronics Pty Ltd
23 Brodie Road (North),
Lonsdale SA 5160
Australia
Australia +61 8 8322 4848
New Zealand +64 9 222 1024
UK & Europe +44 (0)20 3930 8109
North America
REDARC Corporation
c/o Shallco, Inc.
308 Component Dr.
Smitheld, NC 27577
USA
USA +1 (704) 247 5150
Canada +1 (604) 260 5512
Mexico +52 (558) 526 2898
Design and specications are subject to change without notice.
Copyright © 2022 REDARC Electronics Pty Ltd. All rights reserved.
REDARC® and THEPOWEROFREDARC® are trademarks of
REDARC Electronics Pty Ltd.
Auxiliary
Battery
Start
Battery
40 A Fuse
(and holder)
40 A Fuse
(and holder)
< 150 mm (6")
< 150 mm (6")
FUSE KIT ASSEMBLY
Order of installing Bolt in the Fuse Holder:
1. MIDI Fuse
2. Lug with Heatshrink and cable
3. Spring Washer
4. Nut
LUG AND HEATSHRINK ASSEMBLY
Strip the end of the cable back
enough to ensure the insulation
does not enter the barrel of the
Lug when fully inserted.
Slide the Heatshrink over the
cable.
Insert the stripped wires into the
barrel of the Lug.
Crimp the Lug using the correct
crimping tool.
Slide the Heatshrink to partially
cover the Lug, leaving the Lug
tongue exposed.
Shrink the Heatshrink.
BCDC1225D, BCDCN1225 & BCDC1220 INSTALLATION
Auxiliary and Start Battery Connection
WARFK40-3 EN
CONTACT
Tech Support
1300 REDARC
Head Office
+61 8 8322 4848
New Zealand
+64 9 222 1024
UK & Europe
+44 (0)20 3930 8109
USA
+1 (704) 247 5150
Canada
+1 (604) 260 5512
Mexico
+52 (558) 526-2898
redarcelectronics.com
