Please gather the following tools before you begin the installation:
* Socket wrench with 13mm & 10mm sockets.
Remove all items from the packing tube. You should have the following components before beginning:
* (2) Gas springs (RT-QL-200-4A)
* (1) Silver hood-insert assembly (RIGHT SIDE) - 55-00011
* (1) Blue hood-insert assembly (LEFT SIDE) - 55-00013
* (2) Shock tower ball-studs/washers - 55-00030
* Printed Color Instructions
A. Thread ball-stud approximately half-way into ball-stud retainer leaving 4-5 visible threads between retainer and
the conical washer. Feed BLUE retainer into LEFT hole, located on LEFT side mid-way up the hood’s frame (Left is
driver’s side in North America). Retainer should be inserted vertically and centered.
B. Tighten ball-stud by hand (clockwise rotation) while lightly pulling on conical washer to keep from spinning.
C. Tighten ball-stud using 13mm socket wrench to 15 ft/lbs. Repeat steps 3 (A-C) for smaller silver insert on RIGHT
side.
Step 1 - Unpack QuickLIFT system and verify contents.
Step 2 - Gather the required tools.
Step 3 - Install hood ball-stud system (Blue - LEFT SIDE & Silver - RIGHT SIDE)
2020+ For
d
Esca
p
e Hoo
d
Quic
k
LIF
T
B
ol
t-in
Bolt in system
2020+ Ford Escape - STOCK HOOD
QuickLIFT Installation Guide
V1.0
2/2020
PN: 21-11037
1 - Insert retainer aligned
vertically
QTY 2
55-00030
QT Y 1
55-00011
Right Side
SILVER
2 - Hand tighten stud while
pulling down on washer
3 - Tighten with 13mm
socket
RIGHT SIDE
SILVER retainer
RIGHT Sid
e
L
EFT Si
de
QT Y 1
55-00013
LEFT Side
BLUE
LEFT SIDE
BLUE
BLUE
retainer
Body Rod
A. Remove the fender bolt
closest to cowl using 10mm
socket.
B. Securely tighten the
supplied ball-stud & washer in
this location using 13mm
socket.
C. Repeat on RIGHT side of
vehicle.

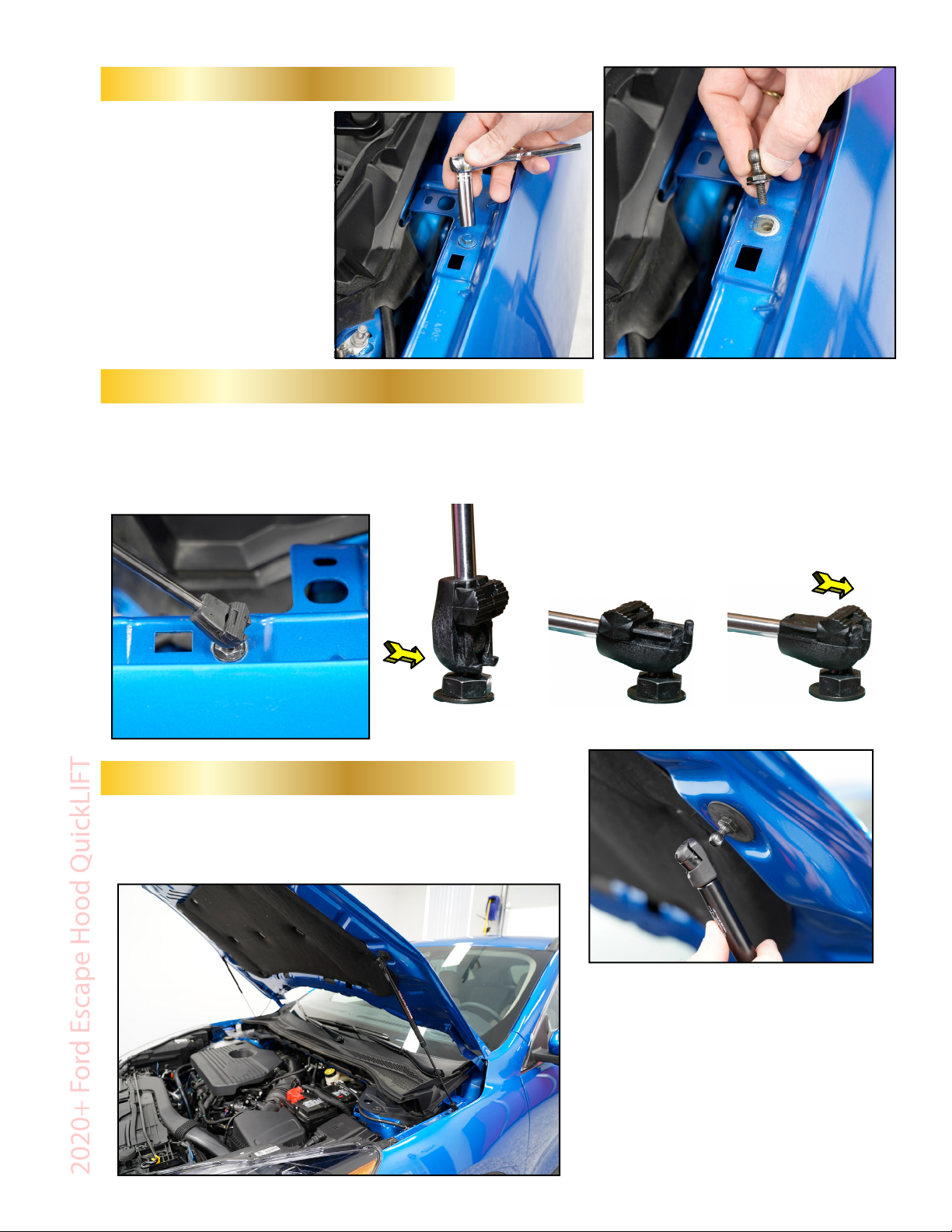

Step 4 - Install ball-studs as shown
Step 6 - Attach gas springs hood ball stud.
B
ol
t-in
A. Firmly snap on large end of gas spring to the hood ball stud
(as shown to the left).
To remove gas springs:
Slide a small at blade screw driver under
the metal c-clip on the back of the
end-tting. Slowly twist and pull the gas
spring from the ball-stud while prying
c-clip (DO NOT REMOVE C-CLIP). Gas
spring will pop o of ball-stud. Press
c-clip back into position and the gas
spring is ready to reinstall.
A. With slide-lock in open position (up), rmly press the open end of the socket onto the ball-stud.
B. Slide the locking mechanism over the ball-stud to secure the gas spring. Be sure that the locking clip slides all the
way over the ball-stud - this will ensure that this end of the gas spring will not free itself.
C. When hood is lowered, SLIDING LOCK MUST BE ON TOP - aiming up or toward windshield or it will not stay in place.
* SLIDING LOCK MUST BE ON TOP WHEN HOOD IS LOWERED
Step 5 - Install gas springs onto lower ball studs.
