Reebok Z9 Bedienungsanleitung

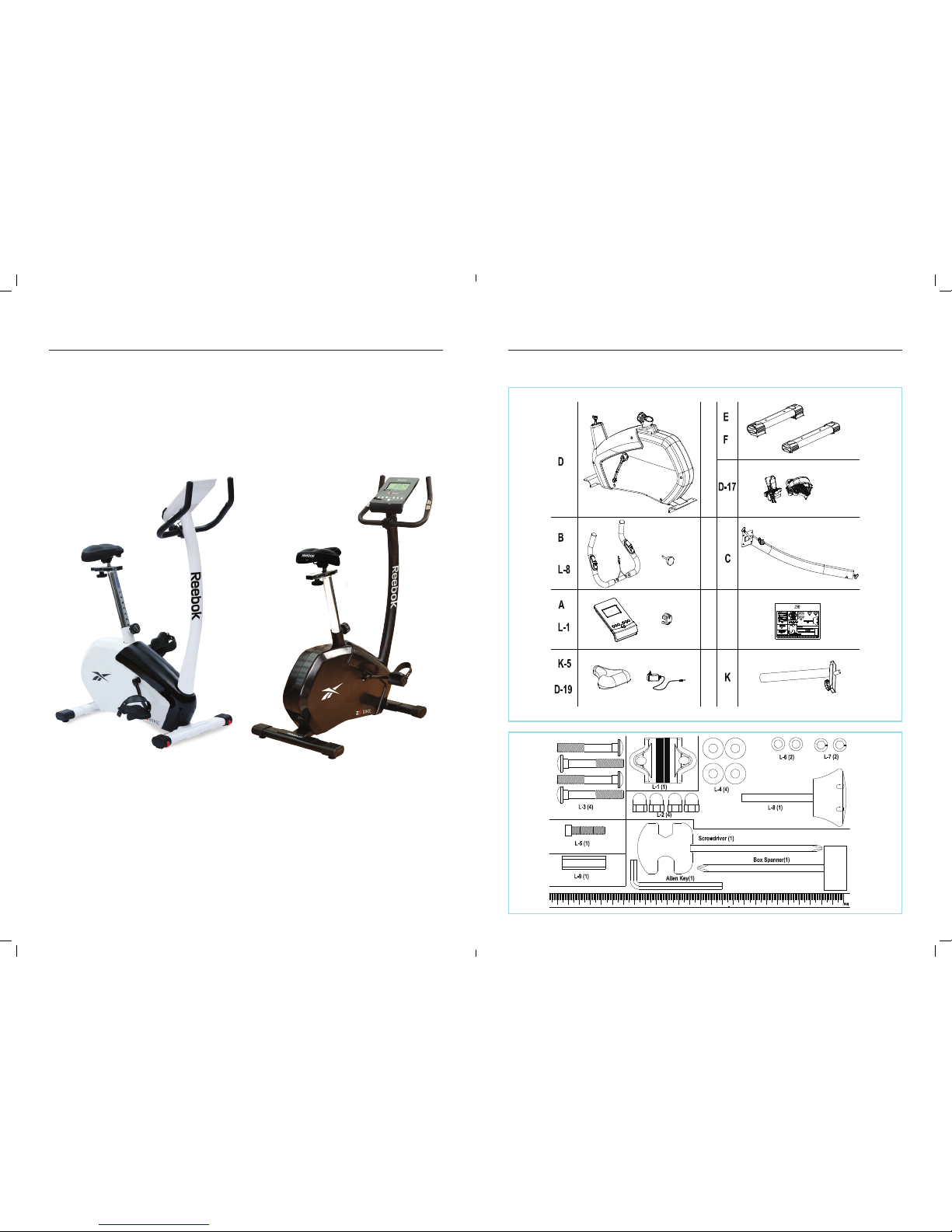

Z9 / ZR8 Bike

Assembly Guide

www.reebokﬁtnessequipment.com/productsupport

02

www.reebokﬁtnessequipment.com/productsupport

Assembly Guide

Z9 / ZR8 Bike

01

01

03

02

04 07 08

05 06

03 04

www.reebokﬁtnessequipment.com/productsupport

Assembly Guide

Z9 / ZR8 Bike

05 06

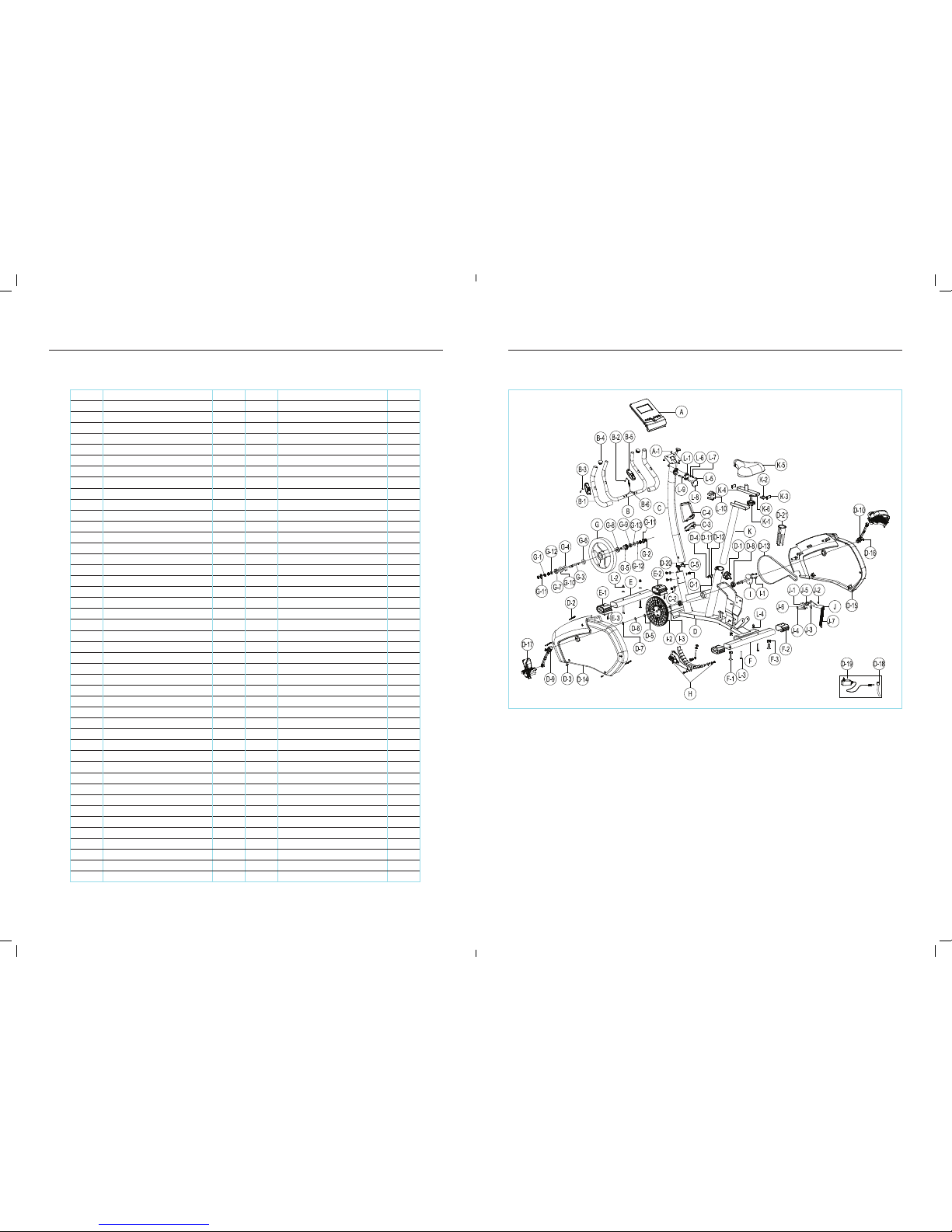

No. Description QTY No. Description QTY

A Console (incl. A-1) 1 G Flaywheel set (incl. G1~G-13) 1

A-1 Screw 4 G-1 Screw nut 3

B Handlebar set (incl. B-1~B-6) 1 G-2 Pattern nut 2

B-1 Foam grip 2 G-3 Flywheel axle 1

B-2 Screw 2 G-4 One-way bearing set 1

B-3 Semi-circuit washer 2 G-5 Small pulley 1

B-4 Handlebar end cap 2 G-6 Bearing 1

B-5 Hand pulse sensor 2 G-7 Bearing 1

B-6 Hand pulse wire 1 G-8 Bearing 1

C Handlebar post 1 G-9 Bearing 1

C-1 Screw 4 G-10 Flat washer 1

C-2 Semi-circuit washer 4 G-1 1 Washer 2

C-3 Seal 1 G-12 Sleeve 2

C-4 Handlebar post cover 1 G-13 Flat washer 1

C-5 Cable wire, upper 1 H Magnetic bracket with servomotor set 1

D Frame 1 I Axle set 1

D-1 Seat post adjusting knob 1 I-1 Screw 3

D-2 Screw 3 I-2 Drive pulley 1

D-3 Screw 6 I-3 Sleeve 1

D-4 Screw 1 J Belt tightener set (incl. J-1 - J-7) 1

D-5 Curved washer 1 J-1 Jockey wheel 1

D-6 Flat washer 4 J-2 Nylon nut 1

D-7 C-clip 1 J-3 Flat washer 1

D-8 Bearing 2 J-4 Screw 1

D-9 Crank, left 1 J-5 Curved washer 2

D-10 Crank, right 1 J-6 Screw 1

D-1 1 Sensor wire 1 J-7 Spring 1

D-12 Sensor ﬁxed base (incl. D-4) 1 K Seat post 1

D-13 Drive belt 1 K-1 Saddle locking knob 1

D-14 Side cover, left 1 K-2 Screw ﬁxed base 1

D-15 Side cover, right 1 K-3 End cap 2

D-16 Nylok screw 2 K-4 Saddle sliding set (incl. K-2, K-3) 1

D-17 Pedals (L+R) 1 K-5 Saddle 1

D-18 DC wire 1 K-6 Flat washer 1

D-19 Adaptor 1 L-1 Handlebar clamp 1

D-20 Cable wire, middle 1 L-2 Cap nut 4

D-21 Seat post sleeve 1 L-3 Carriage bolt 4

E Front stablizer (incl.E-1~E-3) 1 L-4 Flat washer 4

E-1 End cap with transport wheel, left 1 L-5 Screw 1

E-2 End cap with transport wheel, right 1 L-6 Flat washer 2

E-3 Screw 2 L-7 Spring washer 2

F-1 Adjustable pad 2 L-8 Handlebar locking knob 1

F-2 End cap 2 L-9 Bushing 1

F-3 Screw 2 L-1 0 Handlebar cover 1

www.reebokﬁtnessequipment.com/productsupport

Assembly Guide

Z9 / ZR8 Bike
