Reliable F1FR56 Bedienungsanleitung

Model F1FR56 UprightModel F1FR56 Pendent

Model F1FR56

Horizontal Sidewall

Model F1FR56 Vertical Sidewall

Note: Not all versions of the product are shown.

F1FR Series Sprinklers Summary

Sprinkler

Model

K-Factor gpm/psi1/2

(lpm/bar1/2)Orientation Listings & Approvals Max. Working Pressure

psi (bar)

Sprinkler

Identication

Number (SIN)

F1FR56 5.6 (80)

Upright

Intermediate Upright

cULus, FM, LPCB, VdS,

EC, WM

175 (12)

250 (17) (cULus only) RA1425

Pendent cULus, FM, LPCB, VdS,

EC, WM

175 (12)

250 (17) (cULus only) RA1414

Concealed Pendent cULus, VdS, EC, WM 175 (12)

250 (17) (cULus only) RA1414

Horizontal Sidewall cULus, FM 175 (12)

250 (17) (cULus only) RA1435

Vertical Sidewall cULus, FM, LPCB 175 (12) RA1485

Table A

Note: This bulletin may contain information on New and Legacy

sprinklers that reflects a dimensional change only. Sprinkler Iden-

tication Number (SIN), application, performance, and listings/

approval are not otherwise affected. Sprinklers with New frames

will include the sufx “N” in the order.

Features

• Standard coverage quick-response sprinklers

• Upright, pendent, horizontal sidewall, and vertical sidewall

deflectors

• Low prole, compact design

• Available in a wide variety of nishes

Product Description

Reliable Model F1FR56 series sprinklers are quick-response

standard spray automatic re sprinklers utilizing a sensitive 3.0

mm glass bulb thermal element.

Pendent and horizontal sidewall sprinklers may be installed

exposed or surface mounted using escutcheons such as the

Reliable Models B, C, or HB (reference Technical Bulletin 204).

When installed recessed or concealed, the Model F1FR56 series

sprinklers are specically listed with and may only be installed

with listed Reliable escutcheons and cover plates. Refer to the

technical information on the following pages for specic listings

for recessed and concealed installations and refer to Figures 5

and 6 for dimensional information.

When tted with an approved water shield, these sprinklers may

considered intermediate sprinklers for use in racks, below grated

walkways, and other areas where intermediate level sprinklers are

required.

Table A provides a summary of the approvals and availability of

specic Model F1FR series sprinkler congurations. Additional

technical information for each sprinkler model is provided on the

following pages.

www.reliablesprinkler.com

K-factor 5.6 (80)

F1FR56 Series

Quick Response Sprinklers

Bulletin 074 October 2022

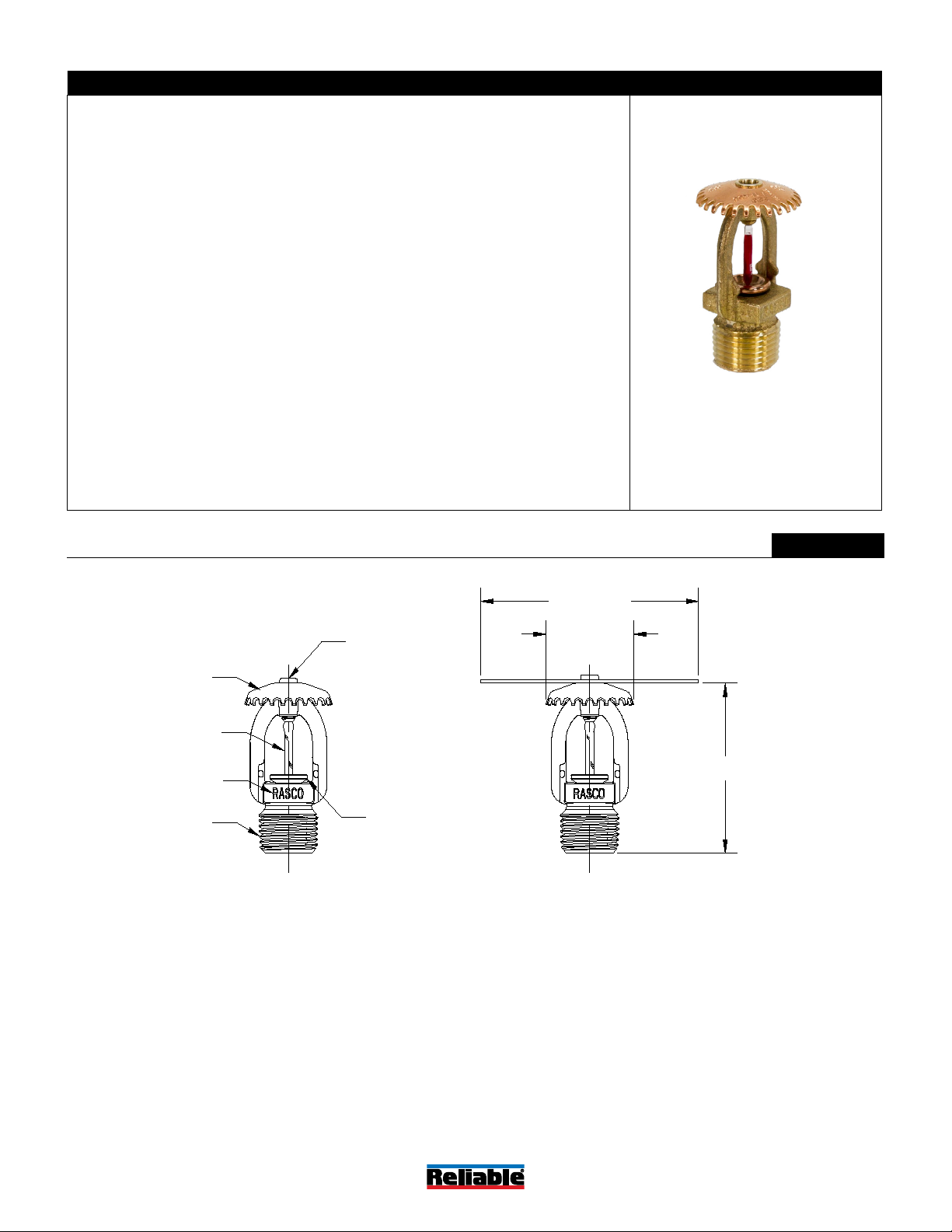

Model F1FR56 Upright Sprinkler SIN RA1425

Technical Specications

Style: Upright, Intermediate Upright

Threads: 1/2” NPT or ISO 7-R1/2

Nominal K-Factor: 5.6 (80 metric)

Max. Working Pressure:

175 psi (12 bar)

250 psi (17 bar) (cULus only)

Material Specications

Thermal Sensor: 3 mm Glass Bulb

Sprinkler Frame: Brass Alloy

Cap: Bronze Alloy

Sealing Washer: Nickel with PTFE

Load Screw: Copper Alloy

Deflector: Brass Alloy

Sprinkler Finishes

(See Table B)

Sensitivity

Quick response

Temperature Ratings

135°F (57°C)

155°F (68°C)

175°F (79°C)

200°F (93°C)

286°F (141°C)

Guards & Shields (New Frames)

Factory Water Shield (cULus, FM)

F-1 Guard (cULus, FM)

F-3 Guard with Shield (cULus, FM)

Guards and Shields (Legacy Frames)

Factory Water Shield

C-1 Guard (FM)

C-3 Guard with Shield (cULus, FM)

D-1 Guard (cULus)

D-3 Guard with Shield (cULus)

Sprinkler Wrench

Model W2

Model J (New frame with guard installed)

Model JD (Legacy frame with guard

installed)

Listings and Approvals

cULus Listed

FM Approved

LPCB

VdS

Model F1FR56 Upright Sprinkler Components and Dimensions Figure 1

Deflector

Glass Bulb

(3 mm)

Wrench Flat

Threads

1 3/8" [33mm]

3 1/4" [83mm]

Cap/Seal Assembly

Load Screw

2 1/4" [58mm]

F1FR_HALF_UPR_INT

Shown with Optional

Factory Installed Water Shield

( Intermediate Upright)

Bulletin 074

October 2022

Page 2 of 9

www.reliablesprinkler.com

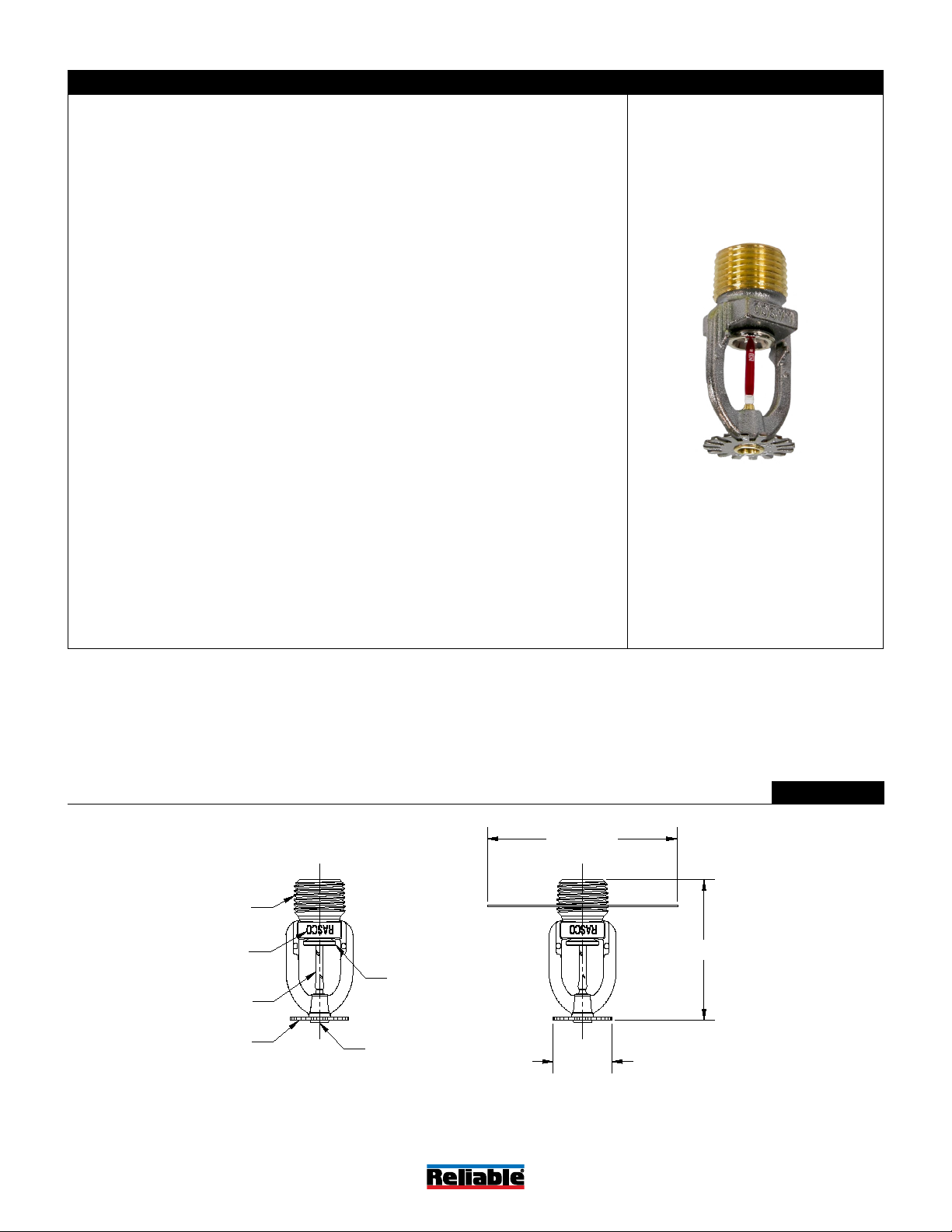

Model F1FR56 Pendent Sprinkler SIN RA1414

Technical Specications

Style:

Pendent

Recessed Pendent

Concealed Pendent

Threads: 1/2” NPT or ISO 7-R1/2

Nominal K-Factor: 5.6 (80 metric)

Max. Working Pressure:

175 psi (12 bar)

250 psi (17 bar) (cULus only)

Material Specications

Thermal Sensor: 3 mm Glass Bulb

Sprinkler Frame: Brass Alloy

Cap: Bronze Alloy

Sealing Washer: Nickel with PTFE

Load Screw: Copper Alloy

Deflector: Brass Alloy

Sprinkler Finishes

(See Table B)

Sensitivity

Quick response

Temperature Ratings(1)

135°F (57°C)

155°F (68°C)

175°F (79°C)

200°F (93°C)

286°F (141°C)

Recessed Escutcheons

Model F1 (cULus, LPCB, VdS, CE, WM)

Model F2 (cULus, FM, LPCB, VdS, CE,

WM)

Model FP (cULus, VdS, CE, WM)

Cover Plate

Model CCP (cULus, VdS(2), CE(2))

Guards & Shields (New Frames)(3)

F-1 Guard (FM)

F-5 Guard/Shield Kit (FM)

F-7 Guard (cULus)

F-8 Guard/Shield Kit (cULus)

S-1 Shield (cULus, FM)

Guards & Shields (Legacy Frames)(3)

C-1 Guard (FM)

C-5 Guard/Shield Kit (FM)

D-1 Guard (cULus, FM)

D-4 Guard/Shield Kit (FM)

D-5 Guard/Shield Kit (cULus, FM)

S-1 Shield (cULus, FM)

Sprinkler Wrenches

Model W2 (pendent)

Model W4 (recessed or concealed)

Model J (New frame with guard installed)

Model JD (Legacy frame with guard

installed)

Listings and Approvals(4)

cULus Listed

FM Approved

LPCB

VdS

Notes:

1. 286°F (141°C) temperature rated sprinkler not listed for recessed or concealed use.

2. VdS and CE approval for CCP concealed use is for 155°C (68°C) sprinkler ONLY.

3. Not suitable for recessed or concealed pendent installations.

4. When used surface mounted or exposed. See Recessed Escutcheon and Cover Plate section for specic approvals when installed

recessed or concealed.

Model F1FR56 Pendent Sprinkler Components and Dimensions Figure 2

F1FR_HALF_PEND_INT

Deflector

Glass Bulb

(3 mm)

Wrench Flat

Threads

3 1/4" [83mm]

2 1/4" [57mm]

1" [25mm]

Load Screw

Cap/Seal

Assembly

Shown with Optional S-1 Water

Shield (Ordered Separately)

Note: Please refer to Figure 8 for recessed and concealed installation.

Bulletin 074

October 2022

Page 3 of 9

www.reliablesprinkler.com

Model F1FR56 Horizontal Sidewall Sprinkler SIN RA1435

Technical Specications

Style:

Horizontal Sidewall

Recessed Horizontal Sidewall

Threads: 1/2” NPT or ISO 7-R1/2

Nominal K-Factor: 5.6 (80 metric)

Max. Working Pressure:

175 psi (12 bar)

250 psi (17 bar) (cULus only)

Material Specications

Thermal Sensor: 3 mm Glass Bulb

Sprinkler Frame: Brass Alloy

Cap: Bronze Alloy

Sealing Washer: Nickel with PTFE

Load Screw: Copper Alloy

Deflector: Brass Alloy

Sprinkler Finishes

(See Table B)

Sensitivity

Quick response

Temperature Ratings (1)

135°F (57°C)

155°F (68°C)

175°F (79°C)

200°F (93°C)

286°F (141°C)

Recessed Escutcheons(2)

Model F1 (cULus)

Model F2 (cULus, FM)

Model FP (cULus)

Guards & Shields (New Frames)(3)

F-4 Guard (FM)

F-7 Guard (cULus)

Guards & Shields (Legacy Frames)(3)

C1 Guard (FM)

D1 Guard (cULus)

Sprinkler Wrenches

Model W2 (non-recessed)

Model W4 (recessed)

Model J (New frame with guard installed)

Model JD (Legacy frame with guard

installed)

Listings and Approvals

cULus Listed(4)

FM Approved(5)

Notes:

1. 286°F (141°C) temperature rated sprinkler not listed for recessed use.

2. FM approved recessed installation when used with Model F2 escutcheon ONLY.

3. Not suitable for recessed horizontal sidewall installations.

4. cULus Listed for Light and Ordinary Hazard when installed exposed or surface mounted. Listed for Light Hazard ONLY when

installed recessed.

5. FM Approved for Light Hazard ONLY.

Model F1FR56 Horizontal Sidewall Sprinkler Components and Dimensions Figure 3

Bulletin 074

October 2022

Page 4 of 9

www.reliablesprinkler.com

F1FR_HALF_HSW

2 3/4" [70mm]

1 1/8" [28mm]

Threads

Cap/Seal Assembly

Load ScrewDeflector

Glass Bulb

(3 mm)

Wrench Flat

Frame

Note: Please refer to Figure 9 for recessed installation.

Model F1FR56 Vertical Sidewall Sprinkler SIN RA1485

Technical Specications

Style:

Upright Vertical Sidewall

Pendent Vertical Sidewall

Threads: 1/2” NPT or ISO 7-R1/2

Nominal K-Factor: 5.6 (80 metric)

Max. Working Pressure: 175 psi (12 bar)

Material Specications

Thermal Sensor: 3 mm Glass Bulb

Sprinkler Frame: Brass Alloy

Cap: Bronze Alloy

Sealing Washer: Nickel with PTFE

Load Screw: Copper Alloy

Deflector: Brass Alloy

Sprinkler Finishes

(See Table B)

Sensitivity

Quick response

Temperature Ratings

135°F (57°C)

155°F (68°C)

175°F (79°C)

200°F (93°C)

286°F (141°C)

Guards & Shields (New Frames)

F-2 Guard (FM)

Guards & Shields (Legacy Frames)

C1 Guard (FM)

Sprinkler Wrenches

Model W2

Model J (New frame with guard installed)

Model JD (Legacy frame with guard

installed)

Listings and Approvals(1)

cULus Listed

FM Approved

LPCB(2)

Notes:

1. Listed and approved for Light Hazard ONLY.

2. LPCB approved for use in pendent position ONLY.

Model F1FR56 Vertical Sprinkler Components and Dimensions Figure 4

Bulletin 074

October 2022

Page 5 of 9

www.reliablesprinkler.com

F1FR_HALF_VSW 2 1/4" [57mm]

1 1/2" [38mm]

Threads

Cap/Seal Assembly

Load ScrewDeflector

Glass Bulb

(3 mm)

Wrench Flat

Frame

Models F1 & F1FR Pendent Sprinkler

with Model F1 Recessed Escutcheon

3/4" (19mm) Nominal Adjustment

2-7/8" (72 mm) Dia.

1-3/4"

(44 mm)

2-1/4"

(57 mm) Dia.

Hole in Ceiling

1-15/16"

(49 mm) Dia.

Minimum

Recess

Maximum

Recess

(25 mm)

Face of Fitting

to Face of Ceiling

1-1/8" (29 mm) at

Max. Recess

3/8" (10 mm) at

Min. Recess

Models F1 & F1FR Pendent Sprinkler

with Model FP Recessed Escutcheon

1/2" (13mm) Nominal Adjustment

(25 mm)

2-5/16"

(59 mm) Dia.

Minimum

Recess Maximum

Recess

1/2"

(12 mm)

3-3/16" (78 mm) Dia.

Face of Fitting

to Face of Ceiling

1-1/2" (38 mm) at

Max. Recess

1" (25 mm) at

Min. Recess

2-7/8" (72 mm) Dia.

1-3/4"

(44 mm)

Minimum

Recess

Maximum

Recess

1-1/4"

(32 mm)

Face of Fitting

to Face of Ceiling

7/8" (22 mm) at

Max. Recess

3/8" (10 mm) at

Min. Recess

2-1/4"

(57 mm) Dia.

Hole in Ceiling

1-15/16"

(49 mm) Dia.

2-1/2"

(64 mm) Dia.

Hole in Ceiling

Models F1 & F1FR Pendent Sprinkler

with Model F2 Recessed Escutcheon

1/2" (13mm) Nominal Adjustment

Reducing

Fitting

Reducing

Fitting

Reducing

Fitting

Note: Model FP recessed assemblies may not be used where the

pressure in the space above the ceiling is positive with respect to

the protected area. Ensure that the openings in the Model FP cup

are unobstructed following installation.

Vented Cup

Model F1FR56 CCP Conical Concealed Sprinkler

1/2" (13mm) Nominal Adjustment

(Nominal Cover Plate Projection is 1" (25 mm))

(25 mm)

2-5/16"

(59 mm) Dia.

Minimum

Recess Maximum

Recess

1/2"

(12 mm)

3-5/16" (84 mm) Dia.

Face of Fitting

to Face of Ceiling

1-1/2" (38 mm) at

Max. Recess

1" (25 mm) at

Min. Recess

2-1/2"

(64 mm) Dia.

Hole in Ceiling

F1_REC_PEND_CCP

Reducing

Fitting

Note: Model CCP concealed assemblies may not be used where

the pressure in the space above the ceiling is positive with

respect to the protected area. Ensure that the openings in the

Model CCP cup are unobstructed following installation.

Vented Cup

Recessed and Concealed Installation: Pendent Sprinklers Figure 5

FP Escutcheon

F1 Escutcheon

(F2 Similar)

CCP Cover Plate

Bulletin 074

October 2022

Page 6 of 9

www.reliablesprinkler.com

2-1/4"

(57 mm)

Dia.

Hole

1-15/16"

(49 mm)

Dia.

2-1/4"

(57 mm)

Dia.

Hole

1-15/16"

(49 mm)

DIA.

2-7/8"

(73 mm)

Dia.

2-7/8"

(73 mm)

Dia.

2-1/8" (54 mm) Minimum Recess

1-5/8" (42 mm) Maximum Recess

2 1/8" (54 mm) Minimum Recess

1-3/8" (35 mm) Maximum Recess

2-5/8"

(67 mm)

Dia

Hole.

2-5/16"

(58 mm)

Dia.

3-1/4"

(83 mm)

Dia.

1-1/4" (32 mm)

+/- 1/4" (6 mm)

Face of fitting

to face of wall

1-3/8" (35 mm) Minimum Recess

7/8" (22 mm) Maximum Recess

3/8" (16 mm)

+/- 1/4" (6 mm)

Face of fitting

to face of wall

1/2" (12 mm)

+/- 3/8" (10 mm)

Face of fitting

to face of wall

4" - 12"

(102 mm - 305 mm)

Deflector to ceiling

F1FR_REC_HSW

Reducing

Fitting

Reducing

Fitting

Reducing

Fitting

9/16" [14mm]

Model F1FR Horizontal Sidewall Sprinkler

with Model FP Recessed Escutcheon

1/2" (13mm) Nominal Adjustment

Model F1FR Horizontal Sidewall Sprinkler

with Model F2 Recessed Escutcheon

1/2" (13mm) Nominal Adjustment

Model F1FR Horizontal Sidewall Sprinkler

with Model F1 Recessed Escutcheon

3/4" (19mm) Nominal Adjustment

F2 Recessed escutcheon

1/2" (13 mm) Adjustment

F1 Recessed escutcheon

3/4" (19 mm) Adjustment

4" - 12"

(102 mm - 305 mm)

Deflector to ceiling

9/16" [14mm]

4" - 12"

(102 mm - 305 mm)

Deflector to ceiling

9/16" [14mm]

Note: Model FP recessed assemblies may not be used where the

pressure in the space behind the sprinkler is positive with respect

to the space in the protected area. Ensure that the openings in

the Model FP cup are unobstructed following installation.

Vented Cup

Recessed Installation: Horizontal Sidewall Sprinklers Figure 6

Bulletin 074

October 2022

Page 7 of 9

www.reliablesprinkler.com

Installation

Model F1FR Series sprinklers must be installed in accordance with

NFPA13 and the requirements of all applicable authorities having

jurisdiction. Model F1FR Series sprinklers must be installed with

the Reliable sprinkler installation wrench identied in this Bulletin.

Any other wrench may damage the sprinkler. The Models W2 and

W4 wrenches have two sets of jaws. Use the smallest set of jaws

that t on the wrench flats of the sprinkler. A leak tight sprinkler

joint can be obtained with a torque of 8 to 18 lb-ft (11 to 24

N.m). Do not tighten sprinklers over the maximum recommended

installation torque. Exceeding the maximum recommended

installation torque may cause leakage or impairment of the

sprinkler.

Glass bulb sprinklers have orange bulb protectors or protective

caps to minimize bulb damage during shipping, handling and

installation. Reliable sprinkler installation wrenches are designed

to install sprinklers with bulb protectors in place. Remove the bulb

protector at the time when the sprinkler system is placed in service

for re protection. Removal of the bulb protector before this time

may leave the bulb vulnerable to damage. Remove bulb protectors

by undoing the clasp by hand. Do not use tools to remove bulb

protectors.

Standard Finishes Special Application Finishes

Sprinkler F1, F2 and FP(2)

Escutcheons

CCP Cover

Plate(2) Sprinkler F1, F2 and FP(2)

Escutcheons CCP Cover Plate(2)

Bronze Brass Chrome Electroless Nickel PTFE(3)(4) Bright Brass Bright Brass

Chrome Chrome White Paint Bright Brass(5) Satin Chrome Satin Chrome

White Polyester(3) White Polyester Satin Chrome Custom Color Polyester Custom Color Paint

Custom Color Polyester(3)

Notes:

1. Paint or any other coating applied over the factory nish will void all approvals and warranties.

2. Model FP escutcheons and Model CCP sprinklers utilize a galvanized steel cup with a nished trim ring or cover plate.

3. cULus Listed as corrosion resistant.

4. FM Approved as corrosion resistant.

5. For 200°F (93°C) maximum temperature rated sprinklers only.

Finishes(1) Table B

Maintenance

Reliable Model F1FR series sprinklers should be inspected and

the sprinkler system maintained in accordance with NFPA 25, as

well as the requirements of any Authorities Having Jurisdiction.

Prior to installation, sprinklers should remain in the original

cartons and packaging until used. This will minimize the potential

for damage to sprinklers that could cause improper operation or

non-operation.

Do not clean sprinklers with soap and water, ammonia liquid or

any other cleaning fluids. Remove dust by gentle vacuuming

without touching the sprinkler.

Replace any sprinkler which has been painted (other than factory

applied). A stock of spare sprinklers should be maintained to

allow quick replacement of damaged or operated sprinklers.

Failure to properly maintain sprinklers may result in inadvertent

operation or non-operation during a re event.

Wrenches

Model W2 (upright, pendent)

Model J (New frame with guard installed)

Model JD (Legacy frame with guard installed, similar but with zinc nish) Model W4

(recessed, concealed pendent)

Bulletin 074

October 2022

Page 8 of 9

www.reliablesprinkler.com

P/N 9999970623

Bulletin 074

October 2022

Page 9 of 9

www.reliablesprinkler.com

Guarantee

For the guarantee, terms, and conditions, visit www.

reliablesprinkler.com.

Ordering Information

Specify the following when ordering:

Model

• F1FR56

Deflector/Orientation

• Upright

• Intermediate Upright

• Pendent

• CCP Concealed Pendent

• Horizontal Sidewall

• Vertical Sidewall

Temperature Rating

• See sprinkler technical specications

Sprinkler Finish

• See Table B

Recessed Escutcheon(1)(2)

• F1

• F2

• FP

Escutcheon Finish

• See Table B

CCP Cover Plate Temperature Rating

• 135°F (57°C) [For use with 135°F (57°C)

and 155°F (68°C) sprinklers.]

• 165°F (74°C) [For use with 175°F (79°C)

and 200°F (93°C) sprinklers.]

CCP Cover Plate Finish

• See Table B

Sprinkler Wrench

• Model W2

• Model W4 (recessed, concealed)

• Model J (New frame with guard installed)

• Model JD (Legacy frame with guard installed)

Notes:

1. 286°F (141°C) sprinklers are not listed to be used recessed or concealed.

2. For FM, recessed sprinklers must use the Model F2 escutcheon.

Andere Handbücher für F1FR56

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Reliable Bewässerungssystem Handbücher

Reliable

Reliable F1-56-300 Series Bedienungsanleitung

Reliable

Reliable F3QR80 Dry Pendent Bedienerhandbuch

Reliable

Reliable Pantman F1 Bedienungsanleitung

Reliable

Reliable F1FR80 Series Bedienungsanleitung

Reliable

Reliable F3QR80 Series Bedienungsanleitung

Reliable

Reliable F1-300 Handbuch

Reliable

Reliable G Series Bedienungsanleitung

Reliable

Reliable N25 Bedienungsanleitung

Reliable

Reliable F1-300 Bedienungsanleitung

Reliable

Reliable F156 Series Bedienungsanleitung

Reliable

Reliable RFC56 Bedienungsanleitung

Reliable

Reliable N252 EC Bedienungsanleitung

Reliable

Reliable XL Series Bedienungsanleitung

Reliable

Reliable F4FR-NF Handbuch

Reliable

Reliable G5 Series Bedienungsanleitung

Reliable

Reliable KFR-CCS Bedienungsanleitung

Reliable

Reliable F3QR80 Series Bedienungsanleitung

Reliable

Reliable GFR Bedienungsanleitung

Reliable

Reliable F1FR56 Bedienungsanleitung

Reliable

Reliable N25 ESFR Bedienungsanleitung

Reliable

Reliable F1FR40 Handbuch

Reliable

Reliable F1FR LO Series Handbuch

Reliable

Reliable N252 EC Bedienungsanleitung

Reliable

Reliable DH80 Dry Bedienungsanleitung

Beliebte Bewässerungssystem Handbücher anderer Marken

Hunter

Hunter Institutional Series Bedienungsanleitung

Cellfast

Cellfast 52-305 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL A Bedienungsanleitung

Oral Care Technologies

Oral Care Technologies Hydro Floss Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem F892 Bedienungsanleitung

Netafim

Netafim NETBEAT Bedienungsanleitung

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Bedienungsanleitung

Tyco

Tyco CC3 Bedienungsanleitung

OpenSprinkler

OpenSprinkler OSPi Bedienungsanleitung

EINHELL

EINHELL GE-WW 5537 E Bedienungsanleitung

Valley

Valley Bender160 Bedienungsanleitung

Toro

Toro 730 Series Kurzanleitung

Eden

Eden 97063-EDAMZ Bedienungsanleitung

Tyco

Tyco TY-L Series Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 Bedienungsanleitung

Johnson Controls

Johnson Controls tyco ESFR-17 Bedienungsanleitung

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Bedienungsanleitung
