Reliable F3QR80 Series Bedienungsanleitung

(Note: not all versions of sprinkler shown,

please see pages 2 through 10)

Sprinkler Model

K-Factor

gpm/psi1/2

(lpm/bar1/2)

Approvals*

Max. Working

Pressure

psi (bar)

Sprinkler

Identication

Number (SIN)

F3QR80 Dry Pendent 8.0 (115) cULus 175 (12.0) RA6112

F3QR80 Dry Horizontal

Sidewall 8.0 (115) cULus 175 (12.0) RA6132

Table A

Model F3QR80 Dry Sprinkler Summary

*Note: Approvals may not apply to all trim, inlet thread, temperature, and/or nish combinations. See pages 2-10 for additional technical

information.

Features

•Various trim options available

•Sprinklers and trim available in a wide variety of standard and

special application nishes

•Standard 1” NPT or ISO7-R1 inlet tting

•Listed corrosion resistant combinations of sprinkler and trim

available

Product Description

Model F3QR80 dry sprinklers are Quick-Response, standard

coverage sprinklers with a nominal K-factor of 8.0 (115 metric).

Available in pendent and horizontal sidewall congurations,

Model F3QR80 dry sprinklers utilize a 5mm glass bulb ordinary,

intermediate, or high temperature classication operating

element.

Model F3QR80 dry sprinklers are intended for installation on wet

pipe, dry pipe, or preaction systems in accordance with NFPA 13

or other applicable installation standards.

Model F3QR80 dry sprinklers are available in a variety of trim

options and nish combinations as shown on the following pages.

The Reliable escutcheons and cover plates shown are the only

escutcheons and cover plates listed for use with the sprinkler.

The use of any other escutcheon or cover plate will void all

guarantees, warranty, listing, and approvals.

Table A provides a basic summary of Model F3QR80 dry

sprinklers. Additional technical information is provided on the

following individual sprinkler pages.

www.reliablesprinkler.com

K-factor 8.0 (115 metric)

Model F3QR80 Series

Quick-Response Dry Sprinkler

Bulletin 061 November 2023

“A” Dimension

in (mm)

Temperature

Classication

Temperature Rating

°F (°C) Glass Bulb Color Approvals Sprinkler Guard

2” to 36” (50mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table B

Model F3QR80 Dry Pendent: Standard Escutcheon - SIN RA6112

Model F3QR80 Dry Pendent Sprinkler: Standard Escutcheon Figure 1

System Fitting

Inlet Fitting

1-5/8"

[41mm]

3" [76mm]

DIA.

2-1/8"

[54mm] Dia.

Hole in Ceiling

1/2" [12mm]

Nominal Protrusion

"A" Dimension Sprinkler Can

Escutcheon

Ceiling

1" [25mm]

Escutcheon

Adjustment

1/2" [12mm]

Escutcheon Adjustment

Nominal

Escutcheon

Position

1/2" [12mm]

COMDRYDET1

Note: The sprinkler can protrudes 1/2” (12mm) when escutcheon is in nominal position. Escutcheon ad-

justment provides -1/2” (12mm) to +1” (25mm) “A” dimension adjustment range.

Finish Combinations: Standard Escutcheon

Sprinkler Escutcheon(2)(3)

Bronze Polished Stainless

Bronze Laquered Brass

Chrome Polished Stainless

White Polyester(1) White Polyester

Black Polyester(1) Black Polyester

Custom Color Polyester(1) Custom Color Polyester

Electroless Nickel PTFE(1) Polished Stainless

Notes:

1. UL Listed as Corrosion Resistant.

2. Escutcheons do not carry corrosion resistant listings.

3. Base material is 316 stainless steel unless noted.

Bulletin 061

November 2023

Page 2 of 16

www.reliablesprinkler.com

“A” Dimension

in (mm)

Temperature

Classication

Temperature Rating

F (C) Glass Bulb Color Approvals Sprinkler Guard

3½” to 36” (90mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table C

Model F3QR80 Dry Pendent: HB Escutcheon - SIN RA6112

Model F3QR80 Dry Pendent Sprinkler: HB Escutcheon Figure 2

Note: The sprinkler can protrudes 1¼” when escutcheon is in nominal position. Escutcheon adjustment

provides -½” (-12.7mm) to +½” (+12.7mm) “A” dimension adjustment range.

COMDRYDET2

System tee

2-1/2" [64 mm] Dia. Hole

in Ceiling

3-1/2" [89 mm]

Escutcheon Dia.

Ceiling

Sprinkler Can

Escutcheon

"A" Dimension

Inlet fitting

1-1/4" [32mm]

1/2" [13mm] Escutcheon

Adjustment

1/2" [13mm] Escutcheon

Adjustment

Nominal Position of

Escutcheon

Deflector distance below ceiling

is 3-1/2" (89mm) minimum,

4-1/2" (114mm) maximum.

Finish Combinations: HB Escutcheon

Sprinkler Escutcheon(2)(3)

Bronze Chrome

Chrome Chrome

White Polyester(1) White Polyester

Black Polyester(1) Black Polyester

Custom Color Polyester(1) Custom Color Polyester

Electroless Nickel PTFE(1) Stainless Steel

Notes:

1. UL Listed as Corrosion Resistant.

2. Escutcheons do not carry corrosion resistant listings.

3. Base material is cold rolled steel unless noted.

Bulletin 061

November 2023

Page 3 of 16

www.reliablesprinkler.com

“A” Dimension

in (mm)

Temperature

Classication

Temperature Rating

°F (°C) Glass Bulb Color Approvals Sprinkler Guard

31/2” to 36” (90mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table D

Model F3QR80 Dry Pendent: FP Escutcheon - SIN RA6112

Model F3QR80 Dry Pendent Sprinkler: FP Escutcheon Figure 4

Note: Do not install the Model F3QR80 Dry Pendent sprinkler with the Model FP escutcheon in ceilings

which have positive pressure in the space above.

COMDRYDET3

Inlet Fitting

3-7/32"

[82 mm] Dia.

2-5/8" [67 mm] Dia.

Hole in Ceiling

"A" Dimension

Sprinkler

Cup

System Tee

Escutcheon

1/4" [6 mm]

Escutcheon Adjustment

1/4" [6 mm]

Escutcheon Adjustment

Nominal

Escutcheon Position

3/4" [19 mm] Nom.

Finish Combinations: FP Recessed

Sprinkler(1) Escutcheon(3)(4)

Bronze Brass

Chrome Chrome

White Polyester(2) White Polyester

Black Polyester(2) Black Polyester

Custom Color Polyester(2) Custom Color Polyester

Electroless Nickel PTFE(2) Stainless Steel

Notes:

1. Cup for FP Recessed is unnished galvanized steel except electro-

less nickel PTFE sprinklers which are provided with a stainless steel

cup

2. UL Listed as Corrosion Resistant.

3. Escutcheons do not carry corrosion resistant listings.

4. Base material is cold rolled steel unless noted.

Bulletin 061

November 2023

Page 4 of 16

www.reliablesprinkler.com

“A” Dimension

in (mm)

Temperature

Classication

Temperature Rating

F (C) Glass Bulb Color Approvals Sprinkler Guard

31/2” to 36” (90mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table E

Model F3QR80 Dry Pendent: CCP Cover Plate - SIN RA6112

Model F3QR80 Dry Pendent Sprinkler: CCP Cover Plate Figure 5

Note: Do not install the Model F3QR80 Dry Pendent sprinkler with the Model CCP cover plate in ceilings

which have positive pressure in the space above.

COMDRYDET4

Ceiling

Inlet Fitting

3-5/16"

[84 mm] Dia.

2-1/2" [64 mm] Dia.

Hole in Ceiling

3/16" [5 mm]

Cover Plate Adjustment

"A" Dimension

3/16" [5 mm]

Cover Plate Adjustment

Sprinkler Cup

System Tee

Model CCP 1/2

Cover Plate Assembly

Nominal Cover

Plate Position

7/8"

[22 mm]

Finish Combinations: CCP Concealed

Sprinkler(1) Cover Plate(2)

Bronze

White Polyester

Chrome Bright

Chrome Dull

Bright Brass

Unnished Bronze

Black Plate

Custom Color

Notes:

1. Cup for CCP Concealed is unnished galvanized steel.

2. Cover plates do not carry corrosion resistant listings.

Bulletin 061

November 2023

Page 5 of 16

www.reliablesprinkler.com

Order Dimension

in (mm)

Temperature

Classication

Temperature Rating

°F (°C) Glass Bulb Color Approvals Sprinkler Guard

5” to 36” (125mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table F

Model F3QR80 Dry Pendent: No Escutcheon - SIN R6112

Model F3QR80 Dry Pendent Sprinkler: No Escutcheon Figure 6

System Fitting

Inlet Fitting

1-5/8" [41mm]

Ordering

Dimension COMDRYDET_NOCAN_PEND

Note: Customer is responsible for

determining the correct deflector distance

from the ceiling or structure above.

Ref.

Available Finishes

No Escutcheon Dry Pendent Sprinkler

Bronze

Chrome

White Polyester(1)

Custom Color Polyester(1)

Electroless Nickel PTFE(1)

Notes:

1. UL Listed as Corrosion Resistant.

Bulletin 061

November 2023

Page 6 of 16

www.reliablesprinkler.com

COMING SOON!

“A” Dimension

in (mm)

Temperature

Classication

Temperature Rating

°F (°C) Glass Bulb Color Approvals Sprinkler Guard

2” to 36” (50mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus

(Light & Ordinary Hazard Only)

N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table G

Model F3QR80 Dry Horizontal Sidewall: Standard Escutcheon - SIN RA6132

Model F3QR80 Dry Horizontal Sidewall: Standard Escutcheon Figure 7

System Fitting

[76mm]

Wall

1" [25mm]

Escutcheon

Adjustment

2-3/32"

[53mm]

Ceiling

1/2" [12mm]

Escutcheon Adjustment

2-1/8"

[54mm] Dia.

Hole in Wall

4" [100mm] Min.

12" [300mm] Max.

COMDRYDET6-A

Inlet Fitting

"A" Dimension

5/8" [16mm]

Nominal Escutcheon Position

Sprinkler Can 1/2" [12mm]

1/2" [12mm] Nominal Protrusion

Escutcheon

Note: The sprinkler can protrude 1/2” when escutcheon is in nominal position. Escutcheon adjustment

provides -1/2” (-12mm) to +1” (25mm) “A” dimension adjustment range.

Finish Combinations: Standard Escutcheon

Sprinkler Escutcheon(2)(3)

Bronze Polished Stainless

Bronze Laquered Brass

Chrome Polished Stainless

White Polyester(1) White Polyester

Black Polyester(1) Black Polyester

Custom Color Polyester(1) Custom Color Polyester

Electroless Nickel PTFE(1) Polished Stainless

Notes:

1. UL Listed as Corrosion Resistant.

2. Escutcheons do not carry corrosion resistant listings.

3. Base material is 316 stainless steel unless noted.

Bulletin 061

November 2023

Page 7 of 16

www.reliablesprinkler.com

“A” Dimension

in (mm)

Temperature

Classication

Temperature Rating

°F (°C) Glass Bulb Color Approvals Sprinkler Guard

31/2” to 36” (90mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus

(Light & Ordinary Hazard Only) N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table H

Model F3QR80 Dry Horizontal Sidewall: HB Escutcheon - SIN RA6132

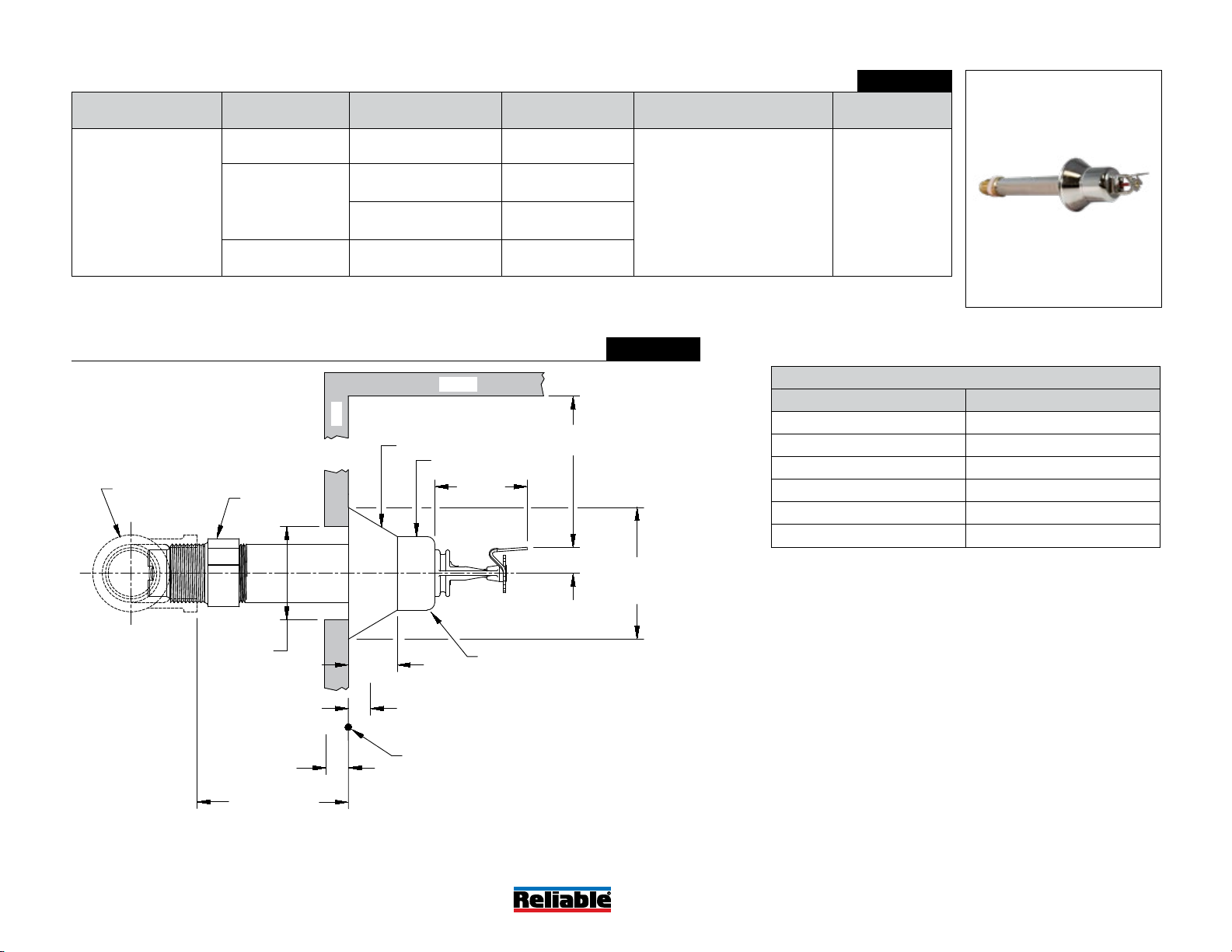

Model F3QR80 Dry Horizontal Sidewall: HB Escutcheon Figure 8

Note: The sprinkler can protrudes 1¼” when escutcheon is in nominal position. Escutcheon adjustment

provides -½” (-12.7mm) to +½” (+12.7mm) “A” dimension adjustment range.

COMDRYDET7

System Tee

3-1/2"

[89mm]

Escutcheon Dia.

Nominal Position

of Escutcheon

Inlet Fitting

1/2" [13mm]

Escutcheon Adjustment

2 3/32"

[53mm]

Ceiling

"A" Dimension

Sprinkler Can

2 1/2" Dia.

[64mm]

Hole in Wall

4" [102mm] Min.

12" [305mm] Max.

Wall

1/2" [13mm]

Escutcheon

Adjustment

Escutcheon

1-1/4" [32mm] Nominal Protrusion

1-1/4"

[32mm]

5/8" [16mm]

Finish Combinations: HB Escutcheon

Sprinkler Escutcheon(2)(3)

Bronze Chrome

Chrome Chrome

White Polyester(1) White Polyester

Black Polyester(1) Black Polyester

Custom Color Polyester(1) Custom Color Polyester

Electroless Nickel PTFE(1)(4) Stainless Steel

Notes:

1. UL Listed as Corrosion Resistant.

2. Escutcheons do not carry corrosion resistant listings.

3. Base material is cold rolled steel unless noted.

4. FM Approved as Corrosion Resistant.

Bulletin 061

November 2023

Page 8 of 16

www.reliablesprinkler.com

“A” Dimension

in (mm)

Temperature

Classication

Temperature Rating

°F (°C) Glass Bulb Color Approvals Sprinkler Guard

31/2” to 36” (90mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus

(Light & Ordinary Hazard Only) N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table I

Model F3QR80 Dry Horizontal Sidewall: FP Escutcheon - SIN RA6132

Model F3QR80 Dry Horizontal Sidewall: FP Escutcheon Figure 9

Note: Do not install the Model F3QR80 Dry Horizontal Sidewall sprinkler with the Model FP escutcheon in

walls which are positively pressurized with respect to the protected space.

COMDRYDET8

Hole in Wall

3-7/32"

[82 mm] Dia.

2-1/2"

[64 mm] Dia.

"A" Dimension

1-1/4"

[32 mm]

System Tee

Wall

4" [100 mm] Min.

12" [300 mm] Max.

Ceiling

Sprinkler Cup

Escutcheon

1/4" [6 mm]

Escutcheon Adjustment

Nominal Escutcheon Position

5/8" [16 mm]

Inlet Fitting

Nom.

Finish Combinations: FP Recessed

Sprinkler(1) Escutcheon(3)(4)

Bronze Brass

Chrome Chrome

White Polyester(2) White Polyester

Black Polyester(2) Black Polyester

Custom Color Polyester(2) Custom Color Polyester

Electroless Nickel PTFE(2) Stainless Steel

Notes:

1. Cup for FP Recessed is unnished galvanized steel except electro-

less nickel PTFE sprinklers which are provided with a stainless steel

cup

2. UL Listed as Corrosion Resistant.

3. Escutcheons do not carry corrosion resistant listings.

4. Base material is cold rolled steel unless noted.

Bulletin 061

November 2023

Page 9 of 16

www.reliablesprinkler.com

Note: Do not install the Model F3QR80 Dry Horizontal Sidewall sprinkler with the Model FP escutcheon in

walls which are positively pressurized with respect to the protected space.

Order Dimension

in (mm)

Temperature

Classication

Temperature Rating

°F (°C) Glass Bulb Color Approvals Sprinkler Guard

5” to 36” (125mm to

900mm) in 1/4” (6mm)

increments

Ordinary 155°F (68°C) Red

cULus

(Light & Ordinary Hazard Only)

N/A

Intermediate

175°F (79°C) Yellow

200°F (93°C) Green

High 286°F (141°C) Blue

Table J

Model F3QR80 Dry Horizontal Sidewall: No Escutcheon - SIN R5334

Model F3QR80 Dry Horizontal Sidewall: No Escutcheon Figure 10

System Fitting 1-5/8"

[41mm]

Ref.

4" [100mm] Min.

12" [300mm] Max.

COMDRYDET_NOCAN_HSW

Inlet Fitting

Ordering Dimension

5/8" [16mm]

Bottom of Deck or Ceiling

Note: Customer is responsible for determining the correct distance

from the wall to the sprinkler deflector.

Available Finishes

No Escutcheon Dry Sidewall Sprinkler

Bronze

Chrome

White Polyester(1)

Custom Color Polyester(1)

Electroless Nickel PTFE(1)

Notes:

1. UL Listed as Corrosion Resistant.

Bulletin 061

November 2023

Page 10 of 16

www.reliablesprinkler.com

COMING SOON!

Andere Handbücher für F3QR80 Series

Inhaltsverzeichnis

Andere Reliable Bewässerungssystem Handbücher

Reliable

Reliable Pantman F1 Bedienungsanleitung

Reliable

Reliable G Series Bedienungsanleitung

Reliable

Reliable KFR56 Bedienungsanleitung

Reliable

Reliable F1FR56 Bedienungsanleitung

Reliable

Reliable DDX PrePaK D Wartungshandbuch

Reliable

Reliable G Series Handbuch

Reliable

Reliable N252 EC Bedienungsanleitung

Reliable

Reliable XL Commercial Bedienungsanleitung

Reliable

Reliable F1FR-300 Bedienungsanleitung

Reliable

Reliable F1XLH Series Bedienungsanleitung

Reliable

Reliable JL14 Bedienungsanleitung

Reliable

Reliable DD56-6 Handbuch

Reliable

Reliable GFR Series Bedienungsanleitung

Reliable

Reliable F3QR56 Bedienungsanleitung

Reliable

Reliable SWC Handbuch

Reliable

Reliable N252 EC Bedienungsanleitung

Reliable

Reliable F1FR-SS Series Bedienungsanleitung

Reliable

Reliable HL22 Handbuch

Reliable

Reliable Pantman F1 Bedienungsanleitung

Reliable

Reliable RFC30 Bedienungsanleitung

Reliable

Reliable GL 112 Bedienungsanleitung

Reliable

Reliable F1 Res 30 LL Bedienungsanleitung

Reliable

Reliable F1FR-FS LO Handbuch

Reliable

Reliable F3QR56 Bedienungsanleitung

Beliebte Bewässerungssystem Handbücher anderer Marken

Hunter

Hunter Institutional Series Bedienungsanleitung

Cellfast

Cellfast 52-305 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL A Bedienungsanleitung

Oral Care Technologies

Oral Care Technologies Hydro Floss Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem F892 Bedienungsanleitung

Netafim

Netafim NETBEAT Bedienungsanleitung

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Bedienungsanleitung

Tyco

Tyco CC3 Bedienungsanleitung

OpenSprinkler

OpenSprinkler OSPi Bedienungsanleitung

EINHELL

EINHELL GE-WW 5537 E Bedienungsanleitung

Valley

Valley Bender160 Bedienungsanleitung

Toro

Toro 730 Series Kurzanleitung

Eden

Eden 97063-EDAMZ Bedienungsanleitung

Tyco

Tyco TY-L Series Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 Bedienungsanleitung

Johnson Controls

Johnson Controls tyco ESFR-17 Bedienungsanleitung

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Bedienungsanleitung
