Your new digital ReSound ZigaTM hearing instruments will enable you

to hear sounds that you may not have heard in years because of your

hearing loss. Practice and a positive attitude are important in learning

to use hearing instruments. While some people adjust quickly to

wearing hearing instruments in their ears and hearing the new sounds,

other people may need more time.

The intent of this user guide is to provide information on the many

aspects of using hearing instruments. Your hearing instruments have

been adjusted to your hearing loss by your hearing care professional.

Familiarising yourself with the functions of your new hearing

instruments will help you get optimal benet.

ReSound ZigaTM is a trademark of ReSound.

 Page

Illustration of the hearing instrument.............................4

Adjusting to a world of new sounds ...............................6

New sounds ........................................................6

How to adjust ......................................................7

How to use the hearing instrument ...............................8

On/off function ....................................................8

Inserting the hearing instrument.................................. 9

Volume control (optional for all) ................................. 10

Removing the hearing Instrument............................... 11

Programme selector.............................................. 12

Telephone use .................................................... 14

Low battery warning .............................................16

Changing the battery .............................................16

When not in use ...................................................16

Maintenance ......................................................17

Daily maintenance ................................................17

Cleaning and replacing the sound lters .........................18

Warnings and precautions .......................................19

Repairs ............................................................22

Technical data ....................................................23

Troubleshooting ..................................................24

Key word index ....................................................26

ReSound ZigaTM ITC and ITE

1. Programme Selector

2. Battery Compartment & On/Off Switch

3. Sound Outlet

4. 1st Microphone Sound Inlet

5. 2nd Microphone Sound Inlet

6. Volume Control

7. Air Vent

8. Model

9. Manufacturer

10. Serial number

GN ReSound

ReSound Ziga

XXXXXXX





A hearing loss is typically acquired gradually over many years. You may

have become accustomed to an everyday life with fewer sounds, which

also means hearing less noise than people with normal hearing.

With your new hearing instruments you will experience many sounds

that you may not have heard for years. It will take time to get used to all

these sounds again. Some examples of these sounds are:

• The clock ticking

• Turning pages of the newspaper

• Children’s voices

• Whispers and soft speech

• Car noise

• Birdsong

• The sound of your own footsteps



If you are inexperienced with hearing instruments it is advisable to:

1. Use your hearing instruments every day

2. Wear your hearing instruments for just a couple of hours a day

during the rst week

3. Gradually increase the time you wear your hearing instruments.

It can take several months for your brain to get used to all the “new”

sounds around you. Start using your hearing instruments in mainly

quiet surroundings, and start with a comfortable volume (the hearing

care professional will ensure this). Listen to and get familiar with all

sounds in your home, such as a ticking clock, water running in the sink,

or silverware used on a plate. In quiet surroundings, converse with a

person you know well. Listen to a TV or radio at home. After you have

used the hearing instruments for a while you will be ready for more

demanding listening situations, like conversation with a group of two

or three people.





Your ReSound ZigaTM ITC and ITE is equipped with an on/off switch inte-

grated into the battery compartment.

1. When the battery compartment is fully closed, the instrument is

turned on

2. To turn the instrument off, open the battery compartment. Many

individuals use their ngernail to pull it open.

3. Whenever you are not using the instrument, remember to turn it off

to stop battery consumption



SmartStart allows you to insert the instrument in your ear without

the hearing instrument squealing. It delays the switch-on time by 10

seconds after closing the battery compartment. A beep each second is

presented during this time.





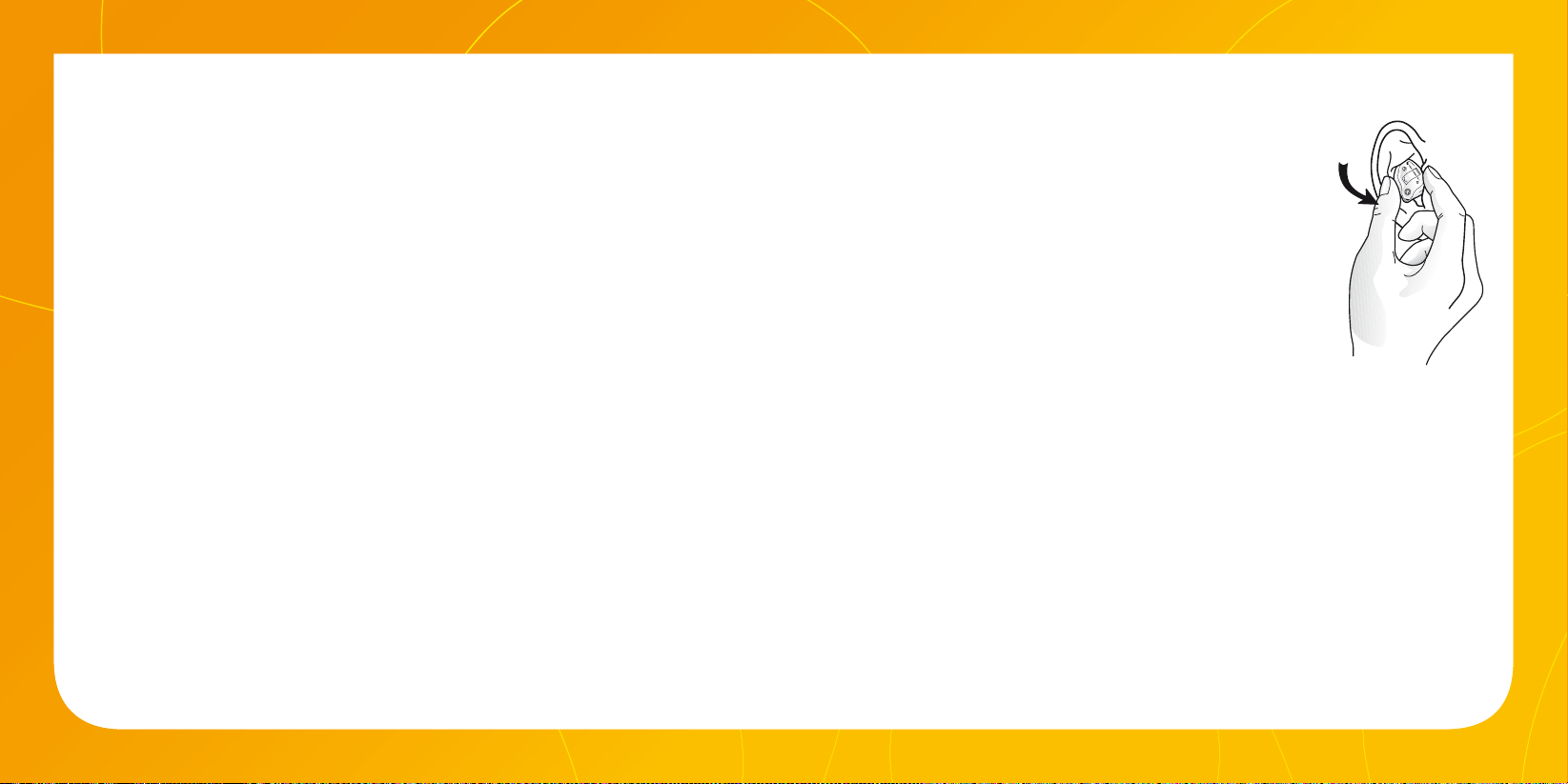

1. Hold the instrument with your thumb and foren-

ger (as shown), either above and below or on the

sides (as illustrated)

2. Place the sound outlet portion into your ear canal

3. Insert the instrument into your ear canal



It may be helpful to pull your ear up and outward

with your opposite hand while inserting.

By experimenting, you may nd a method that is easier for you. When

properly inserted, the instrument should t comfortably and tightly

in your ear. It is important that the custom shell ts correctly into

your ear. If the hearing instrument irritates your ear in any way please

contact your hearing care professional to have the custom shell

modied. You should never attempt to modify the shape of the

custom shell yourself.



Opening and closing your mouth can ease insertion.



To remove the hearing instrument, simply pull the removal cord with

your thumb and forenger and pull outward. Consult your hearing care

professional if you have difculty removing the hearing instrument.



Your ReSound Ziga hearing instruments have a volume control.

When using the instrument, you can increase the volume by turning

the volume control forward (towards your face when you are wearing the

instrument), and reduce volume by turning it backward.

For each volume step, you will hear a “beep” signal indicating the change.

The loudness of the “beeps” will increase as you turn the volume up and

decrease as you turn it down. If you reach the upper or lower limit of the

volume control range, there will be a different type of “beep” signal with a

lower pitch.



You can have up to four different programmes on your hearing instru-

ment. The selection of programmes can be changed by your hearing

care professional.

1. You can switch between programmes by pushing the programme

selector once

2. You will then hear one or more “beeps”. The number of beeps indi-

cates which programme you have selected

3. You can always return to programme 1 by turning your instrument

off and then on again, or by placing it in stand-by mode and then

returning to its operating mode



(to be completed together your hearing care professional):

Programme Description of when to use



In stand-by mode, the hearing instrument will not process sound

or deliver an acoustic signal to the ear. When in this mode, a small

amount of power will be used. To put the instrument in stand-by mode,

hold down the programme selector for 5 seconds. You will hear a series

of beeps and the device will be in stand-by mode. To return to standard

mode, press the programme selector once. This can only be done after

at least 5 seconds in the stand-by mode.



You can use the telephone with your hearing instruments. Using the

telephone while using your hearing instruments may require some

practice.

By selecting the optional telecoil programme you can improve un-

derstanding of speech when using a hearing instrument compatible

telephone. Rather than picking up the sound from the telephone, this

programme only picks up the telephone’s magnetic signal and converts

it to sound. Your hearing care professional can activate the telecoil if

your device has the optional telecoil available.

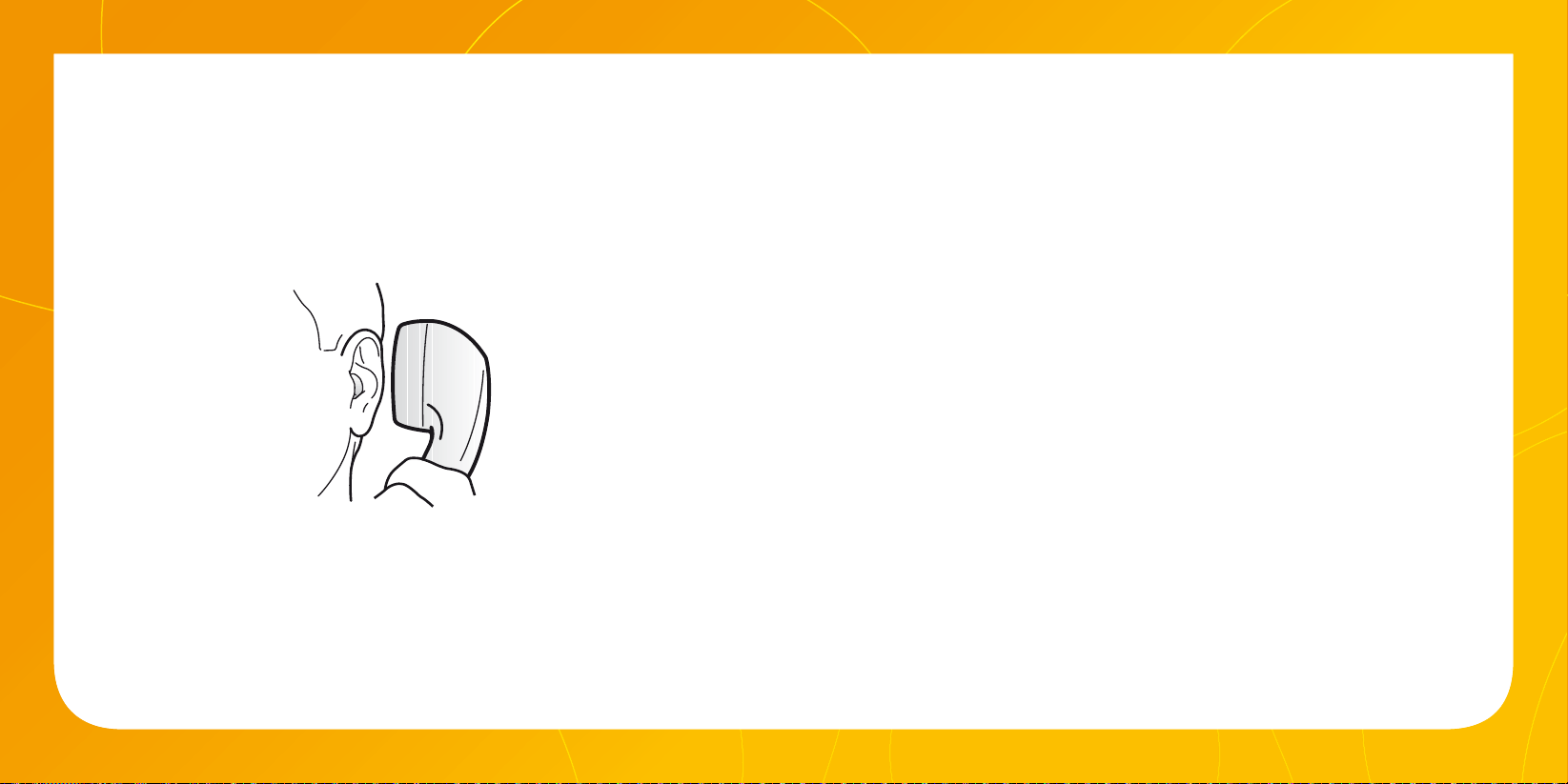

When using the telecoil programme, the receiver of the telephone

should be held as shown in the drawing. You may need to move the

handset around slightly to nd the best reception.

If you do not wish to have a telecoil programme or if your instrument

does not have a telecoil, you may still use the phone while using your

hearing instrument. Hold the phone close to the front microphone of

the hearing instrument, but not directly on it. If it whistles, it may take

a few seconds for the instrument to adapt. If the whistling continues,

move the telephone 2-3 cm away from your ear. Some hearing instru-

ments also have an acoustic telephone program. This program might

decrease problems with acoustic feedback when using the telephone



If you use a cellular phone you may experience a buzzing or clicking

noise. This is caused by the strong signal of the cellular phone.

Consult with your hearing care professional for options to improve

the sound quality





It is important to keep your hearing instrument clean and dry every

day. To clean the instrument, use a soft cloth. If the instrument has

been exposed to high humidity or perspiration, use a drying kit that

is available from your hearing care professional.



1. Never immerse the instrument in water or other liquids since this

may cause permanent damage to the hearing instrument

2. Protect your hearing instrument from rough handling, and avoid

dropping it on hard surfaces or oors

3. Do not leave the instrument in or near direct heat or sunlight since

excessive heat can damage the instrument or deform the casing



Your hearing care professional can activate a Low Battery Warning

function in your hearing instruments. When the battery voltage/power

decreases to a certain level, the instrument will emit ve soft beeping

signals. This sequence will continue every ve minutes until the instru-

ment automatically switches off. It is recommended that you keep a

spare battery at hand.



1. Open the battery compartment completely by

using your ngernail

2. After removing the old battery, insert the new

one

3. Always use Zinc-Air battery. Your hearing care

professional can tell you which size battery you

need

It is important to insert the battery with

the positive side in the correct position.

The battery door has a + marking to help determine correct insertion.



Removing the battery when you are not wearing the instrument for a

longer period will help prevent corrosion of the battery contacts.







For proper function of the microphone, it is important to clean the

sound inlet to remove dust or other sound-disturbing debris. The soft

brush, provided with your hearing instrument, can be used for this

purpose. Your hearing care professional can instruct you on how to

properly use this tool.



Your ReSound ZigaTM hearing instrument may be equipped with a sound

outlet lter (consult your hearing care professional). This lter is located

at the end of the sound outlet and prevents debris from getting into the

hearing instrument. If the hearing instrument seems to have lost power,

and changing the battery does not help, the lter may be blocked, and

needs to be changed. Your hearing care professional can instruct you

on how to change the lter.

If your hearing instrument does not have a lter, ear wax and/or other de-

bris may accumulate in the sound channel. The cleaning loop, provided

with your hearing instrument, can be used to remove this material. Your

hearing care professional can instruct you on how to properly use this

tool. When using this tool, be careful not to damage or pull the tubing

placed at the opening of the sound outlet. If this is pulled out, the hear-

ing instrument may need to be returned for repair.





1. Do not leave your hearing instrument in the sun, near an open re or

in a hot, parked car

2. Do not wear your instrument while showering, swimming, in heavy

rain or in a moist atmosphere such as steam bath or sauna

3. Should your hearing instrument become wet or moist, use the

drying kit that your hearing care professional has recommended.

Do not place the hearing instrument in a very warm place to

remove moisture (for example, the oven or use a hair dryer).

Direct or indirect heat can damage the instrument.

4. Remove your hearing instrument when applying such things as

cosmetics, perfume, aftershave, hair spray, and suntan lotion.

These might get into the instrument and cause damage.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ReSound Hörgerät Handbücher

ReSound

ReSound OMNIA Bedienungsanleitung

ReSound

ReSound RT977-DWC Bedienungsanleitung

ReSound

ReSound Azure BTE AZ70-DVI Bedienungsanleitung

ReSound

ReSound Match MA3T90-VI Bedienungsanleitung

ReSound

ReSound XE10 Bedienungsanleitung

ReSound

ReSound dot DT3060 Open Bedienungsanleitung

ReSound

ReSound LiNX 3D 88 Bedienungsanleitung

ReSound

ReSound Danalogic Ambio BTE Bedienungsanleitung

ReSound

ReSound Danalogic 6 6090 SP Bedienungsanleitung

ReSound

ReSound 60 series Bedienungsanleitung

ReSound

ReSound Aventa 3 Bedienungsanleitung

ReSound

ReSound 3050M Bedienungsanleitung

ReSound

ReSound ENZO 3D Montageanleitung

ReSound

ReSound MINI BTE 61 Bedienungsanleitung

ReSound

ReSound Ziga Mini BTE ZG60-DI Bedienungsanleitung

ReSound

ReSound BTE Bedienungsanleitung

ReSound

ReSound ENZO QUATTRO Series Bedienungsanleitung

ReSound

ReSound Standard Tube Bedienungsanleitung

ReSound

ReSound 10 CIC Bedienungsanleitung

ReSound

ReSound BE70 Bedienungsanleitung

ReSound

ReSound Standard Tube Bedienungsanleitung

ReSound

ReSound Essence ES50 Bedienungsanleitung

ReSound

ReSound LINX 3D Bedienungsanleitung

ReSound

ReSound X-plore BTE XE61-DI Bedienungsanleitung

Beliebte Hörgerät Handbücher anderer Marken

Sonic

Sonic Bliss miniBTE Bedienungsanleitung

Lexie

Lexie B1 Stücklistenhandbuch

Widex

Widex FM+DEX Bedienungsanleitung

Siemens

Siemens Triano Bedienungsanleitung

Camplicomms

Camplicomms HC-200 Bedienungsanleitung

Widex

Widex SUPER 220 S2-VSD Bedienungsanleitung

Phonak

Phonak Q90 Bedienungsanleitung

Williams Sound

Williams Sound SoundPlus WIR 237 Leitfaden

Oticon Medical

Oticon Medical Ponto SoundConnector Bedienungsanleitung

Siemens

Siemens Life micon Bedienungsanleitung

Starkey

Starkey Destiny Bedienungsanleitung

Audicus

Audicus The Icon Bedienungsanleitung

Advanced Bionics

Advanced Bionics Slim HP Standard Bedienungsanleitung

Widex

Widex DREAM440 THE DREAM SERIES Bedienungsanleitung

Phonak

Phonak myPilot Bedienungsanleitung

NIKEN

NIKEN NK-401 Bedienungsanleitung

ON Semiconductor

ON Semiconductor Ezairo 7111 Pre Suite Bedienungsanleitung

Sonetik

Sonetik GOHEAR Bedienungsanleitung
