LUCE MIRROR
30" x 40" (76cm x 102cm)
ASSEMBLY & I NSTAL L AT I ON I NSTRUCT I ONS
ENGLISH
LUCE MIRROR ENGLISH
RH.COM
REVISION 04/23/22
LUCE MIRROR
STORAGE
1. Do not stack anything on top of the mirror
2. Keep the mirror packaged until installation.
3. Store mirror upright on the long edge.
MIRROR HANDLING INSTRUCTIONS
CAUTION :
1. Remove vertically from package.
2. Always carry mirror vertically as illustrated. Carrying flat will cause
breakage.
BEFORE YOU BEGIN
1. Professional installation recommended.
2. These instructions are provided for your safety. It is important that
they are read carefully and completely before installation of the
fixture.
3. For your safety, it is recommended that two people hang the fixture.
4. Check with a professional to ensure your wall can tolerate a fixture
weighing 40 Ibs (19 kg).
5. When wall mounting, stud mounting is strongly recommended.
PARTS INCLUDED
(A) Mirror With Bracket (1)
(B) Screw - M4 x 30 mm (5)
(C) EZ Mini Anchor 14 x 44 mm (5)
(D) Aluminum Hanger 18" (46 cm) (1)
TOOLS NEEDED
(A) Carpenter's level
(B) Phillips head screwdriver
(B)
(C)
(D)
(A)
LUCE MIRROR ENGLISH
RH.COM
REVISION 04/23/22
INSTALLATION OF MIRROR
1. Unpack all parts and place them on a protected work surface.
2. Determine the exact location of the fixture and mark the holes on the
wall surface using the holes in the aluminum hanger (D) as a guide.
3. Drill small holes on each point location on the wall. Each hole should
be just large enough to accommodate EZ mini anchor (C).
4. Insert the EZ mini anchors (C) into the holes on the wall.
5. Mount the aluminum hanger (D) into the wall using screws (B).
6. Check that the aluminum hanger fixture is securely screwed into the
wall.
7. Place the mirror with hanger cleat (A) into the aluminum hanger
fixture.
8. Installation is complete.
**NOTE: MAKE SURE THAT THE TWO (2) CLEATS (1 ON MIRROR AND 1 ON WALL) ARE LOCKED AND SECURED WITH EACH OTHER. A LEVEL
CHECK IS HIGHLY RECOMMENDED. CHECK AND ADJUST IF NEEDED.
CLEANING INSTRUCTIONS
1. To clean, use a soft dry or damp cloth.
2. Do not use abrasive cleaners.
FIGURE 4 FIGURE 5
WALL
OK NOT OK
BACKSIDE
(A)
FIGURE 1
(B)
(D) (C)
FIGURE 2 FIGURE 3
MIRROR
WALL
(B) (C)
LUCE MIRROR
26" x 48" (66cm x 122cm)
ASSEMBLY & I NSTAL L AT I ON I NSTRUCT I ONS
ENGLISH
LUCE MIRROR ENGLISH
RH.COM
REVISION 04/23/22
LUCE MIRROR
STORAGE
1. Do not stack anything on top of the mirror.
2. Keep the mirror packaged until installation.
3. Store mirror upright on the long edge.
MIRROR HANDLING INSTRUCTIONS
CAUTION:
1. Remove vertically from package.
2. Always carry mirror vertically as illustrated
Carrying flat will cause breakage.
BEFORE YOU BEGIN
1. Professional installation recommended.
2. Tool and materials required:
Carpenter's level
Phillips head screwdriver
3. These instructions are provided for your safety.
It is important that they are read carefully and
completely before installation of the fixture.
4. For your safety, it is recommended that two
people hang the fixture.
5. Check with a professional to ensure your wall
can tolerate a fixture weighing 44 Ibs (20 kg).
6. When wall mounting, stud mounting is
strongly recommended.
PARTS INCLUDED
(A) Mirror With Bracket (1)
(B) Screw - M4 x 30 mm (5)
(C) EZ Mini Anchor 14 x 44 mm (5)
(D) Aluminum Hanger 18" (46 cm) (1)
LUCE MIRROR ENGLISH
RH.COM
REVISION 04/23/22
INSTALLATION OF MIRROR
WALL MOUNTING
1. Unpack all parts and place them on a protected work surface.
2. Determine the exact location of the fixture and mark the holes on the
wall surface using the holes in the aluminum hanger (D) as a guide.
3. Drill small holes on each point location on the wall.
Each hole should be just large enough to accommodate EZ mini
anchor (C).
4. Insert the EZ mini anchors (C) into the holes on the wall.
5. Mount the aluminum hanger (D) into the wall using screws (B).
6. Check that the aluminum hanger fixture is securely screwed into the
wall.
7. Place the mirror with hanger cleat (A) into the aluminum hanger
fixture.
8. Installation is complete.
BACKSIDE
FIGURE 1
A
FIGURE 2
Wall
C
B
D
C
Wall
MIRROR
B
FIGURE 3
LUCE MIRROR ENGLISH
RH.COM
REVISION 04/23/22
**NOTE: MAKE SURE THAT THE TWO (2) CLEATS (1 ON MIRROR
AND 1 ON WALL) ARE LOCKED AND SECURED WITH EACH OTHER.
A LEVEL CHECK IS HIGHLY RECOMMENDED. CHECK AND ADJUST
IF NEEDED.
FIGURE 4
OK NOT OK
FIGURE 3
LUCE MIRROR ENGLISH
RH.COM
REVISION 04/23/22
WARRANTY
If you are not completely satisfied with your purchase, please contact
us to return or exchange your item(s) within 30 days of the delivery
date, with proof of purchase. Note that returns or exchanges are not
accepted for special orders, items that have been installed, mattresses
and/or foundations no longer in their original packaging, and other
items listed below. Other exclusions may apply. Contact us for details.
Unfortunately, galleries cannot accept returns of furniture or other large
items.
CARE INSTRUCTIONS
1. To clean, use a soft dry or damp cloth.
2. Do not use abrasive cleaners.
LUCE MIRROR
36" x 48" (91cm x 122cm)
ASSEMBLY & I NSTAL L AT I ON I NSTRUCT I ONS
ENGLISH
LUCE MIRROR ENGLISH
RH.COM
REVISION 04/23/22
LUCE MIRROR
STORAGE
1. Do not stack anything on top of the mirror.
2. Keep the mirror packaged until installation.
3. Store mirror upright on the long edge.
MIRROR HANDLING INSTRUCTIONS
CAUTION:
1. Remove vertically from package.
2. Always carry mirror vertically as illustrated
Carrying flat will cause breakage.
BEFORE YOU BEGIN
1. Professional installation recommended.
2. Tool and materials required:
Carpenter's level
Phillips head screwdriver
3. These instructions are provided for your safety.
It is important that they are read carefully and
completely before installation of the fixture.
4. For your safety, it is recommended that two
people hang the fixture.
5. Check with a professional to ensure your wall
can tolerate a fixture weighing 57 Ibs (26 kg).
6. When wall mounting, stud mounting is
strongly recommended.
PARTS INCLUDED
(A) Mirror With Bracket (1)
(B) Screw - M4 x 30 mm (6)
(C) EZ Mini Anchor 14 x 44 mm (6)
(D) Aluminum Hanger 24” (61 cm) (1)
Andere Handbücher für LUCE
1
Andere RH Inneneinrichtung Handbücher
RH
RH Secur24 Bedienungsanleitung
RH
RH Secur24 Bedienungsanleitung
RH
RH WYETH SPLIT BAMBOO FLOATING ROUND ENTRY... Bedienungsanleitung
RH
RH INDIAN FORTRESS BED Bedienungsanleitung
RH

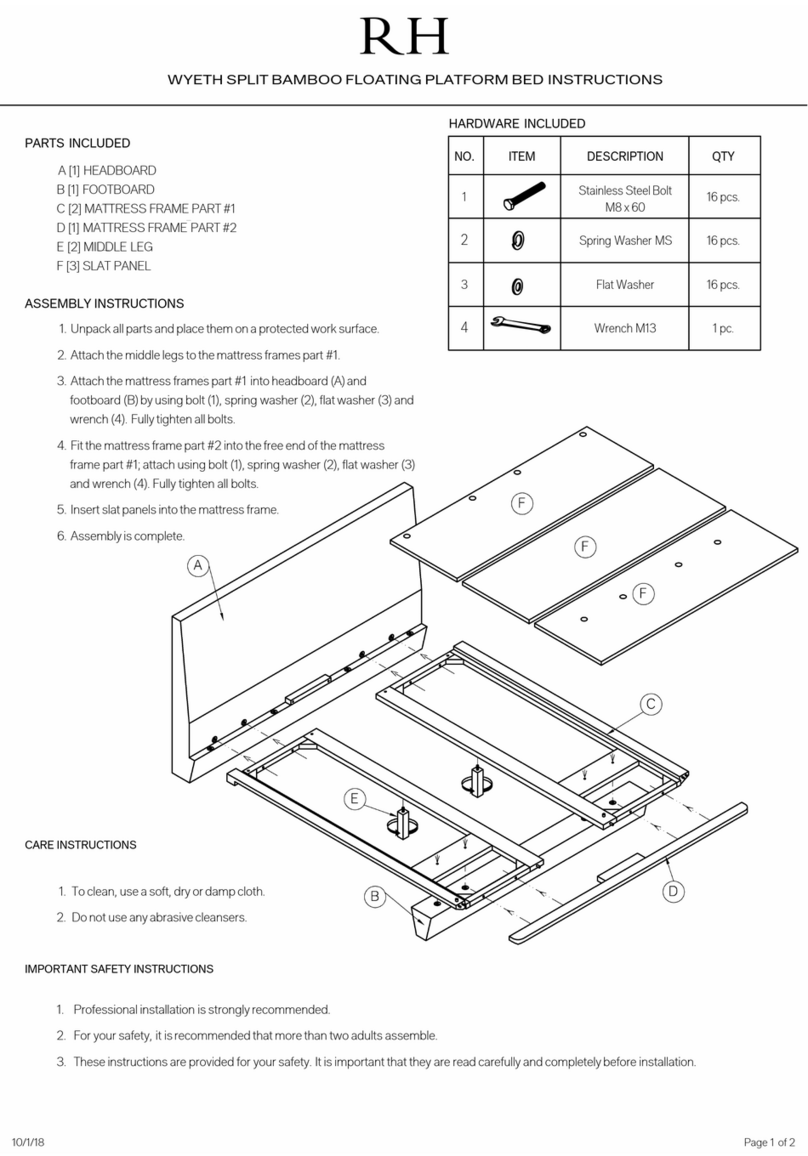

RH WYETH SPLIT BAMBOO FLOATING PLATFORM Bedienungsanleitung
