User’s Guide RIGOL

Jun. 2014

VB1080 VSWR Bridge

Product Overview

VB1080 is used in combination with the RIGOL DSA series spectrum analyzer to measure

S11-related parameters (such as return loss, reflection coefficient and VSWR). VB1080

provides three N (Female) connectors as shown in the figure below.

— IN: Signal input terminal. Here the signal generator or the output terminal of the

tracking generator of the spectrum

analyzer is connected.

— OUT: Signal output terminal. Here the

power meter or the RF input terminal of the

spectrum analyzer is connected.

— DUT: Here the device under test is

connected.

Measurement Connection

Connect VB1080 to the spectrum analyzer

as shown in the figure on the right.

— Connect the spectrum analyzer

Use 2 Dual N (Male) adaptors to

connect the output terminal of the

tracking generator and the RF input

terminal of the spectrum analyzer to

the IN terminal and OUT terminal of

the VSWR bridge respectively.

— Connect the device under test

Do not use cables or adaptors as far as possible to avoid additional reflection.

Typical Applications

— Measurement of the S11-related parameters of the filter, amplifier, mixer, etc.

— Resonant frequency and VSWR tests of the antenna.

VSWR Bridge

Spectrum Analyzer

Adapter

Connect the device under test

User’s Guide RIGOL

Jun. 2014

Specifications



Frequency

Frequency range 2 GHz to 8 GHz

Connector

Connector type N (Female) type

Adaptor dual N (Male) type

Impedance 50 Ω

Insertion Loss

IN to DUT <1 dB (typical)

Directivity

Typ. ≥20 dB

Min. 15 dB

Input Power

Maximum input power +27 dBm (0.5 W)

General Specifications

Dimensions 115 mm×41 mm×17.5 mm

256 mm×190 mm×43 mm (with package)

Weight

0.2kg

0.9kg (with package)

Operation temperature -20 ℃to 50 ℃

Storage temperature -40 ℃to 100 ℃

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

User’s Guide RIGOL

Jun. 2014

VB1080 VSWR Bridge

Product Overview

VB1080 is used in combination with the RIGOL DSA series spectrum analyzer to measure

S11-related parameters (such as return loss, reflection coefficient and VSWR). VB1080

provides three N (Female) connectors as shown in the figure below.

— IN: Signal input terminal. Here the signal generator or the output terminal of the

tracking generator of the spectrum

analyzer is connected.

— OUT: Signal output terminal. Here the

power meter or the RF input terminal of the

spectrum analyzer is connected.

— DUT: Here the device under test is

connected.

Measurement Connection

Connect VB1080 to the spectrum analyzer

as shown in the figure on the right.

— Connect the spectrum analyzer

Use 2 Dual N (Male) adaptors to

connect the output terminal of the

tracking generator and the RF input

terminal of the spectrum analyzer to

the IN terminal and OUT terminal of

the VSWR bridge respectively.

— Connect the device under test

Do not use cables or adaptors as far as possible to avoid additional reflection.

Typical Applications

— Measurement of the S11-related parameters of the filter, amplifier, mixer, etc.

— Resonant frequency and VSWR tests of the antenna.

VSWR Bridge

Spectrum Analyzer

Adapter

Connect the device under test

User’s Guide RIGOL

Jun. 2014

Specifications



Frequency

Frequency range 2 GHz to 8 GHz

Connector

Connector type N (Female) type

Adaptor dual N (Male) type

Impedance 50 Ω

Insertion Loss

IN to DUT <1 dB (typical)

Directivity

Typ. ≥20 dB

Min. 15 dB

Input Power

Maximum input power +27 dBm (0.5 W)

General Specifications

Dimensions 115 mm×41 mm×17.5 mm

256 mm×190 mm×43 mm (with package)

Weight

0.2kg

0.9kg (with package)

Operation temperature -20 ℃to 50 ℃

Storage temperature -40 ℃to 100 ℃

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Inhaltsverzeichnis

Andere Rigol Messgerät Handbücher

Rigol

Rigol DSA800 Series Bedienungsanleitung

Rigol

Rigol RP1001C Bedienungsanleitung

Rigol

Rigol DSA800E Series Betriebsanleitung

Rigol

Rigol RSA3030-TG Bedienungsanleitung

Rigol

Rigol DL3032 Bedienungsanleitung

Rigol

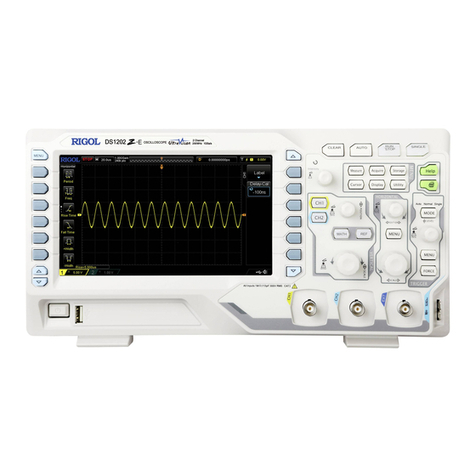

Rigol DS1202Z-E Bedienungsanleitung
