Rikon Power Tools 10-110B Bedienungsanleitung

10” Cabinet Saw Sliding Table

Model: 10-110B/E

Owner’s Manual

For more information:

www.rikontools.com or [email protected]

For Parts or Questions:

[email protected] or 877-884-5167

Record the serial number and date of purchase

in your manual for future reference.

Serial number:

Date of purchase:

Part #10-110B/EM2

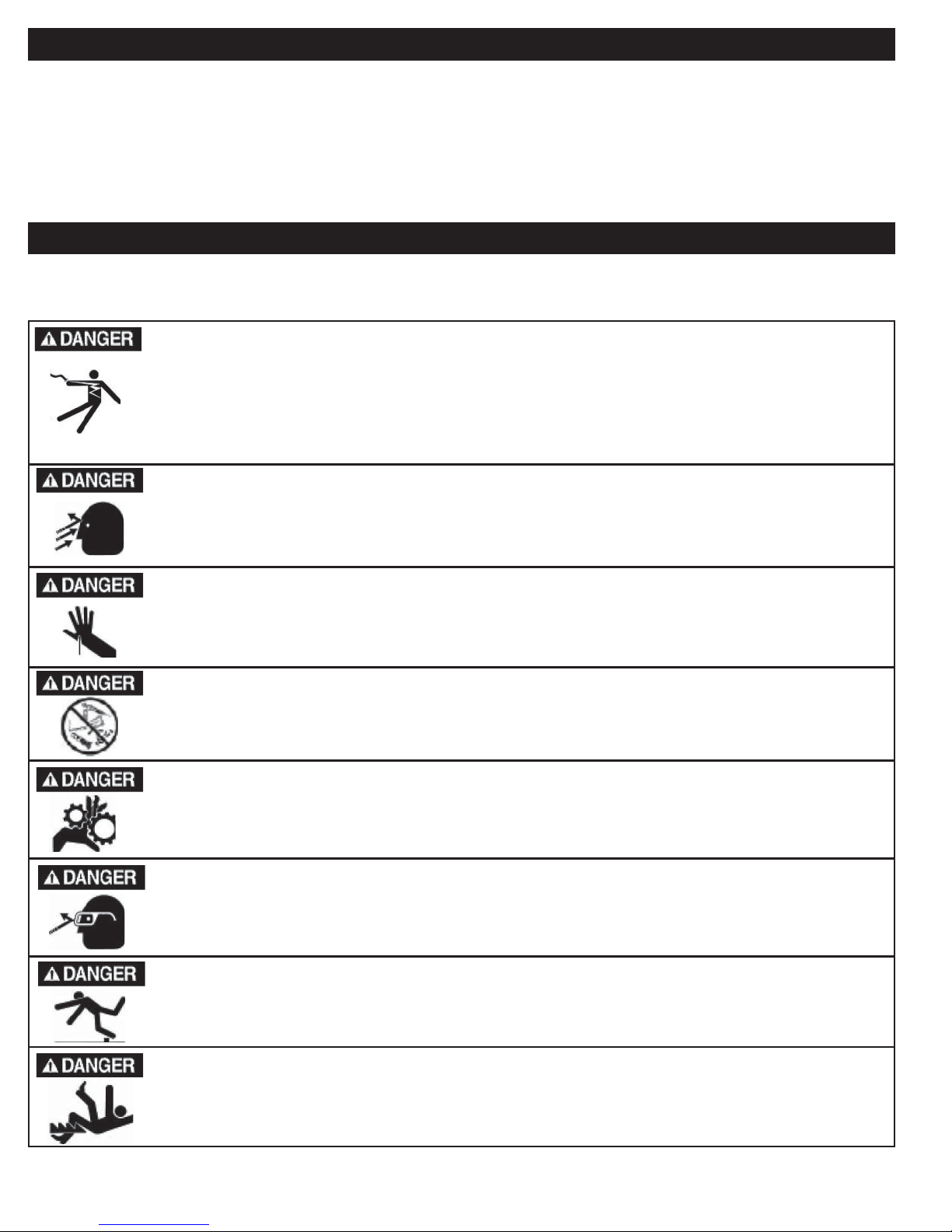

IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following in-

structions must be followed at all times.

There are certain applications for which this tool was designed. We strongly recommend that this tool not be modiﬁed and/or

used for any other application other than that for which it was designed. If you have any questions about its application, do not

use the tool until you have contacted us and we have advised you.

KNOW YOUR POWER TOOL. Read the owner’s manual carefully. Learn the tool’s applications, work capabilities, and its

speciﬁc potential hazards.

ALWAYS KEEP VISITORS AWAY FROM RUNNING MACHINES.

All visitors should be kept a safe distance from the work area.

ALWAYS MAKE THE WORKSHOP CHILDPROOF.

Childproof with padlocks, master switches, or by removing starter keys.

NEVER OPERATE A TOOL WHILE UNDER THE INFLUENCE OF DRUGS, MEDICATION, OR ALCOHOL.

ALWAYS WEAR PROPER APPAREL.

Never wear loose clothing or jewelry that might get caught in moving parts. Rubber-soled footwear is

recommended for the best footing.

ALWAYS USE SAFETY GLASSES AND WEAR HEARING PROTECTION.

Also use a face or dust mask if the cutting operation is dusty.

NEVER OVERREACH.

Keep your proper footing and balance at all times.

ALWAYS GROUND ALL TOOLS.

If your tool is equipped with a three-pronged plug, you must plug it into a three-hole electric receptacle.

If you use an adapter to accommodate a two-pronged receptacle, you must attach the adapter plug to a

known ground. Never remove the third prong of the plug.

ALWAYS AVOID DANGEROUS ENVIRONMENTS.

Never use power tools in damp or wet locations. Keep your work area well lighted and clear of clutter.

ALWAYS REMOVE THE ADJUSTING KEYS AND WRENCHES FROM TOOLS AFTER USE.

Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before

turning it on.

ALWAYS KEEP YOUR WORK AREA CLEAN. Cluttered areas and benches invite accidents.

NEVER STAND ON TOOLS.

Serious injury could occur if the tool is tipped or if the cutting tool is accidentally contacted.

Operator Safety: Required Reading

General Safety Warnings

ALWAYS CHECK FOR DAMAGED PARTS.

Before initial or continual use of the tool, a guard or other part that is damaged should be checked to assure

that it will operate properly and perform its intended function. Check for alignment of moving parts, binding

of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard

or other damaged parts should immediately be properly repaired or replaced.

ALWAYS DISCONNECT TOOLS.

Disconnect tools before servicing and when changing accessories such as blades, bits, and cutters.

ALWAYS AVOID ACCIDENTAL STARTING.

Make sure switch is in “OFF” position before plugging in cord.

NEVER LEAVE TOOLS RUNNING UNATTENDED.

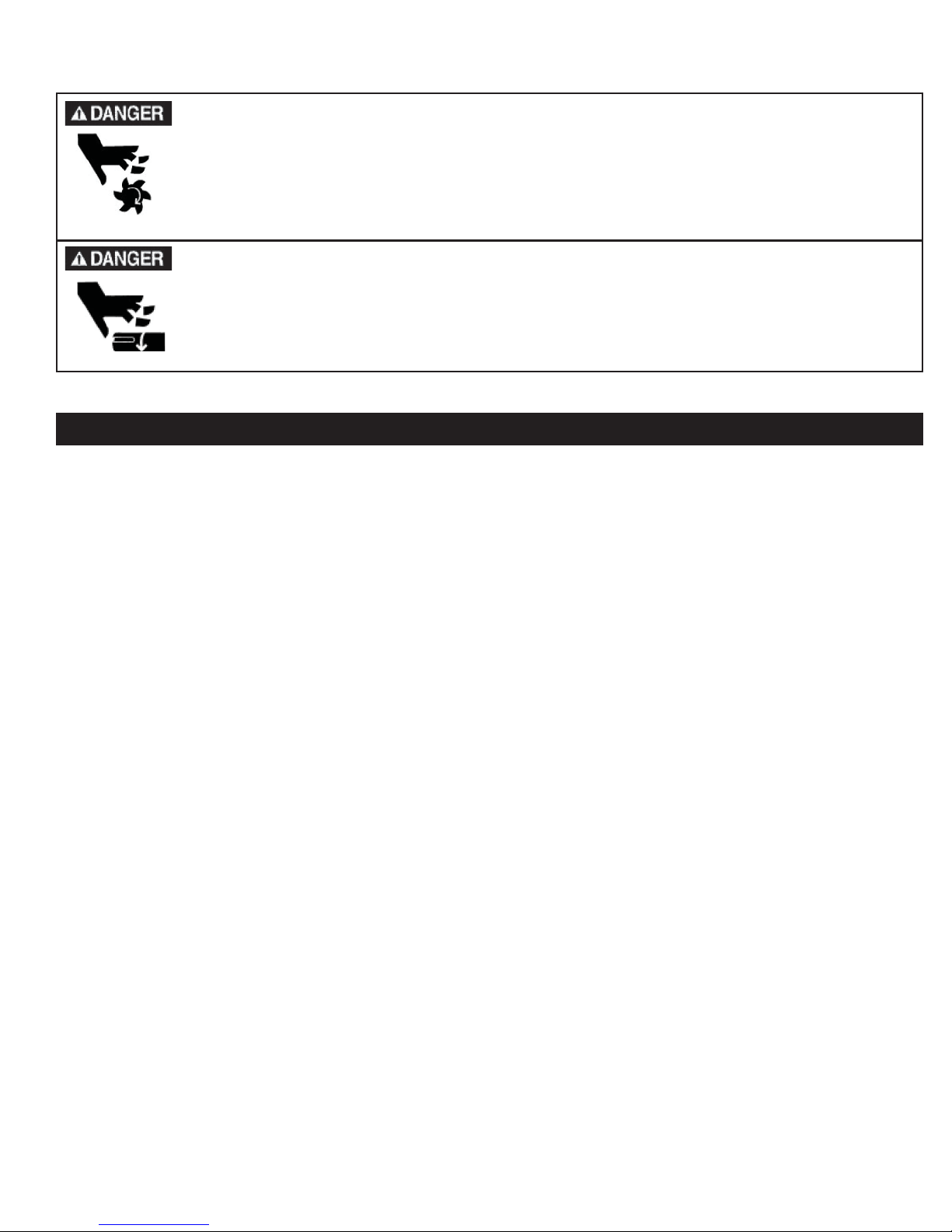

1. Always wear eye protection.

2. Keep hands away from the saw blade while machine is running.

3. Always use blade guard during normal cutting operations.

4. Always use splitter during normal cutting operations.

5. Use push sticks when ripping narrow stock.

6. Always use fence while ripping and miter gauge while cross-cutting.

7. Never reach over or behind saw blade while machine is running.

8. Do not remove cut-off or jammed pieces until blade has come to a full stop.

9. Disconnect machine from power source before making repairs or adjustments.

10. Do not expose saw or power cord to water or use in damp locations.

SAVE THESE INSTRUCTIONS.

Refer to them often.

Table Saw Safety Rules

Safety Warnings........................................................................................................................................2 -3

Table Saw Safety Rules ..........................................................................................................................3

Speciﬁcations ........................................................................................................................................4

Contents of Package ............................................................................................................................5

Unpacking and Checking Contents ...................................................................................................5-6

Getting To Know Your Sliding Table ............................................................................................................7

Assembly ..............................................................................................................................................8-12

Adjustment...................................................................................................................................12-13

Operation.......................................................................................................................13-14

Rip Fence Installation................................................................................................................................. ..... 15

Maintenance .......................................................................................................................................... ..... 15

Troubleshooting........................................................................................................................................16

Parts Diagram...........................................................................................................................17

Parts List................................................................................................................18

Warranty ...................................................................................................................................19

Table of Contents

12”

49”

51-12” x 9-7/8”

49-1/4”

0-45o Forward/Back

18-1/4” x 23-3/4”

Minimum Table Travel

Maximum Table Travel

Sliding Table Dimension

Miter Fence Length

Miter Fence Angles

Sliding Carriage Size

Speciﬁcations

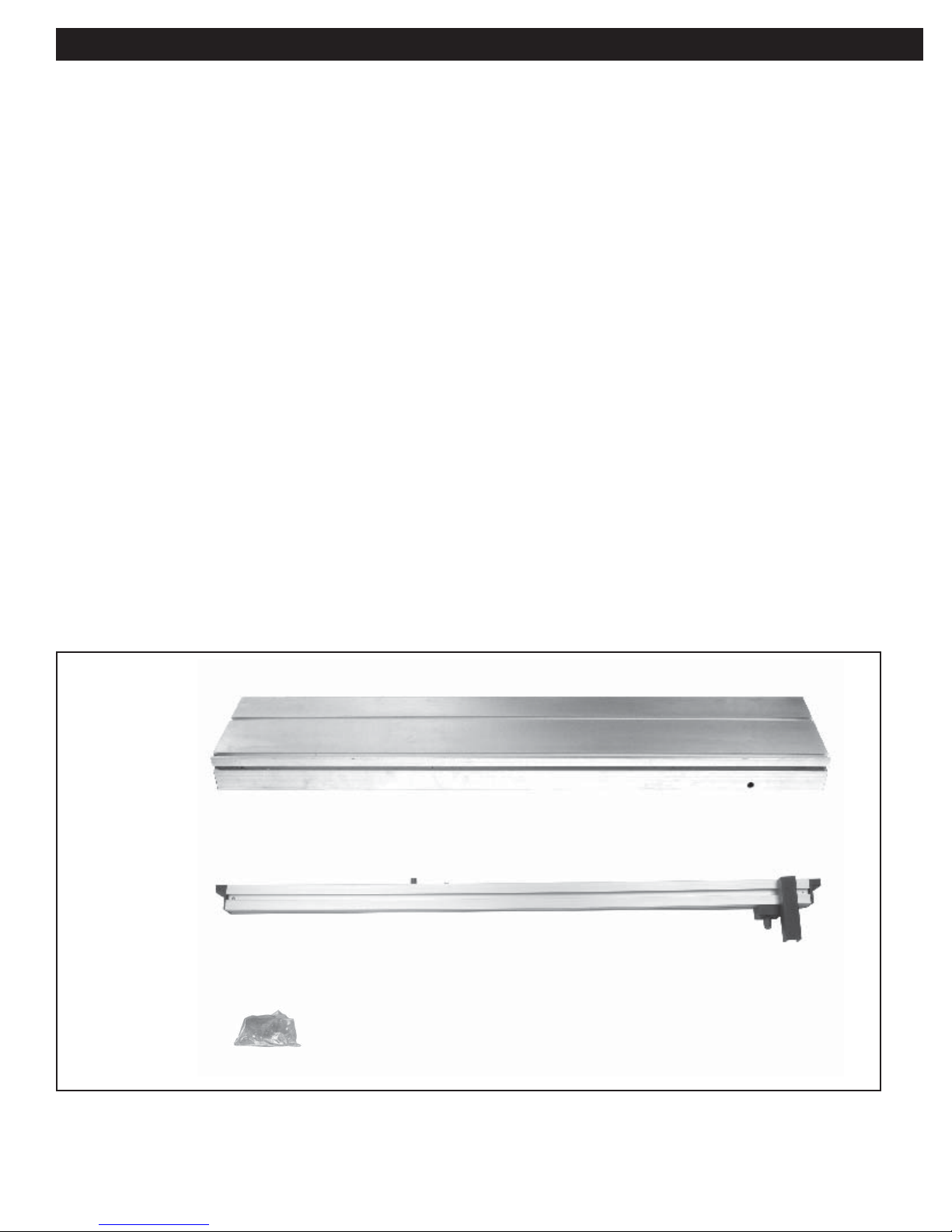

Model 10-110B/E 10” Table Saw Sliding Table is shipped complete in 2 boxes.

Unpacking and Checking Contents

Separate all “loose parts” from packaging materials and check each item with “Table of Loose Parts” to

make sure all items are accounted for, before discarding any packaging material.

Box #1

Content of Package

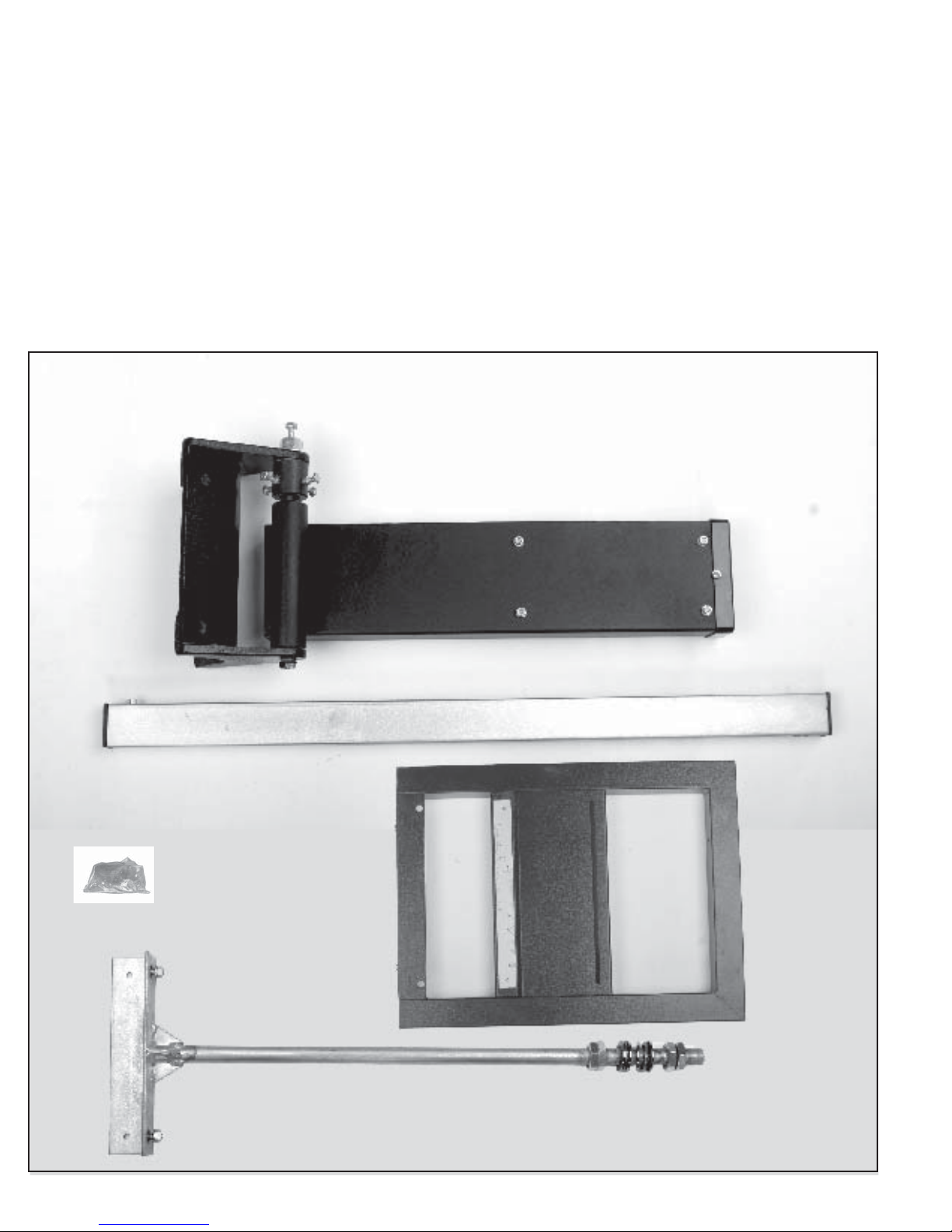

TABLE OF LOOSE PARTS

Item Part Name Qty

A Sliding Table 1

B Miter Fence 1

C Loose Parts Bag 1

TABLE OF LOOSE PARTS

Item Part Name Qty

A Swing Arm Assembly 1

B Swing Arm Extension Bar 1

C Sliding Table Carriage 1

D Sliding Table Support Arm 1

E Loose Parts Bag 1

Box #2

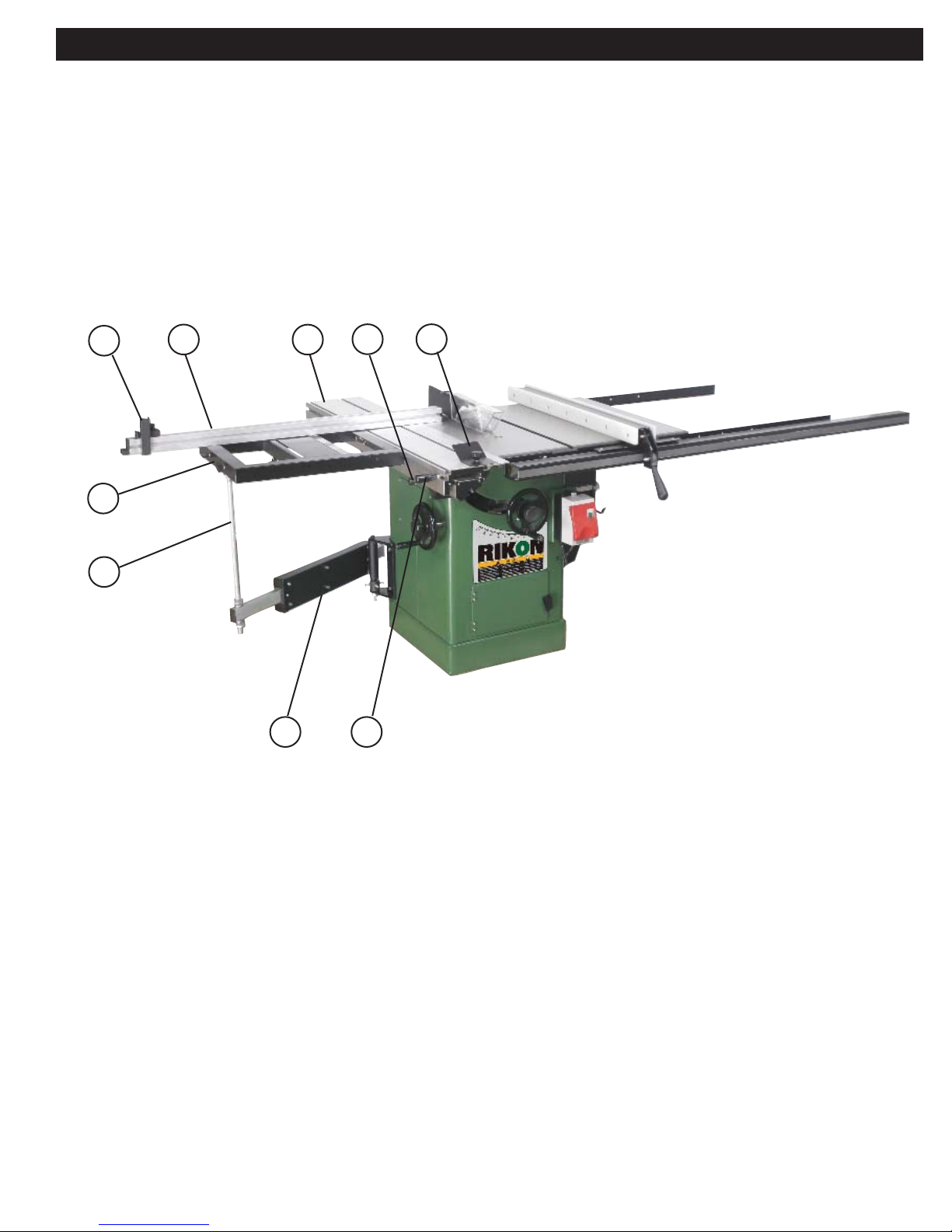

Getting To Know Your Sliding Table

1. Flip Stop

2. Miter Fence

3. Sliding Table

4. Sliding Table Locking Pin

5. Push Block

6. Slide Handle

7. Swing Arm Assembly

8. Carriage Table Support Arm

9. Sliding Table Carriage

145

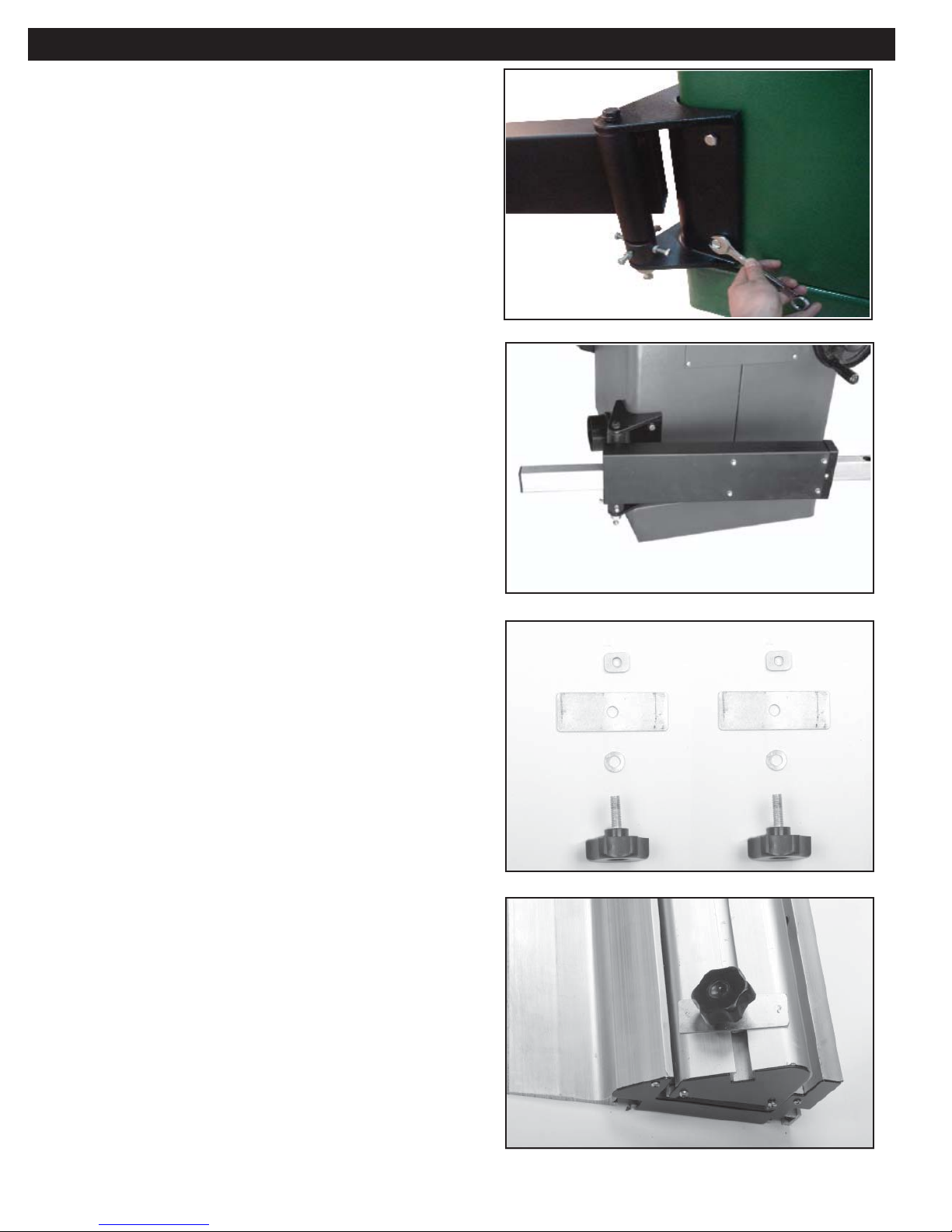

Mounting the Swing Arm Bracket

1. Open the motor cover located at the left side of

the saw.

2. With assistance hold the swing arm bracket

against the saw body and attach using four 8MM

hex bolts, four 8MM washers and four 8MM hex

nuts.

3. Slide the four 8MM hex bolts through the bracket

and saw body and attach using the four 8 washers

and four 8MM hex nuts from inside the saw body.

Figure 1.

Installing the Swing Arm Extension Bar

1. Slide the swing arm extenstion bar through the

swing arm bracket making sure that the large hole

is installed ﬁrst and that the set screw is pointing

downward. Figure 2.

Mounting the Sliding Table

1. Locate the sliding table mounting hardware

which includes two knobs, two T-nuts, two 8MM

washers and two adjusting plates. Figure 3.

2. Assemble the hardware as shown (Fig. 3) and

slide the T-nut into the track (Fig. 4) making sure

that the clamp plate is against the bottom of the

table assembly.

Figure 1

Figure 2

Figure 3

Figure 4

Assembly

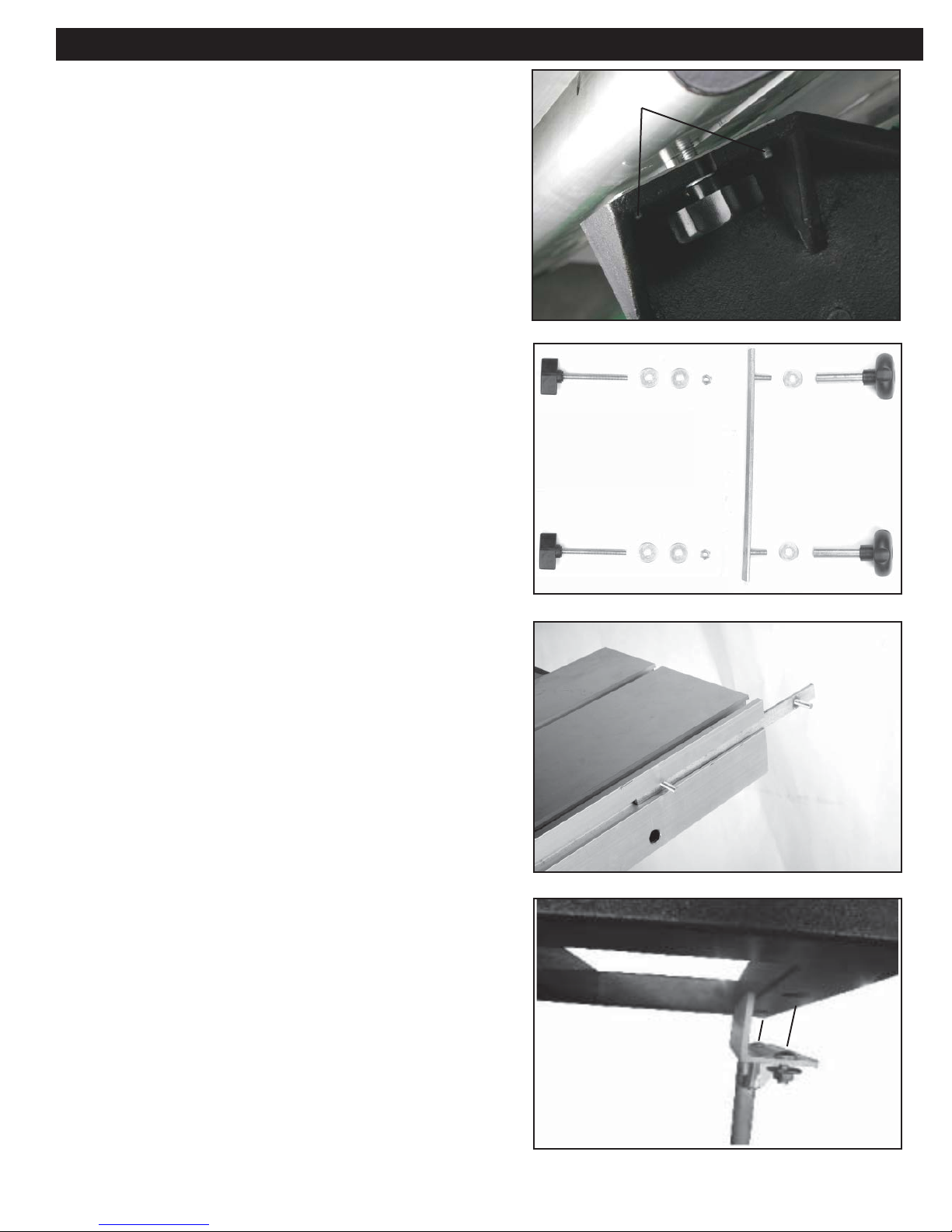

Mounting the Sliding Table Continued

3. Slide the hardware toward the cast mounting

bracket located on the saw body. Place the

adjusting plate on top of the set screws as shown

(A,Fig.5).

4. Tighten the lock knob slightly, leaving loose for

adjustment.

5. Repeat procedure for rear mounting bracket.

6. Adjusting the parallel of the saw table and sliding

table with the four set screws (A, Fig.5).

Installing the Sliding Table Carriage

1. Locate the sliding table carriage mounting

hardware as shown. Figure 6.

2. Slide the T-nuts bar into the side channel of the

sliding table. Figure 7.

3. Attach the carriage table support arm to the

bottom the the sliding table carriage using two 8MM

carriage bolts, two 8MM washers and two 8MM hex

bolts. The head of the carriage bolts should lock

into the bottom of the sliding table carriage. Finger

tighten the two 6MM hex bolts only until next step

is completed. Figure 8.

Figure 5

Figure 6

Figure 7

Figure 8

Assembly

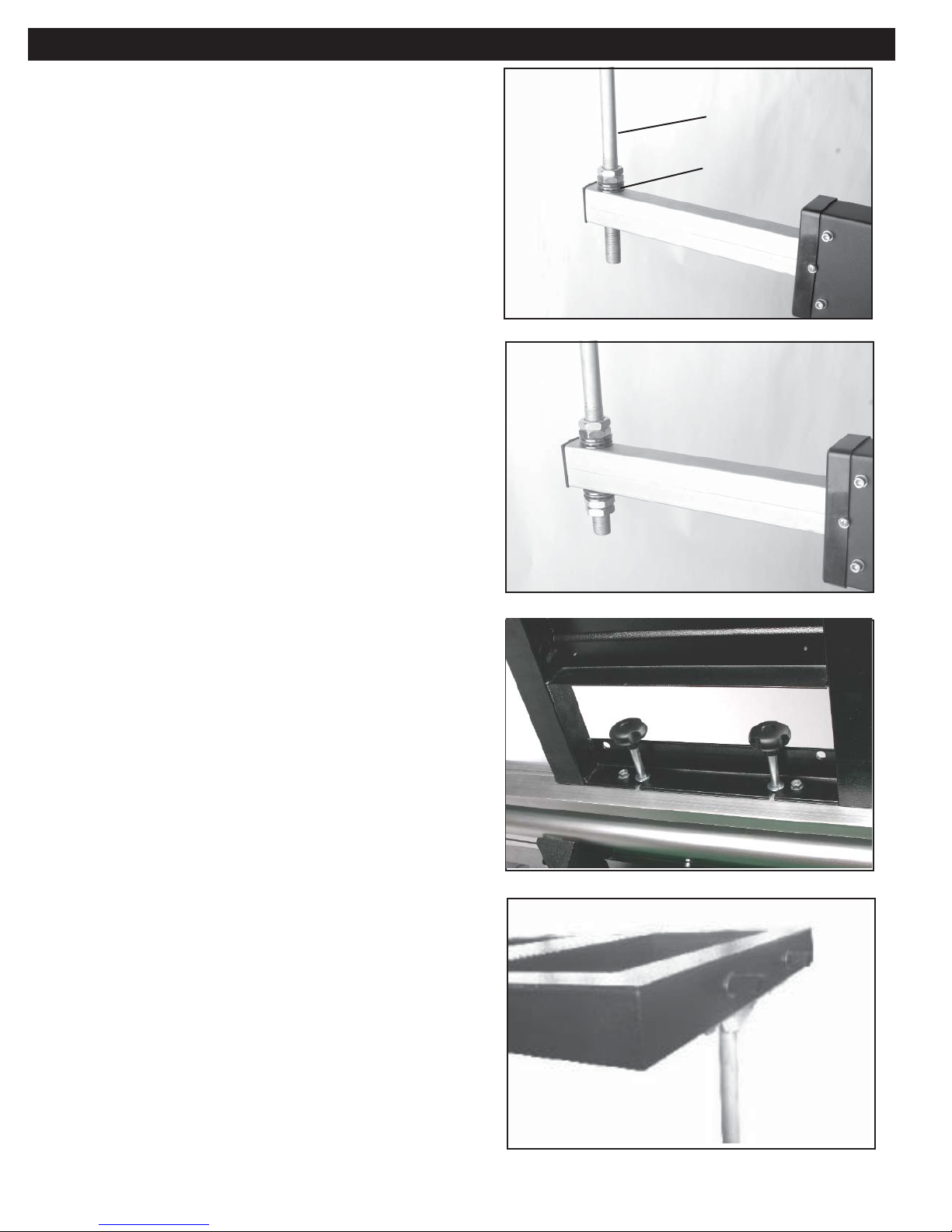

Carriage Table Support Arm Installation

1. Insert the support arm into the swing arm

extension bar as shown (A, Fig. 9) making sure

that bearing assembly rests between the adjusting

nuts and the swing arm extension bar (B, Fig. 9).

Reminder: Tighten the carriage bolts shown in

Figure 8 on page nine once the support arm is

installed.

2. Hold the support arm in place by installing the

second bearing set and adjusting nuts as shown.

The second set of bearings should be installed

against the bottom side of swing arm extension

bar. Figure 10.

NOTE: Do not overtighten the adjusting nuts as

the bearings will bind and the table will not slide

smoothly.

3. Hold the sliding table carriage against the

sliding table and install the lock knobs through

the carriage to the T-nuts bar in the sliding table

channel. Figure 11.

4. Line up the two holes in the side of the support

arm with the two holes in the side of the sliding

table carriage (Fig. 12).

5. Insert the two locking knobs with the long

threaded ends as well as two 6MM washers

through the support arm and through the sliding

table carriage (Fig. 12). Attach with with two 6MM

washers and two 6MM hex nuts.

Figure 9

Figure 10

Figure 11

Figure 12

Assembly
