Replace the Printer Platform on a Rimage 2000i or Standalone 480i Printer

Use this procedure to replace the printer platform on a Rimage 2000i™ or Standalone 480i™ Printer.

Rimage approved parts must be used for this process. The product warranty may become void if parts not approved by Rimage are

used; equipment or parts are tampered with, misused, neglected, or modified in any respect without the written consent of Rimage.

Note: Your system may not look exactly like the system pictured.

Before you begin

1. Stop or pause all jobs.

2. If the printer is on an autoloader, power off the

autoloader.

3. Disconnect the power cord from the power outlet.

#Required tools:

•Torx T10 screwdriver

Remove the Printer Platform

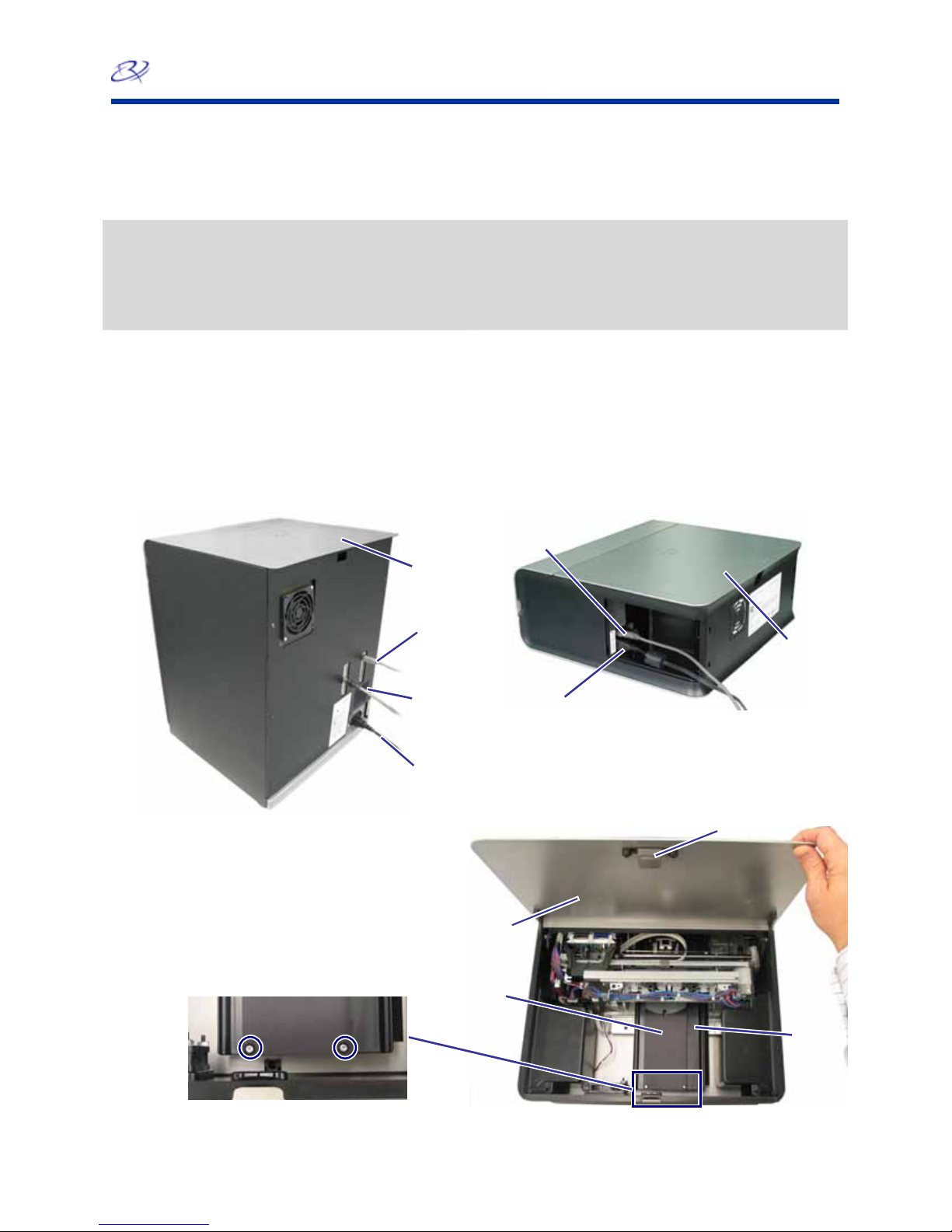

1. Disconnect the cables.

nCaution! Some cables in this system are latched. Equipment damage may occur if cables are not

disconnected appropriately.

ble (if present, 2000i only)•FireWire ca

•USB cable

•Power cord

2000i

Standalone 480i Printer

USB Cable

Printer

Service

Door

Printer

Service

Door

USB Cable

2. Open the printer service door.

Tip: Press the tab to free the printer service

door from the frame.

3. Remove the rear Torx T10 screws (Qty. 2) from

the printer platform.

Note: The printer platform is the metal plate

on top of the sliding printer tray.

Printer

Servic

Door

Powe

Cord r

FireWire

Cable

(if present) Power

Cord

Tab

Printer

Platform

Printer

Tray

Replace the Printer Platform 2000i™ or Standalone 480i™ Printer

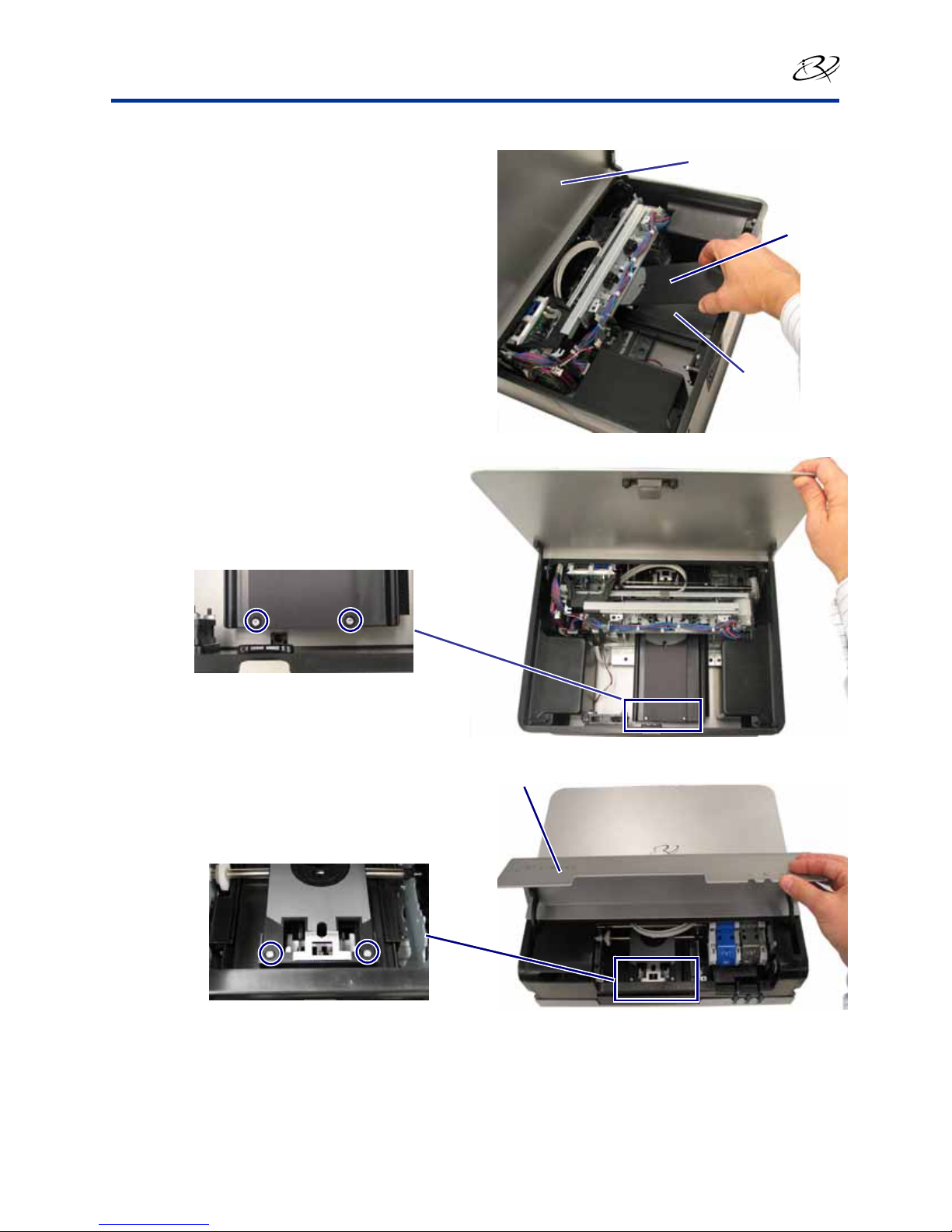

4. At the front of the printer, open the printer access

door.

5. Remove the front Torx T10 screws (Qty. 2) from

the printer platform.

Printer

Access

Door

6. Carefully lift the printer platform out the back of

the printer.

7. Close the printer service door.

Printer Platform

Printer

Service

Door

Printer

Tray

Replace the Printer Platform 2000i™ or Standalone 480i™ Printer

Install the Printer Platform

1. At the back of the printer, open the printer

service door.

Tip: You may need to prop this door open or

have someone hold it for you.

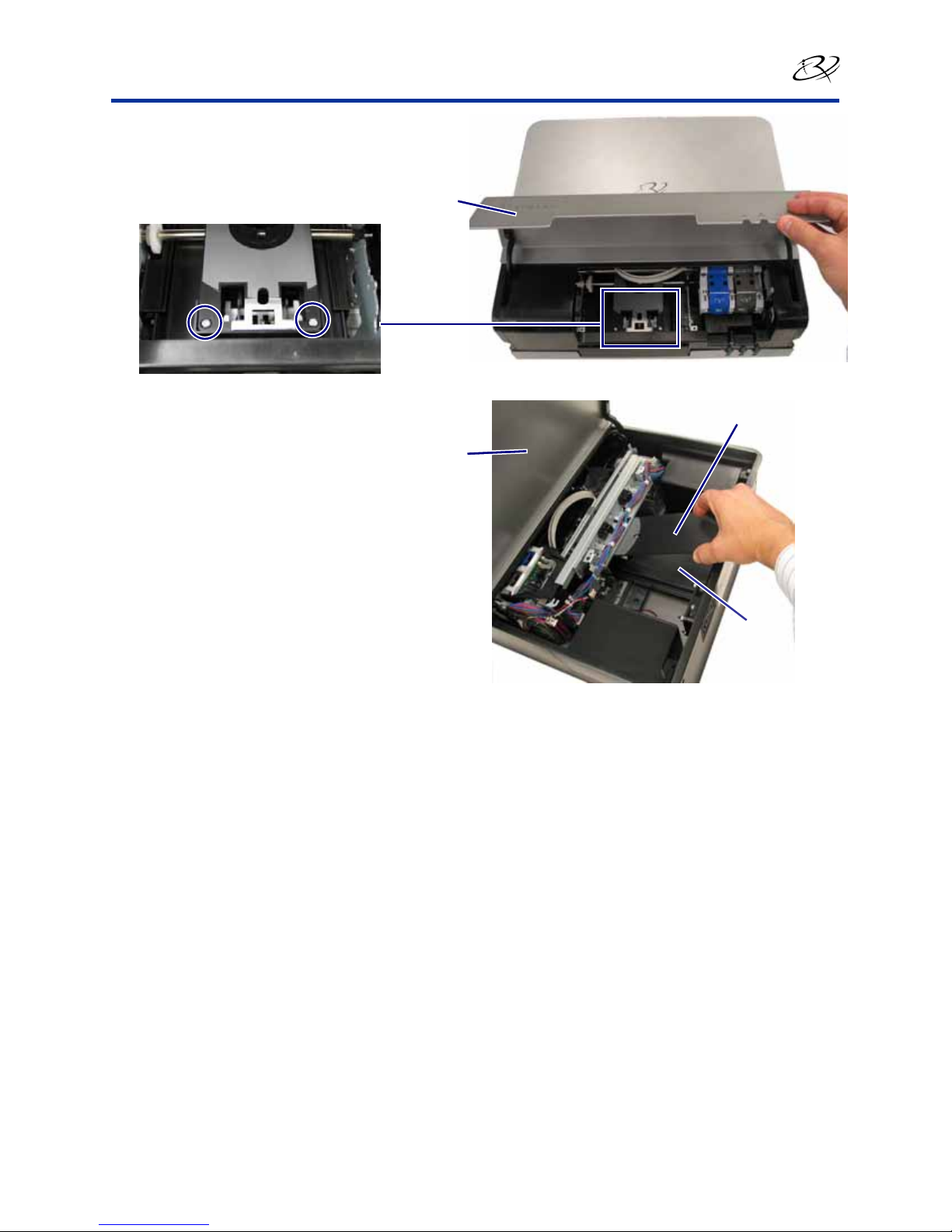

2. Position the replacement printer platform onto

the printer tray so that the screw holes align.

3. Insert and tighten the Torx T10 screws (Qty. 2) to

secure the back of the printer platform.

Printer Service Door

Printer

Platform

Printer

Tray

4. Open the printer access door.

5. Insert and tighten the Torx T10 screws (Qty. 2) to

secure the front of the printer platform.

6. Close the printer access door.

Printer Access

Door

Replace the Printer Platform 2000i™ or Standalone 480i™ Printer

Prepare the System for Use

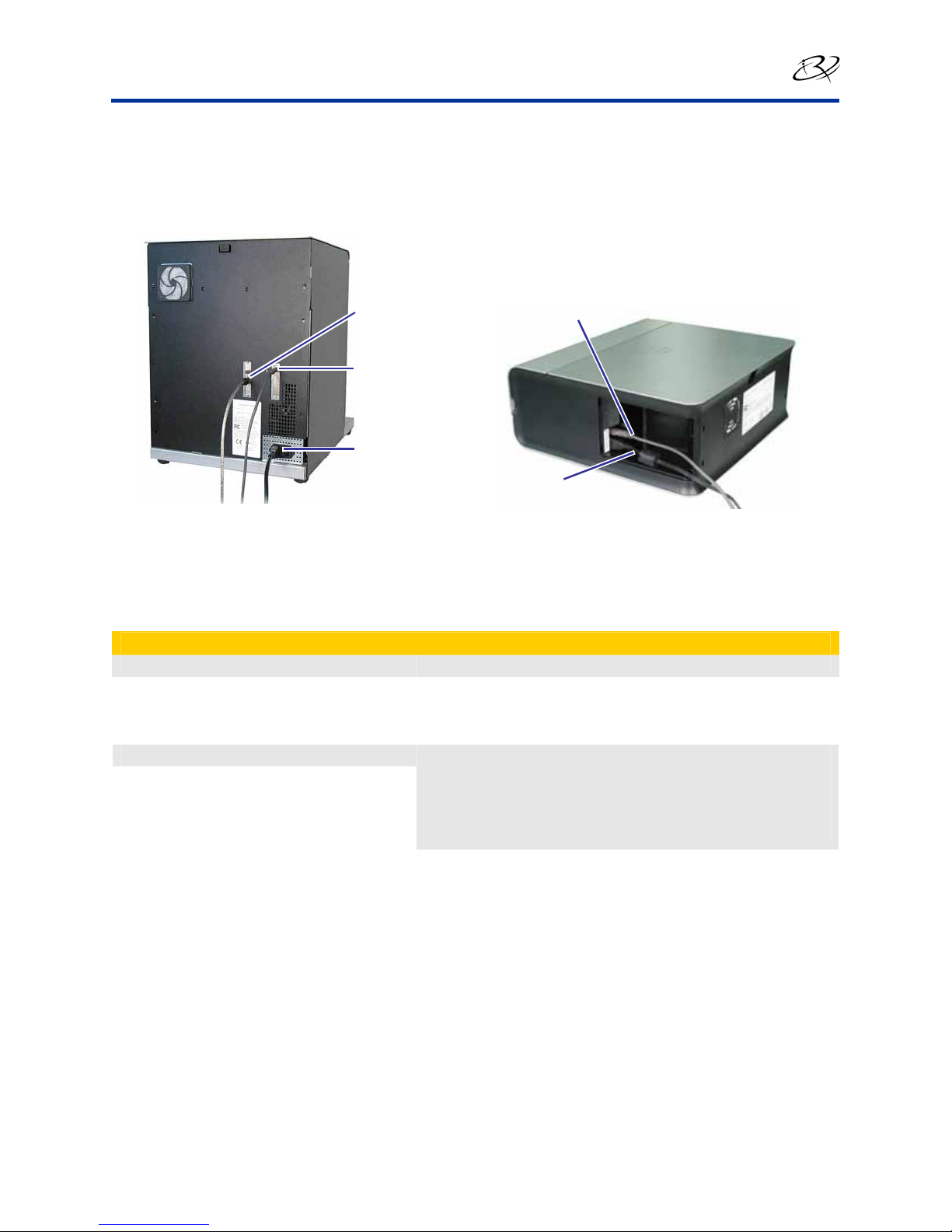

1. Connect the cables.

•FireWire cable (if present, 2000i only)

•USB cable

•Power cord

2000i

USB Cable

FireWire Cable

(

resent

)

Power

Cord Power

Cord

Standalone 480i Printer

2. Connect the power cord to the power outlet.

3. Power on the Rimage 2000i.

The system is ready for use.

Support information

Europe When you contact Rimage Services, please provide:

Contact Rimage Services Europe:

www.rimage.com/support.html

Email: [email protected]

Tel: +49-(0) 6074-8521-0

•Unit serial number and software version.

•Functional and technical description of the problem.

•Exact error message received.

US, Asia/Pacific, Mexico/Latin America Rimage Corporation reserves the right to make improvements to the

Contact Rimage Services: equipment and software described in this document at any time without

any prior notice. Rimage Corporation reserves the right to revise this

www.rimage.com/support.html publication and to make changes from time to time in the content hereof

Email: http://www.rimage.com/support_form.cfm without obligation of Rimage Corporation to notify any person or

Tel: North America: 800-553-8312 organization of such revisions or changes.

Asia/Pacific, Mexico/ Latin America: 952-946-0004
