Rimage Autostar II™ and Protégé II™ Setup and Installation

Setup the PC.

Each Autostar II and Protégé II comes

with a Rimage control center PC.

Before you setup your Producer II,

unpack and set up the control center

PC included with your system.

The Rimage software and printer

driver are already installed on the

control center PC.

Prepare the Producer II.

Before you begin:

This document includes instructions for

setting up the Autostar II and the Protégé II.

These products are part of the Producer II

family of products.

The term ‘Producer II’ is used throughout

this document to refer to the Autostar II or

Protégé II.

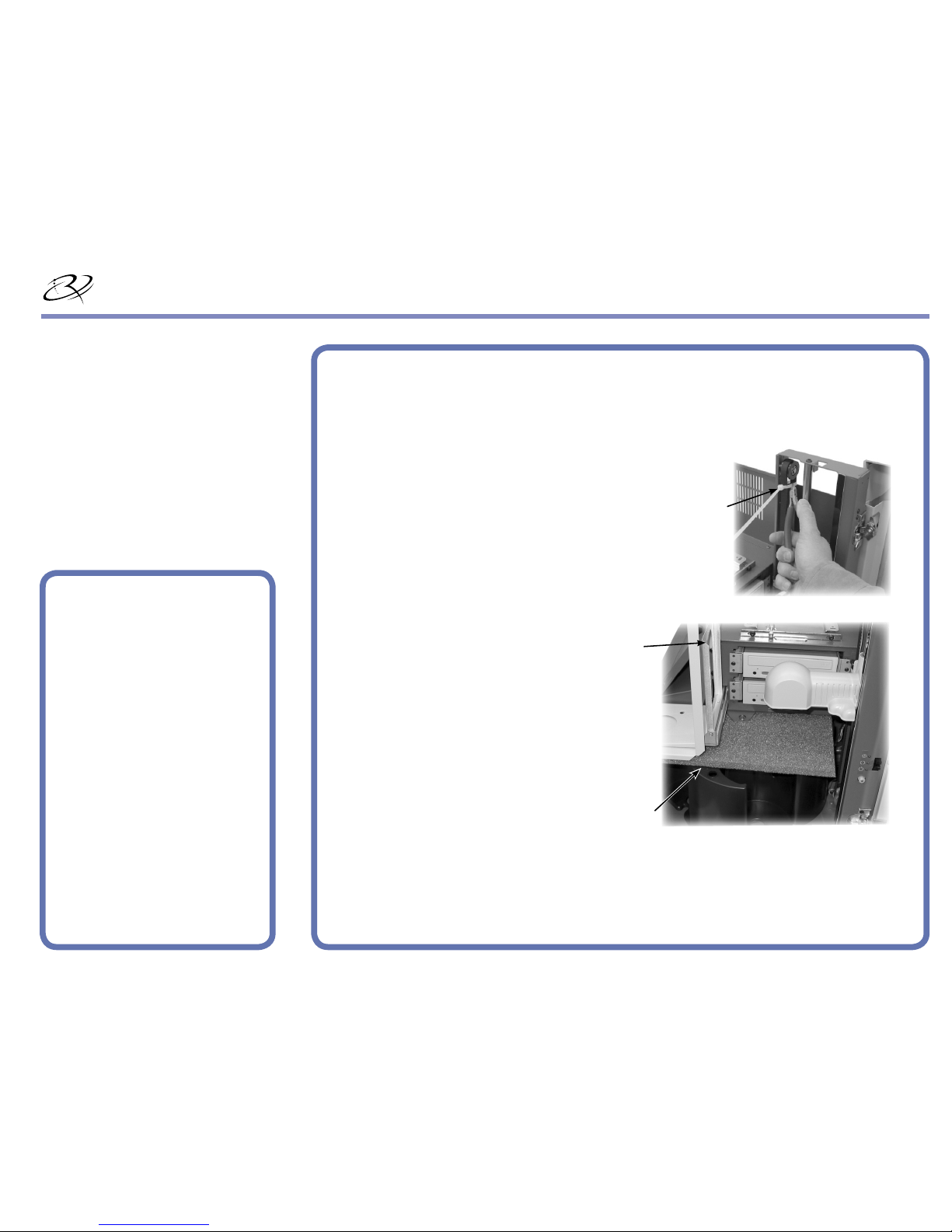

a. On the Producer II, open the

front door.

b. Cut the plastic tie wrap from

the lift arm.

c. Remove the tape from the

mailbox feed tray.

d. Remove the shipping foam

inserted above the carousel.

e. Close the front door.

Caution! Do not cut the belt or cable!



tie wrap

mailbox

feed tray

foam

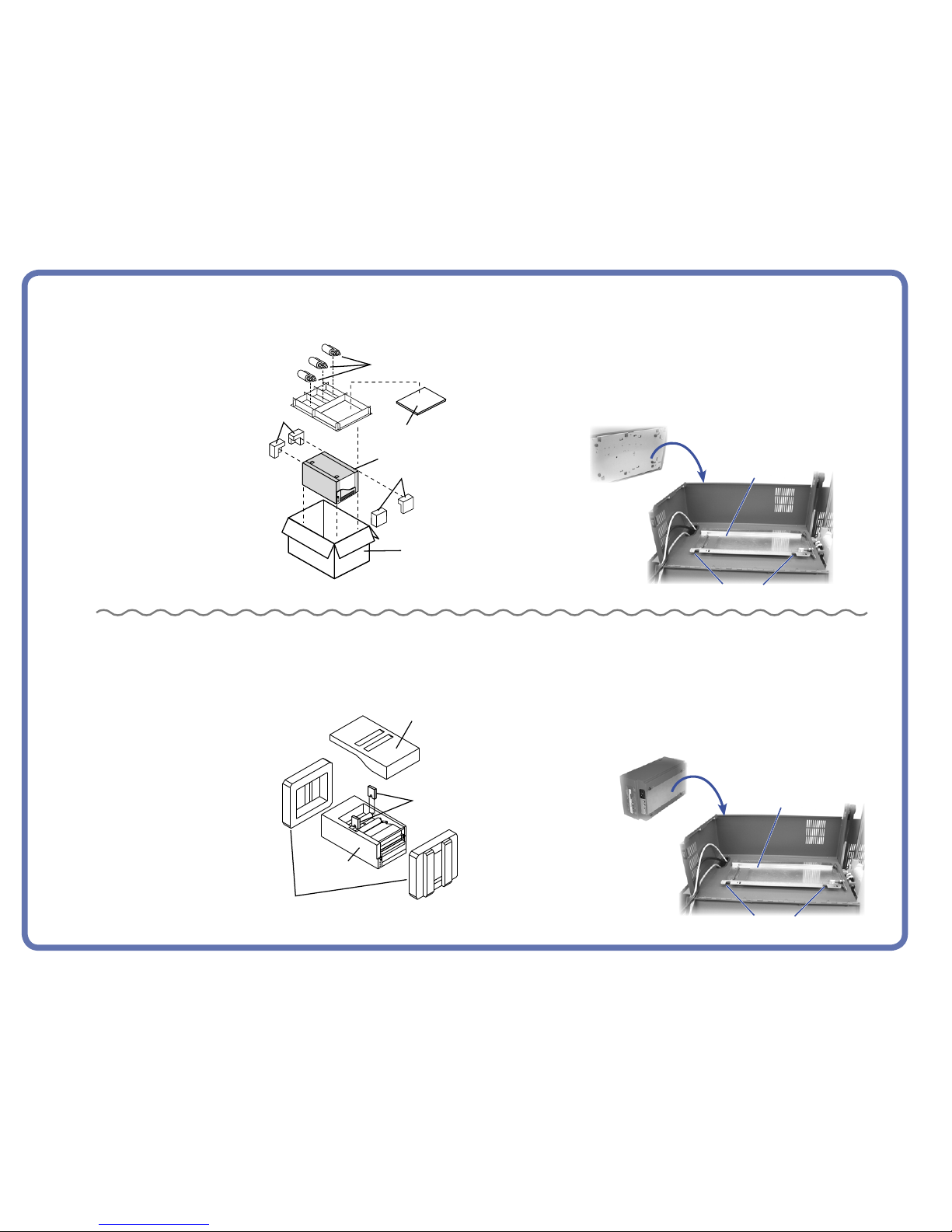

Set up your printer (Everest).

Set up your printer (Prism).

Ribbons

Foam

Printer

Box

Guide

a. Unpack the Everest printer.

Refer to the Everest

Unpacking and Setup

Instructions included with

your Everest printer.

c. Place the printer on the

Producer II so that the

plastic feet slide into the

slots on the printer plate.

Printer plate

Slots for feet

Printer

Top Cover

Packing Foam

Foam Inserts

a. Open the Prism printer

packing box.

b. Remove the packing

foam from the ends of the

Prism printer.

c. Remove the plastic bag

from the Prism printer.

d. Remove the top cover of

the Prism printer.

e. Remove the foam inserts.

f. Replace the top cover.

h. Place the printer on the

Producer II so that the

plastic feet slide into the

slots on the printer plate.

110630_H

b. Open the Producer II

side cover.

Printer plate

Slots for feet

g. Open the Producer II

side cover.

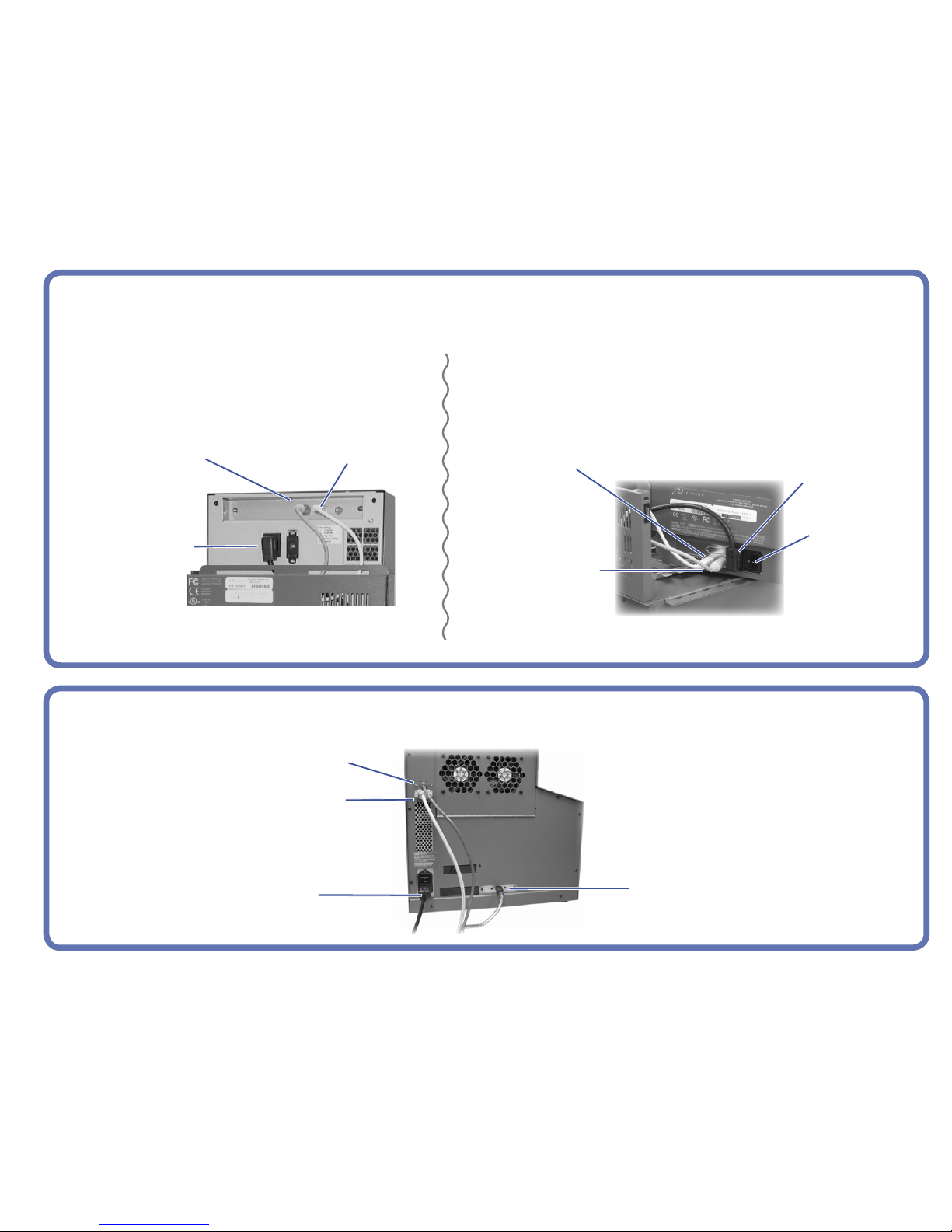

Connect the printer cables (Everest).

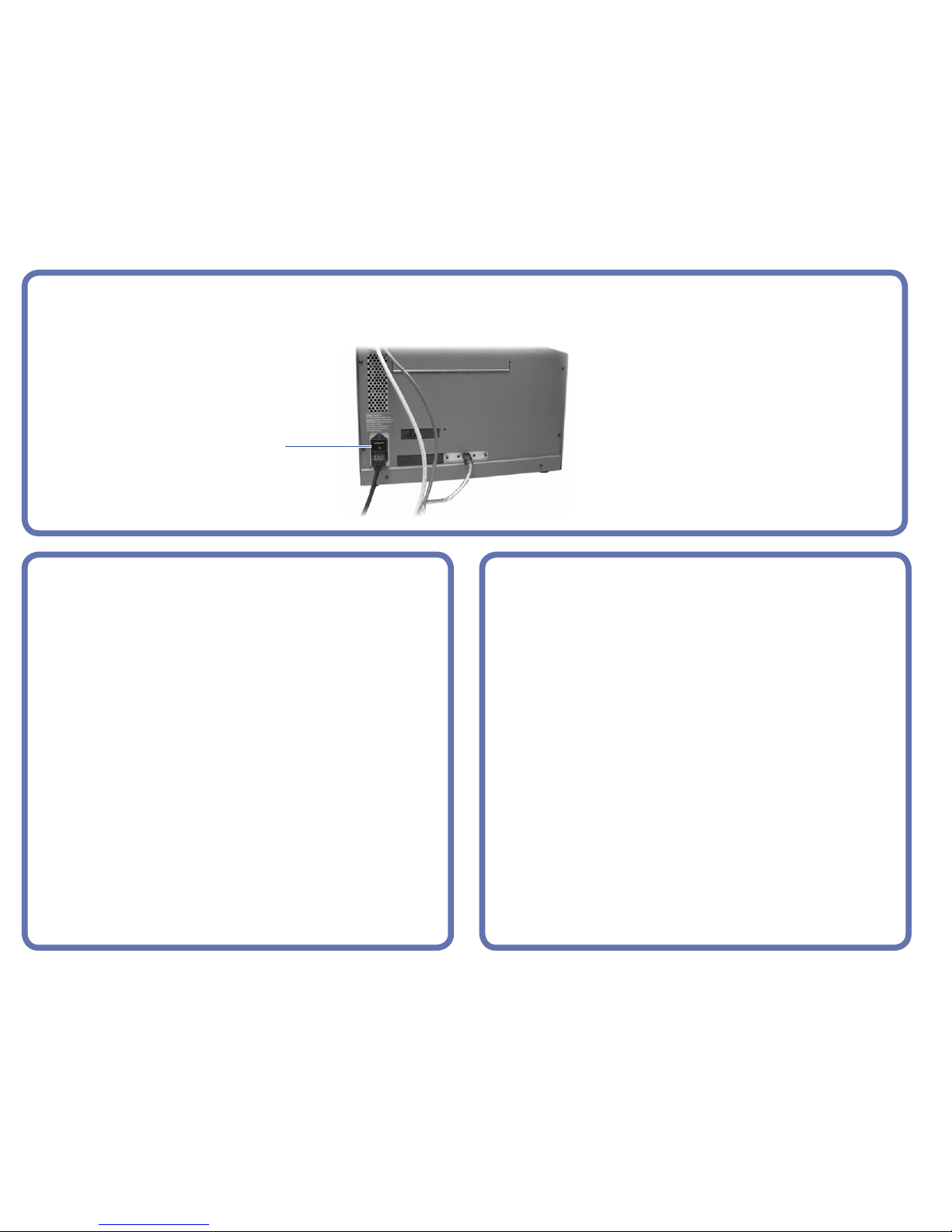

4OR Connect the printer cables (Prism).

110630_H

a. Connect the printer

cable from the

Producer II to the

printer.

b. Connect the power

cord from the

Producer II to the

printer.

c. Connect the power cord

from the Producer II to the

power outlet. d. Connect the FireWire

cable from the

Producer II to the PC.

b. Connect the serial cable

from the Producer II to the

PC.

b. Connect the USB

cable from the

Producer II to the

printer.

c. Connect the

printer cable

from the Producer

II to the printer.

c. Connect the USB cable

from the Producer II to

the printer.

d. Connect the

power cord from

the Producer II to

the printer.

a. Lift the Prism printer up from the printer plate

and turn the rear as shown below. This will

allow access to the cable connections.

Connect the Producer II cables.

a. Connect the USB cable from

the Producer II to the PC.

g. Close the Producer

II side cover.

d. Close the Producer II

side cover.

e. Press the Prism

printer power

switch.

f. Slide the Prism

printer back into

place.

Power on the Producer II.

To power on the Producer II,

press the power switch.

Activate your Rimage Software. Learn more.

110630_H

For information about submitting orders to the Producer II

across a network, refer to the Advanced Setup Guide included

on your software disc. The Advanced Setup Guide is also

located on the control center PC at

Start > Programs > Rimage > Manuals.

For information about operating and maintaining the Autostar II

or Protégé II, refer to the Autostar II and Protègè II User Guide

included with your product.

For additional support and product information, go to

www.rimage.com/support.html.

You have 30 days to activate your Rimage software.

Until your software is activated, you will be prompted

to activate your software each time you use the

Rimage software.

When the activation dialog displays, select an option

and follow the onscreen prompts to activate your

software.
