Rimage Printer Family™ Operator

Replace the Ink Ribbon Base Plate in an Everest II Printer

Use this procedure to replace the ink ribbon base plate in an Everest II™.

Rimage approved parts must be used for this process. The product warranty may become void if parts not approved by Rimage are

used; equipment or parts are tampered with, misused, neglected, or modified in any respect without the written consent of Rimage.

Notes:

•Your system may not look exactly like the system pictured.

•The term “Everest” is used throughout this document to refer to the Everest II only.

#Required tools:

Before you begin

1. Stop or pause all jobs. •Long-shaft Phillips #2 screwdriver

2. If the printer is attached to an autoloader, power off the •Small flathead screwdriver

autoloader.

3. Disconnect the power cord from the power outlet. •Needle-nose pliers

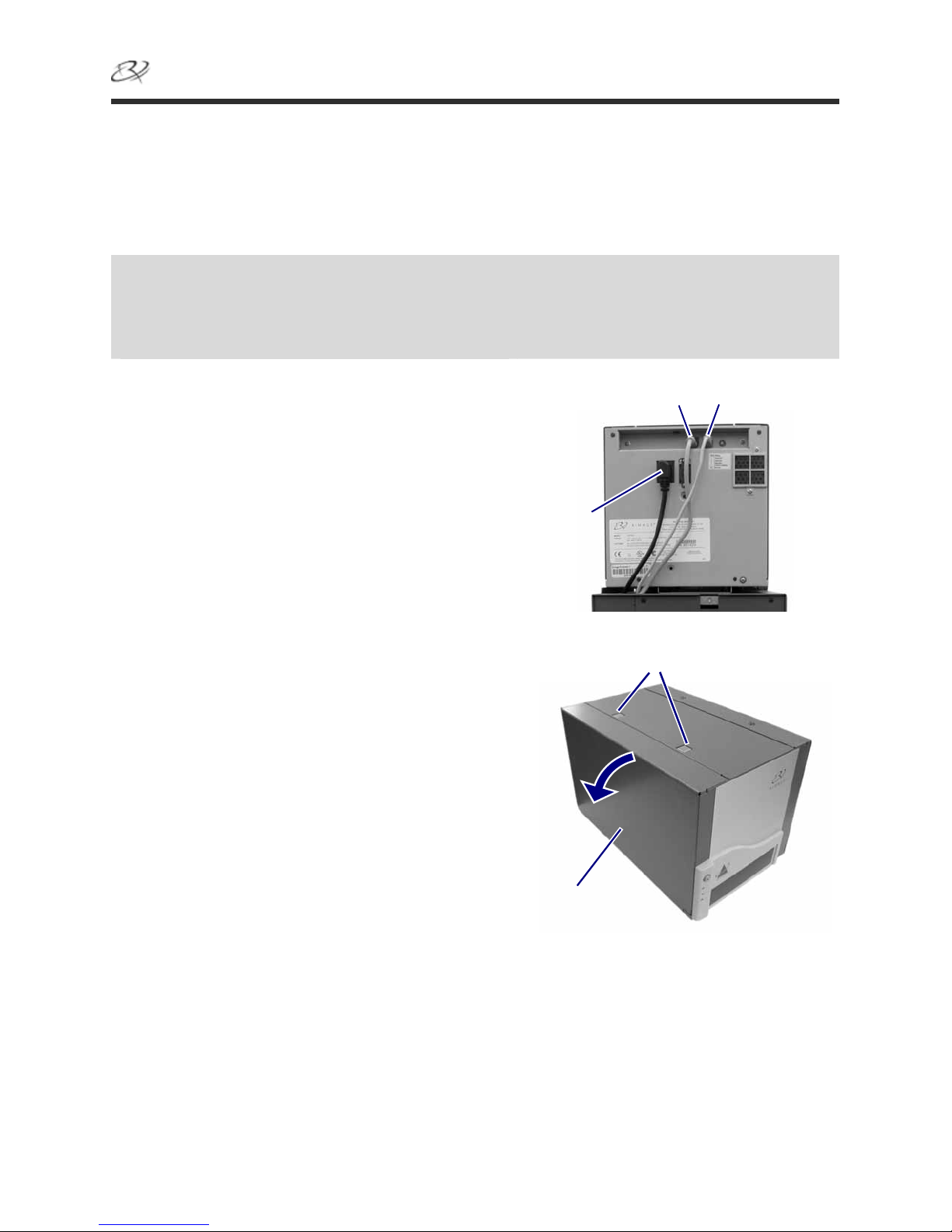

Remove the Ink Ribbon Base Plate

1. Disconnect all cables from the printer.

nCaution! Some cables in this system are latched.

Equipment damage may occur if cables are not

disconnected appropriately.

•Printer cable (if on an autoloader)

•USB cable

•Power cord

2. If the printer is on an autoloader, remove it from the

autoloader.

nCaution! Lift the printer with care. It is very heavy.

Printer Cable USB Cable

Power Cord

3. Access the ink ribbon base plate.

a. Press the two cover latches to release the ribbon

access cover.

b. Lower the ribbon access cover.

Ribbon Access Cover

atches

Cover L

Replace the Ink Ribbon Base Plate in an Everest II Printer Everest II™

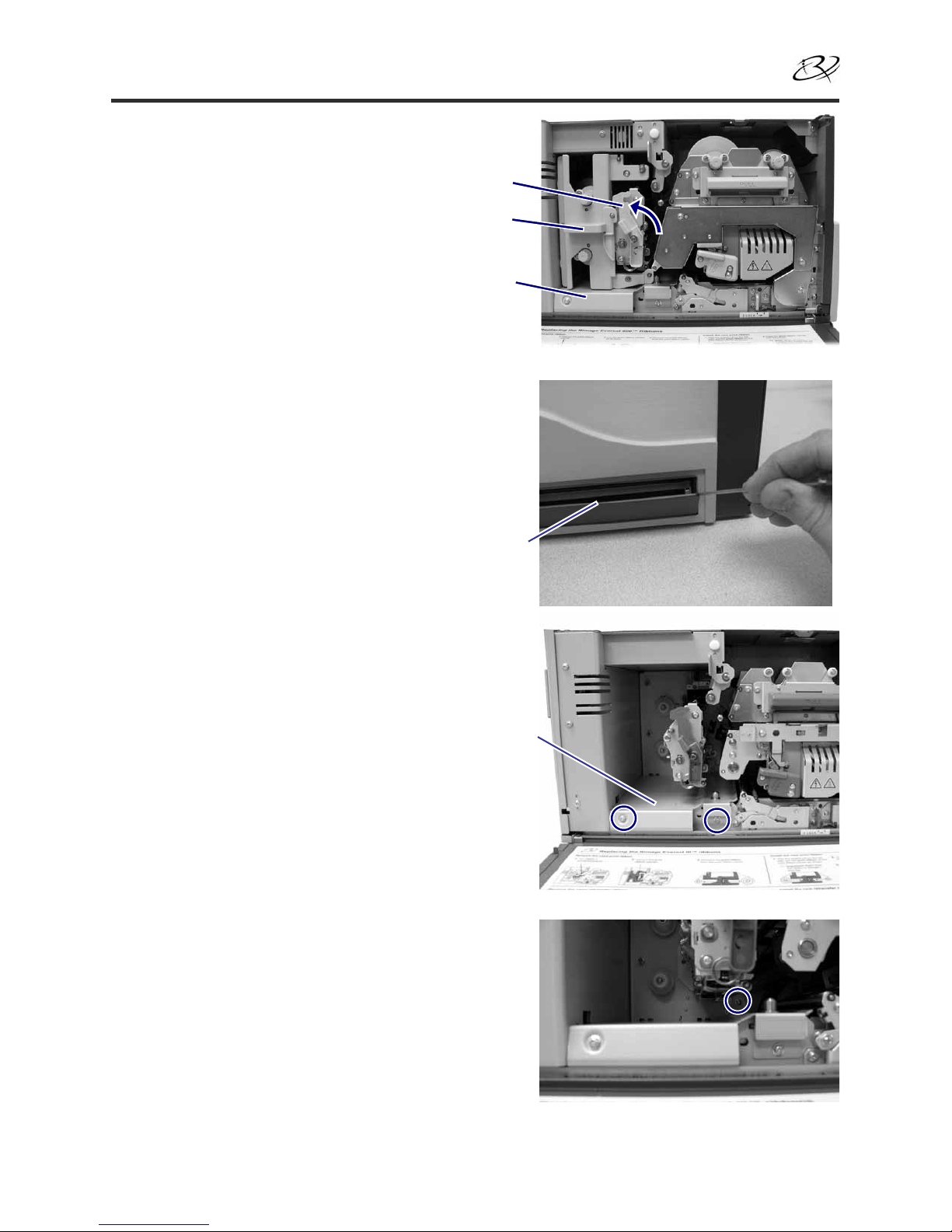

c. Open latch 1 as shown.

d. Remove the print ribbon carrier.

4. Manually slide the printer tray all the way out of the printer.

a. Open the printer tray door.

Tip: Use a small flathead screwdriver to open the

door.

b. Grasp the front of the printer tray with a needle-

nose pliers and firmly pull out the tray.

5. Remove the ink ribbon base plate.

a. Remove the Phillips screws (Qty. 2) at the front of the

ink ribbon base plate.

b. Remove the Phillips screw at the back of the ink ribbon

base plate using a long-shaft Phillips screwdriver.

Latch 1

Print Ribbo

Carrier n

Ink Ribbon

Base Plate

Printer Tray

Door

Ink Ribbon Base Plate

Replace the Ink Ribbon Base Plate in an Everest II Printer Everest II™

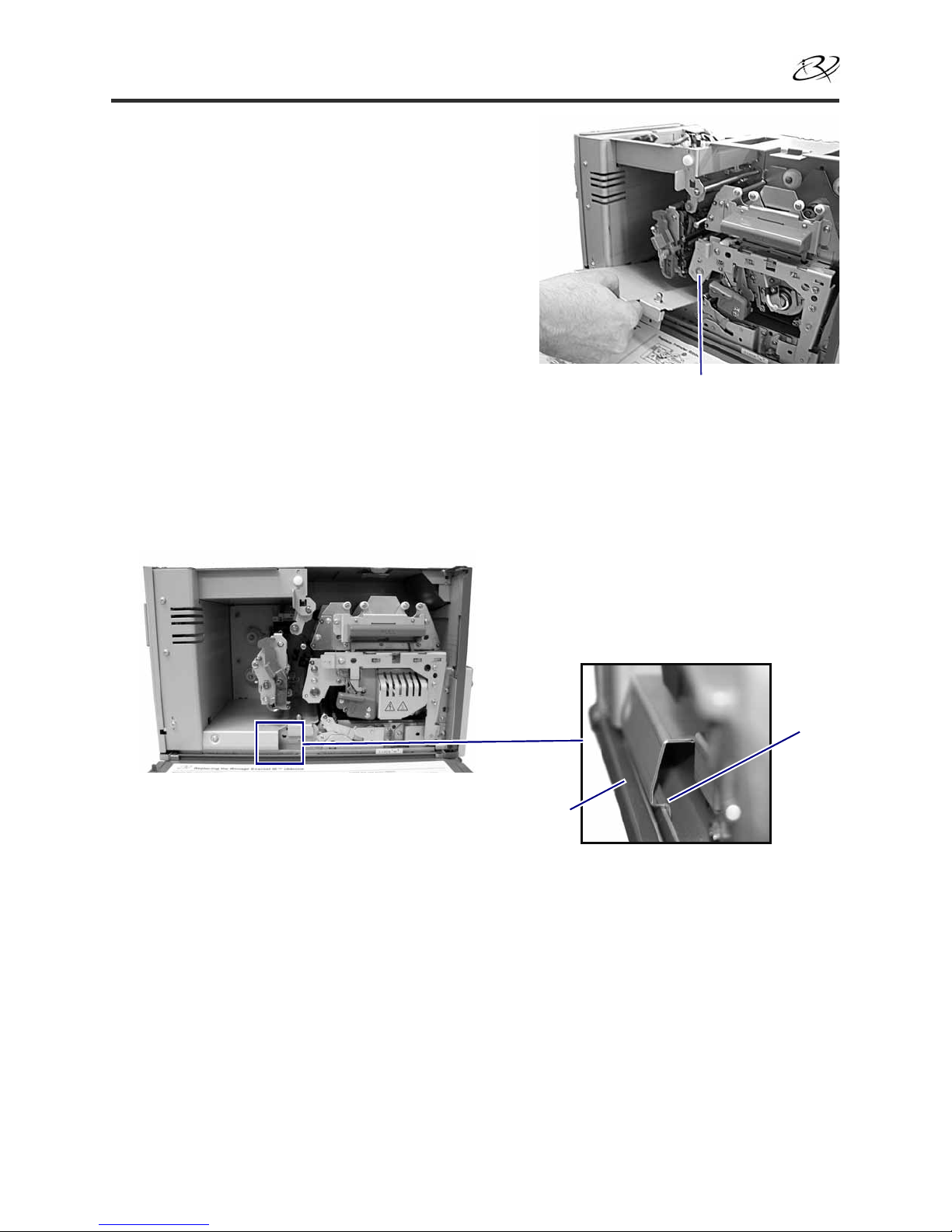

6. Lift the ink ribbon base plate up to unlatch it.

7. Keeping the plate at an angle, carefully remove the ink

ribbon base plate from the printer.

nCaution! Do not scratch the platen roller.

Install the Ink Ribbon Base Plate

1. While holding the replacement ink ribbon base plate at a

slight angle, carefully position the ink ribbon base plate in the

printer.

nCaution! Do not scratch the platen roller.

-Important! The lip on the ink ribbon base plate must be

positioned as shown on the printer frame.

Platen Roller

Lip

Printer Frame

Replace the Ink Ribbon Base Plate in an Everest II Printer Everest II™

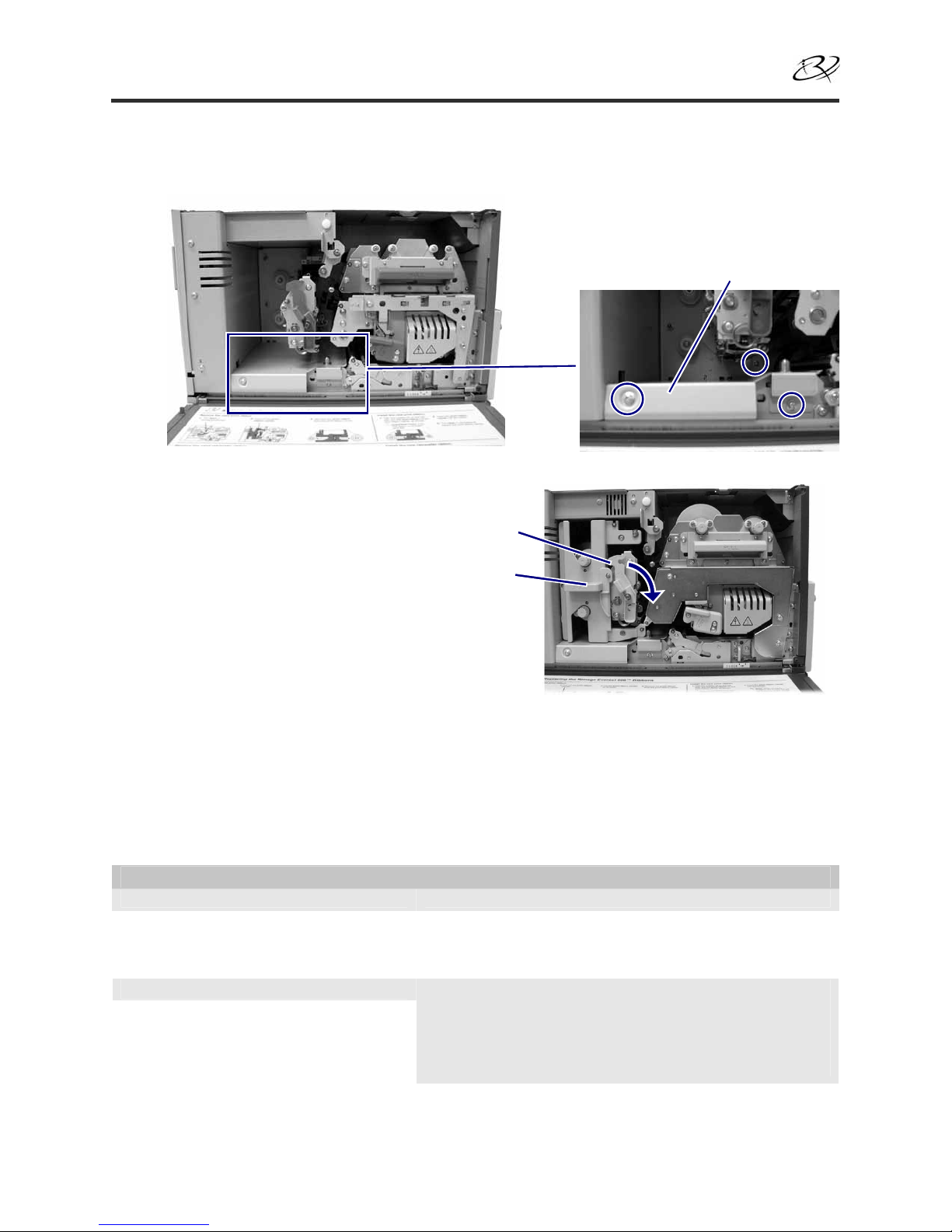

2. Install the Phillips screws (Qty. 3) to secure the ink ribbon

base plate.

Tip: One of the screws fits into the tab at the back of the

ink ribbon base plate, inside the printer.

Prepare the Printer for Use

1. Insert the print ribbon carrier.

2. Close latch 1.

3. If necessary, place the printer onto the autoloader.

nCaution! Lift the printer with care. It is very heavy.

4. Connect the cables to the rear of the printer.

•USB cable

•Printer cable (if on an autoloader)

•Power cord

The printer is ready for use.

Support information

Europe When you contact Rimage Services, please provide:

Contact Rimage Services Europe:

www.rimage.com/support.html

Email: [email protected]

Tel: +49-(0) 6074-8521-0

•Unit serial number and software version.

•Functional and technical description of the problem.

•Exact error message received.

US, Asia/Pacific, Mexico/Latin America

Contact Rimage Services:

www.rimage.com/support.html

Email: http://www.rimage.com/support_form.cfm

Tel: North America: 800-553-8312

Asia/Pacific, Mexico/ Latin America: 952-946-0004

Rimage Corporation reserves the right to make improvements to the

equipment and software described in this document at any time without

any prior notice. Rimage Corporation reserves the right to revise this

publication and to make changes from time to time in the content hereof

without obligation of Rimage Corporation to notify any person or

organization of such revisions or changes.
