Rimage Prism CDPR11 Bedienungsanleitung

Rimage PrismPlus!TM

User Guide

Corporate Headquarters:

Rimage Corporation

7725 Washington Avenue South

Minneapolis, MN 55439

USA

800 553 8312 (toll free US)

Service: +1 952 946 0004

(International)

Fax: +1 952 944 6956

European Headquarters:

Rimage Europe GmbH

Hans-Böckler-Straße 7

63128 Dietzenbach, Germany

Tel: +49-(0) 6074-8521-0

Fax: +49-(0) 6074-8521-21

DISC and DVD Recording Software

Disclaimer

This Product, Software, or Documentation may be

designed to assist you in reproducing material in

which you own the copyright or have obtained

permission to copy from the copyright owner.

Unless you own the copyright or have permission

to copy from the copyright owner, you may be

violating copyright law and be subject to payment

of damages and other remedies. If you are

uncertain about your rights, you should contact

your legal advisor. If you are neither in possession

of the copyright nor have authorization from the

owner of the copyright, unauthorized copying of

DISCs violates national and international

legislation and can result in severe penalties.

Rimage Corporation reserves the right to make

improvements to the equipment and software

described in this document at any time without any

prior notice. Rimage Corporation reserves the right to

revise this publication and to make changes from

time to time in the content hereof without obligation of

Rimage Corporation to notify any person or

organization of such revisions or changes.

This document may contain links to web sites that

were current at the time of publication, but may have

moved or become inactive since. This document may

contain links to sites on the Internet that are owned

and operated by third parties. Rimage Corporation is

not responsible for the content of any such third-party

site.

Rimage™ is a trademark of the Rimage Corporation.

PrismPlus!™ is a trademark of the Rimage

Corporation. Dell®is registered trademark of Dell

Computer Corporation. FireWire®is a registered

trademark of Apple Computer, Inc.

All other trademarks and registered trademarks are

the property of their respective owners.

Rimage PrismPlus!

Support information

US, Asia/Pacific, Mexico/Latin America Europe

Rimage Corporation

7725 Washington Avenue South

Minneapolis, MN 55439

USA

Attn: Rimage Services

Service:

North America: 800-553-8312

Asia/Pacific, Mexico/ Latin America: 952-946-0004

FAX: 952-946-6956

Rimage Support Website

http://www.rimage.com/support.html select the

appropriate Product Family and then select your

product. If you cannot find a solution on our website,

email Rimage Services at [email protected].

Rimage Europe GmbH

Hans-Böckler-Straße 7

63128 Dietzenbach, Germany

Tel: +49-(0) 6074-8521-0

FAX: +49-(0) 6074-8521-21

Rimage Europe Technical Website

http://www.rimage.de/support.html

Select the appropriate Support link

to learn more. If you cannot find a

solution on our website, email

Rimage Services, Europe at

support@rimage.de.

When you contact Rimage Services, please provide:

•Unit serial number and software version.

•Functional and technical description of the problem.

•Exact error message received.

Contents

Introduction ...................................................................................... 1

Operating system requirements............................................................................1

Media requirements...............................................................................................1

Ribbon requirements.............................................................................................1

Label design requirements....................................................................................1

Identify the parts of the PrismPlus ................................................. 2

Front view..............................................................................................................2

Rear view ..............................................................................................................4

Operate the PrismPlus..................................................................... 5

Setting up a standalone PrismPlus..................................................................5

Connecting the cables...........................................................................................5

Installing the software............................................................................................6

Installing the printer driver.....................................................................................6

Powering on the printer.........................................................................................8

Loading the discs.............................................................................................9

Selecting the printing preferences...................................................................9

Navigating to printing properties............................................................................9

Setting ribbon type, media type, and print strobe................................................10

Setting color options............................................................................................10

Setting the print quality........................................................................................11

Centering the image on the disc..........................................................................12

Printing discs with serialized labels.....................................................................12

Maintain the PrismPlus.................................................................. 13

General cleaning.................................................................................................13

Replace consumables.........................................................................................15

Learn more...................................................................................... 18

PrismPlus printer specifications ..........................................................................18

Technical support and product updates..............................................................18

Safety information ...............................................................................................19

Safety testing.......................................................................................................20

Rimage PrismPlus!TM Limited 6 Month Warranty. ...............................................21

110635_G i

Rimage PrismPlus!

Introduction

This manual provides the information needed to set up, install, and operate the PrismPlus printer

and to identify the parts.

Operating system requirements

The Rimage PrismPlus is compatible only with Windows 2000, Windows XP, and Windows 2003

Server. It requires one USB port.

Media requirements

You must use discs that are coated with a surface designed for thermal printing. Silver lacquer

discs without an additional thermal protective layer are not designed for thermal printing. The heat

of the thermal printing process may damage the dye layer in a CD-R.

The media in Rimage Media Kits™ is designed for optimum use in the PrismPlus. For information

about Rimage Media Kits™– convenient packages of discs and ribbons, all guaranteed by

Rimage – contact Rimage at 800-445-8288.

Ribbon requirements

The PrismPlus requires ribbons designed specifically for use with the printer. The table below lists

the type of ribbon to use with your printer.

Ribbon Color Part Number Number of Discs Printed

Black 201737-006 2100

Red 202082-002 2100

Midnight Blue 203217-001 2100

Multicolor 202506-001 500

Store the ribbons at -5°C (23°F) to 40°C (104°F) and at 30-80% relative humidity, non-

condensing. Avoid direct sunlight.

Label design requirements

Properties Image Size

Resolution 300x300 DPI

Width 5.12” (1536 pixels)

Height 4.52” (1356 pixels)

110635_G 1

Rimage PrismPlus!

2 110635_G

Identify the parts of the PrismPlus

Front view

Ribbon Guides

Clamping Pins

Drawer and

Centering Pin Supply Roller

Take-u

Rolle

Control panel

There are four LEDs and an Operator Button on the operator panel located on the front of the

printer.

Disc Not Present LED

Active LED

Power LED

Identify the parts of the PrismPlus

Operator button

This button opens and closes the printer tray. There is a yellow LED in the center of this button.

LED indicators

The LED conditions described below reflect conditions on a Standalone PrismPlus. PrismPlus

printers that are mounted in automated equipment have different conditions. For conditions of

automated printers, refer to the automated equipment user guides.

Image Name Functionality

Error

•The yellow LED located in the Operator button illuminates

when an error occurs while printing.

•The Error LED and the Disc Not Present LED flash when

the printer is in cleaning mode.

•The error LED illuminates and the Disc Not Present LED

flashes at a slow rate when the ribbon is out.

Disc Not

Present

•The yellow Disc Not Present LED illuminates when the tray

is empty or when the disc is not properly clamped. When a

disc is placed on the tray, the Disc Not Present LED turns

off.

•In Multiple Copy mode, the Disc Not Present LED

illuminates until the disc is removed from the pad.

•The Disc Not Present LED flashes a fault code when an

error occurs. After the error is resolved, press the Operator

button to turn off the LED.

•The Disc Not Present LED flashes continuously at a slow

rate when the ribbon is low (less than 100 prints remain).

This applies only to monocolor ribbons and only if you have

not changed or switched ribbons since loading the current

ribbon.

•The Disc Not Present LED flashes at a slow rate while the

error LED illuminates when the ribbon is out.

•The Disc Not Present LED and the Error LED flash when

the printer is in cleaning mode.

Active

•The yellow Active LED flashes when the printer is operating.

•The Active LED flashes continuously at a slow rate when

the printer is in AutoPrinter mode.

Power

•The green Power LED illuminates when the PrismPlus is

powered on.

•The Power LED flashes when the system board requires

reprogramming.

•The Power LED turns off when the printer detects a bad

pixel element in the printhead. You can continue to print

discs (the Power LED turns back on when a disc is placed

on the tray); however small lines may occur in printing. This

is an indication that the printhead will require replacement.

110635_G 3

Rimage PrismPlus!

4 110635_G

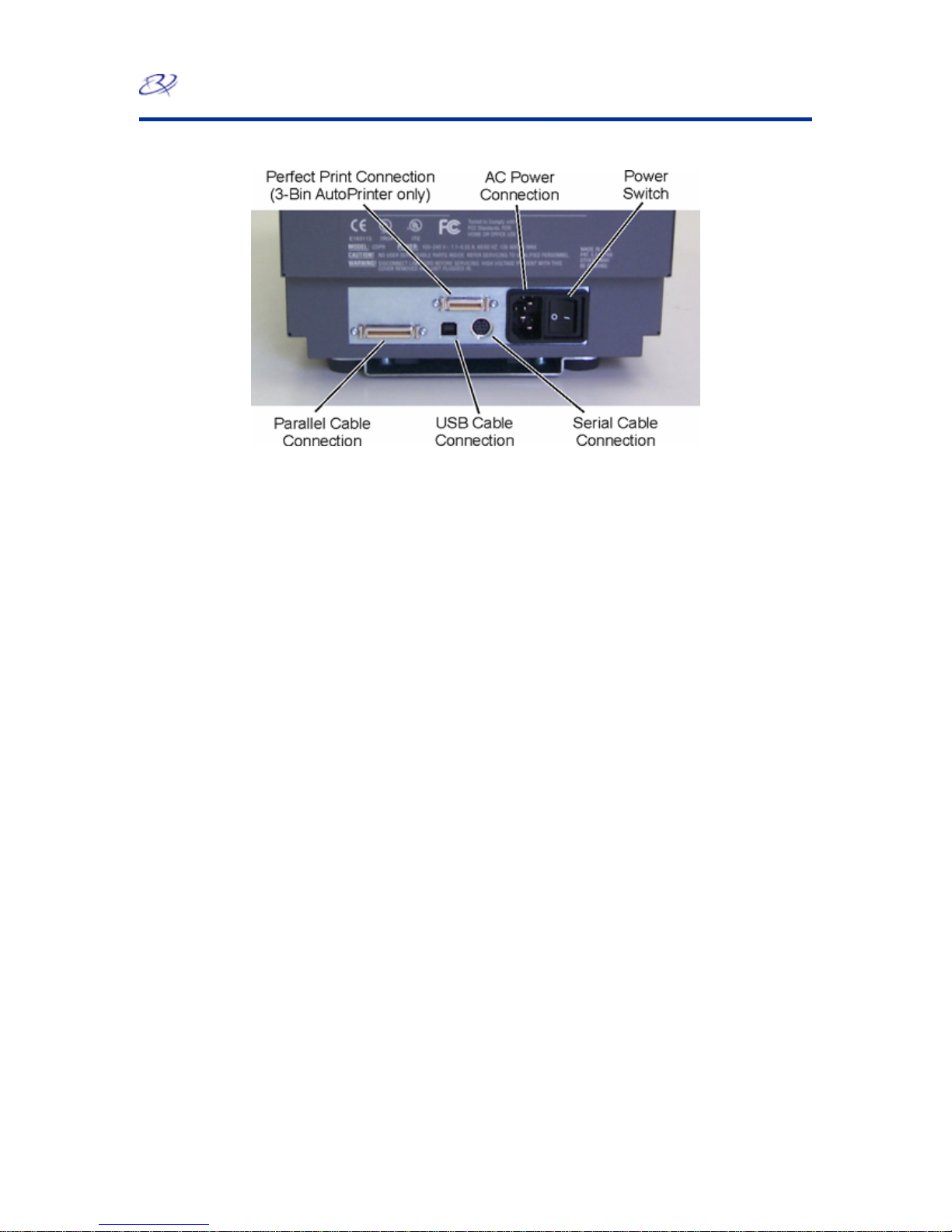

Rear view
