Rinnai Infinity XR32 Bedienungsanleitung

To Suit Models:

Infinity XR 32

Infinity XR26 Plus

Infinity XR26

Infinity XR24

Infinity XR20 Plus

Infinity XR20

Infinity XR18

Infinity XR16

Infinity XR26i

Infinity HD250

Infinity HD250i

Infinity HD200

Infinity HD200i

Efficiency24

Operation / Installation

Manual

How to use and install Rinnai continuous flow water heaters

This appliance shall be installed in accordance with:

• Manufacturer’s Installation Instructions

• Current AS/NZS 3000, AS/NZS 3500 & NZS 5261

• Local Regulations and Municipal Building Codes

This appliance must be installed, serviced and removed by an Authorised Person.

Rinnai New Zealand i Operation Manual

REGULATORY INFORMATION..................................................................................1

WARNING ABOUT HOT WATER ...............................................................................1

FEATURES AND BENEFITS ......................................................................................2

IMPORTANT INFORMATION .....................................................................................3

OPERATION WITHOUT CONTROLLERS..................................................................5

GENERAL WATER CONTROL INFORMATION ........................................................6

UNIVERSAL WATER CONTROLLERS......................................................................7

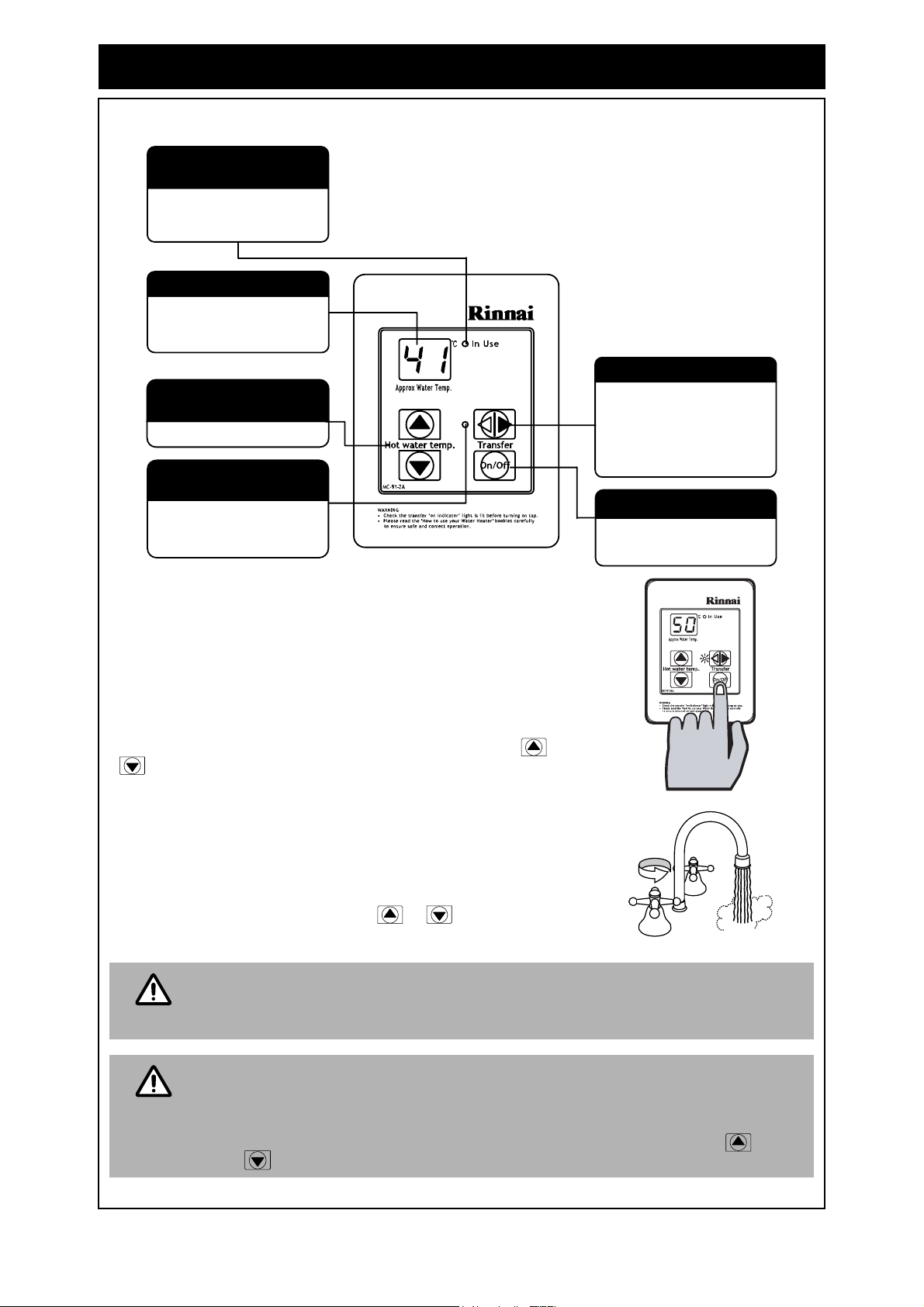

ABOUT THE UNIVERSAL WATER CONTROLLER (MC-91-2A) ................................................................ 7

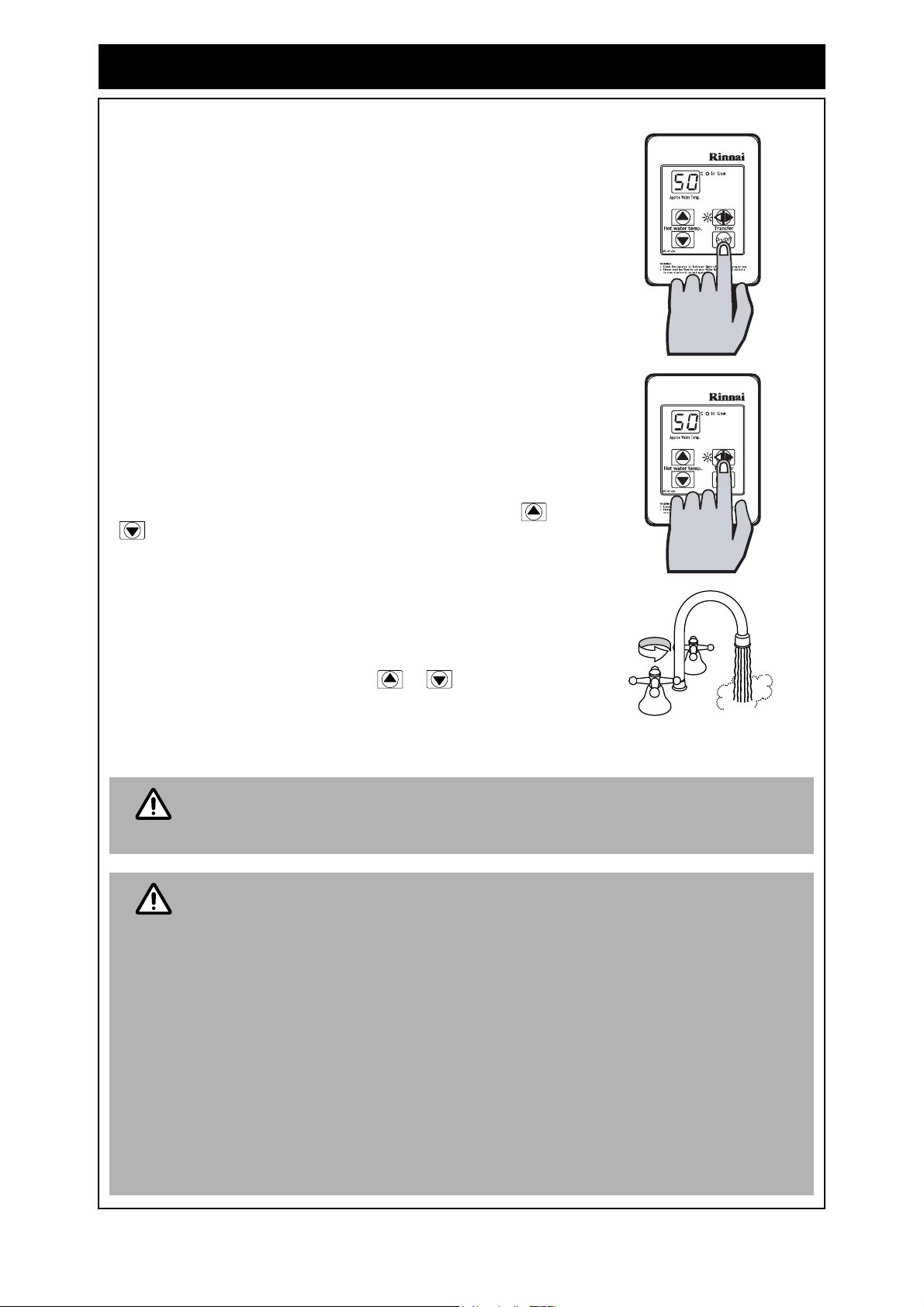

TURNING ON THE CONTROLLER............................................................................................................. 7

ADJUSTING TEMPERATURE..................................................................................................................... 7

HOW TO USE TWO OR MORE UNIVERSAL WATER CONTROLLERS ................................................... 8

TRANSFERING PRIORITY.......................................................................................................................... 8

ADJUSTING TEMPERATURE..................................................................................................................... 8

DELUXE KITCHEN WATER CONTROLLERS ...........................................................9

ABOUT THE DELUXE KITCHEN WATER CONTROLLER (MC-70-2A/MC-100V) ..................................... 9

HOW TO USE A SINGLE DELUXE WATER CONTROLLER...................................................................... 9

TURNING ON THE CONTROLLER............................................................................................................. 9

SETTING THE CLOCK ................................................................................................................................ 9

SETTING THE SOUND VOLUME ............................................................................................................. 10

ADJUSTING TEMPERATURE................................................................................................................... 10

DELUXE BATHROOM WATER CONTROLLERS....................................................11

ABOUT THE DELUXE BATHROOM WATER CONTROLLER (BC-70-2A/BC-100V) ............................... 11

HOW TO USE TWO OR MORE DELUXE WATER CONTROLLERS ....................................................... 12

TURNING ON THE CONTROLLERS ........................................................................................................ 12

SETTING THE CLOCK (SEE PAGE 9 TO 10 FOR DETAILS ON HOW TO SET THE CLOCK) .............. 12

SETTING THE SOUND VOLUME ............................................................................................................. 12

ADJUSTING TEMPERATURE................................................................................................................... 12

OPERATING THE SHOWER SAVER / BATH FILL FUNCTION ............................................................... 13

COMBINING UNIVERSAL AND DELUXE CONTROLLERS ..................................................................... 14

TROUBLESHOOTING...............................................................................................15

WARRANTY STATEMENT - HOT WATER PRODUCTS .........................................16

WARRANTY CONDITIONS.......................................................................................17

INSTALLATION MANUAL ........................................................................................18

ACCESSORIES ........................................................................................................32

CONTACT INFORMATION ......................................................................................33

OPERATION MANUAL

Rinnai New Zealand 1 Operation Manual

Your Rinnai Continuous Flow water heater complies with NZS5262. A declaration to this effect can be

found on the Energy Safety Service website; www.ess.govt.nz.

This Appliance must be installed correctly by an authorised person. The installation of gas, water, and

electricity must conform to local regulations.

The installation must also comply with the instructions supplied by Rinnai.

All dimensions referred to in these instructions are in millimetres, unless otherwise specified.

Please keep this instruction booklet in a safe place for future reference.

Excessively hot water is dangerous, especially for young

children and the infirm. Rinnai Continuous Flow water

heaters allow you to control the temperature of hot water to

safe levels.

Water temperatures above 55°C can cause severe burns

instantly and may even result in death. Those most at risk are

children, disabled, elderly and the infirm. Hot water at 65°C (a

very common hot water temperature in New Zealand ) can

severely burn a child in less than half a second. At 55°C it

takes half a minute.

ALWAYS......

Test the temperature of the water with your elbow before

placing your child in the bath, also carefully feel water before

bathing or showering yourself.

Supervise children whenever they are in the bathroom.

Make sure that the hot water tap is turned off tightly.

CONSIDER.....

Installing child proof tap covers or child resistant taps (both

approaches will prevent a small hand being able to turn on

the tap).

Setting your appliance at a maximum temperature of 55°C

(Contact Rinnai New Zealand).

NEVER…..

Leave a toddler in the care of another child. They may not

understand the need to have the water temperature set at a

safe level.

REGULATORY INFORMATION

WARNING ABOUT HOT WATER

Rinnai New Zealand 2 Operation Manual

FEATURES AND BENEFITS

Congratulations on purchasing the latest technology temperature controlled Rinnai continuous flow

water heating system.

•The Rinnai Infinity and Infinity HD products NEVER RUN OUT of hot water. Whilst electricity, water

and gas supplies are connected, hot water is available whenever hot water taps are open.

•Built into the main microprocessor is the facility to LIMIT THE MAXIMUM TEMPERATURE of the hot

water supplied. The water temperature may be limited to various values. This is particularly useful

when the hot water unit is installed where young children or the infirm may be using the hot water.

•The Rinnai Infinity, HD and Efficiency24 products are power flued appliances. This makes them

COMPACT, saving both floor and wall space.

•The temperature of hot water is CONSTANTLY MONITORED by a BUILT-IN SENSOR. If the

temperature of the hot water rises to more than 3°C above the selected temperature the burner is

turned OFF and only turned ON again when the temperature falls below the selected temperature.

•The burner lights automatically when the hot water tap is opened, and goes out when the tap is

closed. IGNITION IS ELECTRONIC, so there is no pilot light. When the hot water tap is off, no gas is

used.

•'Deluxe' or 'Universal' Water Controllers are available as an optional extra. Depending on the

models chosen, these offer the following features:

• Bath fill function (Deluxe Bathroom Control Only).

• Voice Prompting (Deluxe Control Only).

• Clock (Deluxe Control Only).

• Up to four water controllers can be fitted. See page 6 for details.

• Water controller cables are connected easily by the end user using a convenient quick connect

system.

•Operating NOISE LEVEL IS VERY LOW.

•ERROR MESSAGES ARE DISPLAYED on the Water Controllers and Status Monitor*, assisting with

service. *Status Monitor available on Infinity XR26 Plus, XR20 Plus, Infinity HD250, HD250i, HD200

and HD200i models only.

The range of Rinnai continuous flow water heaters referred to in this manual are

incompatible with solar water heating systems. A dedicated range of solar

compatible continuous flow water heaters is available from Rinnai.

NOTE

Rinnai New Zealand 3 Operation Manual

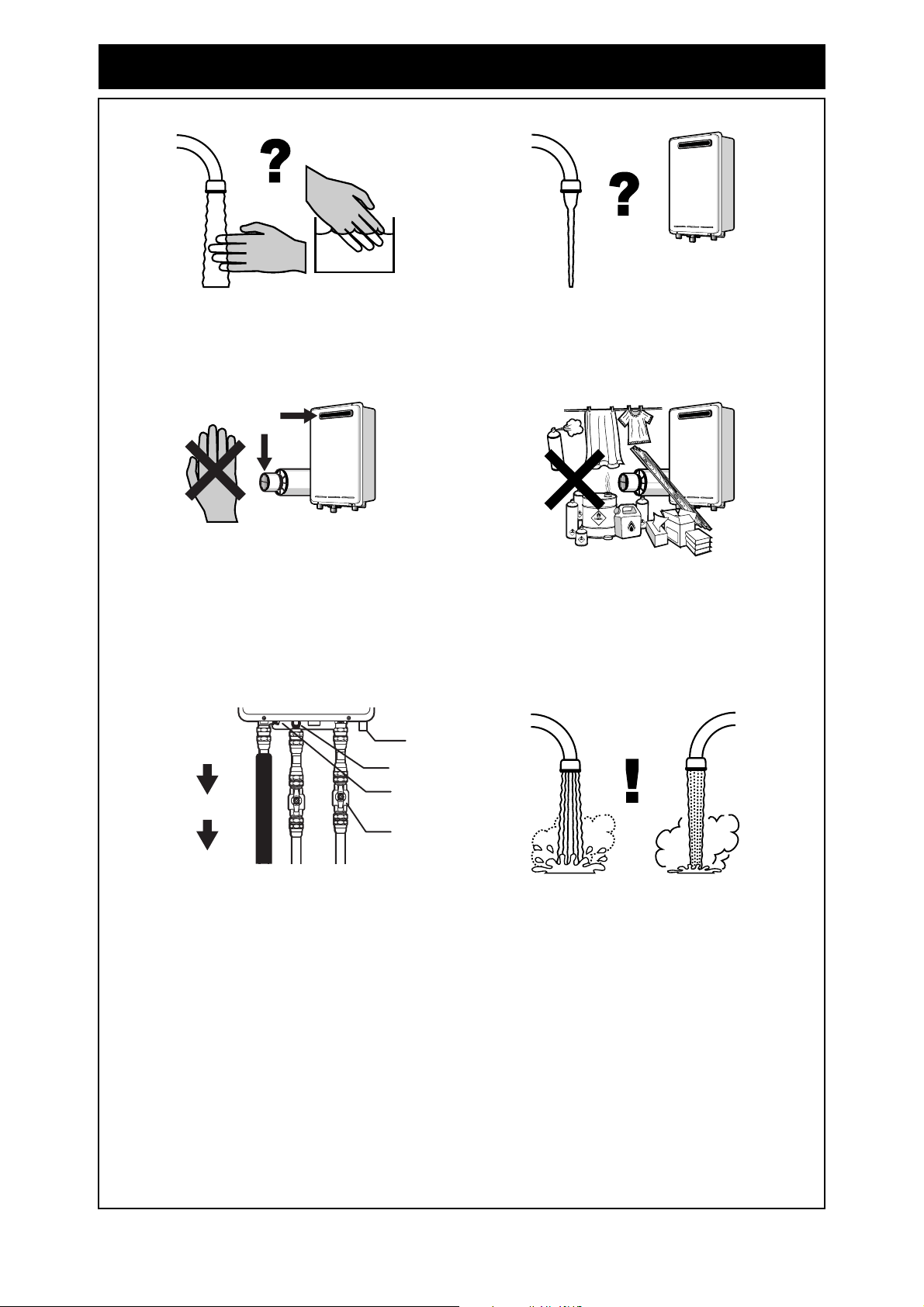

IMPORTANT INFORMATION

Always check water temperature carefully before

use. Refer to the WARNING ABOUT HOT WATER

on "page 1" of this manual for important safety

information.

At low water flows, the hot water unit may extinguish

without warning. Opening the tap further will restart

the appliance.

Do Not touch the unit cover or the flue outlet.

Do Not insert objects into the flue outlet.

On colder days steam may discharge from the flue

outlet. This condition is normal for high efficiency

appliances and does not indicate a fault.

Keep flammable materials, spray cans, fuel

containers, pool chemicals, trees, shrubs, etc. well

clear of the flue outlet.

Do Not spray water directly into the flue terminal.

Anti frost protection is fitted as standard equipment

on all LPG models and is available as an optional

extra on all natural gas models.

If natural gas units are installed into areas where

freezing conditions are experienced, the optional

automatic anti frost protection system should be fitted.

The anti frost protection system operates

automatically as required whenever the appliance is

connected to the electric power supply.

If the appliance is not going to be used for an

extended period and it is desired that the electric

power supply is disconnected, turn off the water and

gas supplies and arrange for your plumber to drain all

water from the appliance to prevent frost damage.

Drain*: applies only to the Efficiency

(REU-K2430WG) model.

The delivered water temperature is controlled

automatically. The flow may vary depending on the

delivery temperature selected and the ambient water

temperature.

OFF!

HOT!

Filter

Drain

Drain*

Gas

Valve

GasColdHot

Turn Water Off

Turn Gas Off

Drain Water

43°C

55°C

Rinnai New Zealand 4 Operation Manual

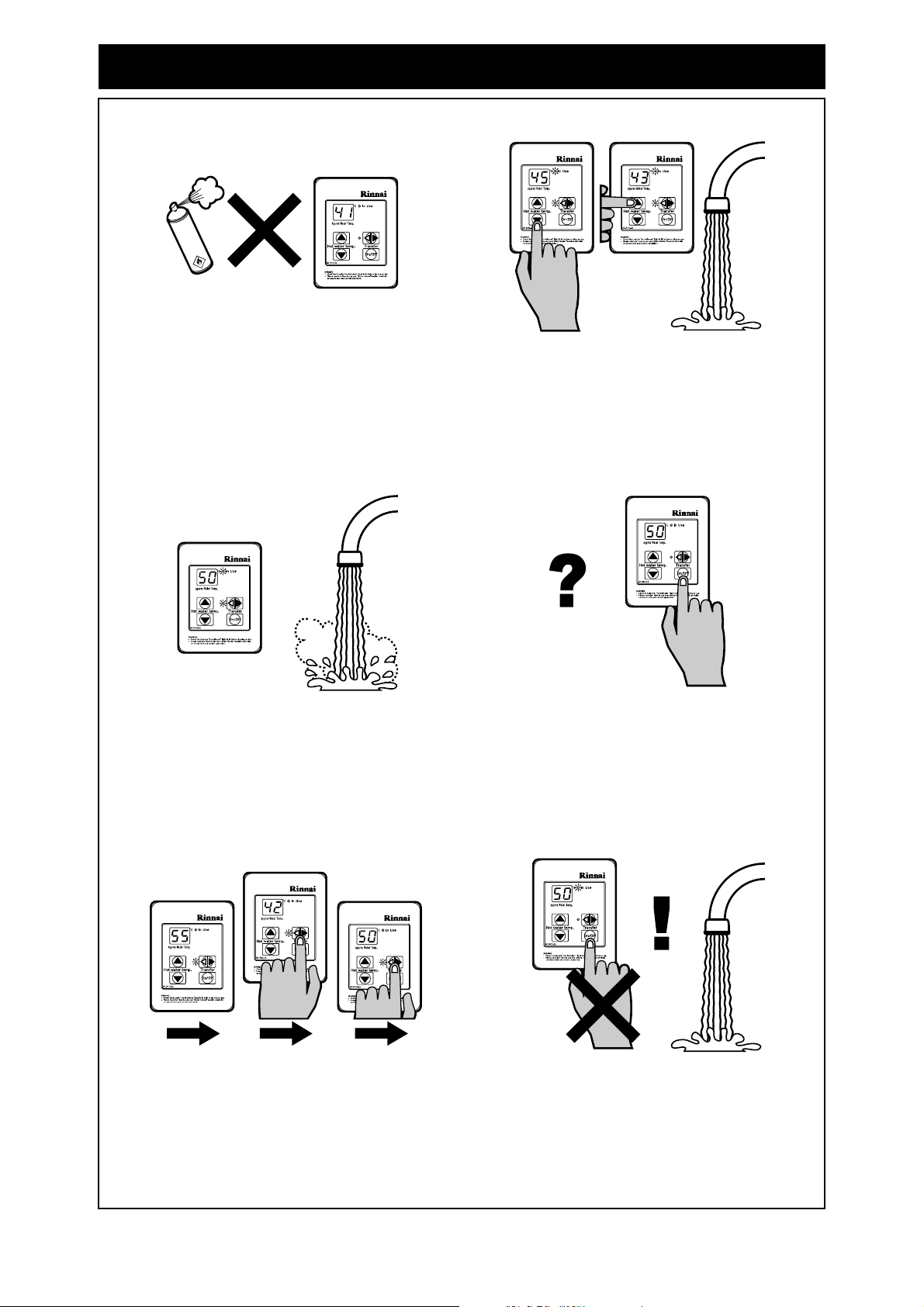

IMPORTANT INFORMATION

To clean your water controller(s) use a soft

damp cloth with a mild detergent.

Do Not use solvents!

Whilst hot water outlets are open the set

temperature may be lowered. However they

cannot then be raised above 43°C. In addition

transfer of 'priority' between controllers is not

possible. These are safety features.

Depending on the weather conditions and the

length of the pipe between the hot water unit

and the outlet in use, there may be a variation

between the temperatures displayed at the

water controller(s) and the temperature of the

water at the outlet.

There is no need to turn the water controller(s)

off after use. However, if you prefer to turn the

water controller(s) off, selected temperatures

to a maximum of 50°C will be stored in the

system memory at all times whilst mains power

remains connected.

As a safety precaution, if a Kitchen Controller's

temperature is set above 50°C, transferring

and then returning 'priority' to the Kitchen

Controller will result in a default set

temperature of 50°C being selected. This is a

safety feature.

Do Not push the On/Off button on any

Controller when the ‘Red’ water heater ‘In Use’

indicator is illuminated as this will turn off the

water heater causing the water to go cold.

Someone maybe in the middle of having a

shower or filling a bath.

Max.

43°C

49°C

50°C

Kitchen Kitchen

Bathroom

Rinnai New Zealand 5 Operation Manual

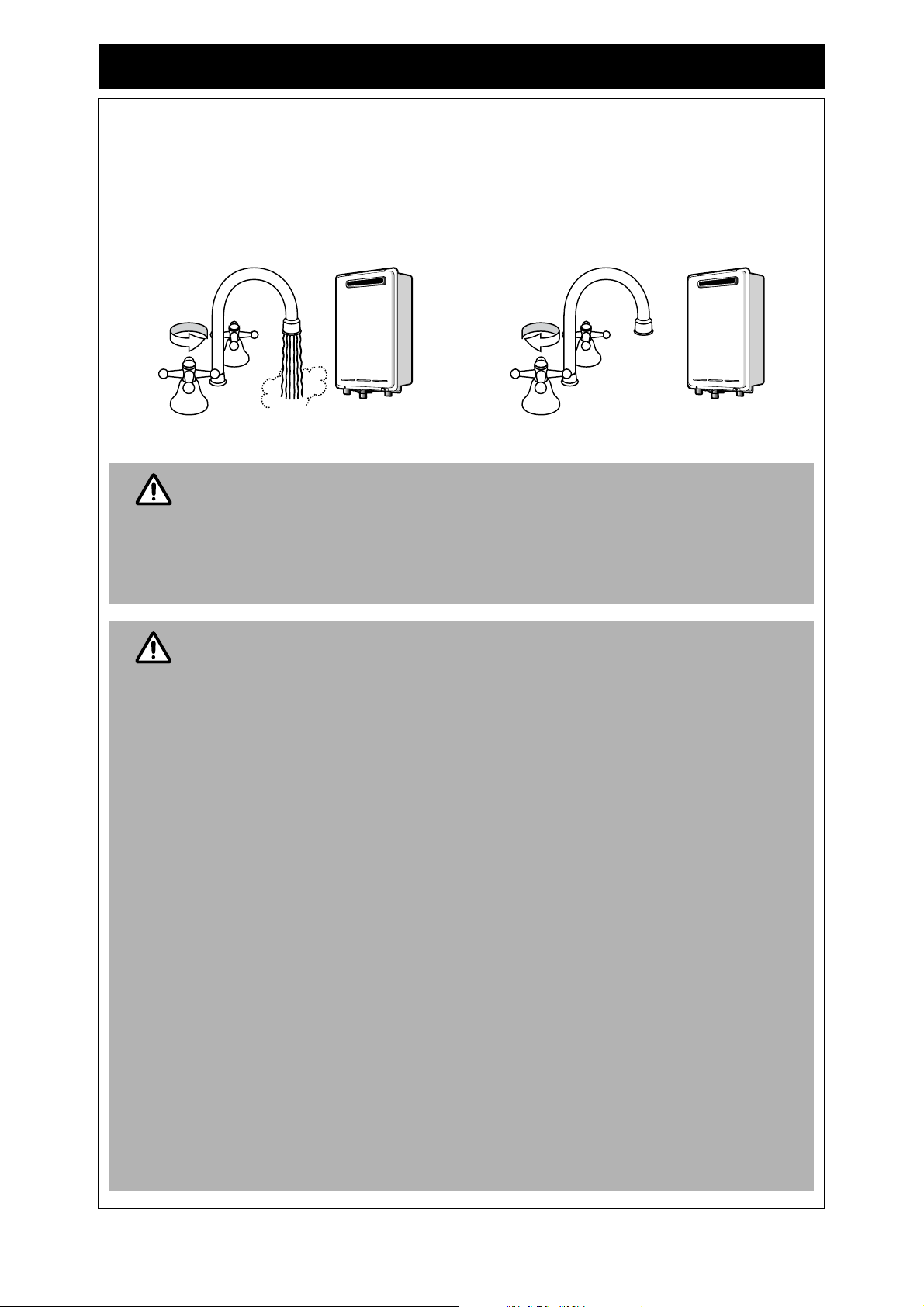

OPERATION WITHOUT CONTROLLERS

Rinnai Infinity and Infinity HD continuous flow water heater products do not use a pilot light.

When installed and operated without water controllers, the opening of any hot water tap will

automatically start the appliance.

Once water is flowing through the appliance the burner will be ignited by electronic ignition.

When the hot water tap is closed and water flowing through the appliance has stopped the burner

flame will extinguish.

The Rinnai Infinity range of water heaters are factory pre-set to a temperature limit

of 55°C. Rinnai Infinity HD series are factory pre-set to a temperature limit of 75°C.

Other limits, lower or higher, are available on request for both the Infinity and HD

range. Temperature controllers are available to allow precise digital temperature

control.

Controllers can be fitted at any time after installation of the hot water unit.

Excessively hot water is dangerous, especially where young children and the

infirm are concerned. Rinnai continuous flow water heaters allow you to control

the temperature of your hot water to safe levels.

Water temperatures above 55°C can cause severe burns instantly, such scalding

and may even result in death. Those most at risk are children, disabled, elderly

and the infirm. Hot water at 65°C (a very common water temperature in New

Zealand) can severely burn a child in less than half a second. At 55°C it takes a

half minute.

ALWAYS......

Test the temperature of the water with your elbow before placing your child in the

bath, also carefully feel water before bathing or showering yourself.

Supervise children whenever they are in the bathroom.

Make sure that the hot water tap is turned off tightly.

CONSIDER.....

Installing child proof tap covers or child resistant taps (both approaches will

prevent a small hand being able to turn on the tap).

Setting your appliance at a maximum temperature of 55°C (Contact Rinnai New

Zealand).

NEVER…..

Leave a toddler in the care of another child. They may not understand the need

to have the water temperature set at a safe level.

HOTHOT

COLDCOLD

ON!ON!

HOTHOT

COLDCOLD

OFF!OFF!

NOTE

CAUTION

Rinnai New Zealand 6 Operation Manual

GENERAL WATER CONTROL INFORMATION

Remote water controllers allow precise temperature control by the user. When used correctly, the hot

water unit will deliver the selected temperature, even when the water flow is varied, or more than one

tap is in use. Each water controller can be individually programmed, however the water heater can

only deliver one set temperature at any time. The available temperatures (°C) are as follows:

Kitchen Controller:

37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 50, 55°C* ( 60, 65, 75°C Infinity HD models only )

Bathroom Controller:

Hot Water Delivery: 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 50°C

Bath fill Delivery: 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48°C

Whilst hot water outlets are open the set temperature may be lowered. However the set temperature

cannot then be raised above 43°C. In addition, transfer of 'priority' between water controllers is not

possible. These are safety features.

Suggested temperatures are:

Kitchen 50°C ~ 55°C* Shower 37°C ~ 43°C, Bath fill 39°C ~ 45°C

* Temperature may not be available on all installations. Rinnai water heaters can be programmed to deliver higher temperatures

via the kitchen water controller. Contact Rinnai for more details.

These temperatures are suggestions only. You may find higher or lower temperatures more

comfortable. Maintaining lower temperatures helps save energy. To obtain water temperatures lower

than 37°C simply add cold water.

Water controllers are an optional extra. 'Universal', 'Deluxe', and ‘Wireless’ water controllers can be

fitted. Universal water controllers allow temperature selection only. Deluxe water controllers allow

temperature selection, shower saver / bath fill, voice prompting and have a clock function.

Water controllers allow the water temperature to be set from the various locations where they are

installed. The temperature selected will be available to all outlets.

Universal (MC-91-2A), Deluxe (MC/BC-70-2A and MC/BC-100V) and Wireless Water Controllers

- available configurations:

Wired and

Wireless

Installations

A maximum of 4 water controllers can be fitted. Any combination of deluxe, universal

and wireless controllers can be used with the following limitations:

Only ONE master controller can be installed. This can be a MC-70V/MC-100V, a

MC-91 (when programmed as a master controller) or a MC502S (wireless) water

controller.

Up to TWO BC-70V/BC-100V water controllers can be installed.

The FOURTH water controller in any installation MUST BE a MC502S (wireless)

or a MC-91.

Rinnai New Zealand 7 Operation Manual

UNIVERSAL WATER CONTROLLERS

ABOUT THE UNIVERSAL WATER CONTROLLER (MC-91-2A)

TURNING ON THE CONTROLLER

If the water controller is switched off (No digits displayed in the

digital monitor window) press the On/Off button once.

The ON indicator will illuminate, indicating that the hot water unit

will be ready to supply hot water once a hot water tap is opened.

ADJUSTING TEMPERATURE

Select the desired temperature using the 'Hot water temp' or

buttons until the required temperature is displayed on the

digital monitor.

To operate the hot water unit, open any hot water tap. This will

automatically light the burner providing hot water. The water

heater ‘In Use’ indicator will illuminate on the water controller.

Once the hot water is running, if the set temperature is either too

hot or cold press the 'Hot water temp' or buttons until the

desired temperature is reached.

CHECK WATER TEMPERATURE BEFORE USE.

A parent or carer should always check the temperature before a child is placed

in contact with hot water, see page 5.

Whilst hot water outlets are open the set temperature may be lowered. However

they cannot then be raised above 43°C. In addition, transfer of 'priority' between

controllers is not possible. These are safety features.

The 'beep' sound can be muted by pressing the 'Hot water temp' Up and

Down buttons simultaneously for more than 3 seconds.

WATER HEATER

'In Use' INDICATOR

DIGITAL MONITOR

TEMPER ATURE

CONTRO L BUTTONS

CONTROLLER

ON INDICATOR

TRANSFER BUTTON

ON/OFF BUTTON

Indicates that a water

heater is in operation and

delivering hot water.

Indicates the temperautre

selected. Error message

flash in event of fault.

Used to select water temperature.

Indicates if this temperature

controller is in control of

water delivery temperature.

Used to transfer control priority

between the temperature

controllers. The controller with

priority has command of the

hot water delivery temperature.

Used to switch the water

heater on and off.

HOTHOT

COLDCOLD

ON!ON!

CAUTION

NOTE

Rinnai New Zealand 8 Operation Manual

UNIVERSAL WATER CONTROLLERS

HOW TO USE TWO OR MORE UNIVERSAL WATER CONTROLLERS

TURNING ON THE CONTROLLERS

If the controllers are switched off (No digits displayed in the digital

monitor window) press the On/Off button once at any controller.

The ON indicator on the desired controller will illuminate,

indicating that the hot water unit will be ready to supply hot water

once a hot water tap is opened.

TRANSFERING PRIORITY

An illuminated On/Off indicator confirms that the desired controller

is in control of the water delivery temperature, if the On/Off

indicator is not illuminated press the Transfer button once.

The On/Off indicator on the controller will now illuminate indicating

that hot water temperature control has now been transferred to

this controller and that the hot water unit will be ready to supply hot

water once a hot water tap is opened.

ADJUSTING TEMPERATURE

Select the desired temperature using the 'Hot water temp' or

buttons until the required temperature is displayed on the

digital monitor.

To operate the hot water unit, open any hot water tap. This will

automatically light the burner providing hot water. The water

heater ‘In Use’ indicator will illuminate on the water controller.

Once the hot water is running, if the set temperature is either too

hot or cold press the 'Hot water temp' or buttons until the

desired temperature is reached.

CHECK WATER TEMPERATURE BEFORE USE.

A parent or carer should always check the temperature before a child is placed

in contact with hot water, see page 5.

Whilst hot water outlets are open the set temperature may be lowered. However

they cannot then be raised above 43°C. In addition transfer of 'priority' between

controllers is not possible. These are safety features.

Temperatures higher than 55ºC should not be able to be selected on controllers

installed in bathrooms, ensuites or toilets. This is to help reduce the risk of burns

from hot water. If this is not the case, the controllers have been incorrectly

installed. CONTACT YOUR INSTALLER.

The temperature of outgoing hot water is constantly monitored by a built-in

sensor. If the temperature of the outgoing hot water rises to more than 3°C above

the selected temperature shown on the digital monitor or the pre-set limit when

water controllers are not fitted, the burner will automatically go out. The ‘in use’

indicator will also go out. The burner will ignite again once the outgoing hot

water temperature falls to that shown on the digital monitor (or the pre-set limit

of the appliance).

HOTHOT

COLDCOLD

ON!ON!

CAUTION

NOTE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Rinnai Boiler Handbücher

Rinnai

Rinnai Sensei RU199i Bedienungsanleitung

Rinnai

Rinnai RH180 Technisches Datenblatt

Rinnai

Rinnai DENKI 600MP Bedienungsanleitung

Rinnai

Rinnai HJ Cooper LCUS00934010 Gebrauchsanweisung

Rinnai

Rinnai RV53I Technisches Datenblatt

Rinnai

Rinnai Sensei RU199i Bedienungsanleitung

Rinnai

Rinnai REU-VCM2837FFC-GEN Technisches Datenblatt

Rinnai

Rinnai RUC80i, RUC98i RU80e, RU98e Bedienungsanleitung

Rinnai

Rinnai V75i Bedienungsanleitung

Rinnai

Rinnai REU-VC2837FFU-US Bedienungsanleitung

Rinnai

Rinnai Infinity 20e Bedienungsanleitung

Rinnai

Rinnai INFINITY 26i Bedienungsanleitung

Rinnai

Rinnai RH180 Bedienungsanleitung

Rinnai

Rinnai Demand Duo CHS199100HiN Bedienungsanleitung

Rinnai

Rinnai INFINITY 26i Bedienungsanleitung

Rinnai

Rinnai Infinity N32i Technisches Datenblatt

Rinnai

Rinnai REU-VR1620WG Bedienungsanleitung

Rinnai

Rinnai Mains Pressure Cylinder Gebrauchsanweisung

Rinnai

Rinnai Infinity N1600i Technisches Datenblatt

Rinnai

Rinnai Demand Duo H Series Bedienungsanleitung

Rinnai

Rinnai Circ-Logic RU80i Bedienungsanleitung

Rinnai

Rinnai REU-VA1320WF-US Technisches Datenblatt

Rinnai

Rinnai Infi nity Solar 20 Technisches Datenblatt

Rinnai

Rinnai Ai 350 Leitfaden

Beliebte Boiler Handbücher anderer Marken

Kenmore

Kenmore 153.582400 Bedienungsanleitung

Applimo

Applimo Edel AIR Bedienungsanleitung

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Bedienungsanleitung

clage

clage E-Mini Series Bedienungsanleitung

Toyotomi

Toyotomi Oil Miser OM-180 Bedienungsanleitung

Bradford White

Bradford White EF Series Bedienungsanleitung

Eccotemp

Eccotemp 40-H Bedienungsanleitung

Dimplex

Dimplex ECSd125-580 Leitfaden

Dux

Dux 32FCR6N Bedienungsanleitung

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Fehlerbehebungshandbuch

Noritz

Noritz N-132M Gebrauchsanweisung

TESY

TESY GCV7/4S 10047 Technisches Datenblatt

A.O. Smith

A.O. Smith Gphe 50 Bedienungsanleitung

Koryo

Koryo KWHZF15Y Bedienungsanleitung

Pentair

Pentair PSC-14-4-02 Bedienungsanleitung

GE 40M06AAG Montageanleitung

Thermor

Thermor AEROMAX SPLIT 2 Bedienungsanleitung

American Hometec

American Hometec AHQ-B03X Bedienungsanleitung
