RIOTEC DC9257LP Bedienungsanleitung

Quick Guide

-DC9257LP

H92P

Connect to micro USB port of OTG device

H92P

*Before you use it, please switch to "C" for battery charge for

3~4 hours.

*Under “C mode”, you can raise/lower soft-keyboard easily.

H92P Scan Holder is with Li-Ion battery inside. When in

charging, please use the original power adaptor of

smartphone (recommend). Through it, it charges both OTG

device and H92P internal battery at the same time. When in

low battery (Red LED flashing), please charge it

immediately.

LED Indicator Information

Green LED OFF

Full charged (Charge mode)

Green LED ON

Charging (Charge mode)

Red LED Flashing

Low battery (Operation mode)

Attention: Under “Operation mode” please do not charging,

otherwise the OTG device's battery will be charging back to

H92P’s battery.

The touch trigger is in the central area of mini scanner. (for both side).

Please check the above drawing for your reference.

Installation

Before using scanner, please make sure that the OTG device is fully

charged.

1. Under USB HID interface

** When plugged into OTG device, it will be recognized and begin

to scan the barcode.

2. Under USB Serial interface

** Please install PL-2303 driver into your OTG device first. PL-2303

driver can be downloaded from Google Play

** Connect scanner to your OTG device, then, you can know which

serial port scanner connects to.

** The data you scan will be sent to serial port and your APP can

get the data from serial port directly.

Reset Configuration to Default

(scan from #1 to #3)

0006010

0006000

0001160

Suction Cup

PU Glue

(Can be used

repeatedly)

Micro USB

port (OTG)

Li- Ion

Battery

O = Operation mode

C = Charge mode

LED Indicator

Trigger

Area

Mini

scanner

Barcode Configuration Method:

(Flow chart for setup procedure :)

0006010

0006000

Start

Configuration

End

Configuration

Keyboard Country (For USB HID only)

Scan the appropriate country code as below to program the

keyboard layout for your country or language. As a general

rule, the following characters are supported, but need special

care for countries other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~

1103202

1103222

Belgium

Spain

1103209

1103220

Germany

Austria

Russia

1103223

1103218

Sweden

Portugal

Keyboard Country (For USB HID only)

Scan the appropriate country code as below to program the

keyboard layout for your country or language. As a general

rule, the following characters are supported, but need special

care for countries other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~

1103001

1103002

USA

Japan

1103003

1103004

Denmark

Finland

1103005

1103227

France

1103007

1103008

Italy

Norway

1103006

1103226

Turkey F

Turkey Q

1D Symbologies –1

ENABLE

GS1-Databar

(RSS)

DISABLE

0413020

0413010

ENABLE

UPC-E

DISABLE

0403020

0403010

ENABLE

UPC-A

DISABLE

0404020

0404010

ENABLE

Interleaved

2 of 5

DISABLE

0405020

0405010

ENABLE

Code 128

DISABLE

0400020

0400010

ENABLE

GS1-128

UCC/EAN-128

DISABLE

0412020

0412010

ENABLE

MSI

DISABLE

0420020

0420010

Barcode Configuration Method:

(Flow chart for setup procedure :)

0006010

0006000

Start

Configuration

End

Configuration

1D Symbologies –2

ENABLE

Matrix

2 of 5

DISABLE

0406020

0406010

ENABLE

Industrial 25

DISABLE

0417020

0417010

ENABLE

Code 39

DISABLE

0408020

0408010

1D Symbologies –3

ENABLE

EAN-8

DISABLE

0401020

0401010

ENABLE

EAN-13

DISABLE

0402020

0402010

ENABLE

Code 93

DISABLE

0410020

0410010

ENABLE

Codabar

DISABLE

0409020

0409010

ENABLE

ISSN

DISABLE

0421020

0421010

ENABLE

ISBN

DISABLE

0416020

0416010

2D Symbologies

ENABLE

Data

Matrix

DISABLE

0504020

0504010

ENABLE

QR Code

DISABLE

0502020

0502010

ENABLE

Micro

QR Code

DISABLE

0502110

0502100

ENABLE

PDF 417

DISABLE

0501020

0501010

Inter-Keystroke Delay (For USB HID only)

This parameter specifies the delay between emulated keystrokes.

No Delay

1103050

Short Delay

(20ms)

Long Delay

(40ms)

1103051

1103052

Information in this document is subject to change without notice.

For more information, please visit:

www.riotec.com.tw

R_151116_03

Andere RIOTEC Barcode-Lesegerät Handbücher

RIOTEC

RIOTEC iDC9602N Bedienungsanleitung

RIOTEC

RIOTEC RIOSCAN iLS6303XS Bedienungsanleitung

RIOTEC

RIOTEC iDC9607L Bedienungsanleitung

RIOTEC

RIOTEC LS6320E Bedienungsanleitung

RIOTEC

RIOTEC FS5103A Bedienungsanleitung

RIOTEC

RIOTEC OM7222J Bedienungsanleitung

RIOTEC

RIOTEC iLS6302NBQ Bedienungsanleitung

RIOTEC

RIOTEC iLS6303XBQ Bedienungsanleitung

RIOTEC

RIOTEC DC9253AP Bedienungsanleitung

RIOTEC

RIOTEC RIOSCAN iLS6303AS Bedienungsanleitung

RIOTEC

RIOTEC iDC9607LW Bedienungsanleitung

RIOTEC

RIOTEC iLS6300JB Bedienungsanleitung

RIOTEC

RIOTEC CR6327A Bedienungsanleitung

RIOTEC

RIOTEC DC9257LP Bedienungsanleitung

RIOTEC

RIOTEC LS6000B series Bedienungsanleitung

RIOTEC

RIOTEC iDC9602A Bedienungsanleitung

RIOTEC

RIOTEC iDC9602NW Bedienungsanleitung

RIOTEC

RIOTEC iDC9507L Bedienungsanleitung

RIOTEC

RIOTEC iDC9503A Bedienungsanleitung

RIOTEC

RIOTEC iDC9600K Bedienungsanleitung

RIOTEC

RIOTEC iLS6308KBQ Bedienungsanleitung

RIOTEC

RIOTEC LS6307 USB Bedienungsanleitung

RIOTEC

RIOTEC iLS6300DBQ Bedienungsanleitung

RIOTEC

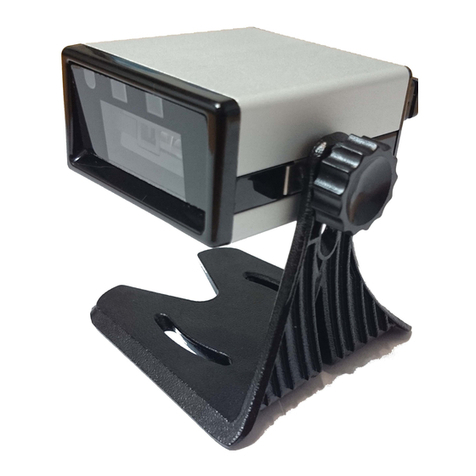

RIOTEC FS5020E Bedienungsanleitung
