RIOTEC OM7320 Bedienungsanleitung

Installation Guide_OM7320

1. Unpacking

Remove the scanner and its accessories from the box and

packing material. Refer to the packing list to make sure

you have received all the items ordered. Visually inspect

the scanner and accessories for any evidence of physical

damage. Make sure that the scanner interface

corresponds with the host system interface. Immediately

contact your supplier if anything appears to be damaged,

or if the supported interface does not correspond with the

host system interface.

1. Scanner 4. Interface Cable

2. Bracket 5.PowerAdapter

3. Screws 6.User’sManual

2. Connecting The Scanner

To properly connect the scanner, do the following:

1. Plug the interface cable (in Port 1 ) and ensure the scanner

is properly connected to the host.

2. Connect the power adapter. The scanner will automatically

activate and detect the setup interface.

3. Press the Volume Button repeatedly to adjust the

frequency and volume level.

Use the illustration below to see where to connect your

cable(s) to the scanner.

a. Sleep/Wake Button

Press this button for 3 seconds, the scanner manually enters

sleep mode.

When a sleep mode time-out is programmed, the scanner can

be activated by pressing this button. Moreover, the scanner

may be automatically activated when any barcodes or objects

pass-by the scanner.

NOTE: The default value for the sleep mode time-out is set to 10

minutes. When the scanner is in sleep mode, the LED is

intermittently flashing blue.

b. LED

A blue LED indicates that the scanner is ready to read a

barcode. An orange LED indicates a good read.

c. Volume Button

The beep is heard whenever data has been read correctly. The

frequency and volume can be adjusted.

3. Installing The Scanner On A Counter

Surface

To install this scanner on a counter surface, follow the

instructions below.

1. Remove the bracket from the back of the scanner.

2. Place the bracket on a counter surface and fasten the

bracket to the surface with three screws as

illustrated in the figure.

NOTE : Use the bracket as a template to mark the

places for the mounting holes at the counter

surface and drill three holes.

3. Lead the communication cable and power supply

cable through the slit.

4. Make sure that connectors and cables are placed as

indicated in the figure and attach the scanner to the

bracket.

5. Plug the remote ends of all cables into the

appropriate connections of your host POS-system.

6. If you are using an external power supply, power on

this scanner by plugging the power supply into an AC

power outlet. Switch on the host system.

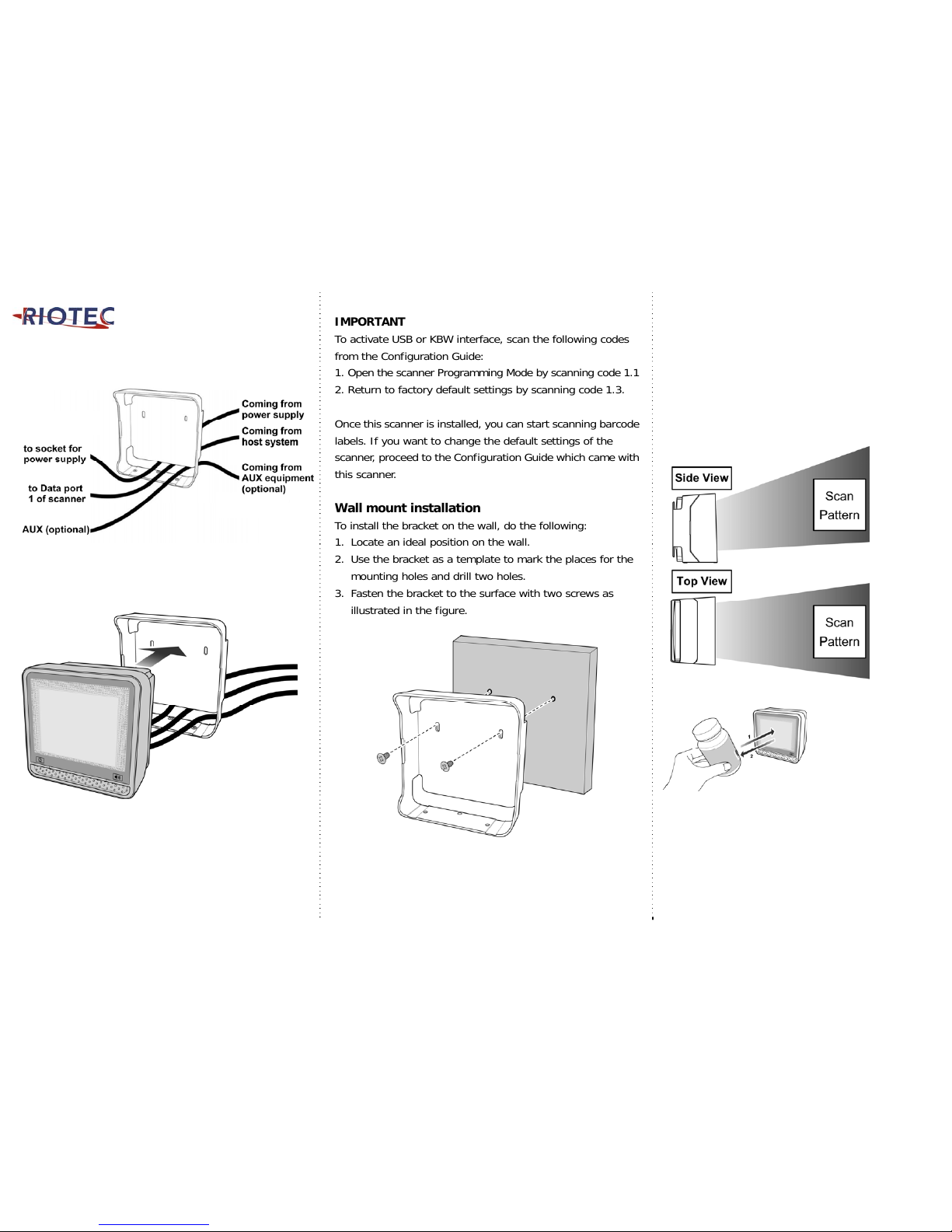

IMPORTANT

To activate USB or KBW interface, scan the following codes

from the Configuration Guide:

1. Open the scanner Programming Mode by scanning code 1.1

2. Return to factory default settings by scanning code 1.3.

Once this scanner is installed, you can start scanning barcode

labels. If you want to change the default settings of the

scanner, proceed to the Configuration Guide which came with

this scanner.

Wall mount installation

To install the bracket on the wall, do the following:

1. Locate an ideal position on the wall.

2. Use the bracket as a template to mark the places for the

mounting holes and drill two holes.

3. Fasten the bracket to the surface with two screws as

illustrated in the figure.

4. Scanning Barcodes

This scanner is an omni-directional presentation scanner

featuring a 7-directional scan field with a 24-line scan

pattern. Barcode labels can easily be read by presenting

them to the scanner.

The scanner's scan pattern is illustrated in the figure

below. The optimal reading zone lies between 2 and 30

cm from the scanner window. The scan depth varies

depending on the size of the barcode.

Scanning a barcode label, do the following:

1.Align the label facing

the scanner and move

the product towards the

scanner.

The orange LED indicates

the barcode is read.

2. After the barcode is read, move the label from the

scanner.

The scanner will automatically enter the sleep mode if it

the scanner is left idle for 10 minutes. During sleep

mode, the scanner is automatically activated when it

senses the presence of a barcode.

NOTE : With the Sleep mode feature, it helps user to

conserve energy and extend the scanner life.
