RIOTEC DC9257L Bedienungsanleitung

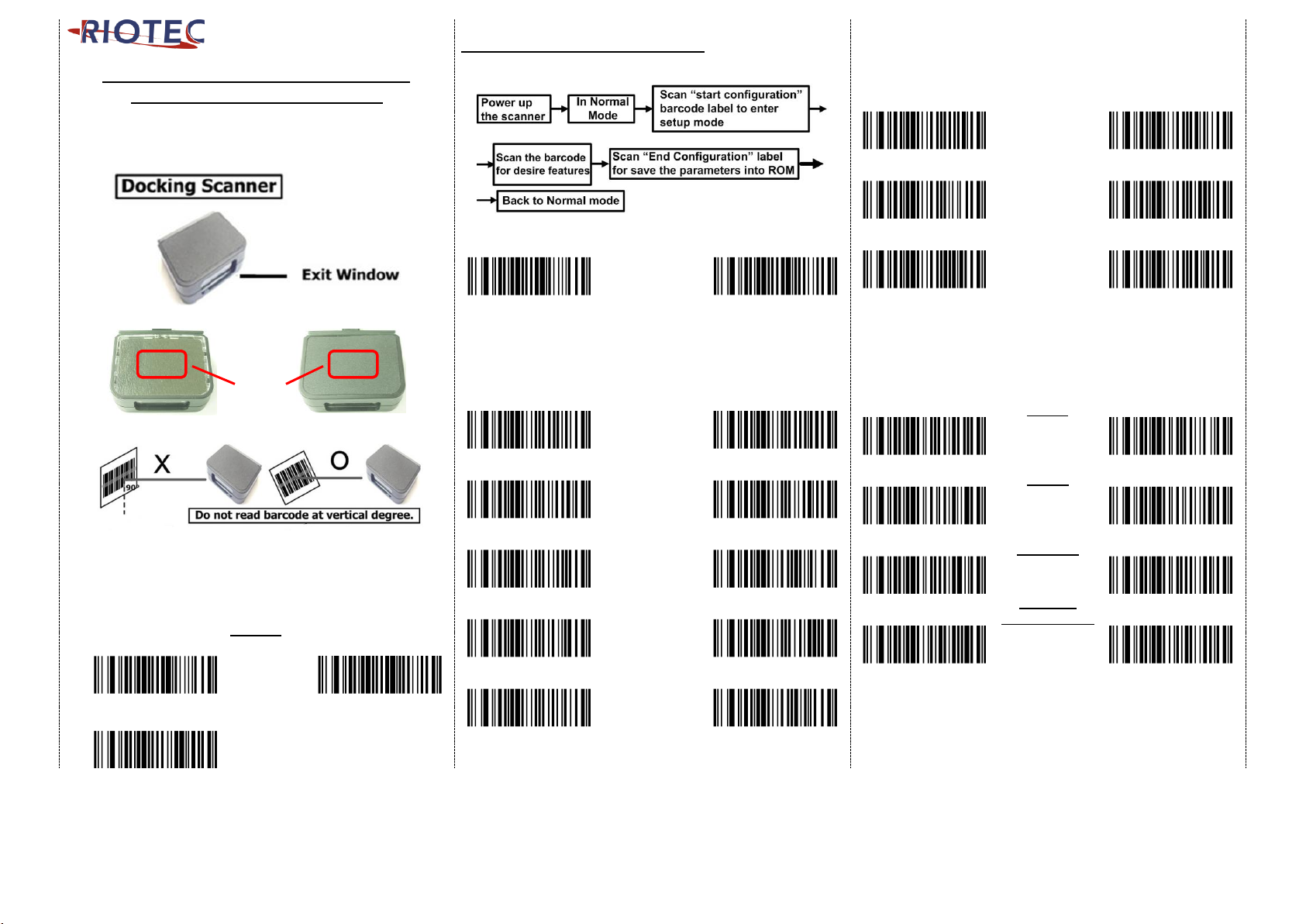

Programming Quick Guide

-DC9257L: Docking Scanner

Docking Scanner:

Gently tap the trigger area at the middle of scanner, to enable the

scanner(for reading barcode)

Up Side

Lower Side

The touch sensor area is around middle of the scanner as drawing shown.

Installation

They are Plug &Play USB (HID) devices. When plugged into your Android

OTG devices, it can be recognized as barcode scanner and begin to scan

the barcode. Before using scanner, make sure the smartphone or tablet

is fully charged. Open your APP, they can work as a keyboard input.

Reset Configuration to Default

(scan from 1 to 3)

0006010

0006000

0001160

Barcode Configuration Method:

(Flow chart for setup procedure :)

Start

Configuration

End

Configuration

0006010

0006000

Keyboard Country (For USB HID only)

Scan the appropriate country code as below to program the keyboard

layout for your country or language. As a general rule, the following

characters are supported, but need special care for countries other

than the United States: @ | $ # { } [ ] = / ‘ \ < > ~

1103001

1103002

USA

Japan

1103003

1103004

Denmark

Finland

1103005

1103227

France

1103007

1103008

Italy

Norway

1103006

1103226

Turkey F

Turkey Q

Keyboard Country (For USB HID only)

Scan the appropriate country code as below to program the keyboard

layout for your country or language. As a general rule, the following

characters are supported, but need special care for countries other

than the United States: @ | $ # { } [ ] = / ‘ \ < > ~

1103202

1103222

Belgium

Spain

1103209

1103220

Germany

Austria

Russia

1103223

1103218

Sweden

Portugal

1D Symbologies –1

ENABLE

UPC-E

DISABLE

0403020

0403010

ENABLE

UPC-A

DISABLE

0404020

0404010

ENABLE

Code 128

DISABLE

0400020

0400010

ENABLE

GS1-128

UCC/EAN-128

DISABLE

0412020

0412010

Trigger

Area

Barcode Configuration Method:

(Flow chart for setup procedure :)

Start

Configuration

End

Configuration

0006010

0006000

1D Symbologies –2

ENABLE

Code 39

DISABLE

0408020

0408010

ENABLE

Code 93

DISABLE

0410020

0410010

1D Symbologies –3

ENABLE

EAN-8

DISABLE

0401020

0401010

ENABLE

EAN-13

DISABLE

0402020

0402010

ENABLE

ISSN

DISABLE

0421020

0421010

ENABLE

ISBN

DISABLE

0416020

0416010

ENABLE

Codabar

DISABLE

0409020

0409010

ENABLE

GS1-Databar

(RSS)

DISABLE

0413020

0413010

ENABLE

Interleaved

2 of 5

DISABLE

0405020

0405010

2D Symbologies

ENABLE

Data

Matrix

DISABLE

0504020

0504010

ENABLE

QR Code

DISABLE

0502020

0502010

ENABLE

Micro

QR Code

DISABLE

0502110

0502100

ENABLE

PDF 417

DISABLE

0501020

0501010

Inter-Keystroke Delay (For USB HID only)

This parameter specifies the delay between emulated keystrokes.

No Delay

1103050

Short Delay

(20ms)

Long Delay

(40ms)

1103051

1103052

Information in this document is subject to change without notice.

For more information, please visit:

www.riotec.com.tw

R_180717_02
