ROBBE SZD-54 Bedienungsanleitung

Operating

instructions

SZD-54

Art.-Nr. 3014 August 2017

Operating instructions

SZD-54

No.

3014

Thank you for purchasing the ROBBE "SZD-54". The model is a modern

moulded foam model, largely assembled, with a wide range of applications.

In order to ensure that you will enjoy the model for a long time and especially to ensure a

smooth first flight, please read this manual carefully and follow the steps exactly as they

are done.

•Pay particular attention to all safety instructions for operation of the model in order not to endanger

yourself or others!

•Due to the advancing technical developments, changes in the sen se of technical progress are

subject to change without notice.

•The construction of the model does not require extensive tooling and should also be easy for less

experienced model builders.

•Nevertheless, it is not a beginner model!

•If you are unsure, please contact one of our dealers or ask for our service. Many model flying clubs

also offer assistance.

•After purchasing the model, check the contents for completeness and damage.

•Always proceed with appropriate responsibility when operating the model to avoid causing personal

injury or property damage!

•Pay attention to valid insurance coverage!

•Fly only within the scope of the legal regulations and on permitted places!

•After finishing the flight, always remove the battery from the model!

•High heat (for example in a locked car) or extreme cold can damage the model and its components!

•Packaging or parts of packaging may endanger children! Store them immediately in a safe place.

•The use of model making articles requires knowledge and practice. Only put the model into

operation if you are sufficiently trained!

Warranty conditions:

The warranty covers 24 months from the date of purchase, material or functional defects. However, not

damage due to improper use, wear and tear, overloading or similar! Except for warranties within the

framework of statutory provisions.

No liability can be accepted for printing errors!

Technical data:

Wingspan:

Length:

All-up weight:

approx. 2120 mm

approx. 1017mm

approx. 1150 g

Motor:

Battery:

Speed controller:

Servos:

Prop:

Brushless 2820 1000 K/V

2200 mAh 3S / 11,1 Volt

Brushless 30A 2-3S Lipo , 2A BEC

4pcs. 9 g

10x8"

Radio: at least with 4-channels

Required accessories (not included in package):

•Battery 2200 mAh 3S / 11,1 Volt

•Radio control system with at least 4

channels

•suitable charger

Spare parts:

301403

301404

301405

301406

301407

301408

301409

301410

301411

301412

9744750

S2009

Wingset with decals (w/o Servos)

Fuselage with decals (w/o electronic)

Tail unit set

Canopy

Prop blades

Foldingprop set

Pushrod set

Winglets

Decals

Brushless Motor 2820

Brushless controller ro-Control 40A

Rovor S2009 9g

No.

3014

Operating instructions

SZD-54

SZD 54

1. Fuselage

2. Wingset

3. Elevator

4. Rudder

5. Attachment parts, surface connectors, Y-cables,

screws

6. Winglets / 2 different versions

1 2

3 4

5 6

Kit content:

No.

3014

Ope rati ng ins tru ction s

SZD-54

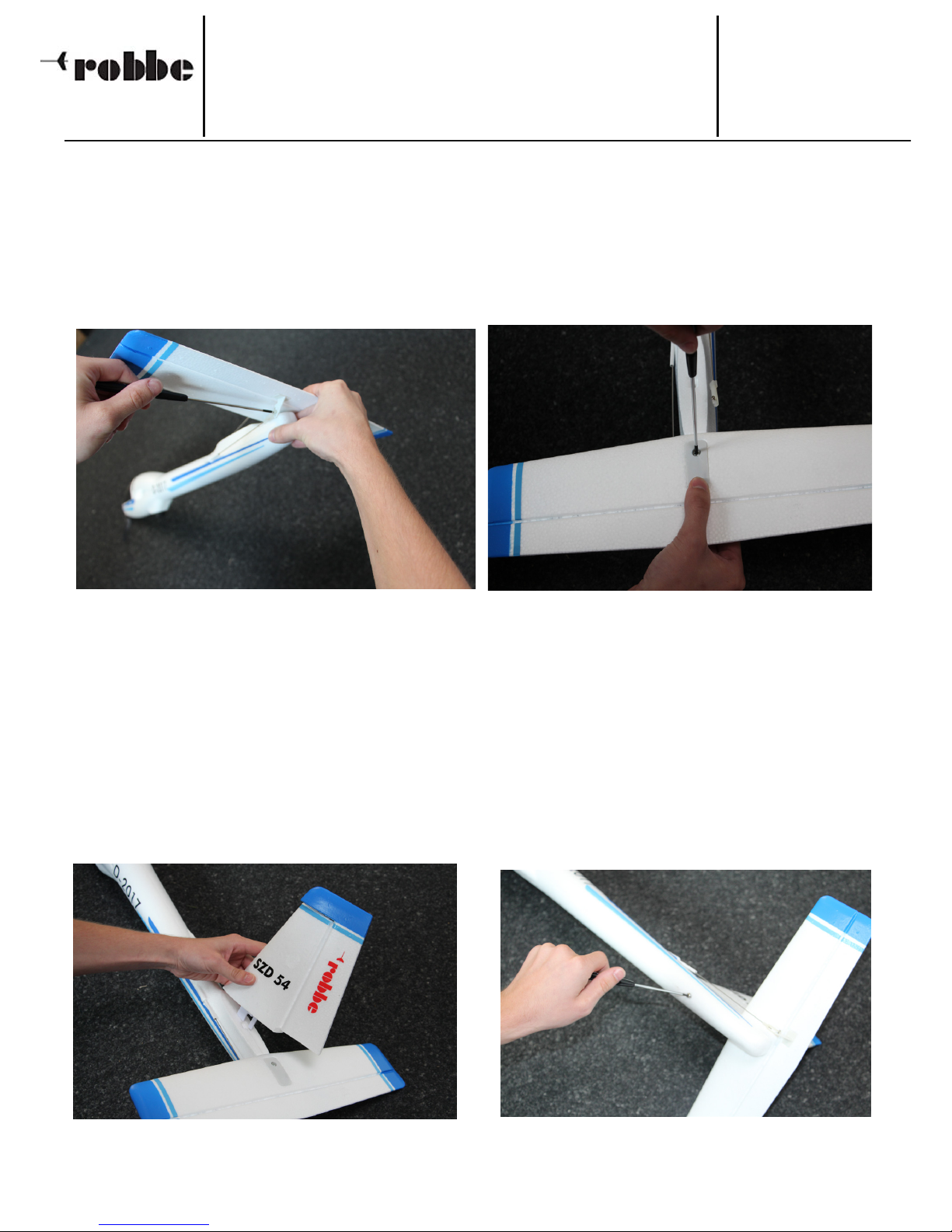

1. Assembly of the tailplane:

Position the tailplane as shown in the illustration at the fuselage end and

screw it tightly to the fuselage from above using the M4x25 screw. Make

sure that the screw is firmly seated and do not overtighten the screw!

2. Assembly of the rudder:

Insert the rudder into the recess provided for this purpose on the fuselage and

tighten it with screw M4x35 from below. Make sure that you also have a tight fit

without damaging the screw connection!

No.

3014

Operating instructions

SZD-54

3. Rudder connections:

The two clevis heads for the rudder and elevator must now be mounted in the

corresponding rudder horn on the 3rd hole and screwed tight.

Make sure that the screw is only tightened firmly, that the linkage remains

smooth running!

too tight!

optimal!

No.

3014

Operating instructions

SZD-54

4. Assembly of the wings:

The two wing halves are attached to the fuselage by means of CRP tube

10mm. At the same time, thread the servo connection cable through the hole

provided on the fuselage and make sure that the servo cable is not jammed!

The wings are secured to the underside of the wing by means of a screw on

the underside of the wing. Make sure that you are seated safely without

damaging the screw connection by stretching it over!

The two winglets have to be fixed to the edging arch with screws M3x10.

No.

3014

Operating instructions

SZD-54

5. Electrical connection:

Now all servos must be connected to the receiver according to the sequence

of connections of your remote control system. If your remote control system

cannot handle two aileron servos, the model is supplied with a V-cable for

one receiver channel.

The controller is also connected to the receiver.

6. Final adjustments:

Next, all rudder functions and engine control on the transmitter must be set.

In case of rudder deflections, we recommend that you use the following

values for your first flight, which you can later adjust to suit your personal

preferences.

ATTENTION: We recommend that you disassemble the propeller for safety

reasons during all adjustment work on the remote control system in order to

avoid injuries caused by e. g. sudden starting of the engine.

Elevator Rudder Aileron

No.

3014

Operating instructions

SZD-54

7: Center of gravity:

In order to achieve maximum flight performance, a correct centre of gravity is

essential.

For the first flight, make sure that the centre of gravity of 60mm behind the

leading edge (measured at the fuselage base) is reached by moving the

battery. Ideally, the fuselage should be levelled with the correct centre of

gravity and a lightly suspended nose.

ATTENTION: if the centre of gravity is not correct, this can lead to a fall and

may result in the following lead to property damage and personal injury!

I< 60mm >I

No.

3014

Operating instructions

SZD-54

Modellbau Lindinger GmbH

Industriestrasse 10

4565 Inzersdorf im Kremstal

AUSTRIA

Modellbau

Made in China

www.robbe.com

8. Tips and notes for the first flight:

Before the first flight, check again that all mechanical and electrical connections

are tightly connected. We also recommend to check this before every flight, as

well as the direction of action of the control deflections!

ATTENTION: Loose wings, or other parts of the model may cause a crash. lead

to property damage and personal injury!

Use the model only on suitable flying terrain and make sure not to endanger

pedestrians in the vicinity or property!

To get the model into the air, all you need to do is to push the model lightly by

hand with the motor switched on and the trajectory slightly tilted upwards. The

model should then take off slightly uphill. Otherwise, trim corrections must

establish the desired flight direction. The effectiveness of the rudders and the

individual control deflections can then be flown at a sufficient altitude. The

optimum centre of gravity can also be checked by slightly "pressing" the centre

of gravity (soft inclination downwards) and then observing the interceptor sheet.

The rule of thumb applies here, if the model's intercept sheet is too abrupt

without the need for tax inputs, the model is too top-heavy.

By contrast, the model would be too tail-heavy if it maintains its trajectory or

even tends towards the ground!

ATTENTION: A tail-weighted model is critical in flight characteristics!

This can easily lead to a crash!

4565 Inzersdorf/Kremstal, Industriestraße 10

No.

3014

Operating instructions

SZD-54
