Robe Robin DL7F Bedienungsanleitung

Version 1.5

Table of contents

1. Safety instructions ......................................................................................................... 3

2. Operating determination................................................................................................ 4

3. Fixture exterior view ...................................................................................................... 5

4. Installation....................................................................................................................... 6

4.1 Connection to the mains ............................................................................................ 6

4.2 Replacing the frost .................................................................................................... 6

4.3 Replacing the front lens ............................................................................................ 7

4.4 Installing the top hat .................................................................................................. 7

4.5 Rigging the xture ...................................................................................................... 8

4.6 DMX-512 connection................................................................................................ 10

4.7 Ethernet connection ................................................................................................. 11

4.8 Wireless DMX operation .......................................................................................... 13

5. Remotely controllable functions................................................................................. 14

6. Control menu map........................................................................................................ 16

7. Control menu ............................................................................................................... 20

7.1 Tab " Address" .......................................................................................................... 21

7.2 Tab "Information" ...................................................................................................... 22

7.3 Tab "Personality" ...................................................................................................... 24

7.4 Tab "Manual Control"................................................................................................ 26

7.5 Tab "Stand-alone" .................................................................................................... 26

7.6 Tab "Service" ............................................................................................................ 27

8. RDM ............................................................................................................................... 30

9. Error and information messages ................................................................................ 31

10. Technical Specications............................................................................................ 33

11. Maintenance and cleaning ......................................................................................... 36

11.1 Disposing of the product......................................................................................... 36

12. change log .................................................................................................................. 36

13. Photometric diagrams ............................................................................................... 37

Robin DL7F Wash

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOU INITIAL START - UP!

1. Safety instructions

Every person involved with installation and maintenance of this device have to:

- be qualied

- follow the instructions of this manual

CAUTION!

Be careful with your operations.

With a high voltage you can suer

a dangerous electric shock when touching the wires!

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en-

sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes

written in this manual.

Important:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this

manual or any unauthorized modication to the device.

Please consider that damages caused by manual modications to the device are not subject to warranty.

Never let the power-cord come into contact with other cables! Handle the power cord and all connections with

the mains with particular caution!

Make sure that the available voltage is not higher than stated on the rear panel.

WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable

to completely remove power from unit when not in use or before cleaning or servicing the unit.

Make sure that the power cord is never crimped or damaged by sharp edges. Check the device and the pow-

er-cord from time to time.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the pow-

er-cord by the plug. Never pull out the plug by tugging the power cord.

This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.

The electric connection, repairs and servicing must be carried out by a qualied employee.

Do not connect this device to a dimmer pack.

During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily

mean that the device is defective.

Do not touch the device’s housing bare hands during its operation (housing becomes hot)!

For replacement use fuses of same type and rating only.

Warning! Risk Group 2 LED product according to EN 62471.

LED light emission. Risk of eye injury.

Do not look straight at the xture´s LED source during operation. The intense light

beam may damage your eyes.

Do not view the light output with optical instruments or any device that may

conncentrate the beam.

The light source contains blue LEDs.

2. Operating determination

This device is a moving head for creating decorative e󰀨ects and was designed for indoor use only.

This device is for professional use only. It is not for household use.

If the device has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on

immediately. The arising condensation water might damage your device. Leave the device switched o󰀨 until

it has reached room temperature.

Do not shake the device. Avoid brute force when installing or operating the device.

Never lift the xture by holding it at the projector-head, as the mechanics may be damaged. Always hold the

xture at the transport handles.

When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture

or dust. There should not be any cables lying around. You endanger your own and the safety of others!

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the xture.

Always x the xture with an appropriate safety rope. Fix the safety rope at the correct holes only.

Only operate the xture after having checked that the housing is rmly closed and all screws are tightly fastened.

The maximum ambient temperature 45°C must never be exceeded.

CAUTION!

The lens has to be replaced when it is obviously damaged,

so that its function is impaired, e. g. due to cracks or deep scratches!

Operate the device only after having familiarized with its functions. Do not permit operation by persons not

qualied for operating the device. Most damages are the result of unprofessional operation!

Do not block the front objective lens with any object when the xture is under operation.

The xture housing never must be covered with cloth or other materials.

Please use the original packaging if the device is to be transported.

Please consider that unauthorized modications on the device are forbidden due to safety reasons!

If this device will be operated in any way di󰀨erent to the one described in this manual, the product may su󰀨er

damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-cir-

cuit, burns, electric shock, burns etc.

CAUTION!

To avoid damage of the internal parts of the xture head, never let the sunlight lights

directly to the front lens , even when the xture is not working !

3. Fixture exterior view

Rear panel of the base:

1 - Ethernet input-RJ45

2 - Fuse holder

3 - 3-pin DMX output

4 - 5-pin DMX output

5 - PowerCon

6 - 3-pin DMX input

7 - 5-pin DMX input

Front panel of the base:

1 - QVGA touch screen

2 - ESCAPE button

3 - NEXT button

4 - ENTER/DISPLAY ON button

5 - PREV button

The head should be locked for transportation- the tilt lock latch (7) and the pan lock latch (3) have to be in the

locked positions. To unlock the head, move these latches to unlock positions before operating the xture.

1- Moving head

2 - Fresnel (PC) lens

3- Pan lock

4- Base

5- Handle

6- Arm

7-Tilt lock

The ENTER/DISPLAY ON button also serves for switching the display on when the xture is disconnected

from the mains.

4. Installation

Fixtures must be installed by a Qualied electrician in accordance with all

national and local electrical and construction codes and regulation.

4.1 Connection to the mains

For protection from electric shock, the xture must be earthed!

The Robin DL7F is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC

power source from 100-240 Volts.

Power cord is enclosed to the xture. Install a suitable plug on the power cord if needed, note that the cores in

the power cord are coloured according to the following table. The earth has to be connected!

If you have any doubts about proper installation, consult a qualied electrician.

Core (EU) Core (US) Connection Plug Terminal Marking

Brown Black Live L

Light blue White Neutral N

Yellow/Green Green Earth

4.2 Replacing the frost

Install frost module with the device switched o only.

Unplug from mains before!

To replace the frost module.

1. Disconnect the xture from mains and allow it to cool for 10 minutes.

2. Remove plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover to get access to

the frost module (1).

. The holder (2) of the frost foil is fastened to the frost holder (3) by means of the four magnets (4). Grip the

holder (2) and carefully tilt it out to break a force of magnets (4) on the frost holder (3).

. Place a new frost module into the frost holder (3). The glass heat lter has to face towards the light source

(LED module)! Check, that both slots (6) snapped correctly into two protrusions (5) in the holder (3).

5. P

lace the plastic cover back on the xture before applying power.

4.3 Replacing the front lens

DANGER!

Unplug the xture from mains before installation.

The front lens is heavy!

Secure the head in a horizontal position by means of the pan/tilt locks before lens re-

placing.

To replace the front lens

1. Disconnect the xture from mains and allow it to cool.

2. Secure xture´s head in a horizontal position.

2. Use a at head screwdriver to unlock 4 quarter-turn fasteners (2) and remove the lens (1) from the head.

Be careful, the lens is heavy.

3. Unscrew the bolt (3) of the secure wire (4) from the nut (5).

4. Screw the bolt of the safety wire of the new lens (4) into the nut (5).

5. Place the new lens on the head (1) and tighten the 4 quarter-turn fasteners (2).

Never operate the xture with unsecured lens to the head.

4.4 Installing the top hat

DANGER!

Unplug the xture from mains before installation.

1. Place the top hat (2) on the front lens holder (1) and tighten the four fastening Allen head bolts (3) using

an Allen key 3.

2. Check, that all screws are fully tighten.

4.5 Rigging the xture

A structure intended for installation of the xture(s) must safely hold weight of the xture(s) placed on it. The

structure has to be certicated to the purpose.

The xture(s) must be installed in accordance with national and local electrical and construction codes and

regulation.

For overhead installation, the xture must be always secured with a safety wire that

can bear at least 10 times the weight of the xture

When rigging, derigging or servicing the xture staying in the area below the installation place, on bridges,

under high working places and other endangered areas is forbidden.

The operator has to make sure that safety-relating and machine-technical installations are approved by an

expert before taking into operation for the rst time and after changes before taking into operation another time.

The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled

person once a year.

Allow the xture to cool for ten minutes before handling.

The projector should be installed outside areas where persons may walk by or be seated.

IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including calculating working

load limits, installation material being used, and periodic safety inspection of all installation material and the

projector. If you lack these qualications, do not attempt the installation yourself, but use a help of professional

companies.

CAUTION: Fixtures may cause severe injuries when crashing down! If you have doubts concerning the safety

of a possible installation, do not install the xture!

The xture has to be installed out of the reach of public.

The xture must never be xed swinging freely in the room.

Danger of re !

When installing the device, make sure there is no highly inammable

material (decoration articles, etc.) in a distance of min. 0.5 m.

CAUTION!

Use 2 appropriate clamps to rig the xture on the truss.

Follow the instructions mentioned at the bottom of the base.

Make sure that the device is xed properly! Ensure that the

structure (truss) to which you are attaching the xtures is secure.

The xture can be placed directly on the stage oor or rigged in any orientation on a truss without altering its

operation characteristics .

For securing a xture to the truss, install two safety wires which can hold at least 10 times the weight of the

xture. Use only the safety wires with screw-on carabines.

Truss installation

1. Bolt each clamp (1) to the omega holder (2) with M12 bolt and lock nut through the hole in the holder.

2. Fasten the omega holders to the bottom of the base by inserting both quick-lock fasteners (3) into

the holes of the base and tighten fully clockwise.

3. Clamp the xture on a truss (6) and tighten the rigging clamps.

4. Pull one safety wire (4) around the truss (6) and through the handle (7) and another safety wire (4) pull

around the truss (6) and through the handle (7) and lock the screw-on carabine through attachment point (5)

as shown on the picture below.

When installing xtures side-by-side,

avoid illuminating one xture with another!

DANGER TO LIFE!

Before taking into operation for the rst time,the installation has to be approved by

an expert!

1-Clamp

2-Omega holder

3-Quick-lock fastener

4-Safety wire

5-Attachment point

6-Truss

7-Handle

1- Shield

2 - Signal (-)

3 - Signal (+)

4 - Not connected

5 - Not connected

1- Shield

2 - Signal (-)

3 - Signal (+)

4 - Not connected

5 - Not connected

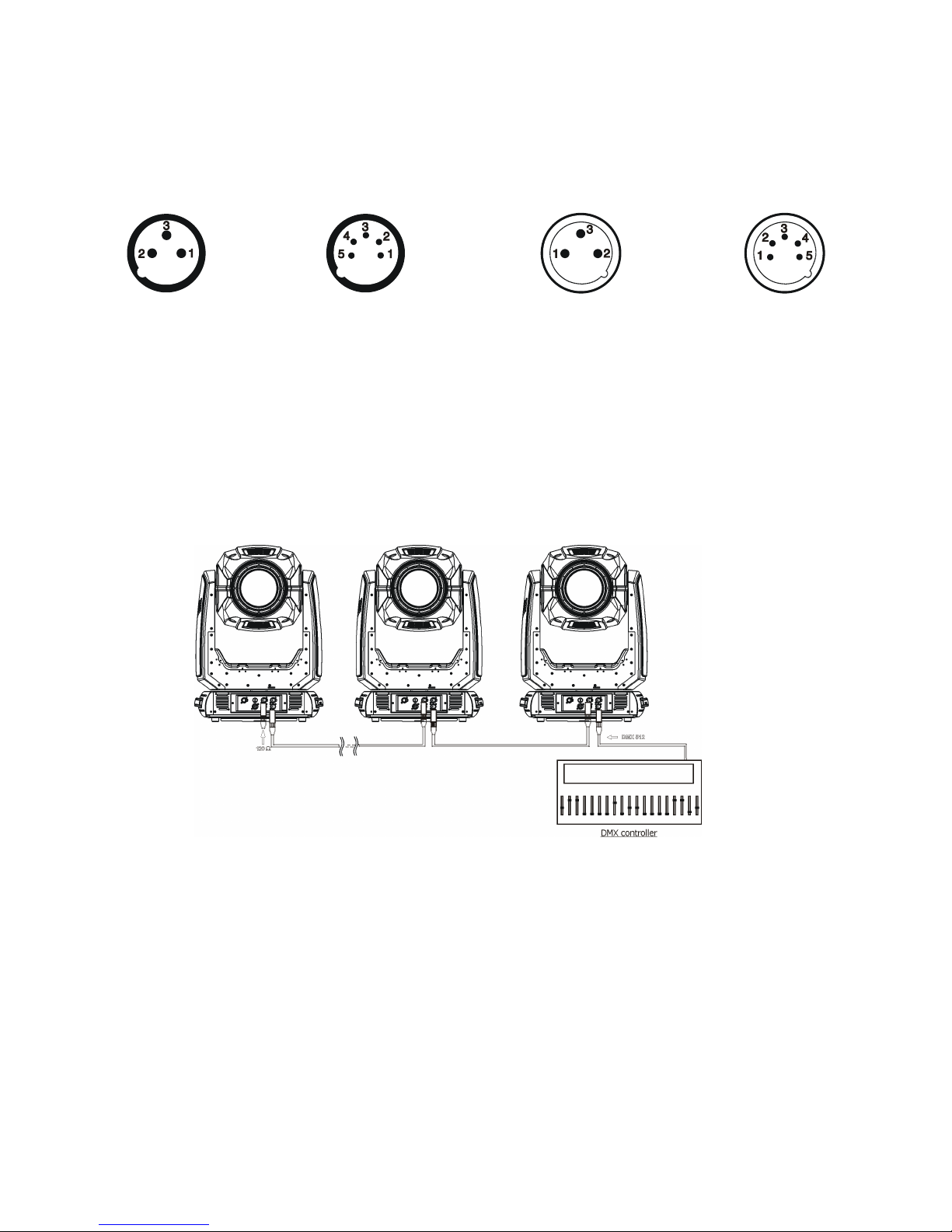

4.6 DMX-512 connection

The xture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired

in parallel.

Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in

order to connect the controller with the xture or one xture with another.

DMX - output DMX-input

XLR mounting-sockets (rear view): XLR mounting-plugs (rear view):

If you are using the standard DMX controllers, you can connect the DMX output of the controller directly with

the DMX input of the rst xture in the DMX chain. If you wish to connect DMX controllers with other XLR-out-

puts, you need to use adapter-cables.

Building a serial DMX-chain:

Connect the DMX-output of the rst xture in the DMX chain with the DMX-input of the next xture. Always connect

one output with the input of the next xture until all xtures are connected. Up to 32 xtures can be conected.

Caution: At the last xture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ωresistor

between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last xture.

Inhaltsverzeichnis

Andere Robe DJ-Equipment Handbücher

Robe

Robe ColorSpot 575 AT Bedienungsanleitung

Robe

Robe Robin SuperSpike Bedienungsanleitung

Robe

Robe ROBIN SPIKIE Bedienungsanleitung

Robe

Robe Robin CycBar 15 Bedienungsanleitung

Robe

Robe Anolis Calumma Remote M MC Bedienungsanleitung

Robe

Robe WeatherShield 575W Series Bedienungsanleitung

Robe

Robe ColorWash 250 AT Bedienungsanleitung

Robe

Robe ColorStrobe IP Bedienungsanleitung

Robe

Robe Spot 575 XT Bedienungsanleitung

Robe

Robe POINTE 280 Bedienungsanleitung

Robe

Robe DMX Control 512 Bedienungsanleitung

Robe

Robe Robin 1200 Bedienungsanleitung

Robe

Robe DigitalSpot 3000 DT Bedienungsanleitung

Robe

Robe redwash 3-192 Bedienungsanleitung

Robe

Robe ROBIN iForte Bedienungsanleitung

Robe

Robe picklePATT ES Bedienungsanleitung

Robe

Robe Divine 60 UV Bedienungsanleitung

Robe

Robe ROBIN MegaPointe Wireless DMX Bedienungsanleitung

Robe

Robe ROBIN iParfect 150 RGBA Bedienungsanleitung

Robe

Robe ROBIN ParFect 150 TW Bedienungsanleitung

Robe

Robe Anolis Eminere 2 Wireless DMX Bedienungsanleitung

Robe

Robe Anolis Calumma XL MC Bedienungsanleitung

Robe

Robe ANOLIS Side Eminere 2 Wireles DMX Bedienungsanleitung

Robe

Robe ROBIN T11 MFS Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken

ALPHA LITE

ALPHA LITE ALPHA 1500 Betriebsanleitung

Chauvet

Chauvet OVATION E-930VW Bedienungsanleitung

Zumtobel

Zumtobel APHRODITE Home Bedienungsanleitung

Snow Masters

Snow Masters Zig Oscillator Bedienungsanleitung

EuroLite

EuroLite 50530554 Bedienungsanleitung

Beamz

Beamz BUV243 Bedienungsanleitung

thomann

thomann Stairville DJ Lase 40-G MK-III Bedienungsanleitung

Eagletone

Eagletone 6 Eyes Flower Bedienungsanleitung

EuroLite

EuroLite FLD-1508 Bedienungsanleitung

Technical Pro

Technical Pro LG8xSEA Bedienungsanleitung

JB Systems

JB Systems Lounge Laser DMX Bedienungsanleitung

Lightmaxx

Lightmaxx Vega Halo 90 Bedienungsanleitung

Elation

Elation FUZE WASH Z350 Bedienungsanleitung

Maverick

Maverick MK3 WASH Bedienungsanleitung

Infinity

Infinity TF-260C7 Fresnel Bedienungsanleitung

Chauvet

Chauvet EVE E-50Z Bedienungsanleitung

Eliminator Lighting

Eliminator Lighting E 138 Bedienungsanleitung

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Bedienungsanleitung
