Robe Robin LedBeam 150 Bedienungsanleitung

Version 1.0Version 1.2

Table of contents

1. Safety instructions ......................................................................................................... 3

2. Fixture exterior view ...................................................................................................... 5

3. Installation....................................................................................................................... 6

3.1 Connection to the mains ............................................................................................ 6

3.2 Rigging the xture ...................................................................................................... 7

3.3 Eggcrate installation....................................................................................................8

3.4 DMX-512 connection.................................................................................................. 9

3.5. Wireless DMX operation ......................................................................................... 10

4. Control menu map........................................................................................................ 11

5. Control menu ............................................................................................................... 13

5.1 Addressing (DMXA).................................................................................................. 13

5.2 Fixture information (Info) .......................................................................................... 13

5.3 Personality (Pers)..................................................................................................... 14

5.4 Manual Control (Manual).......................................................................................... 15

5.5 Test program (Test Prg)............................................................................................ 15

5.6 Stand-alone (St Alone) ............................................................................................. 15

5.7 Reset........................................................................................................................ 16

5.8 Special functions (Special)....................................................................................... 16

6. RDM ............................................................................................................................... 18

7. Error and information messages ................................................................................ 18

8. Technical Specications.............................................................................................. 19

9. Maintenance and cleaning........................................................................................... 21

9.1 Replacing fuse ......................................................................................................... 22

10. Photometric diagrams................................................................................................ 23

11. ChangeLog.................................................................................................................. 26

ROBIN LEDBeam 150

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE POWERING OR INSTALLING YOUR ROBIN LEDBeam 150 !

Save it for future reference.

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en-

sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes

written in this manual.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this ma-

nual or any unauthorized modication to the device.

Please consider that damages caused by manual modications to the device are not subject to warranty.

The ROBIN LEDBeam 150 was designed for indoor use and it is intended for

professional application only. It is not for household use.

1. Safety instructions

DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!

Make sure that the available voltage is not higher than stated on the rear panel of the xture.

This xture should be operated only from the type of power source indicated on the marking label. If you are

not sure of the type of power supplied, consult your authorized distributor or local power company.

Always disconnect the xture from AC power before cleaning, removing or installing any part of the xture.

The power plug has to be accessible after installing the xture. Do not overload wall outlets and extension cords

as this can result in re or electric shock.

Do not allow anything to rest on the power cord. Do not locate this xture where the cord may be damaged by

persons walking on it.

Make sure that the power cord is never crimped or damaged by sharp edges. Check the xture and the power

cord from time to time.

Refer servicing to qualied service personnel.

This xture falls under protection class I. Therefore this xture has to be connected to

a mains socket outlet with a protective earthing connection.

Do not connect this xture to a dimmer pack.

Warning! Risk Group 2 LED product according to EN 62471.

LED light emission. Risk of eye injury. Do not look into the beam at short distance of

the of the product.

Do not view the light output with optical instruments or any device that may

conncentrate the beam.

The light source contains blue LEDs.

If the xture has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on

immediately. The arising condensation water might damage your device. Leave the device switched o󰀨 until

it has reached room temperature.

Avoid brute force when installing or operating the xture.

This xture was designed for indoor use only, do not expose this unit to rain or use near water.

When choosing the installation spot, please make sure that the xture is not exposed to extreme heat, moisture

or dust.

Do not block the lens array with any object when the xture is under operation.

The cooling openings in head and base of the xture should never be covered with cloth or other materials,

and never must be blocked.

This xture should not be placed in a built-in installation unless proper ventilation is provided.

Only operate the xture after having checked that the housing is rmly closed and all screws are tightly fastened.

Always use a secondary safety wire for overhead installation of the xture.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the xture.

The xture becomes hot during operation. Allow the xture to cool approximately 15 minutes prior to manipu-

late with it.

To avoid damage of an internal optical system of the xture, never let the sunlight (or

other light source) lights directly to the lens array, even when the xture is not working

Operate the xture only after having familiarized with its functions. Do not permit operation by persons not

qualied for operating the xture. Most damages are the result of unprofessional operation!

Please use the original packaging if the xture is to be transported.

Please consider that unauthorized modications on the xture are forbidden due to safety reasons!

If this device will be operated in any way di󰀨erent to the one described in this manual, the product may su󰀨er

damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-

-circuit, burns, electric shock, crash etc.

2. Fixture exterior view

1 - Lens array

2- Yoke

3 - Mains IN

4 - Attachment point

for a safety wire

5- Mains OUT

6 - Control panel

7 - DMX IN

8 - DMX OUT

9 - Base

10 - Slots for mounting

bracket omega CL

1- Moving head

2 - Attachment point for safety cable

3- Base

3. Installation

Fixtures must be installed by a qualied electrician in accordance with all

national and local electrical and construction codes and regulations.

3.1 Connection to the mains

For protection from electric shock, the xture must be earthed!

The ROBIN LEDBeam 150 is equipped with auto-switching power supply that automatically adjusts to any 50-

60Hz AC power source from 100-240 Volts.

If you install a cord cap on the power cable to allow connection to power outlets, install a grounding-type (earthed)

plug, following the plug manufacturer’s instructions.

If you have any doubts about proper installation, consult a qualied electrician.

Core (EU) Core (US) Connection Plug Terminal Marking

Brown Black Live L

Light blue White Neutral N

Yellow/Green Green Earth

The device falls under class one and must be earthed (grounded)!

Design of the ROBIN LEDBeam 150 allows to connect several xtures to AC mains power in one interconnected

daisy chain using power input and throughput connectors. Needed daisy chain cords are stated in the chapter

“Technical specications “

The max. number of connected xtures depends on the AC mains power voltage:

CE: ETL:

15 xtures at power supply= 230V 9 xtures at power supply= 230V

13 xtures at power supply= 208V 8 xtures at power supply= 208V

7 xtures at power supply= 120V 4 xtures at power supply= 120V

Actual numbers of xtures may di󰀨er from values stated above as you have to take into account the length of

supply cables, circuit breaker etc. at projecting of the xtures installation Do not overload the supply line and

the connecting leads.

Do not overload the supply line and the connecting leads.

Wiring and connection work must be carried out by qualied sta󰀨!

3.2 Rigging the xture

The installation of the xture has to be built and constructed in a way that it can hold 10 times the weight for 1

hour without any harming deformation.

The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net.

This secondary safety attachment must be constructed in a way that no part of the installation can fall down if

the main attachment fails.

When rigging, derigging or servicing the xture staying in the area below the installation place, on bridges,

under high working places and other endangered areas is forbidden.

The operator has to make sure that safety-relating and machine-technical installations are approved by an

expert before taking into operation for the rst time and after changes before taking into operation another time.

The operator has to make sure that safety-relating and machine-technical installations are approved by an

expert after every four year in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled

person once a year.

The xture should be installed outside areas where persons may walk by or be seated.

IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to)

calculating working load limits, installation material being used, and periodic safety inspection of all installation

material and the projector. If you lack these qualications, do not attempt the installation yourself, but instead

use a professional structural rigger. Improper installation can result in bodily injury or damage to property.

The xture has to be installed out of the reach of people.

If the xture shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The

xture must never be xed swinging freely in the room.

Caution: Fixture may cause severe injuries when crashing down! If you have doubts concerning the safety of

a possible installation, do not install the moving head!

Before rigging make sure that the installation area can hold a minimum point load of 10 times the xture’s weight.

When installing the device, make sure there is no highly inammable

material (decoration articles, etc.) in a distance of min. 0.4 m.

CAUTION!

Use an appropriate clamp to rig the xture on the truss.

Follow the instructions mentioned at the bottom of the base.

Make sure that the device is xed properly! Ensure that the

structure (truss) to which you are attaching the xtures is secure.

The xture can be placed directly on the stage oor or rigged on a truss without altering its operation characte-

ristics .

For securing the xture to the truss, install a safety wire which can hold at least 10 times the weight of the x-

ture. Use only the safety wire with a snap hook with screw lock gate. Fasten the safety cable in the attachment

point and around the truss as shown on the picture below.

Rigging via omega bracket:

When installing xtures side-by-side, avoid illuminating one xture with another!

3.3 Eggcrate installation

Disconnect the xture from mains before installing the eggcrate .

Screw the eggcrate (1) on the lens array module via the three screws (2).

1-Omega bracket

2-Clamp

3-Truss

4-Attachment point

5-Safety chain

3.4 DMX-512 connection

The xture is equipped with 5-pin XLR sockets for DMX input and output. Only use a shielded twisted-pair

cable designed for RS-485 and 5-pin XLR-plugs and connectors in order to connect the controller with the

xture or one xture with another.

DMX output DMX input

XLR socket: XLR plug:

If you are using the standard DMX controllers, you can connect the DMX output of the controller directly with the

DMX input of the rst xture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs,

you need to use adapter-cables.

Building a serial DMX-chain:

Connect the DMX-output of the rst xture in the DMX-chain with the DMX-input of the next xture. Always

connect one output with the input of the next xture until all xtures are connected. Up to 32 xtures can be

interconnected.

Caution: At the last xture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω resistor

between Signal (–) and Signal (+) into a 5-pin XLR-plug and plug it in the DMX-output of the last xture.

1 - Shield

2 - Signal (-)

3 - Signal (+)

4 - Used for wireless DMX

5 - Used for wireless DMX

1 - Shield

2 - Signal (-)

3 - Signal (+)

4 - Used for wireless DMX

5 - Used for wireless DMX

3.5. Wireless DMX operation

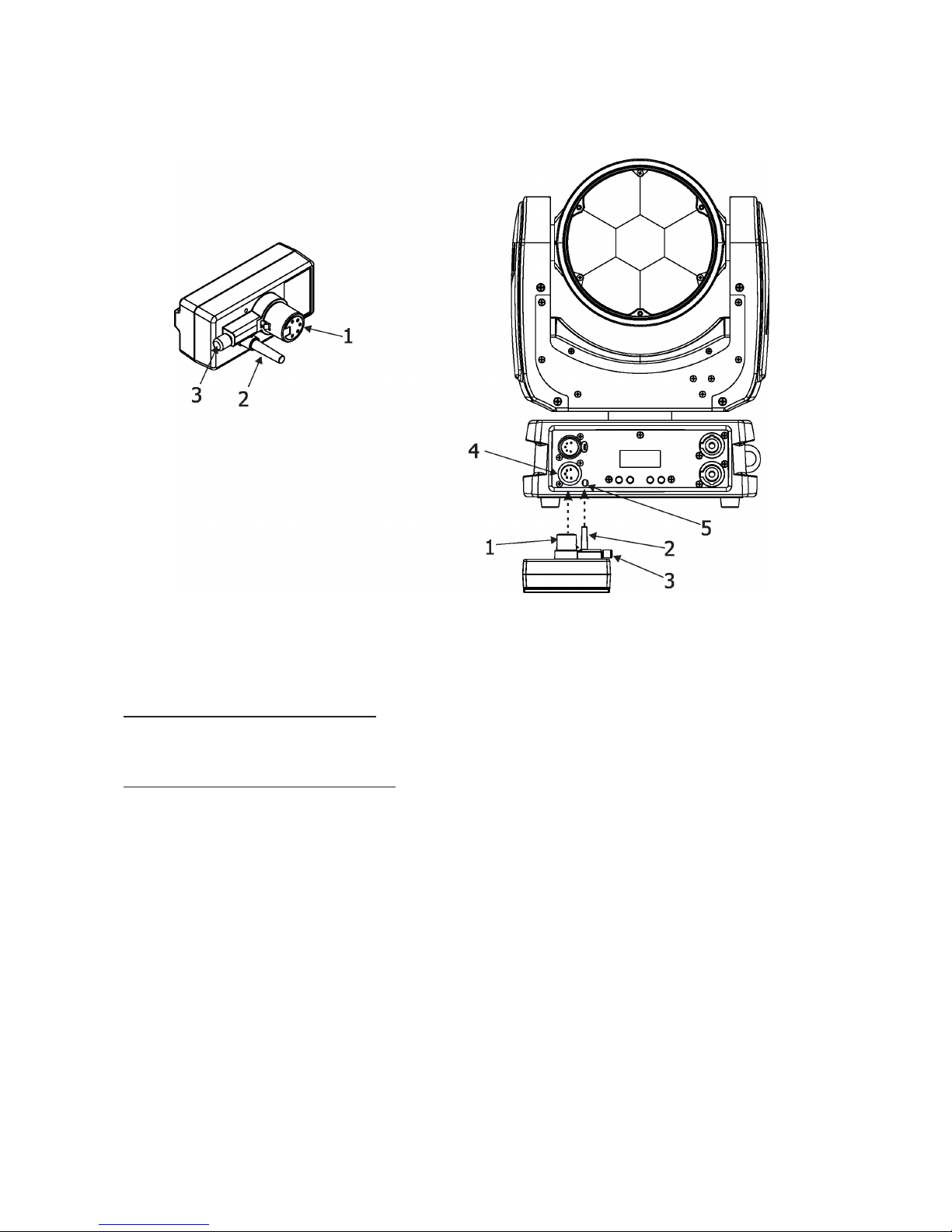

The external Robe Wireless CRMX-LB150 module allows receiving wireless DMX. This device is equipped

with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the

2.4 GHz band.

Push in the 5-pin XLR plug (1) into 5-pin XLR sockit (4) and simultaneously locating pin (2) into hole (5) in the

xture. In this way the wireless DMX module is connected with the xture.

NOTE: when you disconnect the DMX wireless module from xture, press and hold lock (5) during getting the

wireless module out.

To link the xture with DMX transmitter.

The xture can be only linked with the transmitter by running the link procedure at DMX transmitter .

After linking , the level of DMX signal ( 0-100 %) is displayed in the menu item “Stat“ (Special -->Vireless -->Stat).

To unlink the xture from DMX transmitter.

The xture can be unlinked from receiver via the menu item “ Unlink“ (Special-->Vireless -->Unlink.).

1 - 5-pin XLR (female)

2 - Locating pin

3 - Lock

Robe Wireless CRMX-LB100

Inhaltsverzeichnis

Andere Robe DJ-Equipment Handbücher

Robe

Robe Anolis Calumma S MC Bedienungsanleitung

Robe

Robe ROBIN colorstrobe lite Bedienungsanleitung

Robe

Robe Robin CycBar 15 Bedienungsanleitung

Robe

Robe Anolis Eminere 2 Wireless DMX Bedienungsanleitung

Robe

Robe Robin Tarrantula TW Bedienungsanleitung

Robe

Robe Robin CycBar 12 Bedienungsanleitung

Robe

Robe ANOLiS Eminere Remote UV 2 Bedienungsanleitung

Robe

Robe Anolis Eminere 1 Bedienungsanleitung

Robe

Robe DigitalSpot 3000 DT Bedienungsanleitung

Robe

Robe ColorSpot 575E AT Bedienungsanleitung

Robe

Robe ROBIN MegaPointe Wireless DMX Bedienungsanleitung

Robe

Robe ROBIN BMFL LightMaster Side Bedienungsanleitung

Robe

Robe redwash 3-192 Bedienungsanleitung

Robe

Robe picklePATT ES Bedienungsanleitung

Robe

Robe iSpiider Bedienungsanleitung

Robe

Robe ColorSpot 2500E AT Bedienungsanleitung

Robe

Robe ROBIN SilverScan Wireless DMX Bedienungsanleitung

Robe

Robe pixelPATT Bedienungsanleitung

Robe

Robe Spot 575 XT Bedienungsanleitung

Robe

Robe Strobe IP Bedienungsanleitung

Robe

Robe ROBIN ParFect 150 TW Bedienungsanleitung

Robe

Robe Robin 1200 Bedienungsanleitung

Robe

Robe ANOLIS Side Eminere 2 Wireles DMX Bedienungsanleitung

Robe

Robe ROBIN iForte Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken

ALPHA LITE

ALPHA LITE ALPHA 1500 Betriebsanleitung

Chauvet

Chauvet OVATION E-930VW Bedienungsanleitung

Zumtobel

Zumtobel APHRODITE Home Bedienungsanleitung

Snow Masters

Snow Masters Zig Oscillator Bedienungsanleitung

EuroLite

EuroLite 50530554 Bedienungsanleitung

Beamz

Beamz BUV243 Bedienungsanleitung

thomann

thomann Stairville DJ Lase 40-G MK-III Bedienungsanleitung

Eagletone

Eagletone 6 Eyes Flower Bedienungsanleitung

EuroLite

EuroLite FLD-1508 Bedienungsanleitung

Technical Pro

Technical Pro LG8xSEA Bedienungsanleitung

JB Systems

JB Systems Lounge Laser DMX Bedienungsanleitung

Lightmaxx

Lightmaxx Vega Halo 90 Bedienungsanleitung

Elation

Elation FUZE WASH Z350 Bedienungsanleitung

Maverick

Maverick MK3 WASH Bedienungsanleitung

Infinity

Infinity TF-260C7 Fresnel Bedienungsanleitung

Chauvet

Chauvet EVE E-50Z Bedienungsanleitung

Eliminator Lighting

Eliminator Lighting E 138 Bedienungsanleitung

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Bedienungsanleitung
