Robertshaw RS9220 Bedienungsanleitung

RS9220

Installation Manual

Thermostat System Types

Table of Contents Page

Thank you for purchasing a Robertshaw®thermostat.

This manual will describe how to install and test the Robertshaw RS9220 thermostat.

Power Options

Battery Power

Hardwire (Common Wire)

Gas, Oil, or Electric Heat with Air Conditioning

Heat Pumps (without auxiliary or emergency heat)

Multi-Stage Systems

Heat-Only, including for Floor and Wall-Furnace

Cool-Only

750 Millivolt Heating Systems

Installation Location 2

Thermostat Quick Reference 3

Wallplate Installation 4

Wiring 5-12

Installer Setup Menu 13-17

Mounting & Battery Installation 18

Programming 19-22

Specications 23

IMPORTANT SAFETY INFORMATION

WARNING:

• Always turn off power at the main power

source by unscrewing fuse or switching

circuit breaker to the off position before

installing, removing, cleaning, or servicing

thermostat.

• Read all of the information in this manual

before installing or programming this

thermostat.

• This is a 24V AC low voltage thermostat. Do

not install on voltages higher than 30V AC.

• All wiring must conform to local and national

building and electrical codes and ordinances.

• Do not short (jumper) across terminals on

the gas valve or at the system control to test

installation. This will damage the thermostat

and void the warranty.

INSTALLATION MANUAL

Install the thermostat 4 to 5 feet above the oor in an area with good

air circulation and average temperature.

For new installations, mount thermostat on an inside wall, 4-5 feet

above the oor. Do not install the thermostat in the following locations:

• Behind a Door

• In a Corner

• Near Air Vents

• In Direct Sunlight

• With an Outside Wall Behind the Thermostat

• Near any Heat or Steam Generating Fixtures

• Near any Concealed Pipes or Chimneys

Installation at these locations will affect thermostat operation.

INSTALLATION LOCATION

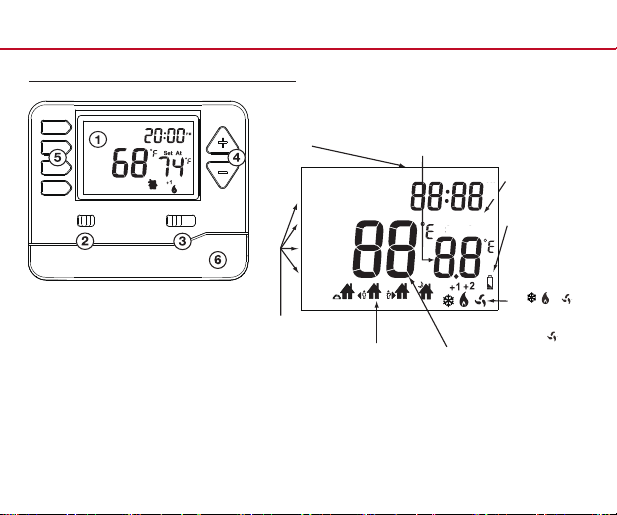

Getting to know your thermostat

Mon

Room

Set At

SLEEP

LCD Screen

Fan Switch

System Switch

Temperature Set-Point Buttons

User Buttons

Easy Change Battery Door

Tech Set

Sun Mon Tue Wed Thu Fri Sat

Next Step

Min Com On

Com DelayHeat

Set Time

Run Sched

Set Sched

Hold

Prev Step

Done WAKE

Cool Swing

Room

LEAVE RETURN

Hold

SLEEP

Filter

Displays the user

selected set-point

temperature.

Days of the week

and time.

Indicates the current

room temperature.

Programmable Time Periods:

This thermostat has 4

programmable time periods

per day.

Button Options

LCD

Hold: Is displayed

when thermostat

program is

overridden.

Low Battery

Indicator:

Replace batteries

when indicator is

shown.

NOTE: If

these icons are

ashing, there is

a 5-minute delay

for compressor

protection.

System

Operation

Indicators:

The

Set At

icon will display

when the COOL,

HEAT, or

Set At

(fan)

is on.

COOL OFF

ON AUTO

FAN

HEAT

SYSTEM

Set At

THERMOSTAT QUICK REFERENCE

Mercury Notice:

This product is mercury-free. However,

if this product is replacing a control

which contains mercury, it needs to

be disposed of properly. Contact your

local waste management authority for

instructions regarding recycling and

proper disposal of the control.

Caution:

Electrical Hazard

Disconnect power before installing

this product. Failure to do so can

cause electric shock or equipment

damage.

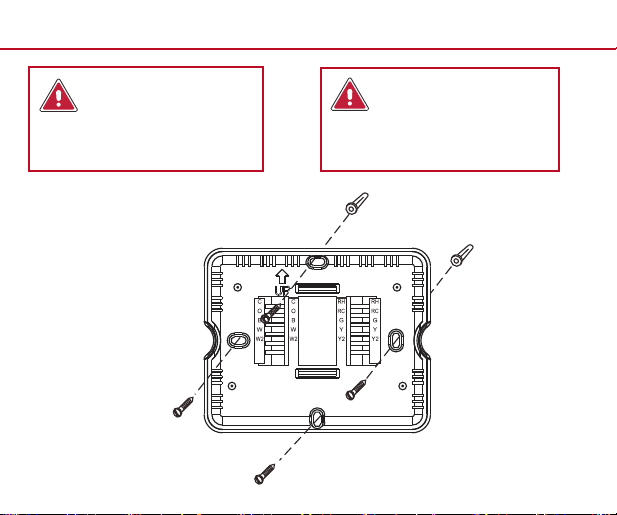

For a vertical mount,

put screws on the top

and bottom.

For a horizontal mount,

put screws on the left

and the right.

Vertical mount

Horizontal mount

WALLPLATE INSTALLATION

1 Turn Off Power to Heating/Cooling System

Circuit breaker

box

Heating/cooling system

power switch

Remove old thermostat but leave wallplate with wires attached.

Do not remove wallplate

Terminal

designation

2 Remove Old Thermostat

WIRING

3 Label Wires with Tags

Label the wires using the supplied wire labels

as you disconnect them.

Wiring Labels

Apply these wiring labels to each wire with the appropriate

terminal designation as you remove it from the existing

thermostat.

B B Y2 Y2 C C E E F F

G G H H L L O O P P

R R RC RC RH RH T T U U

V/VR V/VR W W W1 W1 W2 W2 W3 W3

X X X1 X1 X2 X2 Y Y Y1 Y1

AUX AUX

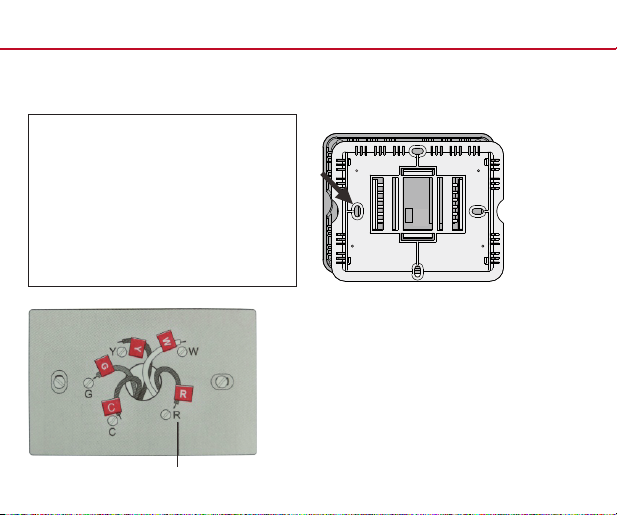

4 Separate Wallplate from

New Thermostat

Remove wallplate from the new thermostat

and mount onto wall.

Wallplate

Wire Labels

Terminal designation

ELEC

GAS

WIRING

5 Mount Wallplate for New Thermostat

Mount the new wallplate using the included screws and anchors.

Drill 3/16-in. holes for drywall

Drill 3/16-in. holes for plaster

WIRING

6 Connect Wires

Simply match wire labels.

If labels do not match letters on the thermostat, check “Alternate Wiring (Conventional Systems)”

on page 9 and connect to terminal as shown (see notes, below).

Screw

Insert wires and

tighten screws

Remove metal

jumper if you

have both RH

and Rc wires

WIRING
