Introduction

ROCPORT ID9 – FireWire 800, FireWire 400 and USB (1.1/2.0)

Rocport ID pocket drives deliver outstanding performance and

reliability in multiple colors. Designed and engineered in the

U.S.A. to meet the needs of the demanding mobile data

storage market, the ROCPORT ID 2.5” external hard drive is

compatible with both Windows and Macintosh environments.

Like other Rocstor products, ROCPORT ID drives are both

bus-powered and bootable. The new ROCPORT ID pocket drives

contain a fast, high capacity 2.5” SATA drive mechanism, with

up to 800 MB/sec transfer speeds. Groundbreaking Design,

Sophisticated users will appreciate the ROCPORT ID innovative

design, touch, quality and features.

Choose Rocstor drives and “store your future”

Box Contents

•Rocport ID9 , external hard disk drive

•USB “Y” cable

•-pin to -pin FireWire 400 (1394a) cable

•9-pin to 9-pin FireWire 800 (1394b) cable

•Quick Installation user Guide

•Comprehensive manual on CD

•Carrying case

Page | 7

ROCSTOR

ROCPORT ID9

user manual

Minimum System Requirements:

Mac Users: Window Users:

* Many computers do not come with factory installed FireWire 800 ports. Therefore, you may

need to purchase a PCI, PCI-X or PCI-Express card to use these ports.

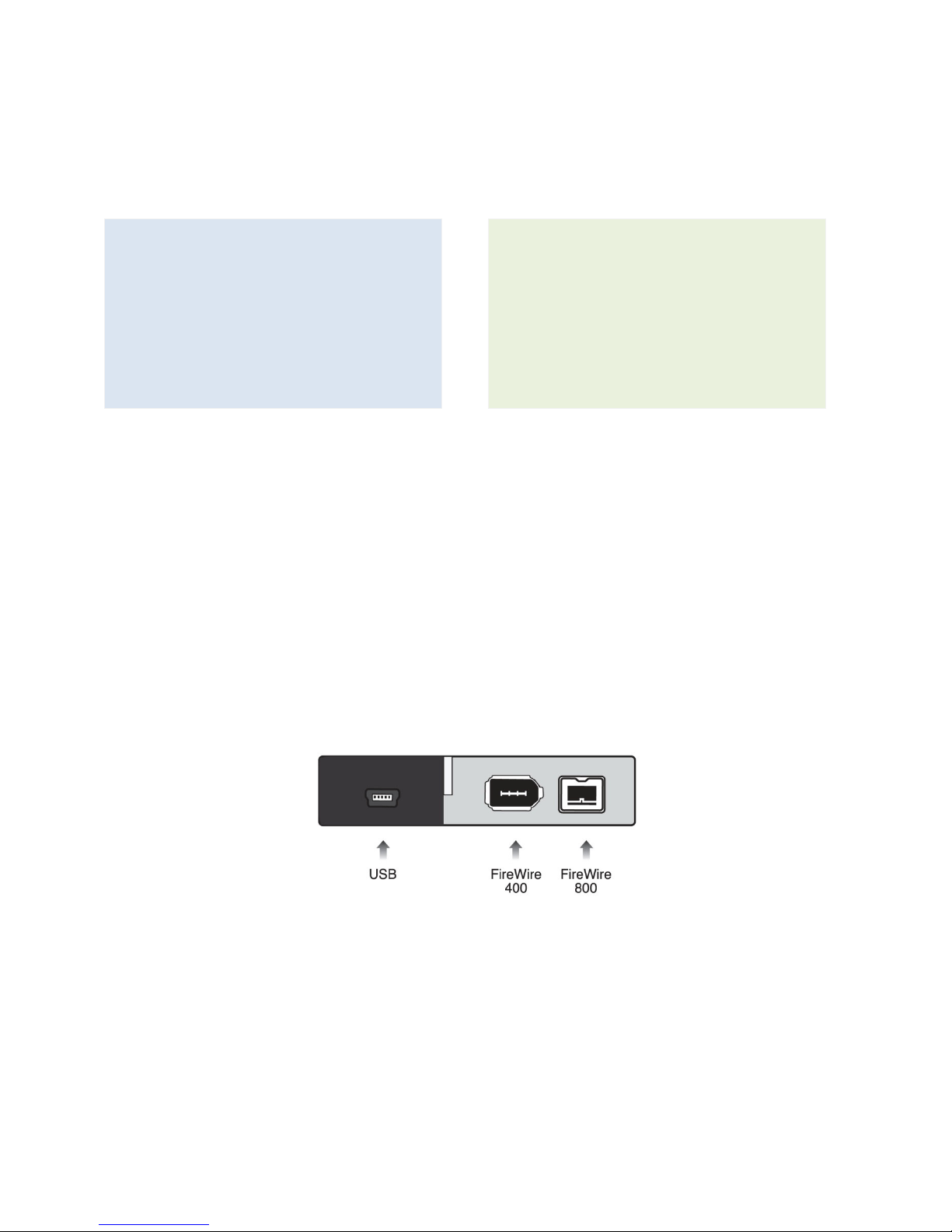

Connectors

•FireWire 800 (IEEE 1394b) port x1

•FireWire 400 (IEEE 1394a) port x1

•USB 2.0 port x1

Hardware: FireWire 800 or FireWire 400

or USB (1.1 or 2.0) port(s.)

Operating Systems: Microsoft Windows

2000, Me, XP, Vista, Windows 7

Recommended memory: 512 MB RAM

Hardware: FireWire 800 or FireWire 400

or USB (1.1 or 2.0) port(s.)

Mac: PowerPC or Intel processor running

Mac OS 9, X, Leopard, Snow Leopard

Recommended memory: 512 MB RAM

Page | 8

ROCSTOR

ROCPORT ID9

user manual

QUICK INSTALLATION

How to Connect the Interface Cables - Connecting the Drive

1. Turn ON your computer and wait until it fully boots up to load all programs.

2. Using only one interface cable at a time, select the interface port you

wish to use on your computer. When using FireWire, connect one end of

the FireWire cable to the appropriate FireWire port (FW800 or FW400) of

your computer and then the other end to the FireWire port in the Rocport.

When using USB, connect two ends of the USB “Y” cable to the USB ports

of your computer (or via Power Hub that is connected to your computer)

and then the other end to the USB port in the Rocport. Upon connection, a

Blue light on the Rocport drive will turn ON.

3. The Hard drive is preformatted for Plug-and-Play operation. After a few seconds a Rocstor

HD icon will show on “My Computer” folder under the Windows OS. Under the Mac OS,

the Rocstor HD icon will appear on the “Desktop.”

4. Click (double click) on the Rocstor HD icon to access the drive.

*You may also refer to the Rocstor website to view or download a full version of the Rocport

ID9 manual. www.ROCSTOR.com

ROCSTOR

ROCPORT ID9

user manual

Cable Types:

FireWire 400 (IEEE 394a) -

Pin FireWire 400 connector

•Fire

Wire 400 can transfer data between devices at 400

FireWire 800 (IEEE 394b) 9-

Pin FireWire 400 connector

•Fire

Wire 400 can transfer data between devices at

USB supports three data transfer rates:

•USB 2.0: A Hi-Speed

(USB 2.0) rate of 480

•USB 1.1: A Full Speed

rate of

•USB 1.0: A Low Speed

rate of 1.5

user manual

Pin FireWire 400 connector

Wire 400 can transfer data between devices at 400

Mbits/s

Pin FireWire 400 connector

Wire 400 can transfer data between devices at

800 Mbits/s.

USB supports three data transfer rates:

(USB 2.0) rate of 480

Mbits/s ( 0 MB/s).

rate of

12 Mbits/s (1.5 MB/s).

rate of 1.5

Mbits/s (187 KB/s).

Page | 9

Page | 0

ROCSTOR

ROCPORT ID9

user manual

Installing Your Drive

All Rocstor hard drives are formatted as blank FAT32 (32-bit file allocation table) volumes

{unless otherwise stated on the box} that are compatible with most modern Windows and

Macintosh operating systems. To begin using your Rocstor drive, simply connect a data cable.

There’s no need to shut down your computer because your Rocstor drive is hot-pluggable. Just

plug it in and it’s ready to use.

The first choice you have to make is which of the provided data cables to use. The drive can

connect directly to any available FireWire or USB port on your computer, or it can be Daisy-

Chained to your computer through another compatible device with an available FireWire port.

The ability to Daisy-Chain allows you to have multiple drives connected simultaneously, greatly

increasing your available storage capacity. Daisy-Chain is only available through FireWire ports.

If you intend to use the drive for additional storage only—not as a startup device (bootable) use

the cable that provides the maximum throughput rate for the buses available on your

computer: Up to 800 Mbits via FireWire 800, 480 Mbits via USB 2.0, 400 Mbits via FireWire 400,

or 12 Mbits via USB 1.1. To avoid damaging your hardware and losing data, never

simultaneously connect the drive to the computer using more than one data cable.

Rocport ID9 as a bootable device

If you intend to use the drive as a startup device, check the documentation that came with your

computer to confirm compatibility with the various interfaces. PowerPC-based Macs require

FireWire connections for startup disks, whereas Intel-based Macs can use either FireWire or

USB connections.

Furthermore, using the drive as a startup device requires installing an authorized copy of the

Windows or Mac operating system (available separately from Microsoft and Apple,

respectively). To install the Mac OS 9 or OS X, you must reformat the drive as a Mac OS

Extended volume with Disk Utility. An Intel-based Mac cannot start from a device formatted on

a PowerPC-based Mac, or vice versa.

Disconnecting Your Drive

Never disconnect or turn off an external drive when its activity light is ON. External drives must

be properly unmounted (or disconnected) to avoid data loss and possible damage to the hard

disk drive or computer.

PC: The easiest ways to safely unmount an external hard drive on your PC is to right-click the

device removal icon next to the clock in the system tray. Then choose Safely Remove Hardware.

Choose the external device you want to remove, and then click Stop. An alert will notify you if

the drive is in use by an application. If in use close any open documents or applications on the

drive and try again. Windows will display an alert when you can safely disconnect or turn off the

drive.

Andere Handbücher für Rocport ID9

Andere Rocstor Lagerung Handbücher

Rocstor

Rocstor AIRHAWK A5 Bedienungsanleitung

Rocstor

Rocstor Rocpro T33 Bedienungsanleitung

Rocstor

Rocstor ROCSILVER FIREWIRE Bedienungsanleitung

Rocstor

Rocstor ROCPRO 850e Bedienungsanleitung

Rocstor

Rocstor Rocport 5CX Bedienungsanleitung

Rocstor

Rocstor Rocpro 850 1.5TB Bedienungsanleitung

Rocstor

Rocstor ROCPRO T24 Bedienungsanleitung

Rocstor

Rocstor ROCPRO 900e Bedienungsanleitung

Rocstor

Rocstor BIGROC 5C Bedienungsanleitung

Rocstor

Rocstor ARCTICROC 4T Einrichtungshandbuch

Rocstor

Rocstor EAGLEROC E7 Bedienungsanleitung

Rocstor

Rocstor GUARDIAN 4RT Handbuch

Rocstor

Rocstor ROCPORT 9Cx Bedienungsanleitung

Rocstor

Rocstor ROCPRO 850 Bedienungsanleitung

Rocstor

Rocstor COMMANDER FC series Bedienungsanleitung

Rocstor

Rocstor Rocpro U32 Bedienungsanleitung

Rocstor

Rocstor Rocport 3CX Bedienungsanleitung

Rocstor

Rocstor Eagleroc E3 1TB Bedienungsanleitung

Rocstor

Rocstor ROCMETRIX Bedienungsanleitung

Rocstor

Rocstor ROCPORT 9CX 320GB Bedienungsanleitung

Rocstor

Rocstor ARCTICROC 4T Bedienungsanleitung

Rocstor

Rocstor Rocport 5CX Bedienungsanleitung

Rocstor

Rocstor AIRHAWK A5 Bedienungsanleitung

Rocstor

Rocstor ROCPRO 800 FIREWIRE Bedienungsanleitung

Beliebte Lagerung Handbücher anderer Marken

QNAP

QNAP TS 32PXU Series Bedienungsanleitung

LaCie

LaCie RUGGED RAID Bedienungsanleitung

Freecom

Freecom CLS DOCK Bedienungsanleitung

PNY

PNY Attache P-FD64MBATT3 Bedienungsanleitung

HP StorageWorks MSL2024 Bedienungsanleitung

OLT

OLT 6x6 Maximizer Bedienungsanleitung

Transcend

Transcend JetFlash 160 Bedienungsanleitung

LaCie

LaCie RUGGED MINI Bedienungsanleitung

Thunderbolt

Thunderbolt 600 Bedienungsanleitung

Panasonic

Panasonic LB-DH8 series Handbuch

Intel

Intel RAID High Availability Bedienungsanleitung

LaCie

LaCie 12big Thunderbolt 3 Bedienungsanleitung

Spectra Logic

Spectra Logic T-Series Spectra T50e Bedienungsanleitung

Panasonic

Panasonic LKM-F931-1 Bedienungsanleitung

Tabernus

Tabernus Enterprise Erase E2400 Bedienungsanleitung

HP P9000 Bedienungsanleitung

Western Digital

Western Digital Ultrastar Data60 Bedienungsanleitung

Dell

Dell PowerVault MD3600f Series Bedienungsanleitung
