Instruction Manual

NOTE: PLEASE READ INSTRUCTIONS CAREFULLY BEFORE USE.

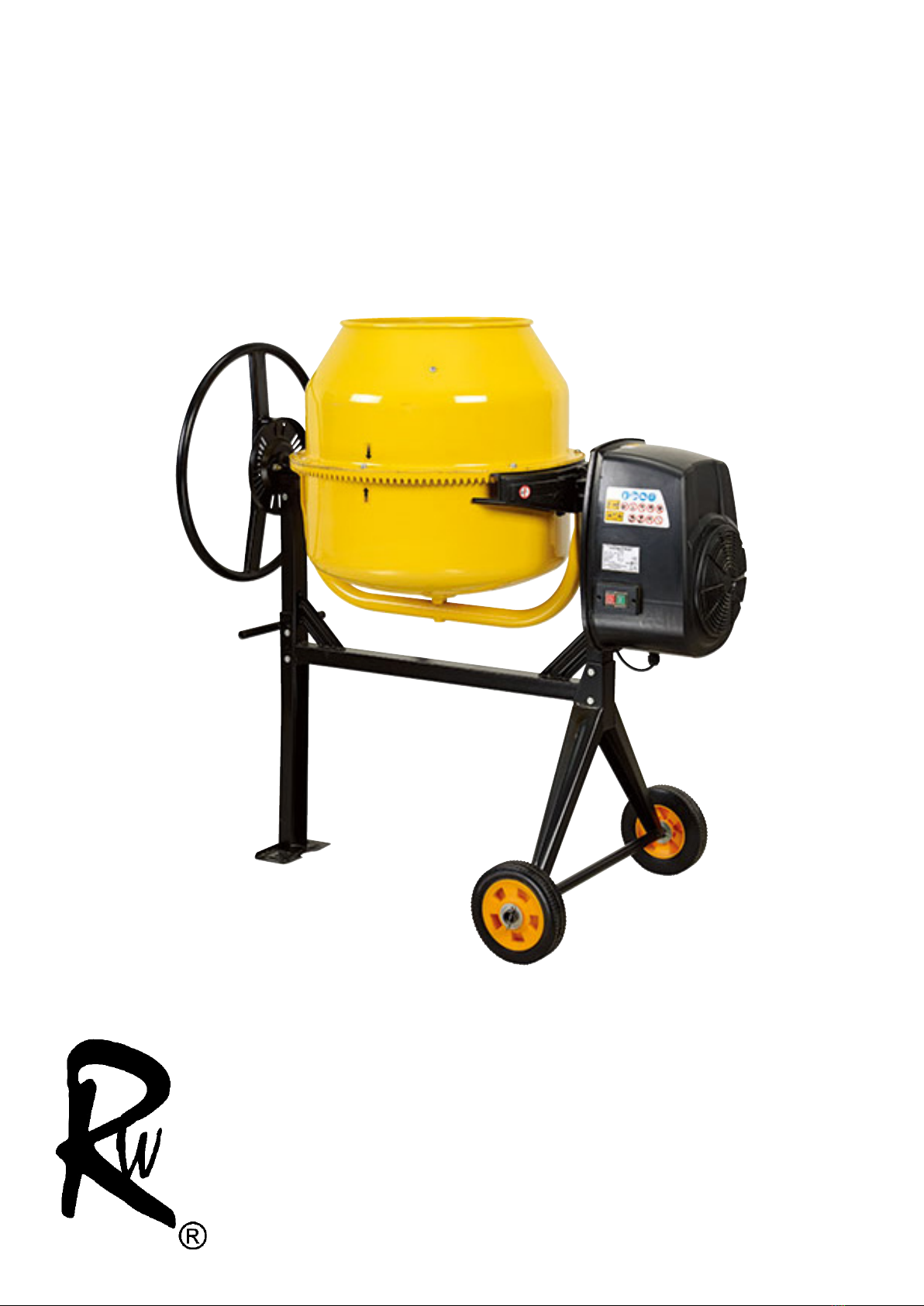

CEMENT MIXER

MODEL: RWCM125

SAFETY WARNINGS & INSTRUCTIONS SYMBOL AFFIXED TO THE MACHINE

l UNDERSTAND YOUR MIXER

Read and understand the owner’s manual and labels affixed

to the mixer. Learn its application and limitations as well as

the specific potential hazards peculiar to it.

Become familiar with the controls before operating this mixer.

l STAY ALERT

Do not operate the mixer while under the influence of drugs,

alcohol, or any medication that could affect your ability to use

it properly.

Do not use this mixer when you are tired or distracted from

the job at hand. Watch what you are doing at all times. Use

common sense.

l AVOID DANGEROUS CONDITIONS

Make sure there is adequate surrounding workspace.

Keep your work area clean and well lighted. Cluttered areas

invite injuries. Keep area around the mixer clear of obstructions,

grease, oil, trash and other debris which could cause persons

fall onto moving parts.

Only use or operate the mixer on solid, flat, level ground that

is capable to support the weight of the mixer and its load to

prevent the mixer from tipping over.

Do not attempt to move the mixer when it is loaded and/or

in operation.

This mixer is intended for the production of concrete, mortar

and plaster. It is not suitable for the mixing of flammable or

explosive substances. Do not use it in areas where fumes

from paint, solvents or flammable liquids pose a potential

hazard.

l INSPECT YOUR MIXER

Check your mixer before turning it on. Keep guards in place

and in working order. Do not plug mixer with motor cover off.

Check all bolts, nuts, and screws for tightness before each

use, especially those securing guards and drive mechanisms.

Vibration during mixing may cause these to loosen.

Form a habit of checking to see that all the adjusting tools,

shovels, hand trowels and other tools/equipments are removed

from mixer area before turning it on.

Replace damaged, missing or failed parts before using it.

Warning labels carry important information. Replace any

missing or damaged warning labels.

SAFETY WARNINGS & INSTRUCTIONS SYMBOL AFFIXED TO THE MACHINE

l DRESS PROPERLY

Do not wear loose clothing, gloves, neckties or jewelry (rings,

wrist watches). They can be caught in moving parts. Protective

electrically non-conductive gloves and non-skid footwear are

recommended when working. Wear protective hair covering

to contain long hair, preventing it from getting caught in

machinery. Wear a face or dust mask if the operation is dusty.

Always wear safety goggles and/or face shields. Everyday

eyeglasses have only impact resistant lenses. They are not

safety glasses.

l DO NOT ABUSE CORD

Never carry mixer by cord or yank it to disconnect it from

socket.

Keep cord from heat, oil and sharp edges.

l EXTENSION CORDS

Extension cords must be no longer than 50 meters in length.

The wire section must be 1.5mm2on 230V to allow sufficient

current flow to the motor. Improper use of extension cords

may cause inefficient operation of the mixer which can result

in overheating and motor damage.

Only extension cords to H07RN-F specification intended for

outdoor purpose may be used. Avoid use of free and

inadequately insulated connections. Connections must be

made with protected material suitable for outdoor use. Make

sure that any extension cord connections are dry and safe.

Ensure that the extension cord is carefully laid out avoiding

liquids, sharp edges and places where vehicles might run over

it. Avoid allowing the extension cord to be trapped underneath

the mixer. Unroll it fully or it will overheat and could catch fire.

l AVOID ELECTRICAL SHOCK

Check that the electric circuit is adequately protected and that

it corresponds with the power, voltage and frequency of the

motor.

Do not plug or unplug the motor while standing in or around

damp or wet ground. Do not use the mixer in wet or damp

areas or expose it to rain.

Prevent body contact with grounded surfaces: pipes, radiators,

ranges, and refrigerator enclosures.

Make sure your fingers do not touch the plug’s metal prongs

when plugging or unplugging the mixer.

l KEEP VISITORS AND CHILDREN AWAY

Keep unauthorized persons away from the mixer.

Do not allow children to handle or climb on or in the mixer.

SAFETY WARNINGS & INSTRUCTIONS SYMBOL AFFIXED TO THE MACHINE

l DO NOT OVERREACH

Keep proper footing and balance at all times when loading

or unloading the mixer.

Never stand on mixer. Serious injury could occur if the mixer

is tipped or if the moving parts are unintentionally contacted.

Do not store anything above or near the mixer where anyone

might stand on the mixer to reach them.

l AVOID INJURY FROM UNEXPECTED ACCIDENT

Keep hands out of the way of all moving parts. Do not place

any part of your body or any tool, like shovel in the drum

during operation. When operating, do not pass hands through

the clearance between frame and support arm or the one

between the drum and support arm.

l DO NOT FORCE TOOL

It will do a better and safer job at its design rate. Always work

within the rated capacity.

Do not start the motor if the drum is fully loaded. Do not turn

mixer off while full of concrete.

Do not use the mixer for a purpose for which it was not

intended.

The mixer is not to be towed by any vehicle.

l NEVER LEAVE MIXER RUNNING UNATTENDED

Do not leave mixer until it has come to a complete stop.

l DISCONNECT POWER

Never open the motor cover before unplugging the mixer.

Disconnect from power supply when not in use, before moving,

making adjustments, changing parts, cleaning, or working on

the mixer. Consult technical manual before servicing.

l MAINTAIN YOUR MIXER WITH CARE

Clean the mixer immediately after use. Keep the mixer clean

for best and safest performance.

When maintaining this mixer, only the manufacturer’s original

replacement parts may be used.

l PROTECT THE ENVIRONMENT

Take left over materials to an authorized collection point or

follow the stipulations in the country where the mixer is used.

Do not discharge into drains, soil or water.

l STORE IDLE EQUIPMENT

When not in use, the mixer should be stored in a dry location

to inhibit rust. Keep the mixer away from children and others

not qualified to use it.

Safety Warnings & Instructions ………………...…………………………………………….….......... 2

Electrical Connection ……………………………………………………………………………………...5

Specifications……………………………………………………………………………........................ 5

Contents of Shipping Container ………………………………………………………………….......... 6

Assembly Instructions ………………...…………………………………………………………........... 6

Operation Instructions …………………………………………….……………………………............. 9

Maintenance Instructions ………………………………………………………………………............11

Wiring Diagram ………………..…………………………………………………………………...........11

Parts Schematic ……………………………………………………………………………….............. 12

TABLE OF CONTENTS

SPECIFICATIONS

Model Number

Motor

Drum Capacity

Drum Mouth

Drum Speed

Overall

Sizes

Weight

RWCM125

550W S6 30%

125 Liters

385 mm

26.6 / min

1200 mm

710 mm

1400 mm

52 kg

ELECTRICAL CONNECTION

This mixer is double insulated to Class

II protection and IP45D or IP44D rated.

The insulation will only remain effective

if the original insulating parts are used

for repairs and the spaces between the

original insulation are maintained.

Do not connect either core

to the earth pin.

The use of an Residual Current Device (“RCD”),

(earth leakage trip), on 230V electrics is

recommended. If using an extension cable, plug it

directly into the RCD.

When operating in Switzerland, plug the mixer only

in sockets protected by fault current breaker.

Double insulation eliminates the need

for the three-wire grounded power cord

and grounded power supply system.

Double insulated tools can use either a

two or three wire extension cord.

This mixer is double insulated

to Class II protection and IP45D

or IP44D rated. Assembly and

disassembly of the enclosure

of electric control are critical

to keep them remain effective.

Only qualified electrician is

allowed to repair the enclosure

of electric control.

IP IP45D

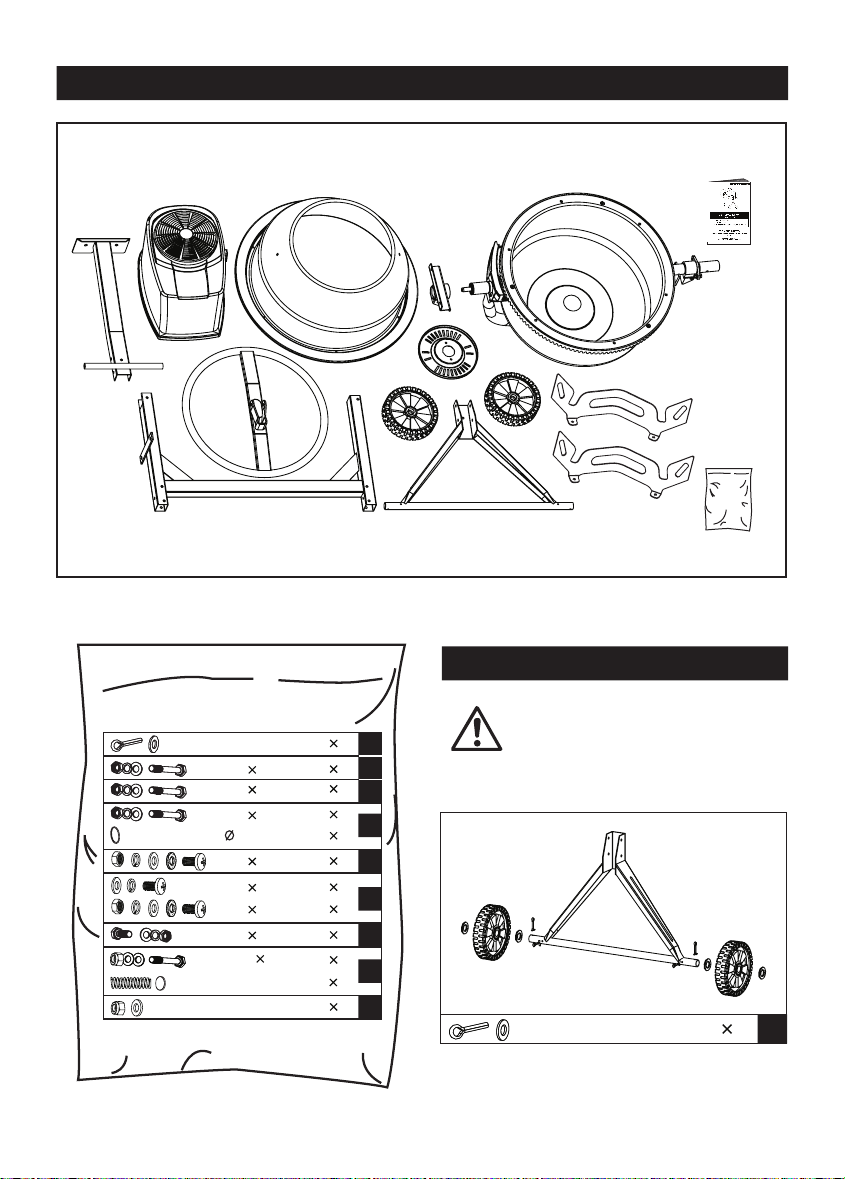

CONTENTS OF THE SHIPPING CONTAINER

Two people assist in assembly

recommended.

ASSEMBLY INSTRUCTIONS

THE STAND

M8 70

M8 65

M8 20

M8 16

M8 20

M8 25

M10 65

142

THE MIXING BLADES

THE BOTTOM DRUM

Turn the frame over and attach the axle

bracket with wheels in the same manner.

Make sure all bolts and nuts are tightened.4.

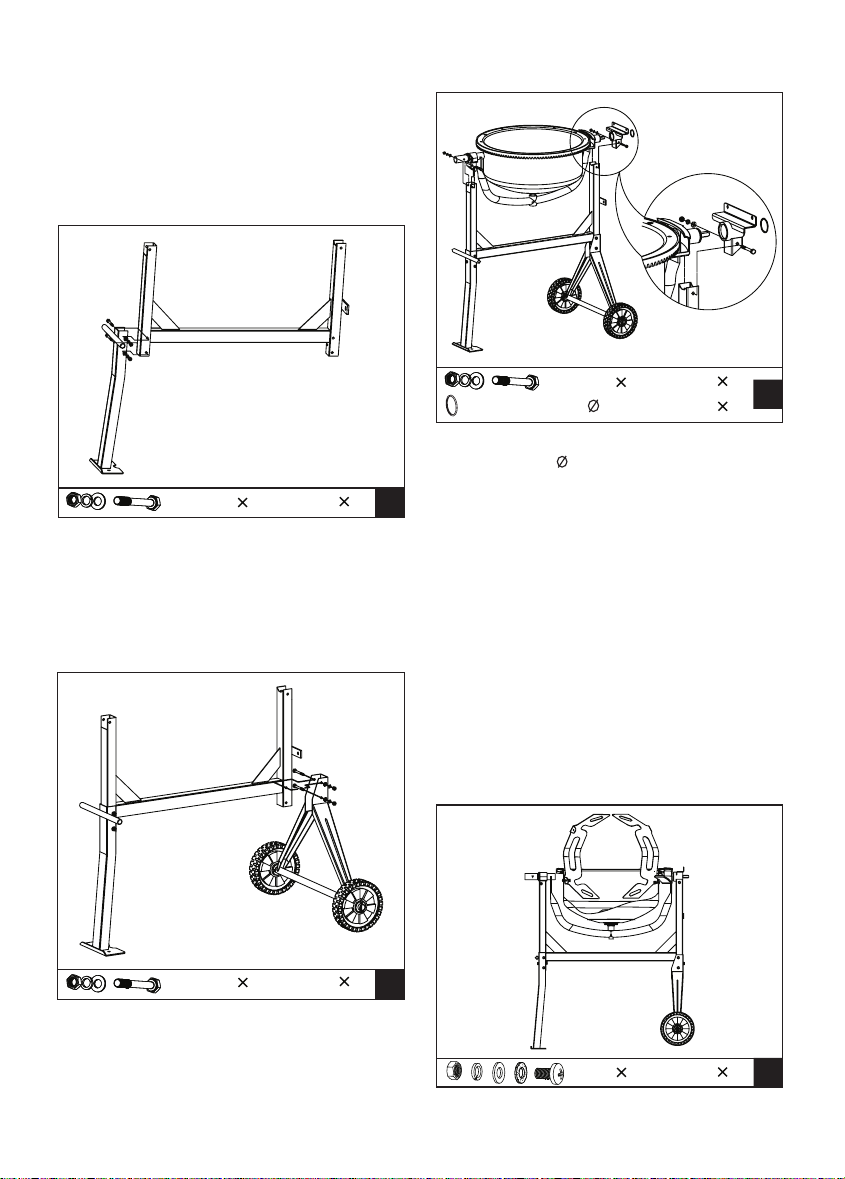

With the frame lying on its side, attach the

support leg as shown. Insert two M8X70 hex

bolts through the holes from one side, then

flat washers, lock washers and nuts from the

other side. Tighten down.

Carefully, and with two people, set the bottom

drum with support arm onto the side supports

of the stand as shown, so that the bearing

blocks slot into the channels provided by the

side supports. The larger diameter shaft

should be at the leg end of the stand.

At each side, line up the holes in the side

support with those in the bearing block and

insert a M8X65 hex bolt from one side, then

a flat washer, lock washer and nut from the

other side. Tighten with a wrench.

With a split pin inserted into the inner holes

in each stub axle, place a flat washer, then

a wheel followed by another flat washer.

Insert another split pin into the axle holes

outside each flat washer. Bend each side of

the pins outward so they do not fall out.

M8 65

142

Slide the bearing block on the shaft. Hold it

in place with 42 spiral ring.

M8 70

M8 20

NOTE:

THE UPPER DRUM

THE TIPPING WHEEL

Mount the mixing blades inside the bottom drum

loosely as shown - Two holes are provided at

the base of the drum into which a M8X20 bolt

may be inserted from the outside. A leather

washer, flat washer, lock washer and a nut

should be threaded on loosely on the inside.

The leather washer should be placed under the

blade down against the drum.

Two arrows are labeled on upper

drum and bottom drum to make

their position relation. If you have

any difficulty in correctly

positioning the mixing blades, it is

helpful if you temporarily mount

the upper drum on the top of the

bottom drum, rotating it so that the

two arrows line up.

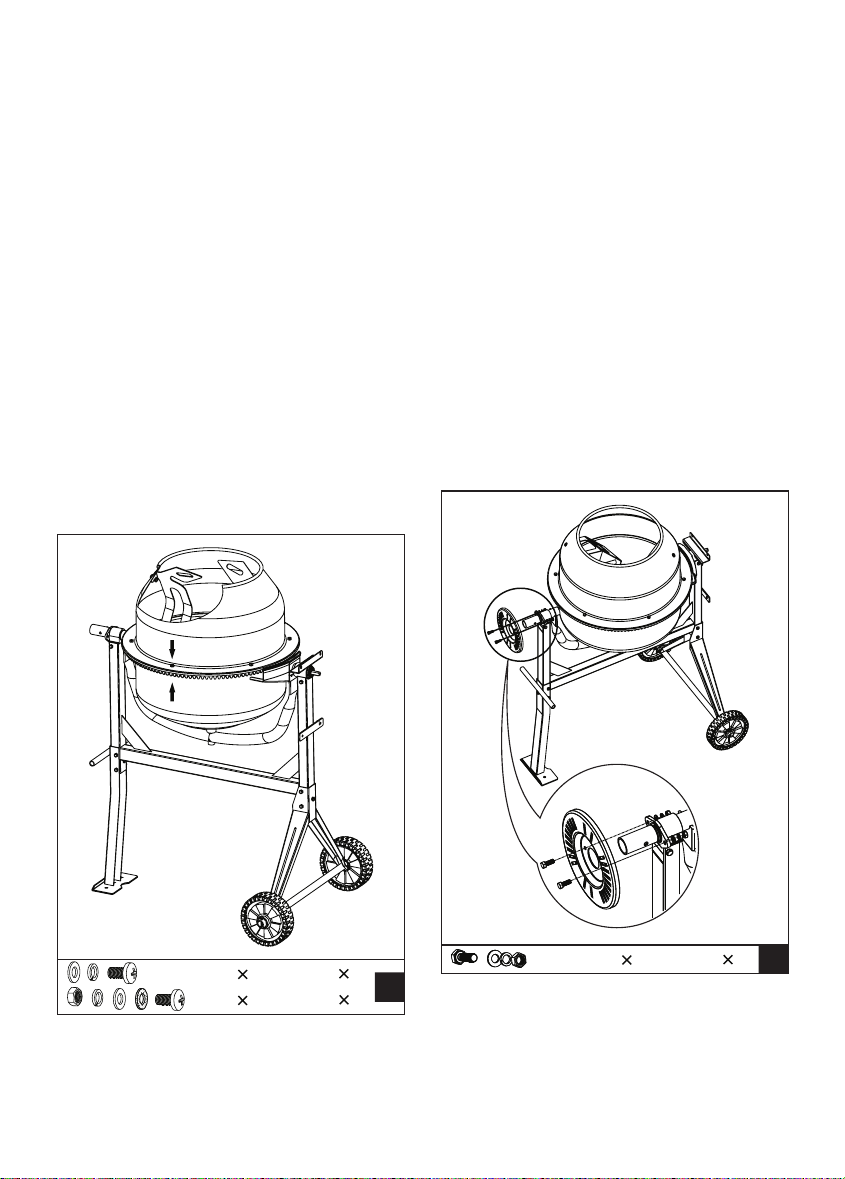

Position the upper drum on bottom drum

over the rim, making sure the mounting holes

align in both as well as the labeled arrows.

Secure the mixing blades to the upper drum

by inserting two M8X20 cross headed screws,

from the outside through the holes in the

drum.

A leather washer should be positioned inside

between the drum and blade. Secure the

mixing blade on the inside using a flat washer,

spring washer and nut.

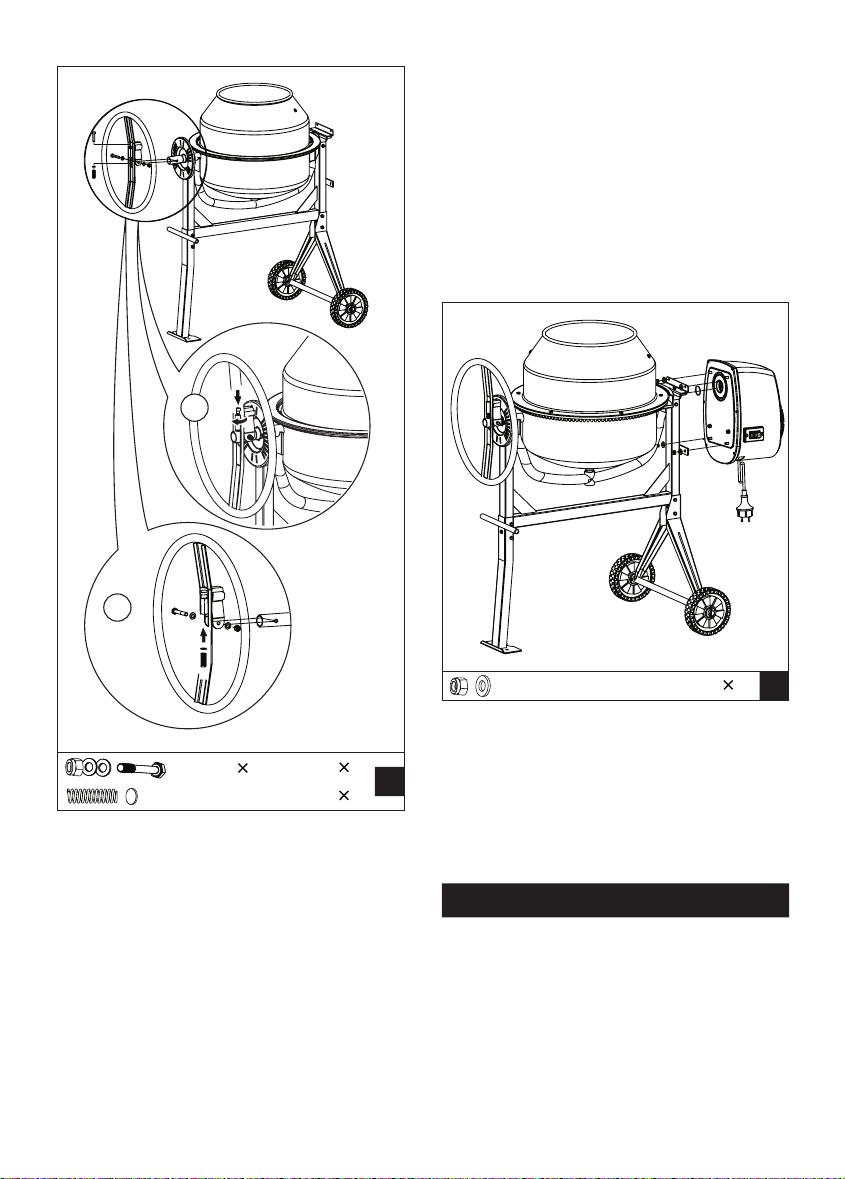

Slide the locking plate over the large diameter

shaft at the leg end of the frame with the rim

facing inwards as shown. Secure with two

M8X25 bolts, each with a nut, lock and flat

washers.

Finally, ensure top and bottom mixing blade

mountings are tight.

2. Screw a M8X16 hex bolt with spring and flat

washers into each threaded hole in the

rim/ring gear. Make sure the tightening

process is carried out progressively.

M8 25

M8 20

M8 16

THE TRANSMISSION CASE

The wheel must be allowed to pivot

about the bolt so that the lugs on

the bracket can be engaged or

disengaged from the slots in the

locking plate.

NOTE:

Lining up the keyways, slide the transmission

case over the pinion shaft. Secure the case to

the frame with four M8 nuts and flat washers.

OPERATION INSTRUCTIONS

The spring-loaded tipping wheel with locking

lugs provides an easy positive control of the

drum which can be locked in the mix, discharge

and stored position.

DRUM TILTING

Insert the spring with the washer on the top

into the sleeve on the tipping wheel. Slide

the wheel over the larger diameter shaft until

the holes in the braket line up with the hole

drilled. Insert a M10X65 hex bolt with a flat

washer and screw on a nut with a flat washer

from the other side. Screw the nut up against

the bracket firmly, but not so tightly so as to

prevent the wheel from pivoting about the

bolt. Tighten the M10X30 socket head cap

screw on the sleeve to adjust the spring

tension.

M10 65

The drum is locked in position by lugs on the

self-locating tipping wheel which engage into

the locking plate on the mixer frame. To tilt the

drum, withdrawn the tipping wheel to dis-engage

the locking lugs. This then allows the tipping

wheel and drum to be turned in the same

direction.

To retain the drum in position, aligning the lugs

with the slots, release the tipping wheel a little

while retaining the drum. Rotate the tipping

wheel until the locking lugs engage into the

locking plate on the mixer frame.

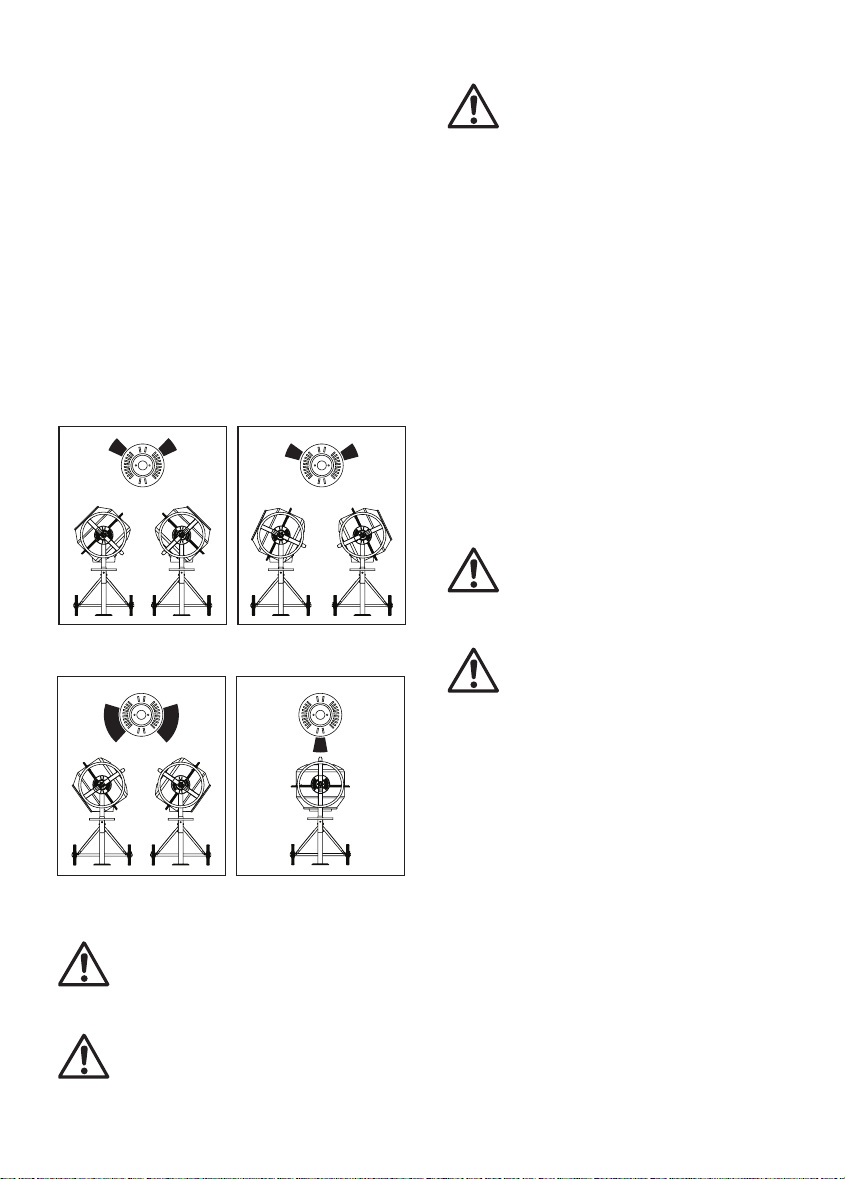

Loading/Mixing Position

For Mortar For Concrete

Emptying Position Storage Position

Completely unwind the extension

cord. Connect it to the concrete

mixer first before plugging in power

supply.

Always start the mixer before

loading the drum. Loading the drum

with drum rotating.

Do not throw material into the

mixer to avoid sticking firmly to

the back of the drum. Trickle it

steadily over the ram.

For best results, proceed as follows:

1. Add the required amount of gravel into the

drum.

Add the required amount of cement into the

drum.

Add the required amount of sand into the

drum.

Pour the required amount of water into the

drum.

EMPTYING

Do not turn mixer off while full of

load. Emptying the drum with drum

rotating.

CLEANING

Never put hands inside the drum

with drum rotating.

Thoroughly clean the mixer at the end of each

day’s operation. Keep your mixer clean. The

slightest trace of material left in the drum will

harden and attract more each time you use it

until the machine is useless. Dried cement should

be scraped out of the drum. Do not throw bricks

into mixer drum to clean it out. Do not beat on

the drum with a shovel, a hammer or other tools

to break up accumulations of dried cement mix,

as damage to the mixer may result. The drum

may be scoured for approximate 2 minutes,

using 1” gravel and water mixture. Then

discharge the gravel/water mixture and hose

down the drum assembly inside and out. The

IP45D or IP44D protection class construction

of the concrete mixer enables you to hose down

the drum assembly safely.

A built-in thermal protecter is

arranged in the motor to prevent it

from overheating. The thermal

protecter restores automatically

when the motor cools down.

NOTE:

Inhaltsverzeichnis

Andere RocwooD Baumaschinen Handbücher

RocwooD

RocwooD RWCM63 Bedienungsanleitung

Beliebte Baumaschinen Handbücher anderer Marken

SASFORKS

SASFORKS EXTREME Bedienungsanleitung

Hailo

Hailo H-50 Bedienungsanleitung

Graco

Graco LineLazer ES 1000 Gebrauchs- und Pflegehandbuch

Greenlee

Greenlee 555RSC Bedienungsanleitung

Manitowoc

Manitowoc Grove CD3340B Bedienungsanleitung

Lux Tools

Lux Tools A-FMR-20 Set Bedienungsanleitung

SIP

SIP 03683 Bedienungsanleitung

Volvo

Volvo L30G Bedienungsanleitung

Grizzly

Grizzly G8712 Bedienungsanleitung

Modulift

Modulift CMOD 12 Bedienungsanleitung

Case

Case DV201 Bedienungsanleitung

Sealey

Sealey SC10.V2 Bedienungsanleitung

Wacker Neuson

Wacker Neuson DT05 Bedienungsanleitung

HYVA

HYVA AMCO VEBA 81 Series Bedienungsanleitung

Atlas Copco

Atlas Copco Dynapac V5100TV Bedienungsanleitung

Toro

Toro 323 Bedienungsanleitung

Manitowoc

Manitowoc National Crane 1400A Bedienungsanleitung

SGS

SGS EC1500 Bedienungsanleitung
