Rointe KYROS SHORT Bedienungsanleitung

MANUAL DE INSTALACIÓN Y USO

Página 31

MANUAL DE INSTALAÇÃO E DE UTILIZAÇÃO

Página 59

INSTALLATION AND USER MANUAL

Page 03

KYROS SHORT Low consumption digital radiator / Radiador

digital de bajo consumo / Radiador digital economizador de energia

GUARANTEE / GARANTÍA

/ GARANTIA

ON THE BODY

EN EL CUERPO

NO CORPO

YEARS / AÑOS

/ ANOS

YEARS / AÑOS

/ ANOS

ON ELECTRONICS

EN ELECTRÓNICA

NA ELECTRÓNICA

KYROS SHORT DIGITAL RADIATOR

SYMBOLS

DANGER. This symbol indicates a medium-high risk hazard which can result in

serious injury or even death.

DO NOT COVER. Do not dry or leave clothes or towels on the radiator. Do not

leave or place magazines, spray cans, volatile substances, or similar objects

within 250 mm of the radiator.

HOT SURFACE. This symbol indicates that your surfaces are hot during and

immediately after use. These must not be touched: danger of burns.

OBSERVE THE INSTRUCTIONS IN THE MANUAL. Please read this manual

carefully before installing and using the product. Keep it for later use. Read all

instructions and safety warnings. Failure to follow these can result in electric

shock, re or serious injuries.

INDEX

1. General Warnings ............................................................................................................ 5

2. Technical information .................................................................................................... 8

3. Installation........................................................................................................................ 9

4. Screen & Keypad ............................................................................................................ 12

5. Functionality and programming ................................................................................. 13

5.1. ON / OFF (stand-by) ...............................................................................................13

5.2. Adjust the day and time......................................................................................... 13

5.3. Adjust the temperature ........................................................................................ 14

5.4. Lock the control panel...........................................................................................14

5.5. Main menu ............................................................................................................. 15

5.6. Main menu: Submenu settings ............................................................................ 15

5.7. Main Menu: Energy sub-menu .............................................................................. 16

5.8. Main menu: Equilibrium / Balance sub-menu ....................................................18

5.9. Main menu: Program sub-menu .......................................................................... 18

5.9.1. Manual/Automatic functions.......................................................................... 19

5.9.2. Programming options..................................................................................... 19

5.9.3. User mode........................................................................................................23

5.10. Energy saving functionalities..............................................................................25

6. Maintenance and cleaning ...........................................................................................25

7. European Regulation (WEEE) 2012/19/EU .................................................................26

8. Guarantee ......................................................................................................................26

9. How to register your product guarantee ....................................................................29

Directive ERP Commission Regulation ..........................................................................86

EU Declaration of Conformity ..........................................................................................87

KYROS SHORT DIGITAL RADIATOR

1. GENERAL WARNINGS

WARNINGS

This product may be used by children over 8 years of age

and by persons with reduced physical, sensory, or mental

capabilities, or lack of experience and knowledge under strict

supervision or instruction in the safe use of the product and

if they understand the hazards involved. Children should not

plug, adjust, clean, play with, or perform maintenance on this

product. Children under 3 years of age should be kept away

from this product unless supervised.

DO NOT use the product in enclosed spaces if the persons

present cannot leave the room independently and are not

under constant supervision.

DO NOT COVER. To avoid overheating, do not cover the

radiator.

DO NOT place spray cans, volatile substances, or similar

objects within 250mm of the product.

DO NOT use insecticides, paints, or chemicals on or near the

product.

Some parts of this product could reach high temperatures

and cause burns. DO NOT touch the external parts of the

product when in operation.

DO NOT install near curtains or other ammable materials.

Particular attention should be paid when children and

vulnerable people are present.

When using electrical appliances, precautions should be

taken to reduce the risk of re, electric shock and injury.

Never insert ngers, body parts or objects inside the product.

Make sure that the voltage indicated on the product’s

technical information corresponds to the voltage output you

have at your socket.

Any repair or maintenance that requires the product to

be opened the product must be carried out by personnel

authorised by ROINTE, who must also be notied if a leak

is observed. Only ocial spare parts approved by ROINTE

should be used. Please observe the current and relevant

regulations when disposing of this product and its thermal

uid.

If the power cable is damaged, it must be replaced by

personnel authorised by ROINTE to prevent any damage.

To avoid the risk of suffocation, do not leave the packaging

including bags and other items within reach of babies or

children.

The product has an IP24 degree of protection and can be

used in bathrooms, but not in the vicinity of bathtubs, taps,

showers, water connections, toilets, swimming pools or other

masses of water. The product must never be installed where

it, the switches or the control panel are within the reach of

people in the water. Never use the product with wet hands.

Do not place any water containers (glasses, vases, etc.) on or

near the product.

KYROS SHORT DIGITAL RADIATOR

IMPORTANT

Disconnect the product from the power supply and make

sure the product is at room temperature before any cleaning

or maintenance. Do not use any abrasive substances on

the product, such as (but not limited to) chemicals, coarse

cloths, brushes, hard bristle, or wire/steel wool.

To disconnect the product from the power source, remove

the mains plug from the socket. Do not pull on the cable.

ROINTE cannot be held responsible for incorrect sizing of

the product unless it has been followed by an ocial ROINTE

technical study.

Before the rst start-up, or before the start of winter, or when

the product has not been used for many days, the appliance

should be cleaned (follow the steps in the “maintenance”

section of this manual).

Do not sit or lean on the product.

Temperature contrasts can generate “clicks” or noises in

the device. This is not a fault of the product, but due to the

expansion/contraction of the materials.

When disposing of the product, the requirements set out in

the legislation for the waste treatment and recycling must be

followed. See WEEE in section 7.

2. TECHNICAL INFORMATION

MODELS KRI1100RADC3 KRI1300RADC3 KRI1500RADC3

Number of elements 11 13 15

DIMENSIONS, WEIGHT & FINISHES

Width (mm) 990 1,150 1,310

Height (mm) 420 420 420

Depth (mm) 95 95 95

Installed depth (mm) 118 118 118

Weight (kg) 17.9 21.0 24.8

Finishes White RAL 9016

ELECTRICAL CHARACTERISTICS

Nominal power (W) 1,100 1,300 1,500

Effective power (W) 418 494 570

Voltage (V) 230 ~V 230 ~V 230 ~V

Current (A) 5.3 6.2 7.0

SAFETY & INSTALLATION

Template & Installation Kit ✓ ✓ ✓

Protection grade IP24 IP24 IP24

Safety thermostat ✓ ✓ ✓

EAN CODE 8436045915894 8436045915900 8436045915917

KYROS SHORT DIGITAL RADIATOR

3. INSTALLATION

We recommend using a trusted Rointe supplier for installation of the product. Find the

nearest one by calling us on 0203 321 5929 or using the locator on www.rointe.co.uk.

IMPORTANT: Prior to installation, please locate the metal tag located at the back of the

product and note the product reference and serial number. You will need this information

to register your guarantee. See section 9 for help on how to register the guarantee.

WARNING: Do not install the product directly over an electrical outlet or junction box.

Do not install the product or use it outdoors. Do not install directly under a shelf. This

product is designed to be installed on an interior wall using the ROINTE template, the

installation kit and the xings supplied. Do not install the product in such a way that it

encounters the power cable.

The product must be mounted on the wall in the position shown in the accompanying image

using the brackets and with the xings supplied.

Our products transfer heat through the natural air convection. If the product is covered, this

will disrupt the airow and could cause overheating. It must be positioned in accordance

with the minimum distances shown in the accompanying picture.

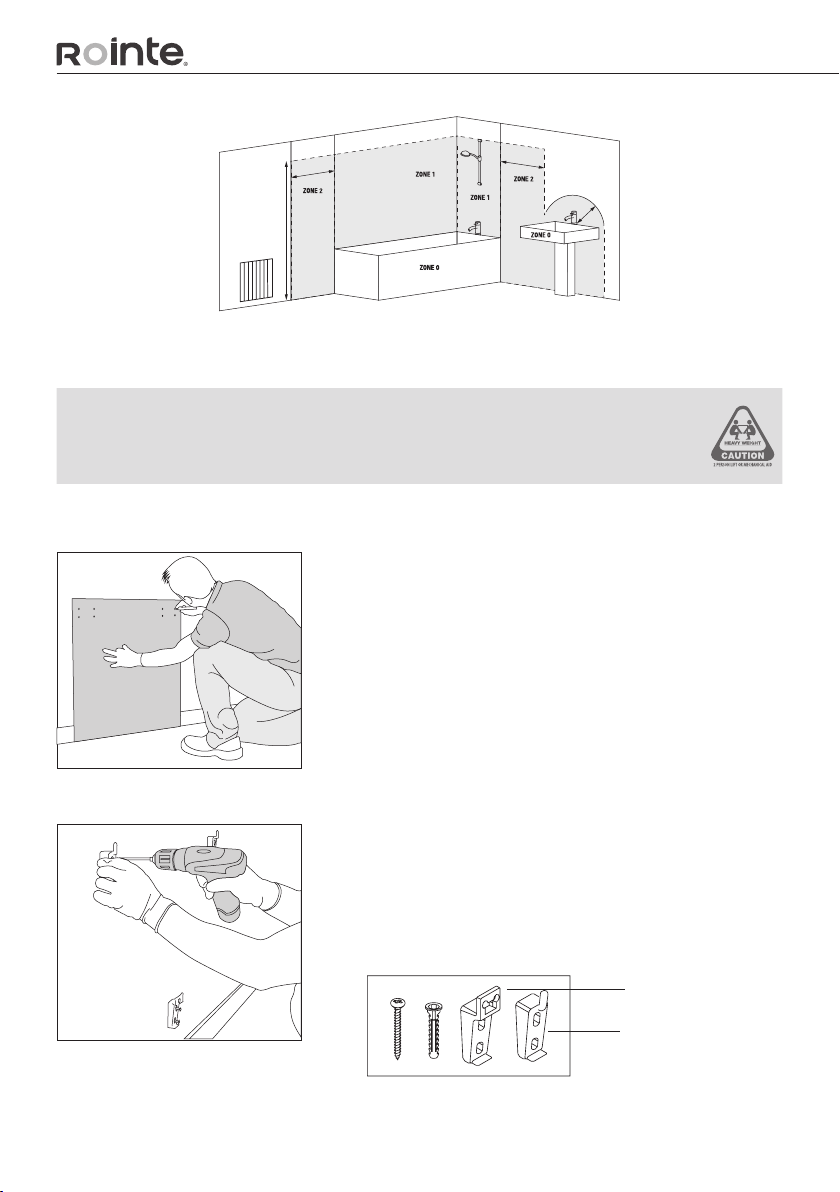

WARNING: The product has an IP24 degree of protection and can be used in bathrooms,

but not in the vicinity of bathtubs, taps, showers, water connections, toilets, swimming

pools or other masses of water. The product can only be installed in zone 3 of the

accompanying picture. The product must never be installed where it, the switches or the

control panel are within the reach of people in the water. Never use the product with wet

hands. Do not place any water containers (glasses, vases, etc.) on or near the product.

Floor

Wall

EXTERIOR ZONE EXTERIOR ZONE

2.25 m

0.6 m 0.6 m

0.6 m

An installation kit is included in the product packaging. You will need a drill, a rubber mallet,

a spirit level and a pencil to complete the installation.

WARNING: The weight of some of the products may be heavy. The installation

may require two people.

IMPORTANT: Please follow these instructions carefully.

1. Remove the packaging and check that the installation

contains brackets, screws, rawl plugs and a cardboard

template.

2. Select a suitable location on the wall. Place the

template on the wall and mark the holes for the

brackets and screws. Observe the minimum distance

requirements from the previous page.

Use the oor as a base for the template, not the

skirting board.

3. Remove the template and carefully drill out the

marked holes.

4. Secure the upper brackets with the rawl plugs

and screws provided. Then x the lower bracket. To

distinguish it, the lower bracket has a different design

from the top ones.

Bottom bracket

Top bracket
