Rointe D SERIES Bedienungsanleitung

Instruction Manual

Assembly, installation, start-up

and operating instructions

D Series with

Water Heater

DELTA Ultimate

technology

Many thanks for your confidence in our Rointe products. Before

you start to use the low-consumption digital electrical D Series

with Delta Ultimate technology water heater we recommend that

you read this manual carefully in order to use the product correctly

with the maximum guaranteed results.

Thank you.

INDEX OF CONTENTS

1. INSTALLATION ........................................................................................4

1.1. Accessories ....................................................................................4

1.2. Placement ......................................................................................4

1.3. Location .........................................................................................4

1.4. Water System installation ...............................................................5

1.5. Electrical Installation ......................................................................6

1.6. Safety .............................................................................................9

2. USE .........................................................................................................9

3. ELECTRONIC CONTROL FUNCTION ...................................................10

3.1 Description of the front panel .........................................................11

3.2 Switch On and Off (Stand By) ........................................................13

3.3 Select Temperature ........................................................................14

3.4 Lock the Control Panel ...................................................................14

3.5 Adjust Date and Time .....................................................................15

3.6 Main Menu .....................................................................................16

4. ADVANCED FUNCTIONALITY ...............................................................31

5. FUZZY LOGIC ENERGY CONTROL ......................................................32

6. MAINTENANCE ......................................................................................32

7. CONDITION OF THE GUARANTEE ........................................................33

8. DIMENSIONS AND TECHNICAL CHARACTERISTICS ..........................38

1. INTRODUCTION

1.1. Accessories

The electric water heater, or boiler by accumulation under

pressure, is provided with basic elements for its installation,

such as:

• Insulating sockets.

• Safety valve.

These accessories are included within the packaging.

1.2. Placement

In order to fix the heater to the wall, you will have to use suitable

rawlplugs, screws, or other fittings to support the weight of the

heater when it is full.

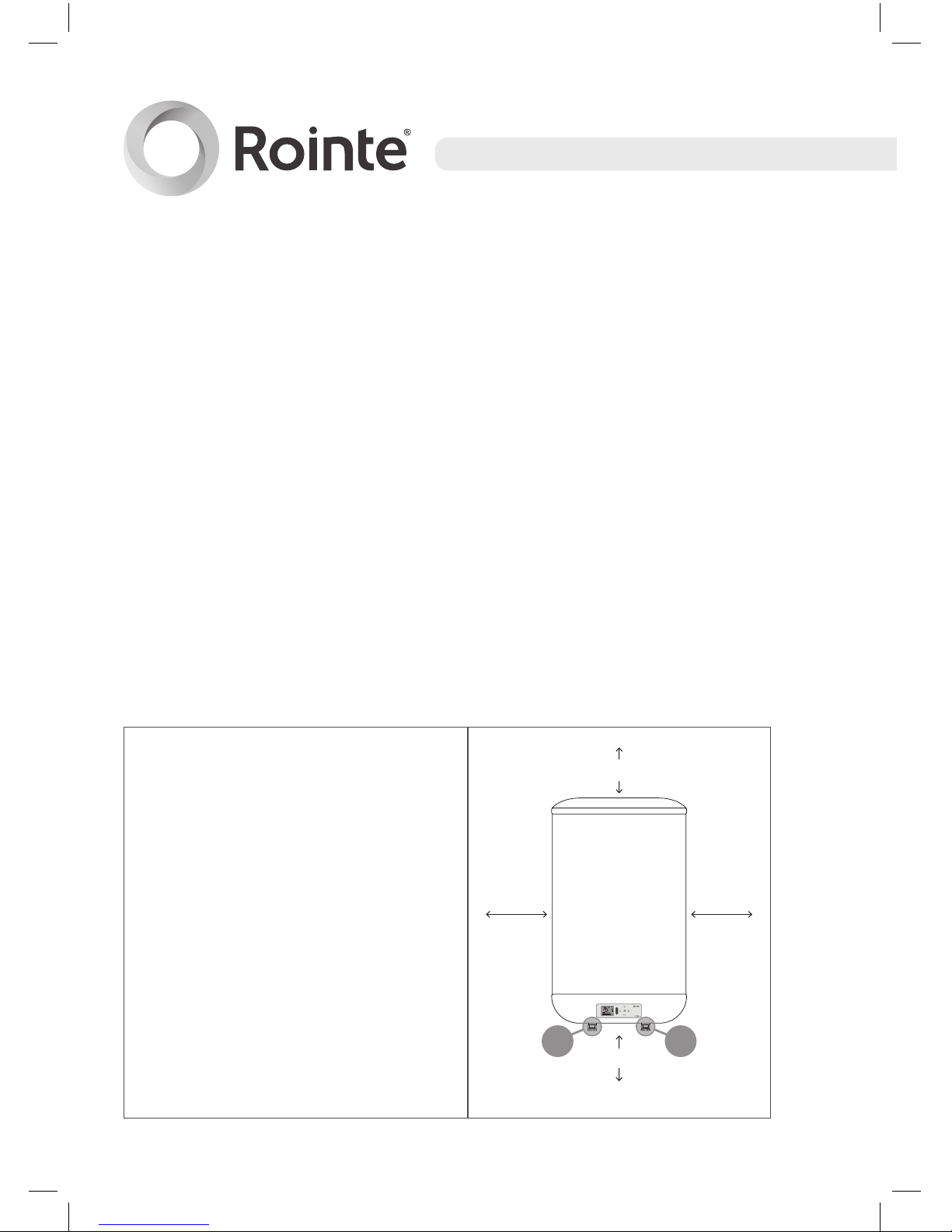

1.3. Location

It is essential that the heater

is situated as near as possible

to the place where hot water

is required. In this way, water

temperature loss in the

pipework can be avoided.

Leave a minimum space of 500

mm below where the pipes

exit the heater to allow access

for maintenance and repair

and any necessary future

maintenance operations

150 mm

100 mm 100 mm

540 mm

H C

D Series with DELTA Ultimate technology

Do not install the heater horizontally with the wall supports

horizontal or over the oor.

1.4. Water system installation

WARNING TO THE INSTALLER: the insulating sockets provided

with the heater must be placed on the entrance and exit pipes to

eliminate the risk of galvanic pairs as teon is used in the thread

of the pipes.

A- The heater MUST be installed with the security tting that comes

with it. No water system accessory may be placed between the

security tting and the cold water pipe (stop cock, anti-return, etc).

The security tting drainage outlet MUST be connected to a

water drainage pipe that has to have a diameter that is at least

equal to the diameter of the pipe connected to the boiler, with

a continuous inclination, open to the atmosphere and with a

minimum distance of 20 mm. During the warm-up time the water

expands producing a drip (approximately 3% of its capacity during

each heating cycle). This is not a cause for concern because it

is a normal phenomenon. Please ensure that the water drainage

conduct pipe is protected from frost. To drain the heater, lift the

handle of the security tting. It is also necessary for this handle to

be periodically checked to avoid blockage by, for example: mud

deposits, limescale deposits, etc.

B- When the pressure of the network is higher than 5 bars, it is

necessary to install a pressure reducer as near as possible to

the meter.

1.5. Electrical installation

The appliance requires a single-phase 230 V supply. It is

necessary to check carefully that the supply voltage agrees

with the required voltage of the appliance. The heater does not

need installation requirements outside the norm, therefore it is

suitable for installation in accordance with the Electrotechnical

Low Voltage Regulations.

The power supply will have to be wired through a omnipolar

interrupter, circuit breaker or contactor. The installation must

be protected with fuses of a rating that corresponds with the

intensity absorbed. The socket must be placed in such a way

that when the heater is installed the plug is accessible. An

earth connection must be included throughout the electrical

installation. In order to ensure this connection the plug comes

provided with the relevant contact. It is important that the style

of any other plug used is the same type as the one provided

with the appliance.

The electrical system of the premises or house must be

checked to ensure that it is equipped with an “EARTH” wire.

This appliance complies with the regulations on radio-electric

disturbances and interferences.

NOTE: All maintenance and replacement of the ttings is

prohibited (including the feed cable), unless it is authorised by

the Technical Assistance Department.

D Series with DELTA Ultimate technology

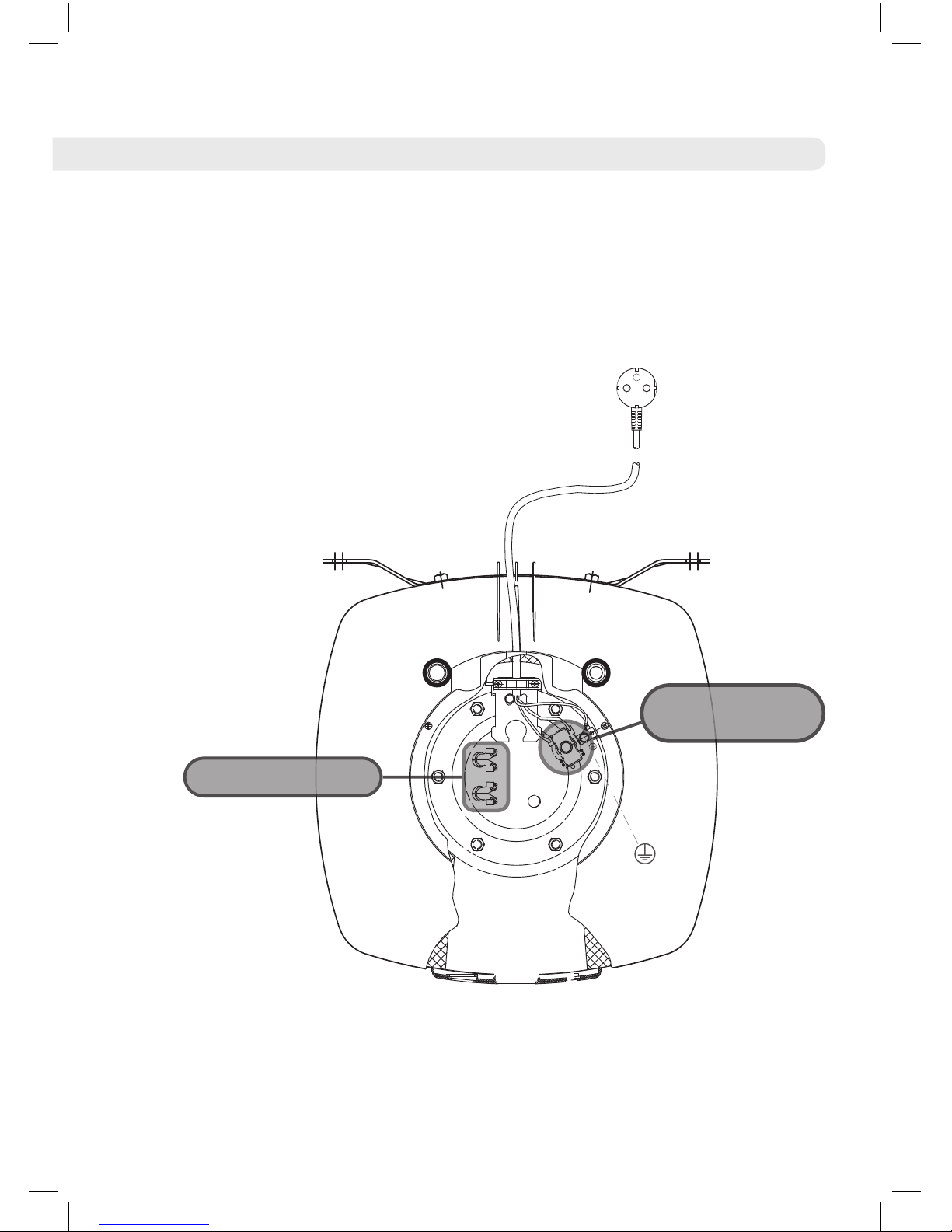

Wiring diagram - D Series water heater.

COLD HOT

EARTH

CONNECTION

HEATING ELEMENTS

THERMAL

CUT OUT

RED

BLACK

BLUE

THERMAL

CUT OUT

HEATING

ELEMENTS

NTC

SENSOR

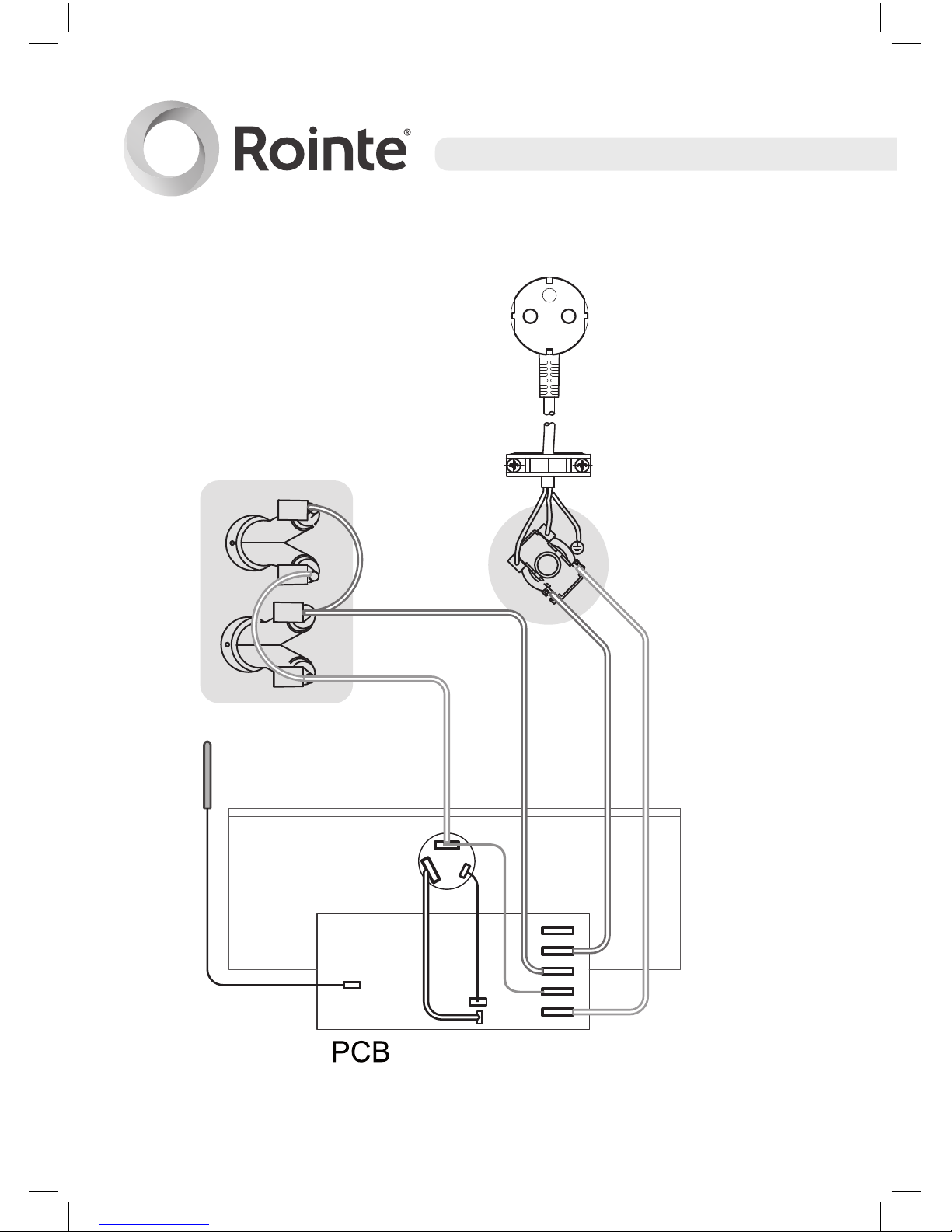

Assembly schematic - D Series water heater.

D Series with DELTA Ultimate technology

1.6. Safety

This water heater can be used by children aged 8 years and above

and persons with reduced physical, sensory or mental capabili-

ties or lack of experience and knowledge if they are supervised or

have been given instruction concerning use of the appliance in a

safe way and understand the hazards involved. Cleaning and user

maintenance shall not be made by children without supervision.

Children must be supervised at all times to ensure that they do not

play with the product.

2. USE

2.1. Operation

Filling. Once the heater has been installed, open the stop cock.

Then open the hot water taps. When the water begins to come out

of them the heater is full. Close the taps and check thoroughly that

there are no leaks in the installation. Do not connect the heater to

the mains supply before ensuring that it is full of water.

Electrical connection. Plug in the heater, switch on and leave the

appliance connected to the electricity supply. Once a certain

amount of hot water has been used, the thermostat switches the

heating element back on.

Draining. In prolonged periods without use, and if there is risk of

frosts in the premises where it is installed, the heater must be

drained. It is possible to do this using the safety valve.

In all cases:

• Cut the current

• Close the tap where water enters the Installation.

• Drain through the safety group using the lever.

3. DESCRIPTION OF THE D SERIES WATER HEATER
