Rollplay W510AC-YD Montageanleitung

Read and understand the entire manual before assembly and operation. The vehicle must be

assembled by an adult who has read and understands the instructions.

Made in China.

Styles and colours may vary. Do not return to store. Call 1-888-982-9309 for assistance

and replacement parts.

IMPORTANT:

Save this manual with your sales receipt.

Owner’s Manual and Assembly Instructions

Model #: W510AC-YD

6V GMC Yukon Denali Fire

Introduction

Thank you for purchasing this RollPlay vehicle from Rollplay. We hope

the rider enjoys it for miles to come. Please read this instruction guide

carefully before assembling and operating the vehicle. Please have your

model number and serial number ready before calling. Please have proof of

purchase. Keep your sales receipt or register your product at

www.rollplay.net.

Please contact Rollplay Customer Service with any questions.

Hours: 9 AM - 5 PM (CST), Monday - Friday

Phone: 1-888-982-9309

Email: customerservice@rollplay.net

Web: www.rollplay.net

Speciﬁcations:

BATTERY 6V 7AH

MOTOR 6V 15W

AGE 3 Years and Up

MAX WEIGHT 35 kg (77 lbs)

PRODUCT SIZE 121 x 47 x 65 cm (47.6” x 18.5” x 25.6”)

SPEED 4 km/h (2.5 MPH)

RECHARGE TIME 8-12 Hours

TYPICAL RUN TIME 1-2 Hours

CHARGER OUTPUT DC 7.0V0.7A

IMPORTANT!

YOU MUST CHARGE THE BATTERY

FOR 24 HOURS BEFORE FIRST USE!

Charge the battery after each use.

Charge the battery at least once a month, even if the vehicle is not in use.

DO NOT RETURN THIS ITEM

TO THE STORE!

Call Customer Service if you need assistance or replacement parts. Please

have your model number and serial number ready before calling. Please

have proof of purchase. Keep your sales receipt or register your product at

www.rollplay.net as we may require proof of purchase.

1-888-982-9309

Read this entire manual to ensure

proper assembly and safe operation

of the vehicle.

This page is intentionally left blank.

Table of Contents

Safety..........................................................6

Parts ..........................................................8

Charging Instructions ...............................9

Assemble the Wheels..............................10

Assemble the Right Rear Wheel ............11

Assemble the Mirrors..............................12

Attach the Megaphone/Searchlight.......13

Assemble the Steering Wheel ................14

Assemble the Front Bumper...................15

Assemble the Seat ..................................16

Operation Instructions ............................17

Battery Removal ......................................18

Maintenance ............................................19

General Care ............................................20

Troubleshooting Guide............................21

FCC Information ......................................23

Service and Repairs ...............................24

Warranty ...................................................25

Product Registration ...............................26

6Safety

WARNING: SAFETY RIDING RULES

The user must follow all safety rules and guidelines, or serious injury or death may

occur to the user.

• Always use common sense and safe practices when using the vehicle. The user

must be at least 3 years old and weigh no more than 35 kg (77 lbs).

• This product contains small parts that are for adult assembly only. Keep small

children away when assembling. Remove and dispose of all protective material

and plastic bags before assembly.

• Riders must always wear a tted helmet that complies with U.S. Consumer

Product Safety Commission (CPSC) Standard 16 CFR 1203.

• Only sit on the seat in the vehicle.

• Do not allow more than one rider.

• Do not overload the vehicle. Do not remove the weight restriction decals.

• Do not pull the vehicle with another vehicle or similar device.

• Keep body parts such as hands, legs, hair and clothing away from moving parts.

Moving parts can cause serious injury.

• Always wear shoes in the vehicle.

• Do not operate near streets or motor vehicles.

• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on

relatively level ground.

• Do not operate near water, swimming pools or other uids.

• Do not operate in dangerous weather conditions such as rain or snow.

• Do not operate near loose dirt, mud, sand or ne gravel.

• Do not operate near ammable vapors (gasoline, paint thinner, acetone, etc.).

• Always use the vehicle in a safe, secure environment with adult supervision.

PREVENT INJURIES AND DEATHS:

NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in

vehicle. Direct adult supervision is REQUIRED.

NEVER use in roadways, near cars, on or near steep inclines or steps, swimming

pools or other bodies of water.

ALWAYS wear shoes

ALWAYS sit on the seat

RISK OF FIRE. Do not bypass.

Safety

(Continued)

WARNING: BATTERY SAFETY

• Battery posts, terminals and related accessories contain lead and lead compound

(asic) chemicals known to the state of California to cause cancer, reproductive

harm, and are toxic and corrosive. DO NOT open the battery.

• Contact exposure to battery leakage (lead acid) may cause serious injury.

Immediately contact your doctor if exposure occurs. If the chemical is on the skin,

ush immediately with cool water for 15 minutes. If the chemical is swallowed,

immediately give the person water or milk. Do not give water or milk if the person

is vomiting or has decreased alertness. Do not induce vomiting.

• Tampering with or modifying the electric circuit system may cause shock, re or

explosion. It could permanently damage the system. Keep the charger housing

closed to prevent exposed wiring, which may cause electric shock.

IMPORTANT: Before using the vehicle for the rst time, the battery must be

charged for a full 24 hours (no more than 30 hours).

WARNING: ADULT SUPERVISION

REQUIRED

• Before using the vehicle, the rider must understand the vehicle controls and safety

issues.

• It is the responsibility of the adult to educate the child and to determine if the child

is capable of understanding the vehicle controls.

• An adult must ALWAYS directly supervise the use of this vehicle.

• NEVER leave a child unsupervised in the vehicle.

8Parts

1. Manual

2. Steering Wheel

3. Seat

4. Searchlight

14.7. MP3 Cable

5. Megaphone

6. Left and Right Mirrors

7. Front Wheels (2)

8. Rear Wheels (2)

9. Rims (4)

10. Front Bumper

11. Car Body

12. Battery

13. Battery Charger

14. Blister Pack

14.1. Steering Wheel Screw (1)

14.2. Steering Wheel Nut (1)

14.3. Snap pin (4)

14.4. Φ10 Small Washer (4)

14.5. Φ12 Large Washer (3)

14.6. Inner Wheel Spacer

rPhillips screwdriver

rPliers

r2 AA Batteries

Not Included:

712 13

14.1

14.2

14.3

14.4

14.5

14.6

14.7

Helpful Tip:

1. Parts 14.1-14.7 are located

in the blister pack

2. Spare parts:

Small washer 1

Large washer 1

Snap pin 2

Charging Instructions

ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

To Charge the Battery:

1. Ensure the vehicle is stopped and turned

off.

2. Unlock and remove the seat.

3. Locate the red battery connector (A)

that attaches directly to the battery.

4. Connect the red battery connector to the

red battery charger connector (B).

5. Plug into a 120 V outlet.

To Reconnect the Battery:

6. Unplug the battery charger from the

outlet.

7. Unplug the red battery connector from

the red charger connector (B).

8. Connect the red battery connector (A) to

the red engine connector (C).

9. Replace the seat and tighten lock.

Note: It is not necessary to remove the

battery for charging. However, if the

battery does not reach the outlet, it can be

removed for charging. For Battery Removal

instructions, see Page 18.

YOU MUST CHARGE THE BATTERY FOR 24 HOURS

BEFORE THE FIRST USE!

Helpful Tip:

1. Ensure the red battery connector

is connected to the red engine

connector

2. Ensure the white gear box connector

is connected to the white engine

connector

3. NEVER connect a red connector to a

white connector

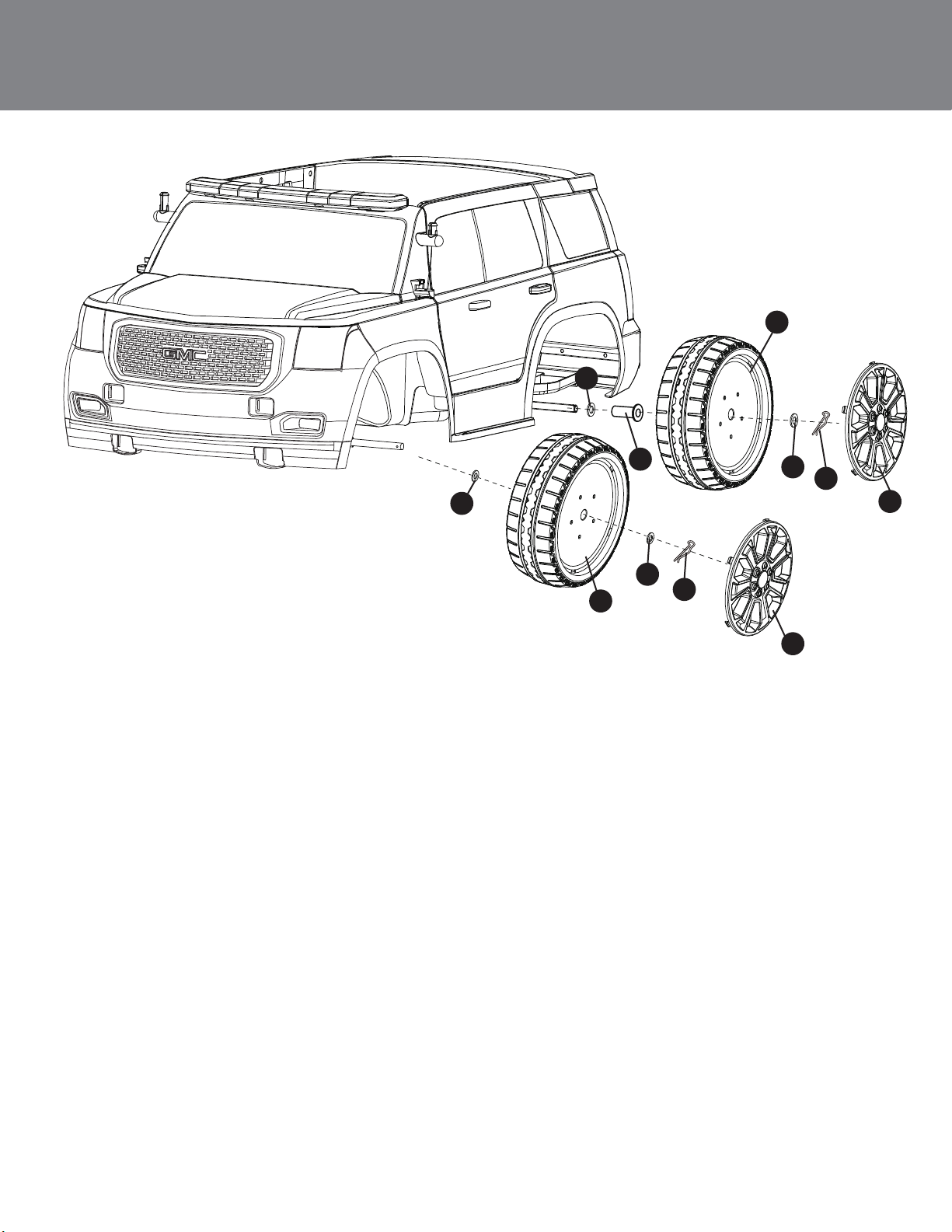

10 Assemble the Wheels

14.3

14.4

14.3

14.5

14.6

14.5

14.4

1. Locate the snap pins (14.3) and small washers (14.4) from the blister box.

2. Slide the front small washer (14.4) onto the axle.

3. Slide the front wheel (7) onto the axle.

4. Slide the front small washer (14.4) onto the axle, and then insert the straight end of

the snap pin through the hole on the front axle.

5. Snap the wheel rim (9) onto the front wheel.

6. Repeat steps 1-5 for the other front wheel.

1. Locate the snap pins (14.3), inner wheel spacer (14.6) and large washers (14.5) from

the blister box.

2. Slide the rear large washer (14.5) onto the axle.

3. Slide the inner wheel spacer (14.6) onto the axle.

4. Slide the rear wheel (8) onto the axle with the gear teeth facing inward.

5. Slide the rear large washer (14.5) onto the axle, and then insert the straight end of

the snap pin through the hole on the rear axle.

6. Snap the wheel rim (9) onto the rear wheel.

To assemble the front wheels:

To assemble the left rear wheel:
