Rose electronics CrystalView Micro LT Bedienungsanleitung

CrystalView Micro LT

Single-Mode / Multi-Mode Optical DVI Extender

10707 Stancliff Road

Houston, Texas 77099

Phone: (281) 933-7673

www.rose.com

INSTALLATION

AND

OPERATIONS MANUAL

LIMITED WARRANTY

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and

recording, without the prior written permission of Rose Electronics.

Rose Electronics Part # CRV_MLT

Printed In the United States of America –1.2

Rose Electronics warrants the CrystalView Micro LT to be in good working order for one year from the date of

purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at

any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as

set forth below. Repair parts and replacement units will be either reconditioned or new. All replaced parts

become the property of Rose Electronics. This limited warranty does not include service to repair damage to

the Unit resulting from accident, disaster, abuse, or unauthorized modification of the Unit, including static

discharge and power surges.

Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to Rose

Electronics or an authorized repair center providing a proof of purchase date. If this Unit is delivered by mail,

you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay shipping charges to the

warranty service location, and to use the original shipping container or its equivalent. You must call for a return

authorization number first. Under no circumstances will a unit be accepted without a return authorization

number. Contact an authorized repair center or Rose Electronics for further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A

PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS

OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW

LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE, YOUR SOLE REMEDY

SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL ROSE

ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS, LOST

SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR

THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER

PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH MAY VARY FROM STATE TO STATE.

IBM ®, AT, and PS/2 are trademarks of International Business Machines Corp.

Microsoft ®, Microsoft Windows™ and Microsoft IntellimouseTM are registered trademarks of Microsoft Corp.

Apple, Macintosh, and ADB are trademarks of Apple Computer, Inc.

Sun is a registered trademark of Sun Microsystems Inc.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owner

TABLE OF CONTENTS

Contents Page #

Disclaimer..........................................................................................................................................................1

Introduction........................................................................................................................................................1

About This Manual.............................................................................................................................................1

Features.........................................................................................................................................................2

Compatibility...................................................................................................................................................2

Package contents...........................................................................................................................................2

Product registration........................................................................................................................................2

System Overview...............................................................................................................................................3

DVI Panel Layout ...........................................................................................................................................4

Pin Designations ............................................................................................................................................5

Installation.........................................................................................................................................................6

AC/DC Power Adaptor....................................................................................................................................6

LC Fiber .........................................................................................................................................................6

System Connection........................................................................................................................................6

Status Indicators.............................................................................................................................................6

Manual Self-EDID Programming........................................................................................................................7

Device Power.................................................................................................................................................7

Programming Procedure ................................................................................................................................7

System Installation.......................................................................................................................................7

Service Information............................................................................................................................................8

Maintenance and Repair ................................................................................................................................8

Technical Support ..........................................................................................................................................8

Safety and EMC Regulatory Statements ...........................................................................................................9

Figures Page #

Figure 1. Unit, Front & Back Composite.............................................................................................................3

Figure 2. DVI Panel Layout................................................................................................................................4

Figure 3 DVI-D Male (18+1) Connector PIN Definitions.....................................................................................5

Figure 4. Active Power LED...............................................................................................................................6

Figure 5. Connecting the computers to the CrystalView Micro LT......................................................................6

Appendices Page #

Appendix A. General Specifications.................................................................................................................10

INTRODUCTION

CrystalView Micro LT Installation and Operations Manual

Disclaimer

While every precaution has been taken in the preparation of this manual, the manufacturer assumes no

responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting

from the use of the information contained herein. The manufacturer reserves the right to change the

specifications, functions, circuitry of the product, and manual content at any time without notice.

The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances

outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury

arising directly or indirectly from the use of this product (See limited warranty).

Introduction

Thank you for choosing Rose ElectronicsCrystalView Micro LT extender. Utilizing both single-mode and multi-

mode optical fiber, the product transmits DVI signals over long distances. The built-in EDID technology

provides ease of installation and flexible compatibility with any display, regardless of resolution. In addition, the

front-panel placement of the EDID button, power supply input, and status indicators allows for the convenient

operation and monitoring of the module.

About This Manual

This manual covers the installation and operation of the CrystalView Micro LT. The Installation section

describes the proper setup of the unit, and the operation section describes the active functioning of the product

CrystalView Micro LT Installation and Operations Manual

Features

Compact Size (H x W x D : 0.58 in x 1.54 in x 2.12 in / 14.6mm x 39.0mm x 53.9mm )

Duplex LC fiber optic connectors

Single-Mode or Multi-Mode Fiber

Long distance transmission of high resolution video signals (up to 1920x1200 / 60Hz)

Transmitter can be programmed with the EDID of any display

Indicators for Transmitter and Receiver signal status

Single +5V power supply for Receiver, optional +5V power supply for Transmitter

Metal enclosure

Low power consumption

RoHS compliant

Compatibility

Hardware Any device with DVI video input or output

Operating Systems All operating systems

Package contents

CrystalView Micro LT unit

1x 5V 0.85A power supply

Manual

Additional power supply and cables can be ordered separately. If the package contents are not correct,

contact Rose Electronics or your reseller so the problem can be quickly resolved.

Product registration

CrystalView Micro LT Installation and Operations Manual

System Overview

The CrystalView Micro LT comes in a single model. The following figures show the buttons and connectors on

the unit.

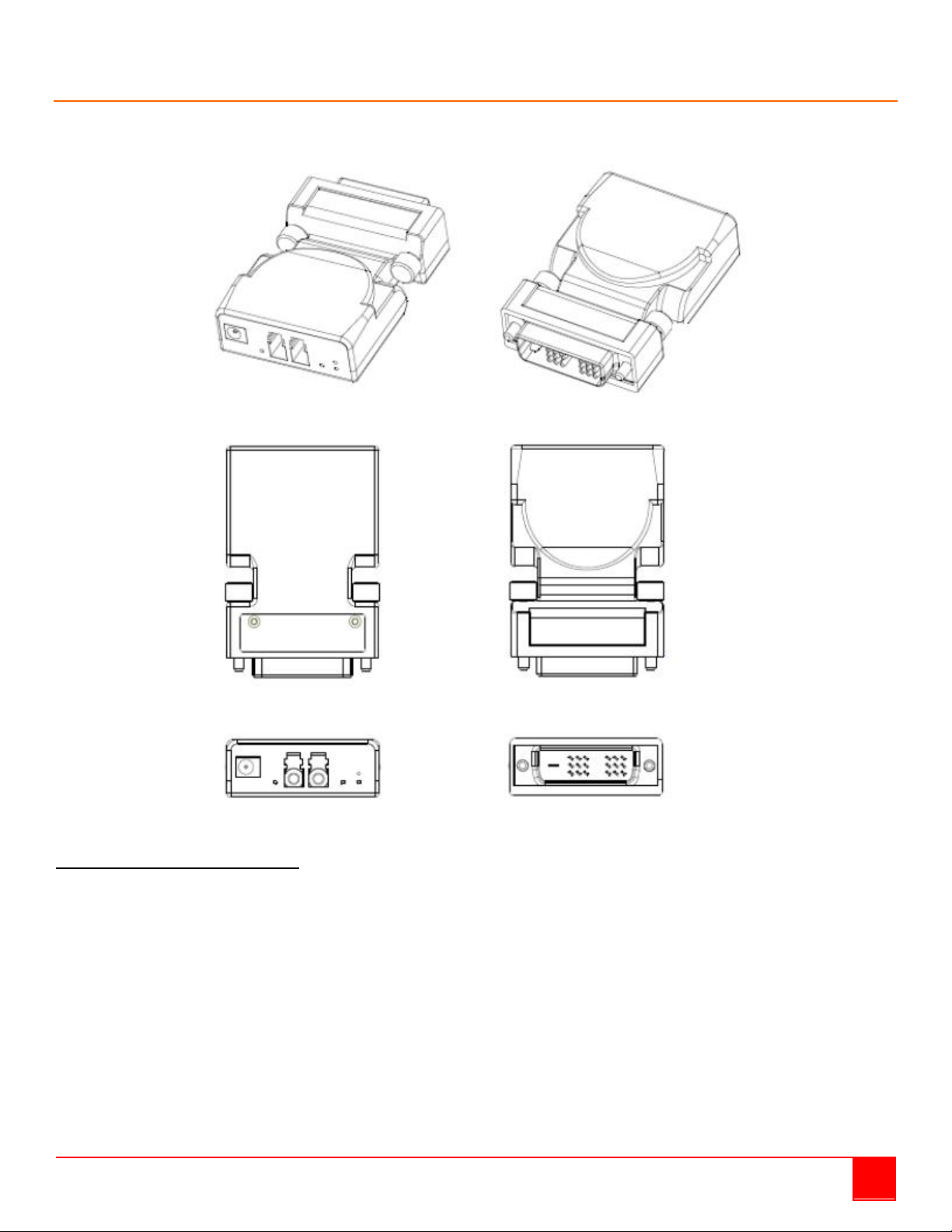

Figure 1. Unit, Front & Back Composite

CrystalView Micro LT Installation and Operations Manual

DVI Panel Layout

Figure 2. DVI Panel Layout

1. Power adaptor DC jack.

2. Power Indicator - Illuminated when 5V power is supplied from either the Transmitter DVI connector or

the 5V external power supply.

3. LC fiber optic connector.

4. Data Indicator- displays signal transmission status:

Transmitter status - Green light indicates that a valid video signal has been received by the

Transmitter and the transmission laser is active.

Receiver status - Orange light indicates that Receiver is not detecting a transmitted signal.

This may be caused by loss of power at the Transmitter, or by an unplugged fiber cable.

5. EDID Programming Status Indicator on Transmitter unit, Display Connect LED on Receiver unit.

Transmitter EDID Status - LED will flash orange when a display’s EDID is being programmed

into the Transmitter.

Receiver Display LED - green light indicates the receiver is connected to a display.

6. EDID button (Transmitter) - Allows the user to manually program a display’s EDID data into the

Transmitter’s EEPROM. The button must be pressed and held down using a pin or paper clip.

CrystalView Micro LT Installation and Operations Manual

Pin Designations

Transmitter

Designation

T.M.D.S Data 2-

T.M.D.S Data 2+

T.M.D.S Data 2 Shield

DDC Clock

DDC Data

No Connect

T.M.D.S Data 1-

T.M.D.S Data 1+

T.M.D.S Data 1 Shield

+5V

Ground

Hot Plug Detect

T.M.D.S Data 0-

T.M.D.S Data 0+

T.M.D.S Data 0 Shield

T.M.D.S Clock Shield

T.M.D.S Data Clock+

T.M.D.S Data Clock-

Figure 3 DVI-D Male (18+1) Connector PIN Definitions

INSTALLATION

CrystalView Micro LT Installation and Operations Manual

Installation

This section describes the process of connecting the CrystalView Micro LT to a video source and a display.

AC/DC Power Adaptor

Transmitter: There are two power input options for the CrystalView Micro LT Transmitter unit. Power is

normally supplied from the graphic card through PIN14 (+5V) of the DVI connector. However, if the power

output of the graphic card is insufficient for the operation of the Transmitter module, the AC/DC power adaptor

may be used to power the unit. Built-in protection circuits are used to accommodate dual power inputs. The

power indicator LED will be illuminated when sufficient power is applied.

Figure 4. Active Power LED

Receiver: The CrystalView Micro LT receiver module requires the external AC/DC power adaptor to operate.

LC Fiber

Plug the duplex LC fiber into the LC connectors on the CrystalView Micro LT Transmitter and Receiver. When

the fiber is connected properly, the “Fiber LOS” LED will be blinking. Depending on the requirement of the host

devices, the optical extender will utilize either single-mode or multi-mode fiber.

System Connection

Connect the Transmitter to the DVI source (Computer), and the Receiver to the DVI display (Monitor).

Figure 5. Connecting the computers to the CrystalView Micro LT

Status Indicators

The correct installation of the device results in a steady green signal on the Transmitter’s Laser Active

Indicator and a blinking orange signal on the LOS Receiver LED.

Inhaltsverzeichnis

Andere Rose electronics Extender Handbücher

Rose electronics

Rose electronics CrystalLink CLK-4U2FMB-500M Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Rack CRV-12SLP Betriebsanleitung

Rose electronics

Rose electronics CrystalView EX HDMI Multi CRV-SRDTXT2D-2T-HD6... Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI EX Bedienungsanleitung

Rose electronics

Rose electronics Xcion DVI/VGA over CATx Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Mini Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI EX Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI EX Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI Fiber CRK-2DFMPD1D Bedienungsanleitung

Rose electronics

Rose electronics Cybernetech CLK-2U2TP-100M Bedienungsanleitung

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Betriebsanleitung

Rose electronics

Rose electronics CrystalView Plus Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink USB2.0 CATx Bedienungsanleitung

Rose electronics

Rose electronics CrystalView CAT5 Bedienungsanleitung

Rose electronics

Rose electronics CLK-4U2TP-100M Bedienungsanleitung

Rose electronics

Rose electronics XtendVue Bedienungsanleitung

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Bedienungsanleitung

Rose electronics

Rose electronics CrystalView CAB-MD6M2MD6F Bedienungsanleitung

Rose electronics

Rose electronics CrystalView HDT Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink USB-3-2-1 Fiber Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink CLK-1U4TP-100M/PE Bedienungsanleitung

Rose electronics

Rose electronics CRYSTALVIEW USB 1.1 Bedienungsanleitung

Rose electronics

Rose electronics CrystalView CrystalView TWISTED PAIR KVM... Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink CLK-1U1TP-40M Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
