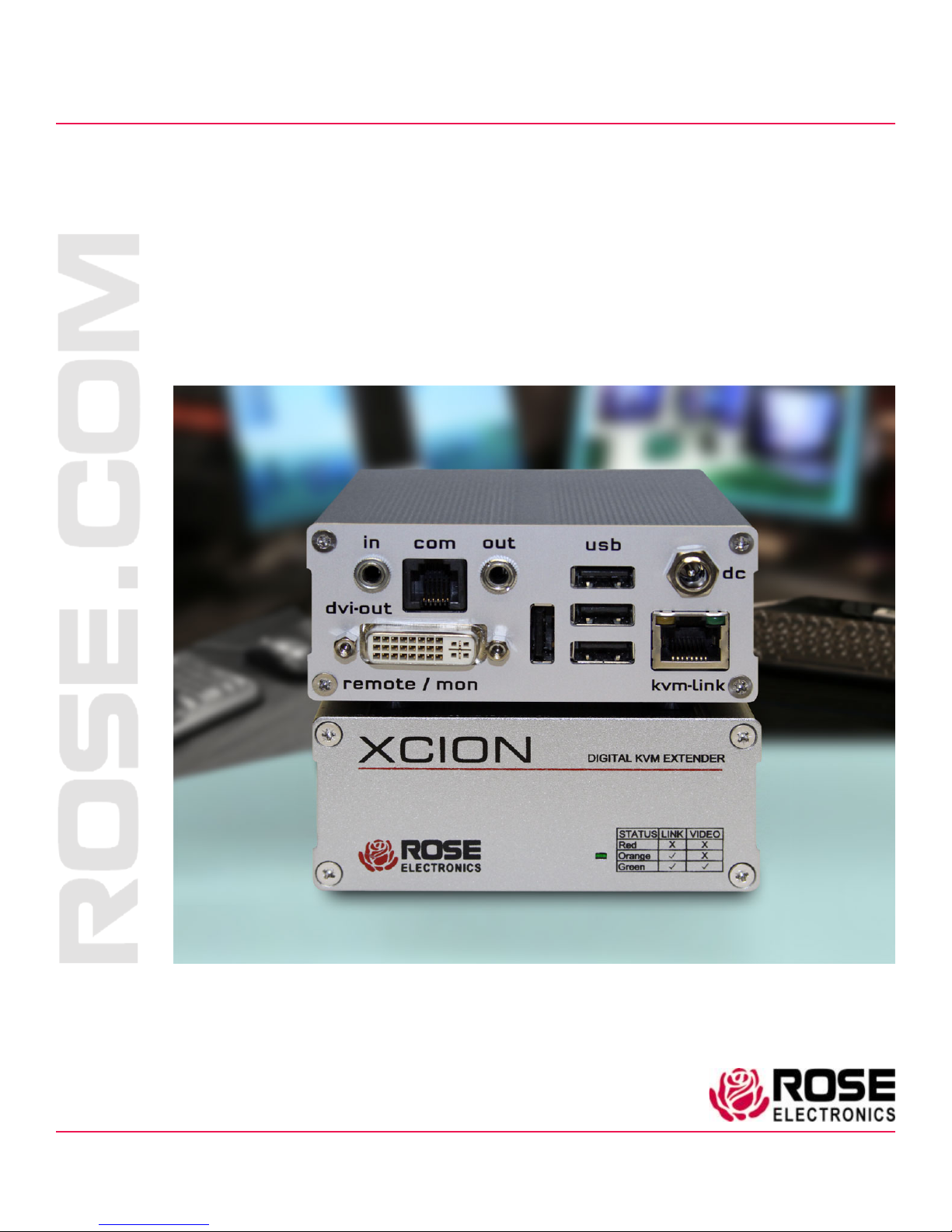

Rose electronics Xcion DVI/VGA over CATx Bedienungsanleitung

Xcion Extender

DVI / VGA

/ HDMI / USB 2.0 KVM Extender over CATx / Fiber

Installation

and

Operation Manual

10707 Stancliff Road

Houston, Texas 77099

Phone: (281) 933-7673

tech-

[email protected]

LIMITED WARRANTY

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and

recording, without the prior written permission of Rose Electronics.

manual-xcion-kvm-extender-2017-02-09

Rose Electronics warrants the Xcion Extender to be in good working order for one year from the date of

purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at

any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as

set forth below. Repair parts and replacement units will be either reconditioned or new. All replaced parts

become the property of Rose Electronics. This limited warranty does not include service to repair damage to

the Unit resulting from accident, disaster, abuse, or unauthorized modification of the Unit, including static

discharge and power surges.

Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to Rose

Electronics or an authorized repair center providing a proof of purchase date. If this Unit is delivered by mail,

you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay shipping charges to the

warranty service location, and to use the original shipping container or its equivalent. You must call for a return

authorization number first. Under no circumstances will a unit be accepted without a return authorization

number. Contact an authorized repair center or Rose Electronics for further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A

PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS

OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW

LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTIED ABOVE, YOUR SOLE

REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL ROSE

ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS, LOST

SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR

THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER

PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH MAY VARY FROM STATE TO STATE.

DECLARATIONS OF CONFORMITY

This is to certify that, when installed and used according to the instructions in this manual, together with the

specified cables, the Units listed in Appendix B are shielded against the generation of radio interferences in

accordance with the application of Council Directives 2006/95/EC and 2004/108/EC, as well as these

standards:

■EN 55022: 2010 (Class A)

■EN 55024: 2010

■EN 61000-3-2: 2014

■EN 61000-3-3: 2013

This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct the interference at their own expense.

The product safety of the devices is proven by their compliance with the following standards:

■EN 60950-1: 2006+A2:2013

■IEC 60950: 2005

■LASER CLASS 1: EN 60825-1:2007 compatible with IEEE 803.3z

These devices comply with Directive 2011/65/EU of the European Parliament and of the council of 8 June

2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(RoHS 2, RoHS II). The device labels carry a respective marking.

Contents

Disclaimer 1

System Introduction 1

Features 1

Package Contents 2

Xcion Models 3

Front View All Models 3

Rear View DVI CATx and Fiber Models 3

Connector Description DVI Models 4

HDMI CATx Model 5

Connector Description HDMI Model 5

Installation 6

Xcion Menu System 7

Update Flash Firmware 7

USB Memory Option 7

Lock Menu 8

Show Last Image 8

DDC Option 9

VGA Parameters 10

Audio Input Gain 11

Power Save 11

Monitor Synchronization 11

Troubleshooting 12

Safety 13

Maintenance and Repair 14

Technical Support 14

Figures

Figure 1. Xcion Extenders Transmitter and Receiver Front View 3

Figure 2. Xcion DVI CATx Receiver and Transmitter Rear View 3

Figure 3. Xcion DVI Fiber Transmitter and Receiver Rear View 3

Figure 4. Connectors on DVI Transmitter 4

Figure 5. Connectors on DVI Receiver 4

Figure 6. Xcion HDMI Rear View 5

Figure 7. Connectors on HDMI Transmitter 5

Figure 8. Connectors on HDMI Receiver 5

Figure 9. Xcion DVI Extender Installation 6

Figure 10. Xcion Main Menu 7

Figure 11. USB High Speed Memory Option Submenu 7

Figure 12. Lock Menu Submenu 8

Figure 13. DDC Option Submenu 9

Figure 14. VGA Parameters Submenu 10

Figure 15. Audio Input Gain Submenu 11

Tables

Table 1. Connectors on the Xcion DVI Models 4

Table 2. Connectors on the Xcion HDMI Model 5

Table 3. Troubleshooting the Xcion Extenders 12

Table 4. Xcion Extender Specifications 15

Table 5. Xcion Extender Part Numbers 16

Table 6. CATx Cable Pins 17

Appendices

Appendix A – Specifications 15

Appendix B – Part Numbers 16

Appendix C – Cable Specification 17

CAT5/6/7 Cables 17

Fiber Cables 17

INTRODUCTION

Xcion Extender Manual 1

Disclaimer

While every precaution has been taken in the preparation of this manual, the manufacturer assumes no

responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting

from the use of the information contained herein. The manufacturer reserves the right to change the

specifications, functions, circuitry of the product, and manual content at any time without notice.

The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances

outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury

arising directly or indirectly from the use of this product. (See limited warranty.)

System Introduction

Thank you for choosing the Xcion family of extenders. They are the result of Rose Electronics commitment to

providing state-of-the-art solutions for today’s demanding workplace. The Xcion Digital Extender is the ideal

device for extending HDMI, DVI or VGA video and USB with no loss of video quality.

The Xcion Extender is available in three models offering a choice of DVI or VGA extension over CATx or Fiber,

or HDMI extension over CATx. Signals can be extended up to 492 ft (150m) over CATx or 1640 ft (500m) over

multi-mode fiber cables. Video signals up to full HD 1080p and 1920 x 1200 @ 60Hz are supported.

The Receiver unit supports up to 4 directly connected USB1.1 and USB2.0 devices at speeds up to 12Mbps.

Devices such as keyboards, mice, touch screens, tablets, scanners, integrated hub-type keyboards, or printer

can be connected. Optional external storage device support can be added by entering an “unlock code” in the

OSD menu. The remote USB hub is a built-in 4-port USB high speed Hub.

Every Xcion extender is packaged in a compact steel chassis, ideal for use in industrial applications and at

installation sites requiring a robust and durable product. The Transmitter and Receiver chassis can be rack

mounted in a rack cabinet, with up to 4 units side-by-side on a 1U shelf, as well as wall, table or DIN rail

mounted.

Features

■Extends full HD 1080p and 1920 x 1200 @ 60 Hz digital or analog video with no loss of quality

■Transparently extends USB 2.0 devices at speeds up to 12Mbps

■Distances up to 492 ft (150 m) over CATx or 1640 ft (500 m) over multi-mode fiber

■Optional Serial RS232 and analog audio support in the DVI/VGA models

■Local video/monitor connection at the transmitter

■Choice between 5 internal EDID sets, plus the ability to select either remote or local monitor EDID via the

OSD menu

■4 units can be mounted in a 1U 19” rack

Xcion Extender Manual 2

Package Contents

The package contents consist of t he following:

■1 x Transmitter

■1x Receiver

■1 x DVI cable or 1 x HDMI cable, depending on the model

■1x USB Cable

■2 x 12V 1 Amp Power Supply Units

■4 x Mounting Pads

■4 x Rubber Feet

■Manual

Additional cables are usually ordered separately. If the package contents are not correct, contact Rose

Electronics or your reseller so the problem can be quickly resolved.

MODELS

Xcion Extender Manual 3

Xcion Models

The Xcion is available in three distinct models as described below.

Front View All Models

Figure 1. Xcion Extenders Transmitter and Receiver Front View

Rear View DVI CATx and Fiber Models

Figure 2. Xcion DVI CATx Receiver and Transmitter Rear View

Figure 3. Xcion DVI Fiber Transmitter and Receiver Rear View

Xcion Extender Manual 4

Connector Description DVI Models

Figure 4. Connectors on DVI Transmitter

1. DVI In:Use the supplied DVI cable to

connect this port to the DVI port on the

source PC.

2. DVI Out:Connect a DVI monitor to this

port for a local display.

3. PC USB:Use the supplied USB cable to

connect to the USB port on the source PC.

4. KVM-Link: Connect the CATx or Fiber

interconnect cable, based on the model, to

this port to establish a connection to the

Receiver.

5. DC: Connect one of the supplied Power

Supply Units here, and connect it to an AC

power supply.

Figure 5. Connectors on DVI Receiver

1. DVI Out: Connect the output DVI monitor

to this port.

2. USB: Connect to USB 2.0 devices

including keyboard and mouse. With

optional USB memory option, hard disks

and flash drives can also be connected

here.

3. KVM-Link: Connect the CATx or Fiber

interconnect cable, based on the model, to

this port to establish a connection to the

Transmitter.

4. DC: Connect one of the supplied Power

Supply Units here, and connect it to an AC

power supply.

Table 1. Connectors on the Xcion DVI Models

Xcion Extender Manual 5

HDMI CATx Model

Figure 6. Xcion HDMI Rear View

Connector Description HDMI Model

Figure 7. Connectors on HDMI Transmitter

1. PC In:Use the supplied HDMI cable to

connect this port to the HDMI port on the

source PC.

2. Monitor Out:Connect a HDMI monitor to

this port for a local display.

3. PC USB:Use the supplied USB cable to

connect to the USB port on the source PC.

4. KVM-Link: Connect a CATx cable to this

port to establish a connection to the

Receiver.

5. DC: Connect one of the supplied Power

Supply Units here, and connect it to an AC

power supply.

Figure 8. Connectors on HDMI Receiver

1. Monitor Out: Connect the output HDMI

monitor to this port.

2. USB: Connect to USB 2.0 devices

including keyboard and mouse. With

optional USB memory option, hard disks

and flash drives can also be connected

here.

3. KVM-Link: Connect a CATx to this port to

establish a connection to the Transmitter.

4. DC: Connect one of the supplied Power

Supply Units here, and connect it to an AC

power supply.

Table 2. Connectors on the Xcion HDMI Model

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Rose electronics Extender Handbücher

Rose electronics

Rose electronics CrystalView Plus Bedienungsanleitung

Rose electronics

Rose electronics UltraLink 2 Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink USB2.0 CATx Bedienungsanleitung

Rose electronics

Rose electronics VideoSplitter CAT5 Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink CLK-4U2FMB-500M Bedienungsanleitung

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Betriebsanleitung

Rose electronics

Rose electronics ViewLink Coax Bedienungsanleitung

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Bedienungsanleitung

Rose electronics

Rose electronics CrystalView EX DVI Multi CRK-1DTXT2DM-2T-EX6 Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Exact Bedienungsanleitung

Rose electronics

Rose electronics CRK-2DTPPDVI Bedienungsanleitung

Rose electronics

Rose electronics CrystalView HDMI 4K60 Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink USB2.0 CATx Bedienungsanleitung

Rose electronics

Rose electronics XtendVue Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Plus Bedienungsanleitung

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Bedienungsanleitung

Rose electronics

Rose electronics CrystalView EX HDMI Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Extreme Bedienungsanleitung

Rose electronics

Rose electronics Orion XTender OT2-SLDTXUD1D Bedienungsanleitung

Rose electronics

Rose electronics CrystalView CAT5 Rack CRV-12SLP Bedienungsanleitung

Rose electronics

Rose electronics CrystalView CrystalView TWISTED PAIR KVM... Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink USB2.0 CATx Bedienungsanleitung

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Bedienungsanleitung

Rose electronics

Rose electronics CrystalView EX5 Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
