The function of the SETUP MODE :
●If a value is changed on the SETUP Mode, you must press the Memory Key to
save the value. Otherwise the value changed will not save when the unit is
powered off. The values changed will need to be saved before leaving the
SETUP mode, or else the changes will be lost.
●Press the SETUP KEY to Setup something which have 6 items for doing…
(Unit setting), (LAN Length adj setting), (COAX Length adj setting), (Buzzer
ON OFF setting), (Back Light ON OFF setting)
(Restore to default value setting)
Press ◄ ► KEY to change setting.
Press ▲▼ KEY to move to the next.
(The select value will be flashing)
●Especially guide for (LAN or COAX) Length adj setting :
1). Press ◄ ► KEY to change setting.
To (LAN Length adj)or(COAX Length adj)
(TEST KEY will be flashing)
2). Press ▼KEY to move to length adj setting.
3). Connect a LAN cable that is of known length to the MAIN connector. (For
Example: 100m)
4). Push TEST Key to measure the length, Test result will display on LCD.
5). Press ◄ ► KEY to adjust the value so it matches
the known length of the measured cable.
6). Press Memory Key to save the calibration value.
●Setup Result :

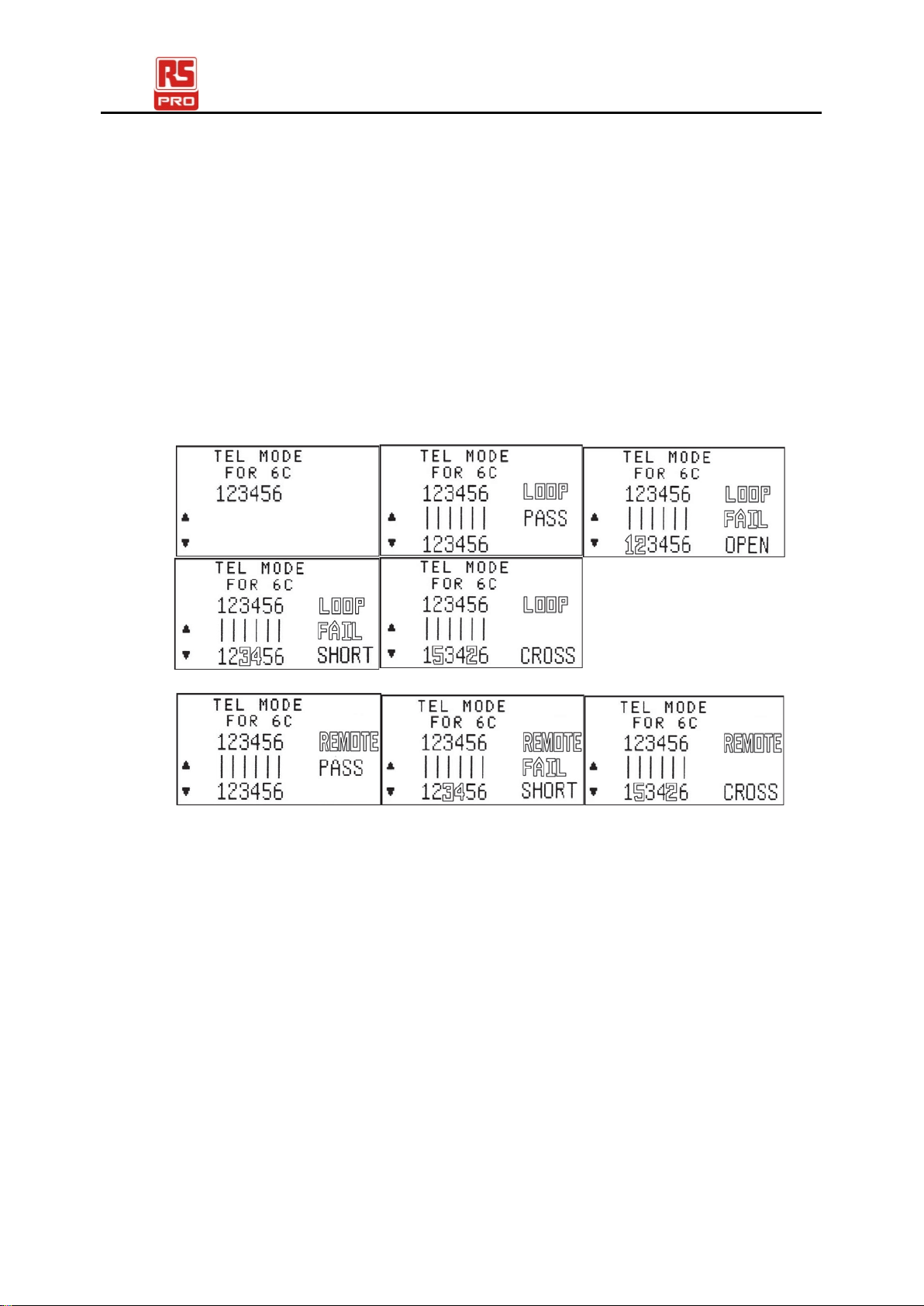

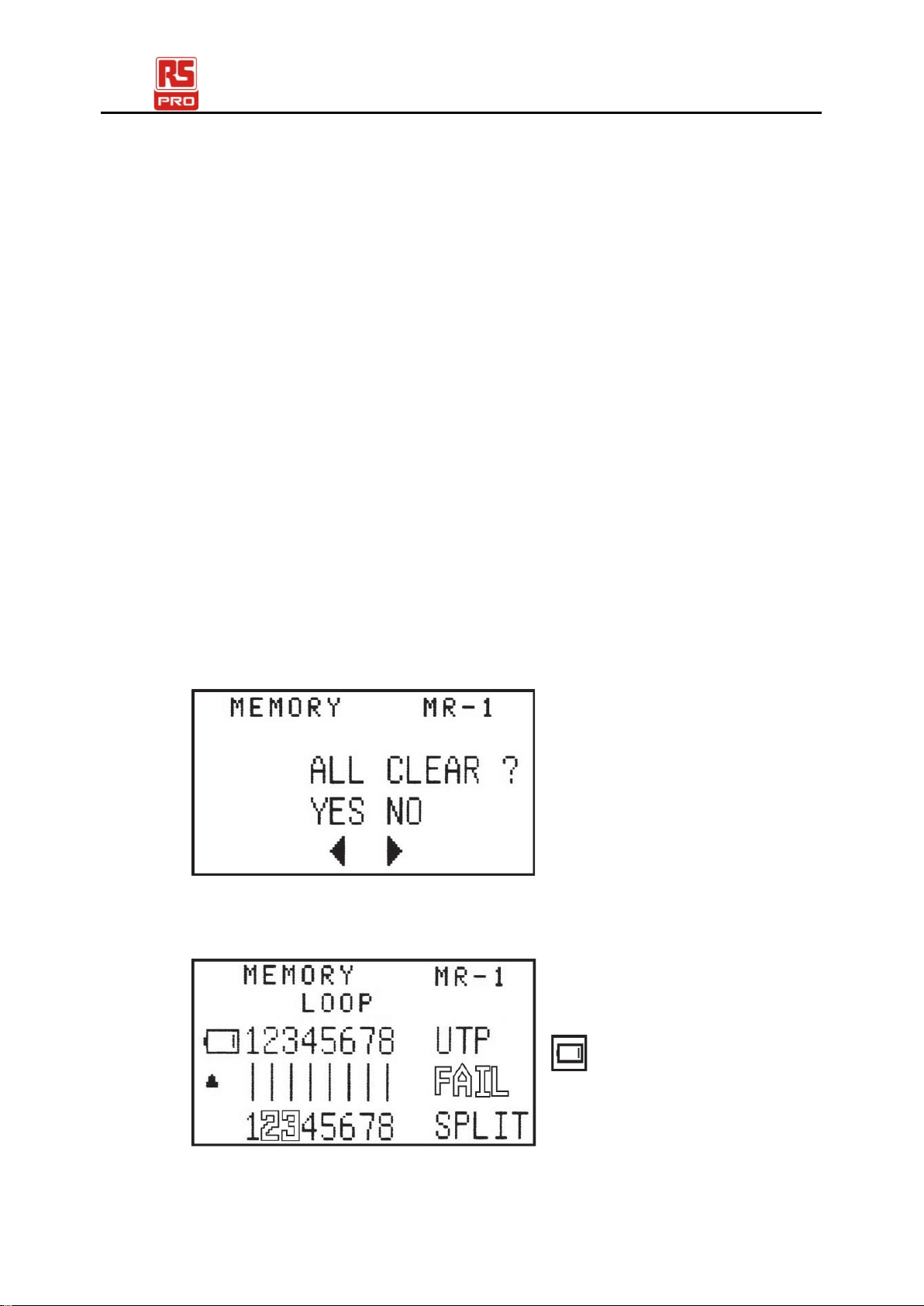

●Please refer to figures as following…
