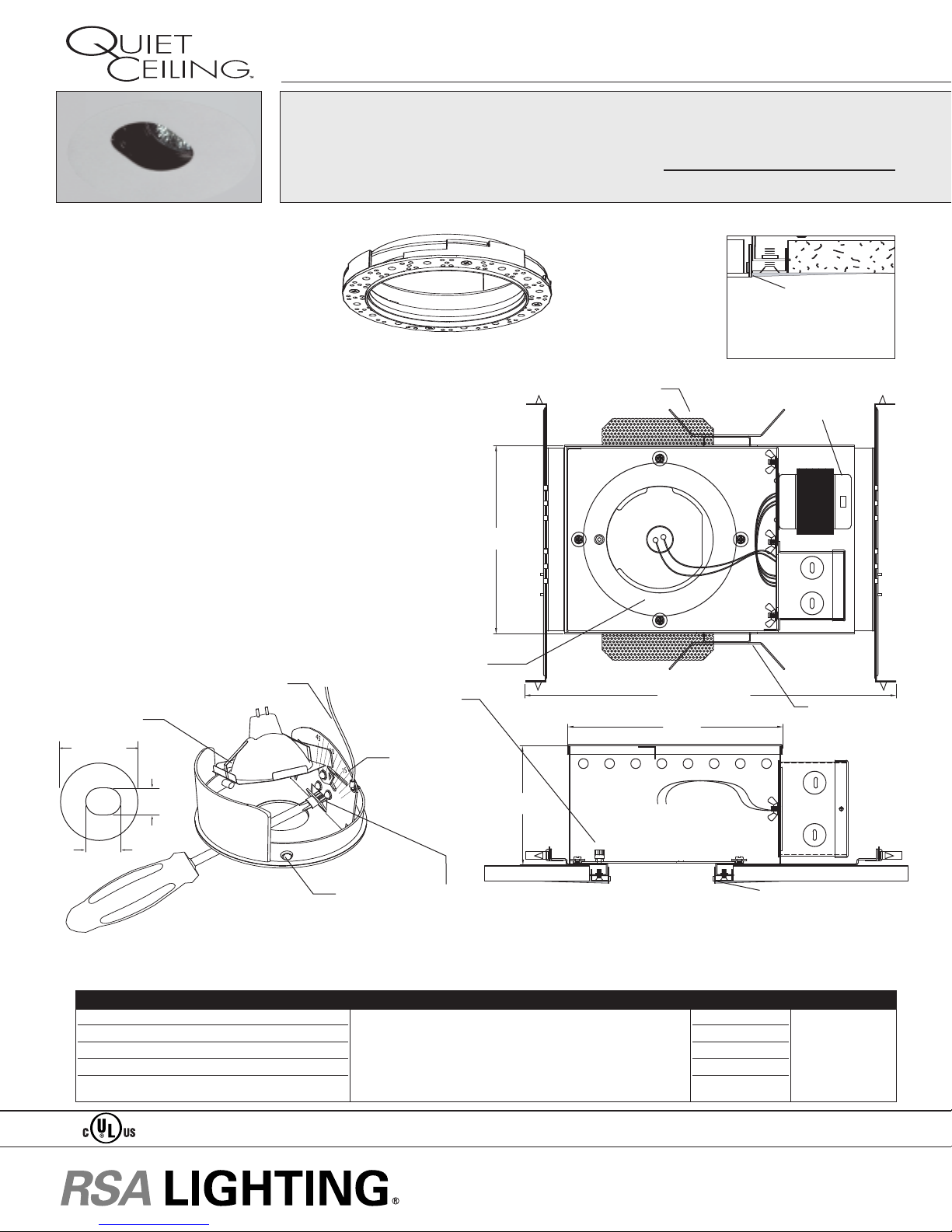

RSA Lighting QCT-1675BK Bedienungsanleitung

Type: Project:

RSA LIGHTING 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311

TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com

HOT AIMING lamp

adjustment with a regular

phillips screwdriver

4” Adjustable Slot Aperture Trimless Fixture

w/ Hot Aiming Adjustability

New Construction Housing - 4.75” Height

12V Bi-Pin Base MR16 Lamp 75 Watts Max.

13.25"

8.22"

4.63"

7.25"

MDL

For 277 volt transformer add “277” to end of item #.

Item # Description Finish Voltage / Wattage

QCT-1675WH / QCT-900

QCT-1675BK / QCT-900

QCT-1675S / QCT-900

QCT-1675SS / QCT-900

QCT-1675PM / QCT-900

Quiet Ceiling Series Adjustable Slot Aperture Trimless

Fixture with New Construction Housing w/ Magnetic

Transformer

White

Black

Silver

Stainless Steel

Primer

12V / 75W Max.

Hanger Bars extend from

14.00” to 25.25” max.

Mudding Ring adjusts in

plaster frame to accommodate

1/2”, 5/8”, 3/4” & 1” ceilings.

Butterfly Brackets

for commercial

installations

4.00" Dia.

1.34"

1.75"

DESCRIPTION:

Recessed slot aperture trimless fixture.

360orotational adjustability and 45o(0o

vertical to 45otilt) angle adjust with angle

locking mechanism in trim. Exclusive

adjustable mud ring accommodates 1/2”,

5/8”, 3/4” & 1” ceilings.

ELECTRICAL:

120V input, 12V output. Junction box is

U.L. listed for through branch wiring.

Ball

Detent

Retainers

45º locking rack & pinion angle

adjustment mechanism

w/ Hot Aiming feature

Internal rotation

ring with locking

adjustment.

Provides 360º

rotation and

secures original

trim position after

relamping or

maintenance.

Angle Indicators

Lamp holder can accept

up to three (3) optical

accessories

Steel Safety

Cable

CONSTRUCTION:

Housing and plaster frame: 18 gauge CRS

Trim ring, j-box and hanger assemblies:

16 gauge CRS.

SYSTEM PROTECTION:

Thermal protection provided to guard

against overheating and misuse of insu-

lation over and around fixture. Vent holes

in housing provide cooler operation.

Magnetic

Transformer

Perforated flap for secure

drywall installation

Mud Ring adjusts in plaster

frame to accommodate

1/2”, 5/8”, 3/4” & 1” ceilings.

c QCT-1675WH c QCT-1675BK

c QCT-1675S c QCT-1675SS

c QCT-1675PM

w/ QCT-900 Housing

Ceiling mudding compound

is applied right to the edge

of the fixture.

Mudding Compound

REV 062904
