RSA Lighting LED42-350 Bedienungsanleitung

LED

LED42-350

Adjustable LED

Tube Light

1 Watt LEDs

@ 1” or 2” o/c

Sheet 1 of 3

ORDERING INFORMATION

U.L. Listed. Suitable for use in

combustible ceilings.

Catalog #

Comments

Project

Prepared By

Type

Date

DESCRIPTION

Speciﬁcations and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031

www.cooperlighting.com

rev. 012307

A...Housing

Aluminum tubing. 2.0” o.d. x ./125” wall

thickness with inside grooves to hold

diode circuit board.

B ...LED Board:

.120” thick aluminum core board - slides

into tube.

C ...End Caps:

Aluminum with groove for rotational ad-

justment of LED board. Diameter matches

o.d. of tube.

D...Diodes:

1 watt 350mA LEDs mounted 1” or 2” o/c.

For various beam angles consult factory.

E ...Driver:

Input: 120V AC, 350mA constant current

for remote location. 36 diodes maximum.

F....Finish:

White, black, or industrial silver powder

coat. For custom ﬁnishes consult factory.

SPECIFICATION FEATURES

72.00

71.75

%JPEF.PVOUJOH

#BS)FBU4JOL

SFRVJSFEGPSuPD

uPSu4QBDJOH

Miniature cylindrical recessed housing and round trimless ﬁxture with

regressed black bafﬂe. Includes enclosure with integral electronic metal

halide ballast and wiring compartment.

Fixture

Adjustable LED Tube Light

LED42-350

Finish

WH =White

BK =Black

S =Industrial Silver

Beam Angle

10 =10º Spread

20 =20º Spread

40 =40º Spread

Diode Color

CW =Cool White

WW =Warm White

R =Red

B =Blue

A =Amber

G =Green

Spacing

1 =1” o/c

2 =2” o/c

Fixture Length

36” Standard

Consult factory for custom

ﬁxture length.

Arm Extension

3” Standard

Consult factory for custom

extension length.

LED

LED42-350

Adjustable LED

Tube Light

1 Watt LEDs

@ 1” or 2” o/c

Sheet 2 of 3

U.L. Listed. Suitable for use in

combustible ceilings.

Catalog #

Comments

Project

Prepared By

Type

Date

DESCRIPTION

Speciﬁcations and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031

www.cooperlighting.com

rev. 012307

SPECIFICATION FEATURES

u

$06/5&34*/,

$06/5&34*/,

5"15)306()

Miniature cylindrical recessed housing and round trimless ﬁxture with

regressed black bafﬂe. Includes enclosure with integral electronic metal

halide ballast and wiring compartment.

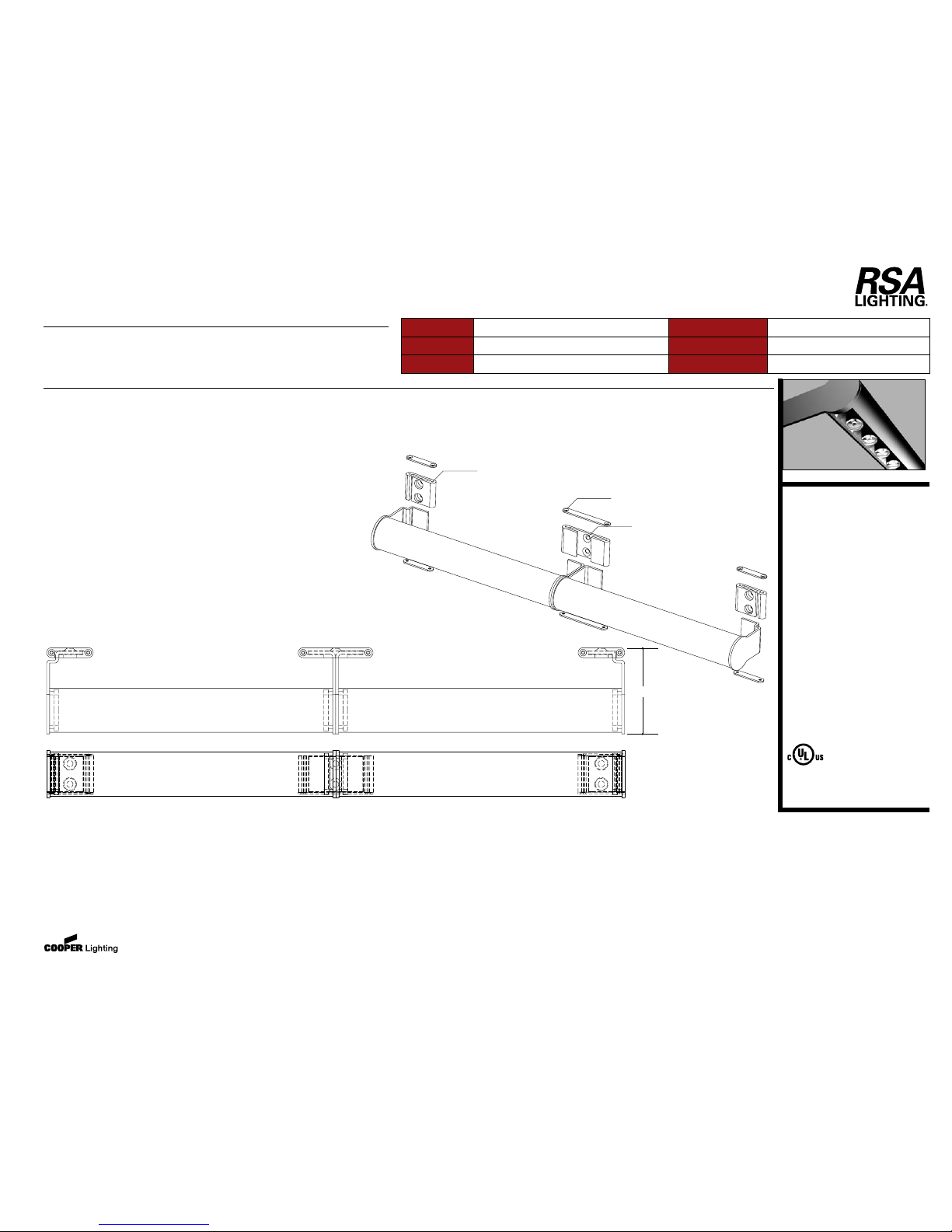

Bracket Mounting

LED

LED42-350

Adjustable LED

Tube Light

1 Watt LEDs

@ 1” or 2” o/c

Sheet 3 of 3

U.L. Listed. Suitable for use in

combustible ceilings.

Catalog #

Comments

Project

Prepared By

Type

Date

DESCRIPTION

Speciﬁcations and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031

www.cooperlighting.com

rev. 012307

SPECIFICATION FEATURES

YY/FNB#PY .BMFUP'FNBMF1BOFM.PVOU$POOFDUPST

.$$BCMF4VQQMJFECZPUIFST

4IFMG

uXJSFTXJUIGJSCFSHMBTTTMFFWJOHBOETUSBJOSFMJFG

$POTVMUGBDUPSZGPSMPOHFSMFOHUIT

4VSGBDFNPVOU-&%GJYUVSFT

N"$POTUBOU$VSSFOU-&%ESJWFS

!XBUU-&%TQFSESJWFS

Miniature cylindrical recessed housing and round trimless ﬁxture with

regressed black bafﬂe. Includes enclosure with integral electronic metal

halide ballast and wiring compartment.

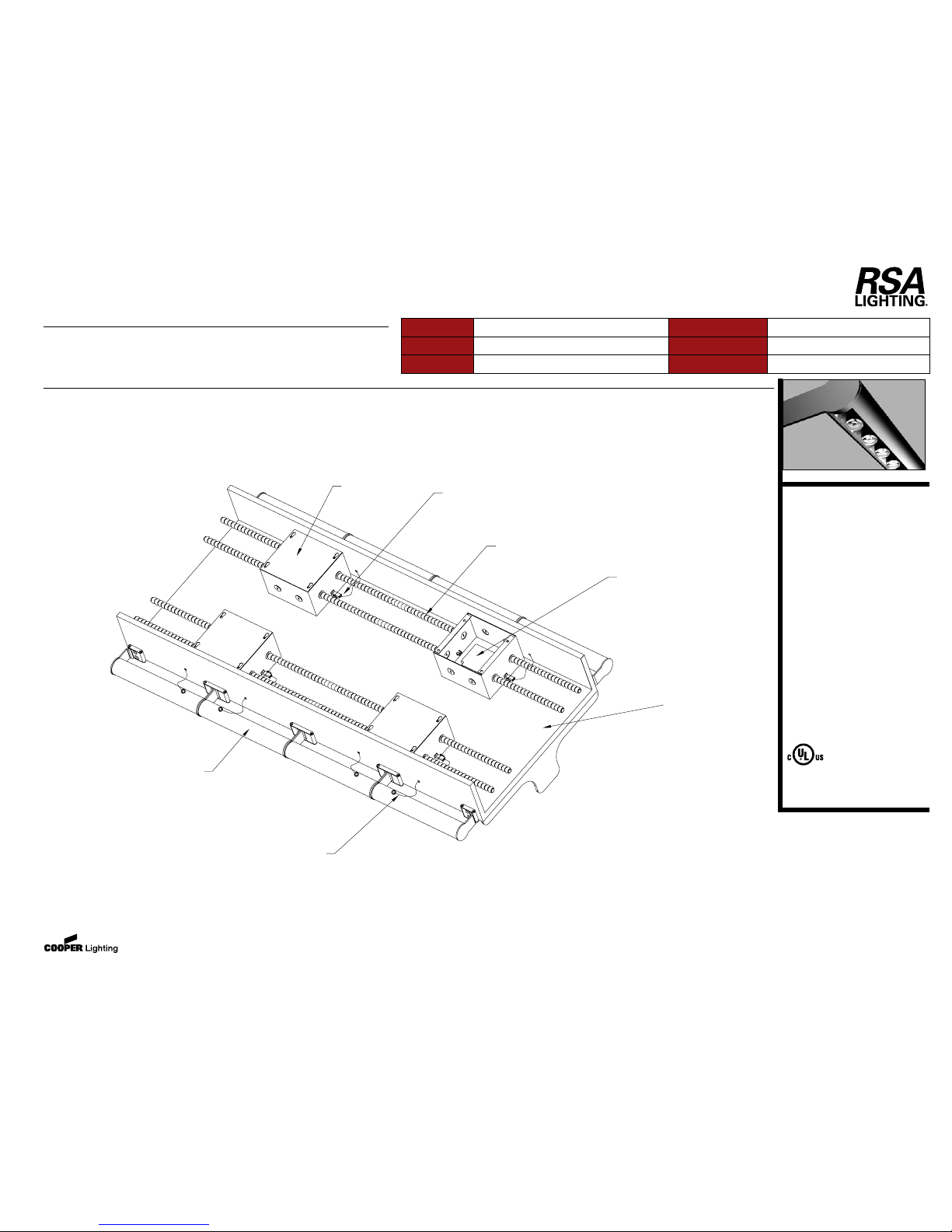

Typical Remote Driver Conﬁguration

Consult factory for other remote options.
