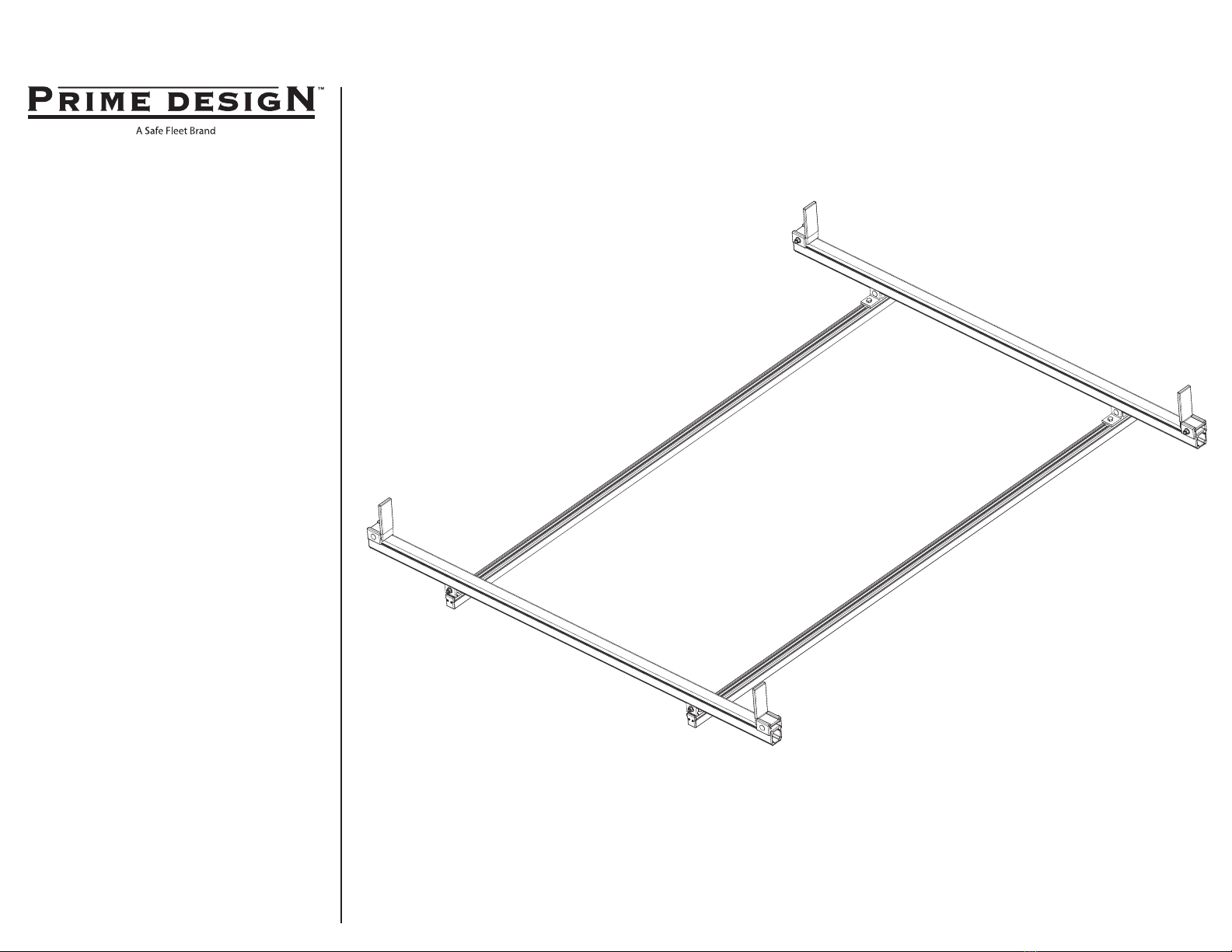

PBB-6000

Pickup Rack, Universal

Dimensional Specications on Page 2

Conguration as shown:

Base Left/Base Right

Two Crossbars, US Gen4

Finish: White Powder Coat

Rack Weight (empty): 25 lbs

Load specications as shown:

Maximum Ladder Weight LH................... 100 lbs

Maximum Ladder Length LH....................... 24 ft

Maximum Ladder Section LH ...................... 12 ft

Maximum Ladder Weight RH .................. 100 lbs

Maximum Ladder Length RH ...................... 24 ft

Maximum Ladder Section RH...................... 12 ft

*Mounting Hardware ordered separately

USOV-PBB6000-US01 Rev-A 0118

*Note: Mounting Hardware purchased separately. For

more information, please contact Sales & Support.

PRIME DESIGN, A SAFE FLEET BRAND ▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: info@primedesign.net ▪Website: www.primedesign.net

TM & © 2018 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

USOV-PBB6000-US01 Rev-A 0118

PBB-6000

Assembly Manual also available:

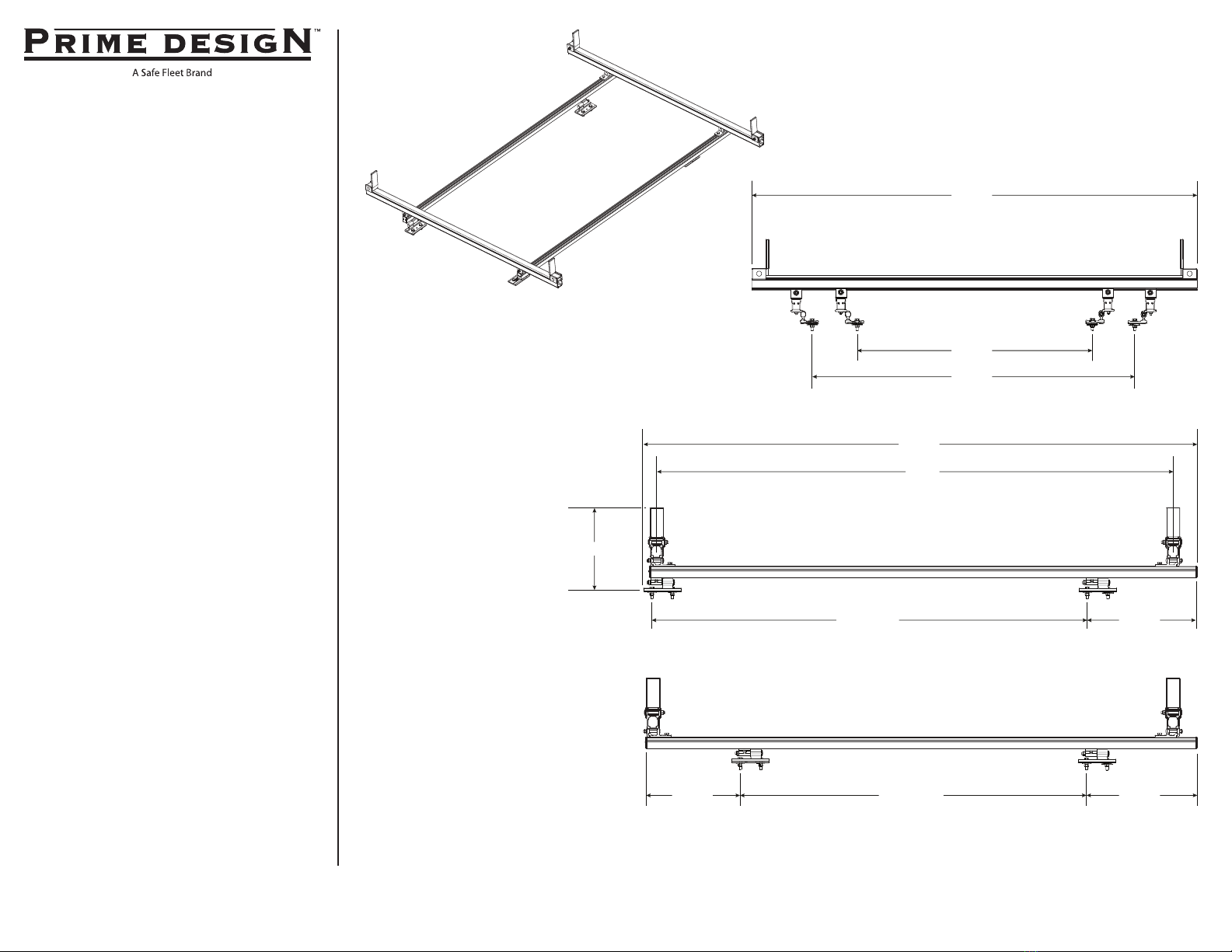

Approximate dimensions as shown:

A: Maximum Mount Spacing L/R...................36”

B: Minimum Mount Spacing .........................48”

C: Rack Width ..............................................62”

D: Rack Length.............................................77”

E: Crossbar Spacing.........................................6’

F: Mount Spacing F/R (Typ)...................58”–76”

G: Maximum Mount Offset ...........................18”

H: Mount Spacing F/R (Alt) ...................40”–76”

I Rack Height ...............................................11”

Pickup Rack, Universal

Shown with MPK-0007 for illustrative purposes only

PBB-6000

*Mounting Hardware ordered separately

*Note: Mounting Hardware purchased separately. For

more information, please contact Sales & Support.

Typical Installation

Alternate Installation

(B) 36”

(A) 48”

(C) 62”

(G) 18”

(G) 18”

(E) 6’

(G) 18”

(F) 58”–76”

(H) 40”–76”

(D) 77”

(I) 11”
