PRR-6001 ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS

CONTENTS OVERVIEW

1—FBM-0002 ........................................................ (Qty 1)

Channels with hardware

2—Rear Crossbar Assembly.................................. (Qty 1)

3—Front Crossbar Assembly ................................. (Qty 1)

4—Rear Drive Shaft............................................... (Qty 1)

Right Hand, 34.00”

5—Handle Latch Assembly ................................... (Qty 1)

Right Hand

6—Connecting Bar................................................. (Qty 2)

4.00’

INSTALLER NOTE: Mounting Hardware or

Brackets to attach this rack to a vehicle

roof or cap are not included in this kit,

and must be purchased separately.

To purchase Mounting Hardware or

Brackets, please contact Prime Design

Sales & Support.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

3

9—L Post................................................................. (Qty 4)

Roller Cap, 9.25”

PRR-6001 ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS

7—Front Drive Shaft .............................................. (Qty 2)

B Version, 35.75”

8—Z Post ................................................................ (Qty 4)

Adjustable, 7.25”

10—Rear Drive Shaft............................................. (Qty 1)

Left Hand, 34.00”

11—Handle Latch Assembly................................. (Qty 1)

Left Hand

HKT-8162-Rotation Hardware Kit

Anti-Seize (2X)

Lubricant (2X)

Clevis Pin (2X)Cotter Pin (2X)

M8 x 50MM (8X) ⅜" x 2.25" (4X)

1.00" Sealing

Stickers (20X)

M8 Lock Nut (8X) ⅜" Lock Nut (4X) ⅜" Flat Washer (8X)" Flat Washer (16X)

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

4

Rear

Front

Left

Right

Left Rear

1—9/16” (40mm) from end

Right Rear

Flush to end

Rear

Front

Left

Right

Flush to Channel End

91.00”

Right Rear

Left Rear

Flush to Channel End

91.00”

*Note: Use Alternate instructions if marked distances exceed 18” (457mm).

*See Note

PRR-6001 ASSEMBLY INSTRUCTIONS–FBM MOUNTINGS

FBM-0002 FLUSH

CHANNELS TO PRE–INSTALLED

MOUNTING BRACKETS

A.1

A.2

Loosen nuts

A.4

Loosen nuts

A.5 Set to distances then torque Rear Bracket nuts to 90 in-lbs

A.3 Set to distances then torque nuts to 80 in-lbs

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

5

Rear

Front

Left Rear

12—5/16” (313mm) from end

Right Rear

Left

Right

Rear

Front

Left

Right

Flush to Channel End

91.00”

Left Rear

Right Rear

Flush to Channel End

91.00”

*Note: Move Channels rearward if marked front distance exceeds 18” (457mm).

*See Note

B.1

B.2

Loosen nuts

B.4

Loosen nuts

B.5

B.3

Set to distances then torque Rear Bracket nuts to 90 in-lbs

Set to distances then torque nuts to 80 in-lbs

PRR-6001 ASSEMBLY INSTRUCTIONS–FBM MOUNTINGS

FBM-0002 ALTERNATE

CHANNELS TO PRE–INSTALLED

MOUNTING BRACKETS

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

6

Even EvenFront

1

8

3/16

2

6

4

5

7

17

Rear

Front

Even EvenRear

PRR-6001 ASSEMBLY INSTRUCTIONS–RIGHT SIDE ROTATION

RIGHT ROTATION

ASSEMBLY SEQUENCE

CROSSBARS CROSSBAR ADJUSTMENT

1.1

Torque to 120 in-lbs

1.2

NOTE: Assemblies and parts shown in this

manual are representative. Some items

may appear different from actual parts,

assemblies, or components received.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

7

PRR-6001 ASSEMBLY INSTRUCTIONS–RIGHT SIDE ROTATION

REAR DRIVE SHAFT

2.1

2.2

2.4

Torque to

120 in-lbs

CYLINDER HARDWARE

3.2

3.1

CONNECTING BAR

4.1

4.2

FRONT DRIVE SHAFT

5.2

5.3

5.1

5.4

Torque to 120 in-lbs

2.3

2.5

Torque to

80 in-lbs

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

8

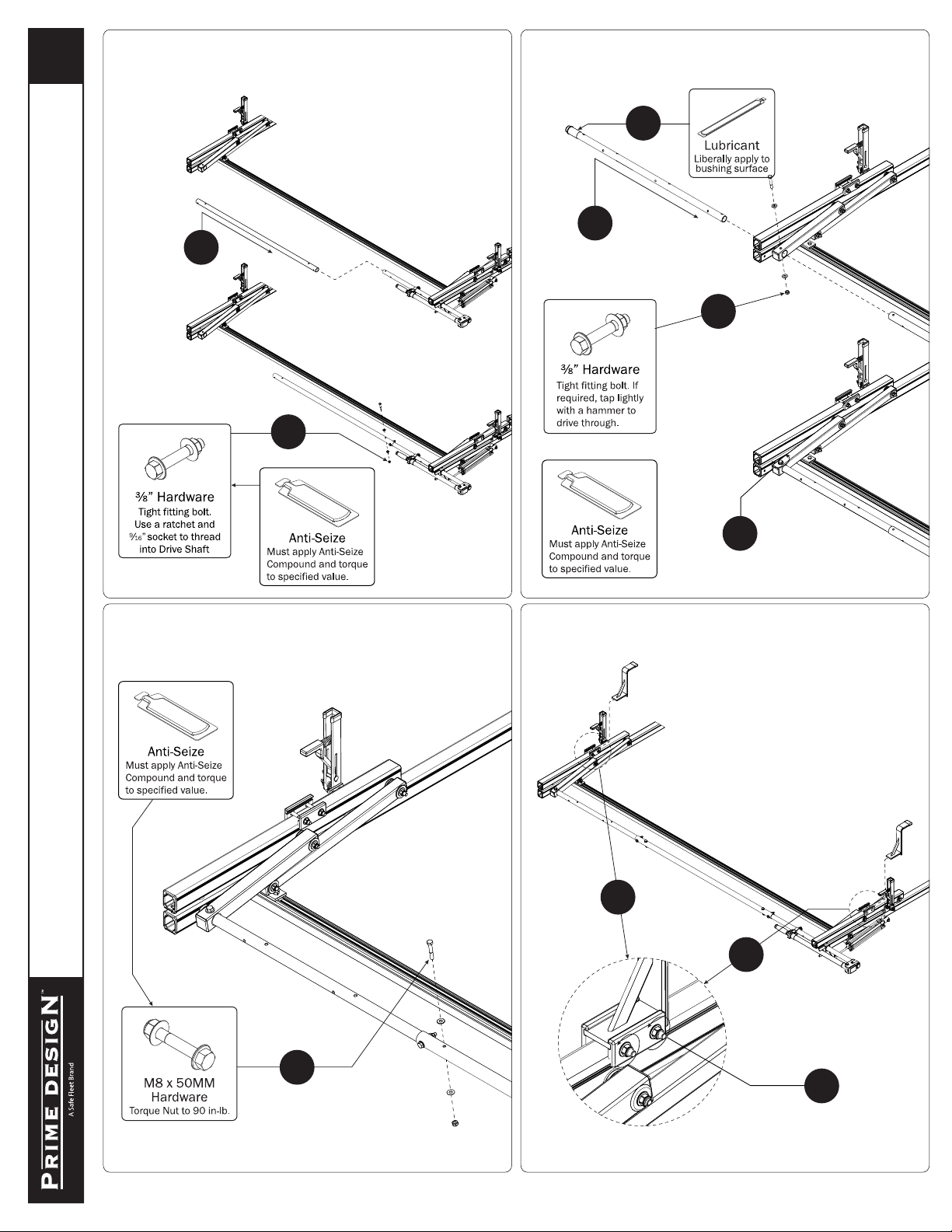

PRR-6001 ASSEMBLY INSTRUCTIONS–RIGHT SIDE ROTATION

CONNECTING BAR FASTENERS

6

Z POSTS

SEE QUICK START GUIDE FOR ADJUSTMENTS

7.2

Torque to 120 in-lbs

7.1

L POSTS

SEE QUICK START GUIDE FOR ADJUSTMENTS

8.2

Torque to 80 in-lbs

8.1

7.1

8.1

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

9

10/16

9

11

12

13

17 15

14

LEFT ROTATION ASSEMBLY

SEQUENCE

REAR DRIVE SHAFT

9.1

Torque to

120 in-lbs

9.2

9.5

Torque to

80 in-lbs

9.4

9.3

CYLINDER HARDWARE

10.2

10.1

PRR-6001 ASSEMBLY INSTRUCTIONS–LEFT SIDE ROTATION

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability

(the “Prime Design Limited Warranty”).

▪

TM & © 2021 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608, 10501022 AND OTHER PATENTS PENDING

10 CONNECTING BAR

11.1

11.2

CONNECTING BAR FASTENERS

13

FRONT DRIVE SHAFT

12.2

12.1

12.3

Torque to

120 in-lbs

12.4

Torque to 120 in-lbs

Z POSTS

SEE QUICK START GUIDE FOR ADJUSTMENTS

14.1

14.2

14.1

PRR-6001 ASSEMBLY INSTRUCTIONS–LEFT SIDE ROTATION
