FT100 INSTRUCTION MANUAL

PRODUCT COMPLIANCE

This product complies with the essential requirements of the following EC

Directives:

•Electro-Magnetic Compatibility directive 2004/108/EC

•Low Voltage Directive 2006/95/EEC

•EC Marking directive 93/68/EEC

SAFETY INFORMATION

These instructions are applicable to the Salus Controls model stated on the

front cover of this manual only, and must not be used with any other make or

model.

These instructions are intended to apply in the United Kingdom only, and

should be followed along with any other statutory obligations.

This accessory must be fitted by a Competent person, and installation must

comply with the guidance provided in the current editions of BS7671 (IEE

Wiring Regulations) and Part ‘P’ of the Building Regulations. Failure to

comply with the requirements of these publications could lead to

prosecution.

Always isolate the AC Mains supply before carrying out any work on the

FT100 thermostat.

Please leave these instructions with the end user where they should be kept

in a safe place for future reference.

Salus FT100 Manual 001:89 29/11/10 22:57 Page 2

FT100 INSTRUCTION MANUAL 3

INTRODUCTION

A frost thermostat is used to protect your

property from damage by freezing. It works by

turning on your heating system if the

temperature drops below the temperature you

have set on the frost thermostat, allowing the

user peace of mind.

The FT100 from Salus Controls is a stylish

mains voltage thermostat that can switch a

pump, zone valve or boiler to provide localised

protection from freezing, regardless of the

heating controller settings. Fitted with a

protective cover to prevent tampering, this

thermostat has been specifically designed to

be used for 230V AC heating applications.

Features

•Simple to use

•Large dial

•Tamper proof cover

•LED heat call indicator

•Temperature range between -10 ºC and 20 ºC

•Stylish Casing

Salus FT100 Manual 001:89 29/11/10 22:57 Page 3

INSTALLATION

Please read the important safety information at the start of this manual before you

begin to install the device.

The Frost Thermostat should be located in the coldest part of the building, but where

it can respond to a rise in temperature when the boiler switches on. The ideal position

to locate the FT100 frost thermostat is about 1.5m above floor level, in a location

where the thermostat is accessible, reasonably lit and free from extremes of

temperature and draughts. Do not mount the thermostat on an outside wall, above a

radiator or in a location where it may be subjected to direct sunlight.

The electrical connections to the FT100 are made to the supplied industry standard

backplate. This simplifies installation, as no connections are made to the controller

itself. Connection details are shown below - no Earth connection is required for the

correct and safe operation of the FT100, but a parking terminal is provided to connect

an Earth wire if one is present.

FT100 INSTRUCTION MANUAL

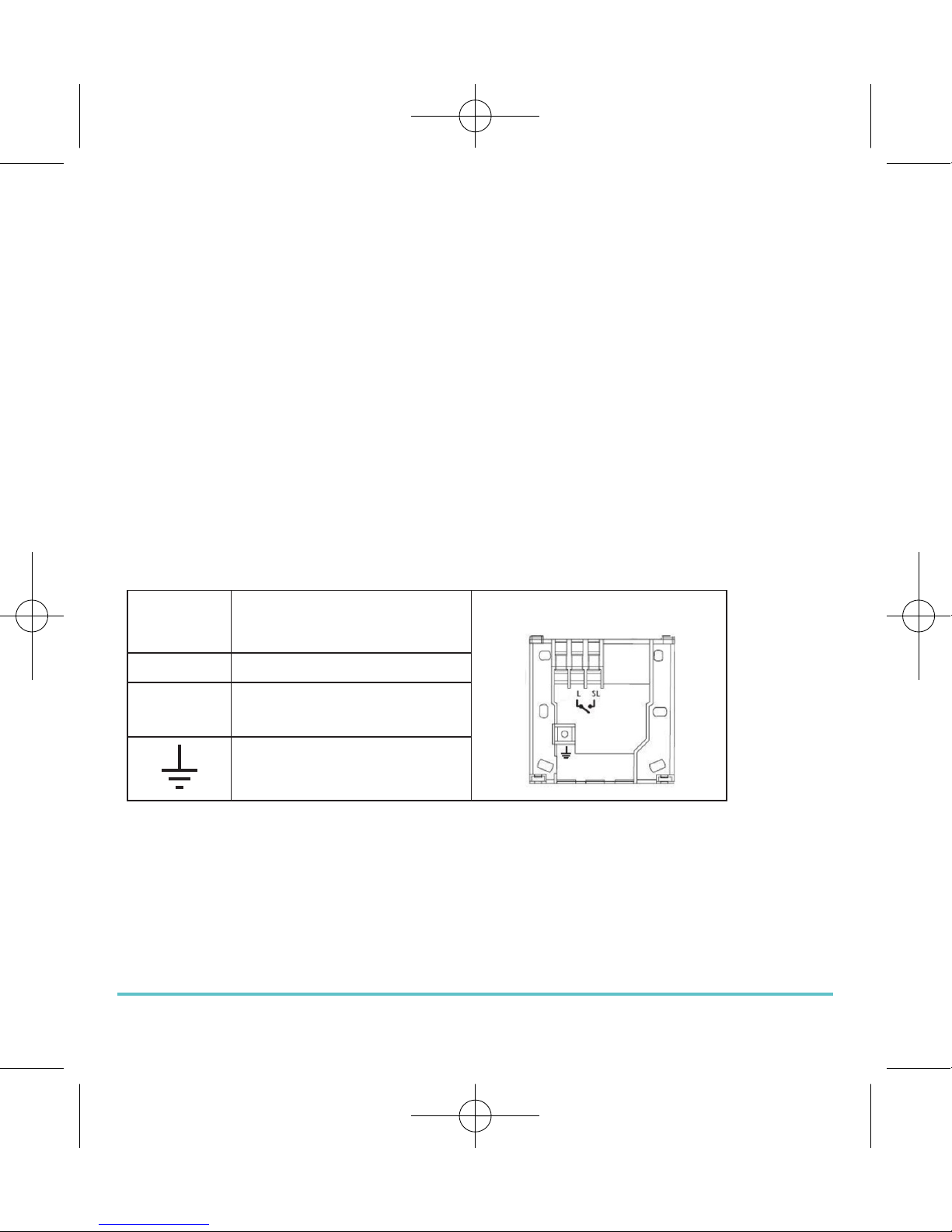

Backplate Connections

Terminal Description Backplate

N Mains Neutral

L Mains Live

SL Switched Live

(Normally Open Contact)

Earth Parking (no electrical

connection)

After installing the backplate in a suitable location, wiring connections can be made

as shown above. The following criteria apply to the installation:

• The incoming AC mains supply should be 230V AC and fused at 5 amps.

• Optimum cable size for installation is 1.5 mm2; wiring colours should be in

accordance with the current requirements of the IEE Wiring Regulations.

• Cable entry should be from the rear of the backplate.

• All wiring connections should be securely made, and be firmly gripped

beneath the square brass washer on each terminal.

Salus FT100 Manual 001:89 29/11/10 22:57 Page 4

FT100 INSTRUCTION MANUAL 5

Do not restore the mains supply to the system until all associated items are fully installed.

NOTE: All electrical installation work should be carried out by a suitably qualified Electrician

or other competent person. If you are not sure how to install this thermostat consult either

with a qualified electrician, heating engineer or your boiler / heating system supplier for

advice on how to continue.

Do not remove or refit the FT100 onto the backplate

without the mains supply to the system being isolated.

OPERATION

The FT100 is adjusted very easily by turning the rotary dial on the front of the

thermostat to the required frost protection temperature.

To adjust the set temperature, unclip the protective cover and turn the rotary dial to

the left to set a lower temperature, or to the right to set a higher temperature. Refit

the protective cover after you have finished adjusting the set temperature.

The Light Emitting Diode (LED) on the front panel will light when the temperature is

below the set value, showing that the thermostat is calling for heat from the boiler.

Once the room reaches the set temperature, the LED will turn off and the FT100 will

stop calling for heat from the boiler.

MAINTENANCE

The FT100 frost thermostat requires no special maintenance. Periodically, the outer

casing can be wiped clean using a dry cloth (please DO NOT use solvents, polishes,

detergents or abrasive cleaners, as these can damage the thermostat).

There are no user serviceable parts within the unit; any servicing or repairs should

only be carried out by Salus Controls or their appointed agents.

Should the FT100 frost thermostat fail to function correctly, check:

• The FT100 temperature has been set correctly.

• Heating system time switch or programmer is switched on.

Salus FT100 Manual 001:89 29/11/10 22:57 Page 5

PRODUCT SPECIFICATION

Model: FT100

Type: Surface mounted electronic frost

thermostat designed for 230V AC

heating applications.

Switching

Switching Voltage: 230V AC / 50Hz

Switching Current: 8A resistive, 3A inductive

Contact Type: Single Pole Single Throw (SPST)

Temperature

Range: - 10 ºC to + 20 ºC

Accuracy: ± 1 ºC at 25 ºC

Environment

Operating Temperature: 0 ºC to + 50 ºC

Storage Temperature: - 20 ºC to + 55 ºC

FT100 INSTRUCTION MANUAL
