Salus RT500ROF Bedienungsanleitung

Instruction Manual

Model No RT500ROF

Programmable RF Room Thermostat with

One Touch Energy Saving Override Control

RT500ROF Manual Ver039.qxp_89 21/10/2015 12:34 Page 1

PRODUCT COMPLIANCE

SALUS Controls Plc hereby declares that the radio equipment type

868Mhz is in compliance with Directives 1999/5/EC, 2014/53/EU,

2006/95/EC, 2004/108/EC, 2011/65/EU, 2009/125/EC and

93/68/EEC. The full text of the EU declaration of conformity is

available at the following internet address: www.saluslegal.com

SAFETY INFORMATION

These instructions are applicable to the SALUS Controls model stated

on the front cover of this manual only, and must not be used with

any other make or model.

These instructions are intended to apply in the United Kingdom only,

and should be followed along with any other statutory obligations.

This accessory must be fitted by a competent person, and installation

must comply with the guidance provided in the current editions of

BS7671 (IEE Wiring Regulations) and Part ‘P’ of the Building

Regulations. Failure to comply with the requirements of these

publications could lead to prosecution.

Always isolate the AC Mains supply before opening or removing

the unit from the wall or wall box.

When replacing batteries do not mix old and new batteries

together. Only use alkaline batteries - do not use rechargeable

batteries.

Please leave these instructions with the end user where they should

be kept in a safe place for future reference.

ErP RATING

This product has been rated as: Class 1, Efficiency 1%

RT500ROF INSTRUCTION MANUAL

RT500ROF Manual Ver039.qxp_89 21/10/2015 12:34 Page 2

What is a programmable room thermostat?

... an explanation for householders

A programmable room thermostat is both a programmer and a room thermostat.

A programmer allows you to set ‘On’ and ‘Off’ time periods to suit your own lifestyle.

A room thermostat works by sensing the air temperature, switching on the heating

when the air temperature falls below the thermostat setting, and switching it off once

this set temperature has been reached.

So, a programmable room thermostat lets you choose what times you want the heating

to be on, and what temperature it should reach while it is on. It will allow you to select

different temperatures in your home at different times of the day (and days of the week)

to meet your particular needs.

Turning a programmable room thermostat to a higher setting will not make the room

heat up any faster. How quickly the room heats up depends on the design of the heating

system, for example, the size of boiler and radiators.

Neither does the setting affect how quickly the room cools down. Turning a

programmable room thermostat to a lower setting will result in the room being

controlled at a lower temperature, and saves energy.

The way to set and use your programmable room thermostat is to find the lowest

temperature settings that you are comfortable with at the different times you have

chosen, and then leave it alone to do its job. The best way to do this is to set low

temperatures first, say 18

°C

, and then turn them up by one degree each day until you

are comfortable with the temperatures. You won’t have to adjust the thermostat further.

Any adjustments above these settings will waste energy and cost you more money.

If your heating system is a boiler with radiators, there will usually be only one

programmable room thermostat to control the whole house. But you can have different

temperatures in individual rooms by installing thermostatic radiator valves (TRVs) on

individual radiators. If you don’t have TRVs, you should choose a temperature that is

reasonable for the whole house. If you do have TRVs, you can choose a slightly higher

setting to make sure that even the coldest room is comfortable, then prevent any

overheating in other rooms by adjusting the TRVs.

RT500ROF INSTRUCTION MANUAL 3

RT500ROF Manual Ver039.qxp_89 21/10/2015 12:34 Page 3

RT500ROF INSTRUCTION MANUAL

The time on the programmer must be correct. Some types have to be adjusted in spring

and autumn at the changes between Greenwich Mean Time and British Summer Time.

You may be able to temporarily adjust the heating programme, for example, ‘Override’,

‘Advance’ or ‘Boost’. These are explained in the manufacturer’s instructions.

Programmable room thermostats need a free flow of air to sense the temperature, so

they must not be covered by curtains or blocked by furniture. Nearby electric fires,

televisions, wall or table lamps may prevent the thermostat from working properly.

INTRODUCTION

The RT500ROF is a programmable room thermostat with simple to operate energy

saving override control. Unlike standard programmable room thermostats the

programme on the programmable room thermostat can be temporarily overridden

using the remote override control.

The One Touch Override (OTO) is normally mounted at the main exit of the property

and is pressed on entry or exit. When activated, the OTO will override the programmed

temperature on the RT500 Programmable room thermostat.

YOUR RT500ROF INCLUDES THE FOLLOWING:

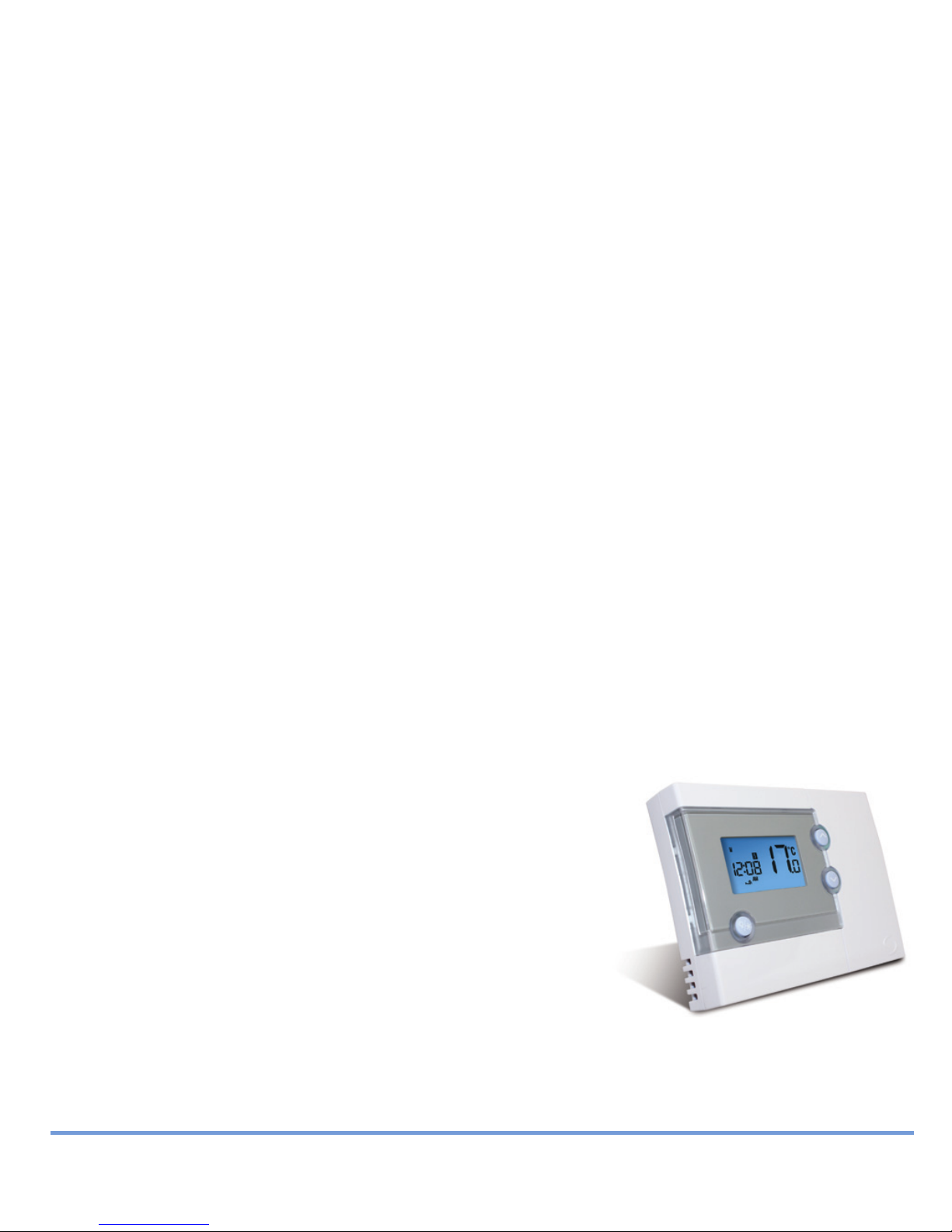

RT500 Programmable Room Thermostat

The RT500 programmable room thermostat from SALUS

Controls is a stylish and accurate 5/2 or 7 day

programmable electronic thermostat with a large, easy

to read display. The RT500 programmable thermostat

can replace most common residential thermostats and

is designed to be used with electric, gas or oil heating

control systems. Unlike ordinary single unit design

thermostats, this is a new type of thermostat separating

the operational functions into three units.

The RT500 programmable room thermostat provides

the user interface and temperature sensing / control.

RT500ROF Manual Ver039.qxp_89 21/10/2015 12:34 Page 4

RT500ROF INSTRUCTION MANUAL 5

RT500 Receiver

The RT500 Receiver is used for wiring connections

and heat on/off control. This receiver has been

specifically designed to be used for both Volt Free

and AC heating applications.

One Touch Override (OTO)

The RF One Touch Energy Saving Override Control

(OTO) is used to provide a temporary change to the

programme on the RT500.This simple to use control

can be activated when leaving your property or

when you just want to override the programme on

the RT500 programmable room thermostat.

RT500ROF Features

•One Touch Energy Saver Override Control (RF)

•Volt free switching option

•5/2 or 7 day programming flexibility

•Built-in start up programming for quick installation

•Frost protection

•Large, easy to read display with blue backlight

•Burner on symbol

•Easy to use programming

•User friendly

About this Manual

This Manual is divided into 4 parts

INSTALLATION AND SETUP

USER INTERFACE, CONTROLS & PROGRAMMING

TECHNICAL SPECIFICATION

WARRANTY

Page 6 16

Page 17 28

Page 29 30

Page 31

RT500ROF Manual Ver039.qxp_89 21/10/2015 12:34 Page 5

RT500ROF INSTRUCTION MANUAL

INSTALLATION OF RT500ROF

RT500 Programmable Room Thermostat

The RT500 can be used in any convenient location by using the included

stand, or can be easily installed in a fixed position using the industry

standard back plate supplied with the unit – this is used purely for mounting

purposes, as no wiring is needed for the RT500. The back plate can be

mounted directly to the wall surface.

The ideal position to locate the RT500 is 1.5m above floor level. It should be

mounted in a location where the thermostat is free from extremes of

temperature.

To ensure trouble free operation of the Radio Frequency (RF) signal, always

ensure that the programmable thermostat is mounted away from any

possible sources of interference (such as radios, TV sets, computers, etc) and

is not mounted on or in close proximity to large metal objects. Installing the

RT500 in enclosed areas such as basements is not recommended.

RT500 Jumper Settings

Changes to the jumper settings should only be made by the

engineer carrying out the installation or other qualified person.

The installer should select the jumper

positions required for programme or span if

changes need to be made to the factory default

settings. These jumpers are found on the rear of

the RT500. Jumpers 1-5 are for RF address

coding and are explained on page 14.

Jumper Function

Program 5-2 (factory default setting) or 7

individual days programming.

Span Temperature span of ± 0.5°C

(factory default setting) or ± 1.0°C

1,2,3,4,5 RF address code (see Page 14).

NOTE:

The Reset button must be pressed after changing jumper positions.

RT500ROF Manual Ver039.qxp_89 21/10/2015 12:34 Page 6

RT500ROF INSTRUCTION MANUAL 7

INSTALLATION OF RT500ROF

RT500 Receiver

NOTE: All electrical installation work should be carried out by

a suitably qualified Electrician or other competent person.

If you are not sure how to install this programmable thermostat

consult either with a qualified electrician, heating engineer or your

boiler / heating system supplier for advice on how to continue.

The RT500 Receiver should be mounted in a suitable location that is both

accessible for the connection of mains and control wiring, and allows good

reception of the RF signal. The Receiver needs a 230V AC mains supply to

operate, and this should be fused appropriately (13A max.). The Receiver

should be mounted in a location where it will

not come into contact with water, moisture

or condensation.

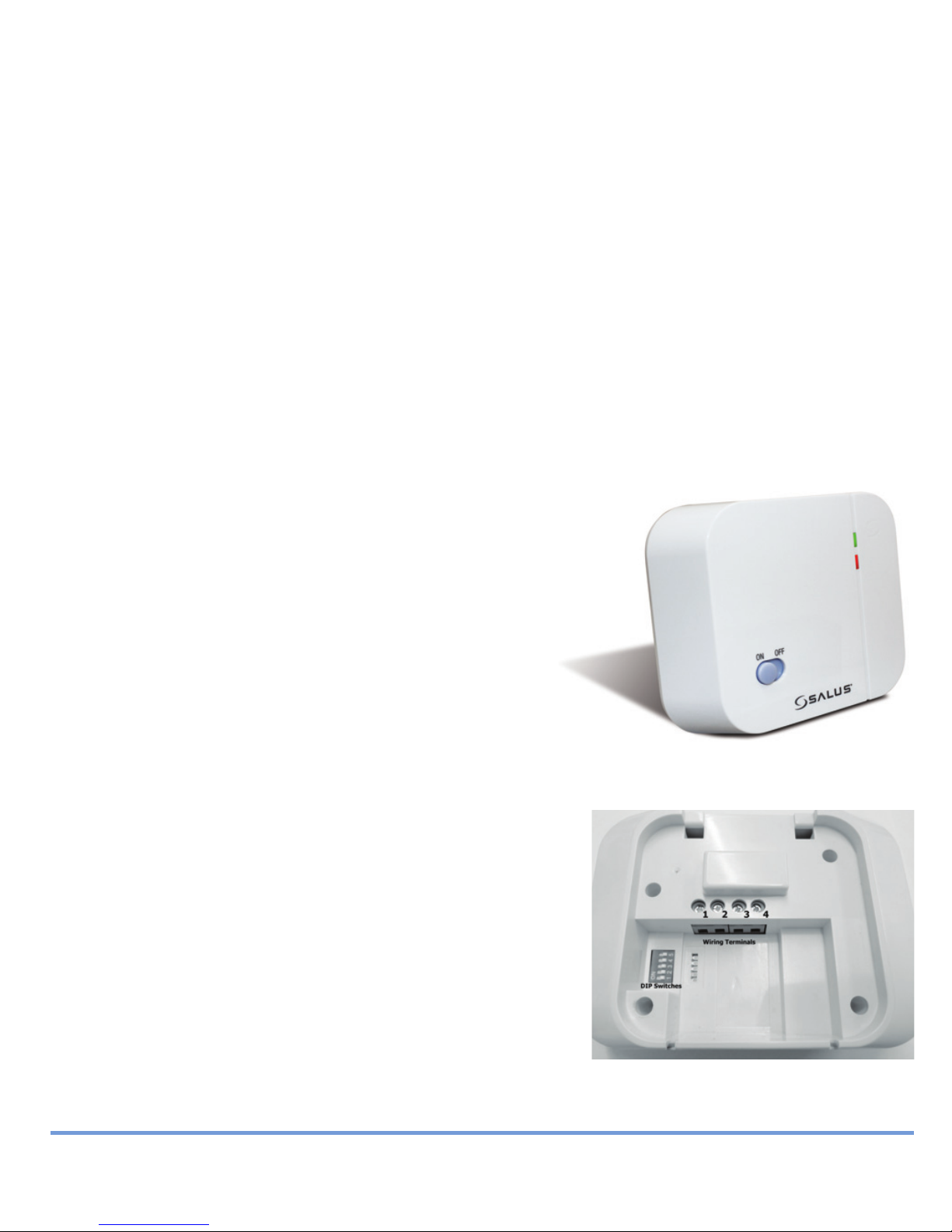

The On/Off switch is accessible from the front

face of the Receiver, as shown in this picture:

On the front cover of the Receiver you will see

that there is the On/Off switch and two Light

Emitting Diodes (LEDs). The switch allows

you to turn off the Receiver if necessary to

prevent it calling for heat.

The bottom LED (red) will illuminate when

the switch is in the ‘On’ position and the unit

is receiving power. The top LED (green)

illuminates when the Receiver unit is receiving

a heat call transmission from the RT500.

The wiring terminals and RF Address Code

setting DIP switches are located on the rear of

the Receiver, as shown in this picture:

Do not apply power until you are ready to

setup RF communications on page 13

RT500ROF Manual Ver039.qxp_89 21/10/2015 12:34 Page 7

RT500ROF INSTRUCTION MANUAL

Receiver Wiring Terminals

Terminal Identifier Description

1 N.O. Switched Live (Normally Open [N.O.] contact)

2 COM Linked Live feed

3 L Live feed (230V AC)

4 N Neutral

TYPICAL WIRING INSTALLATIONS

a.230V AC Installation

Notes:

• Receiver should have a permanent 230V AC fused Mains supply

• Confirm that the Boiler has an external thermostat loop and is

configured for 230V switching

• If the boiler has two terminals for the thermostat, remove the link from the boiler

• As the Receiver is compatible with 0v – 240v boiler the wiring is

the same for all boilers with a 2 wire connection

RT500ROF Manual Ver039.qxp_89 21/10/2015 12:34 Page 8

RT500ROF INSTRUCTION MANUAL 9

b. 24V Installation

Notes:

• Receiver unit should have a permanent 230V AC main supply

• Confirm that the Boiler has an external thermostat loop

and is NOT configured for 230V switching

• If the boiler has two terminals for the thermostat,

remove the link from the boiler

Boiler Mains supply

RT500ROF Manual Ver039.qxp_89 21/10/2015 12:34 Page 9

RT500ROF INSTRUCTION MANUAL

INSTALLATION OF RT500ROF

One Touch Override (OTO)

The OTO can be mounted anywhere inside the property for convenience.

We suggest mounting the unit at the main entry /exit of the property.

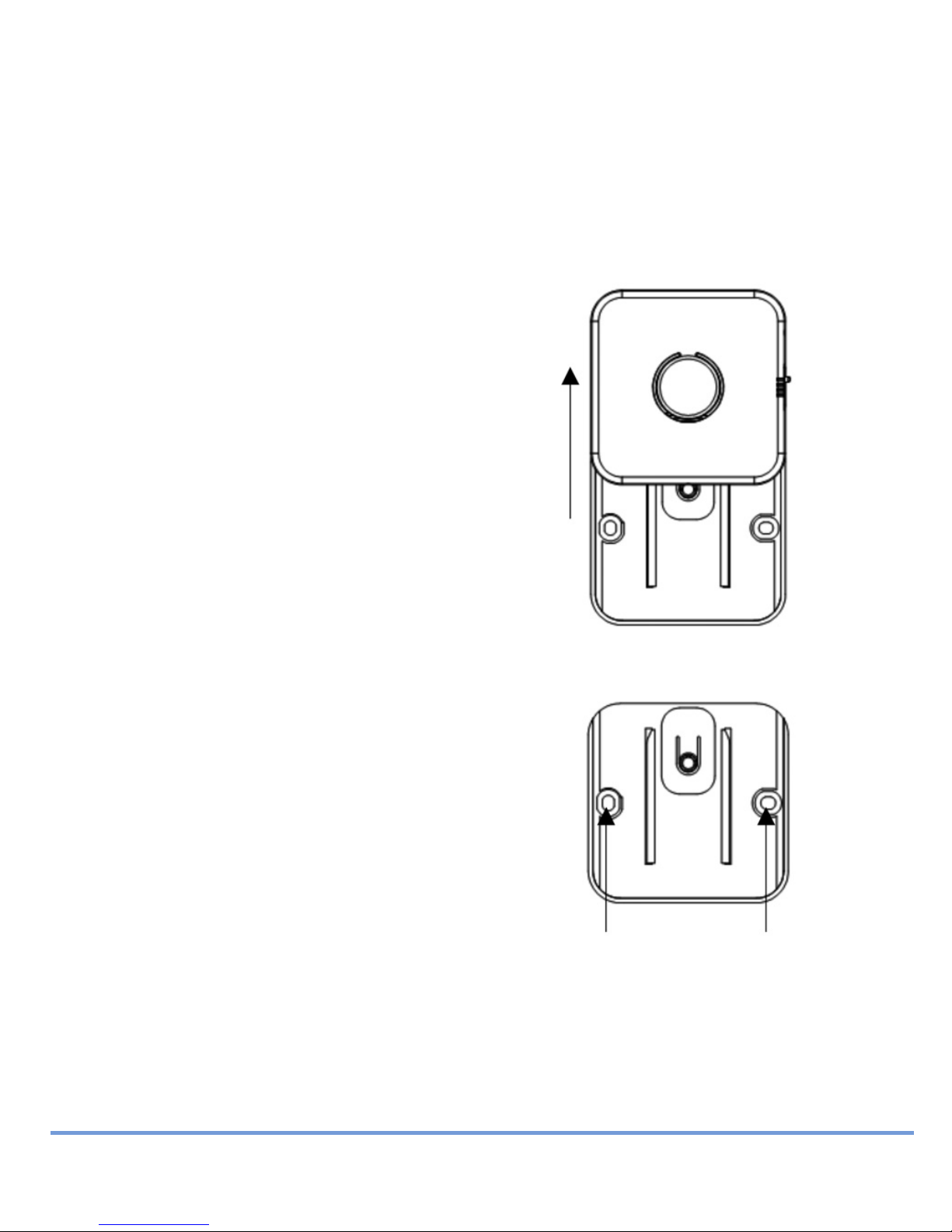

1. To begin installation remove

the front cover by sliding it up

from the back plate.

2. Mark and drill two holes

at points A. Fix the OTO back

plate to the wall using the

screws and anchors provided.

RT500ROF Manual Ver039.qxp_89 21/10/2015 12:34 Page 10

Inhaltsverzeichnis

Andere Salus Thermostat Handbücher

Salus

Salus RT510LG5V Bedienungsanleitung

Salus

Salus ERT20RF Bedienungsanleitung

Salus

Salus ERT30 Bedienungsanleitung

Salus

Salus WBNTSQ61024 Quantum Bedienungsanleitung

Salus

Salus RT310RF Bedienungsanleitung

Salus

Salus VS20WRF Bedienungsanleitung

Salus

Salus VS20 Bedienungsanleitung

Salus

Salus VS05 Bedienungsanleitung

Salus

Salus ERT 52 Bedienungsanleitung

Salus

Salus ST620VBC Bedienungsanleitung

Salus

Salus CT100 Bedienungsanleitung

Salus

Salus RT310SPE Bedienungsanleitung

Salus

Salus BTRP230 Bedienungsanleitung

Salus

Salus Quantum SQ610 Bedienungsanleitung

Salus

Salus ST620 Betriebsanleitung

Salus

Salus VS20WRF Bedienungsanleitung

Salus

Salus iT500 Bedienungsanleitung

Salus

Salus HTRS230 Benutzerhandbuch

Salus

Salus VS20WRF Bedienungsanleitung

Salus

Salus RT520RF Bedienungsanleitung

Salus

Salus VS30W Bedienungsanleitung

Salus

Salus Quantum WQ610 Bedienungsanleitung

Salus

Salus RT310 Bedienungsanleitung

Salus

Salus VS10WRF Bedienungsanleitung

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Honeywell

Honeywell CM721 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Lennox

Lennox iHarmony Zone Thermostat Montageanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

Honeywell

Honeywell RLV4305 Bedienungsanleitung

Honeywell

Honeywell Prestige 2.0 THX9421 Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung
