iT500 Internet Thermostat

USER MANUAL

iT500 User Manual 16pp 029.qxp_Layout 1 04/06/2015 11:04 Page 1

Product compliance & safety information

These instructions are applicable to the SALUS Controls model stated on the front cover of this manual

only, and must not be used with any other make or model.

This accessory must be tted by a competent person, and installation must comply with the guidance

provided in the current IEEWiring Regulations and current Building Regulations. Failure to comply with

the requirements of these publications could lead to prosecution.

When tting batteries, do not mix old and new batteries together.

Do not use rechargeable batteries.

Please leave these instructions with the end user where they should be kept in a safe place for future

reference.

Always isolate the AC Mains supply before installing or working

on any components that require 230 VAC 50Hz supply.

02 iT500 User Manual

iT500 User Manual 16pp 029.qxp_Layout 1 04/06/2015 11:04 Page 2

Contents of the box

iT500 User Manual 03

iT500TR Thermostat iT500RX Receiver

iTA500 Power adaptor

ADSL Cable

Optional Stand

Fixing screws & plugs

iTG500 Gateway

Bracket Wall mount

iT500 User Manual 16pp 029.qxp_Layout 1 04/06/2015 11:05 Page 3

04 iT500 User Manual

Installation

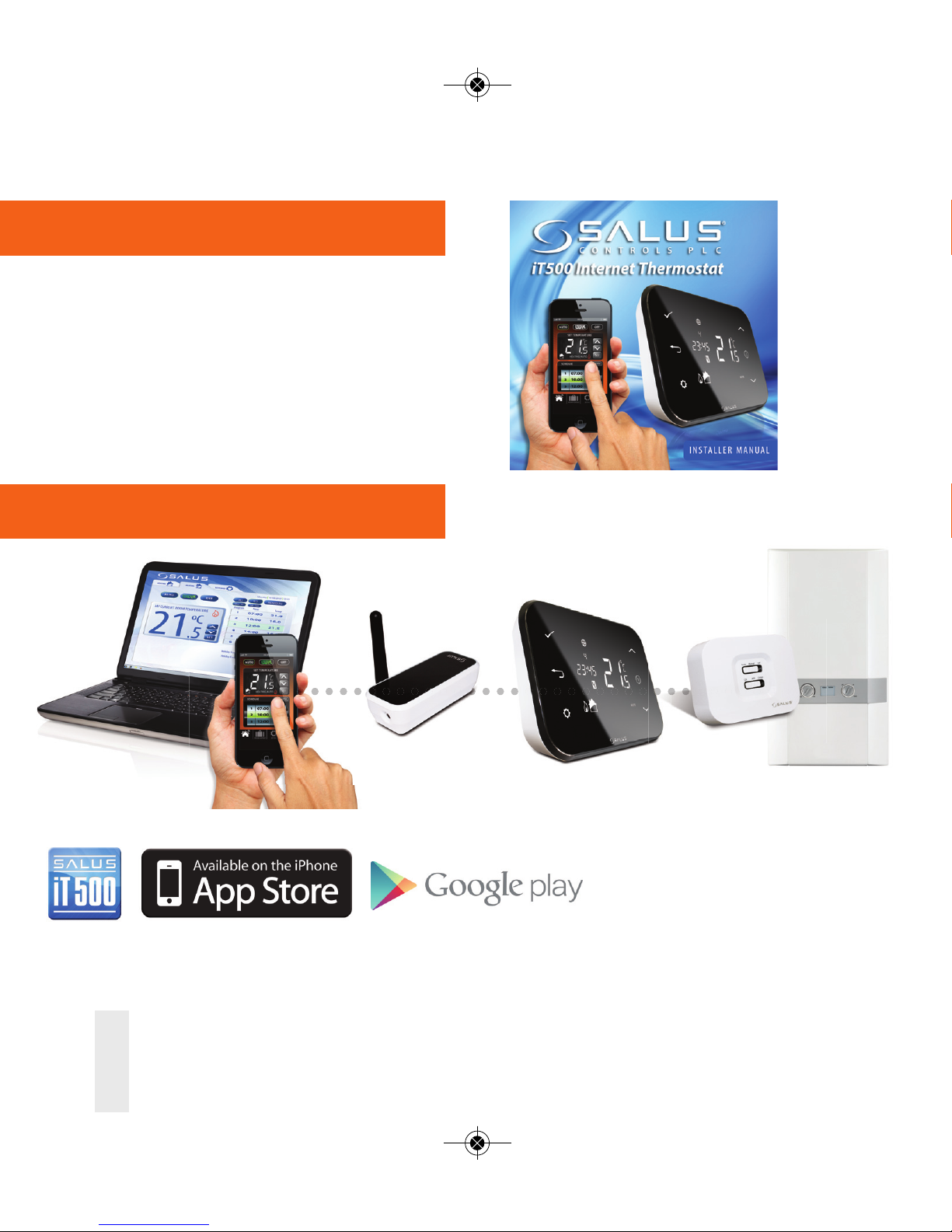

Connection & Control

www.saluscontrols.com

Please refer to the installation guide.

The installation guide also shows how to

connect your iT500 thermostat to the internet.

For details please refer to page 18 in the installation manual.

iT500 User Manual 16pp 029.qxp_Layout 1 04/06/2015 11:05 Page 4

iT500 User Manual 05

LCD ICONS DESCRIPTION FUNCTION

Day of the week Displays the number of the day of the week. 1 being Monday

Temperature indicator Displays set or measured temperature

Clock display Displays time

Program number indicator Displays the number of the active (selected) program

Heat mode indicator Indicates heating output is turned on*

Heat zone indicator Indicates heating zone*

Hot water indicator Indicates hot water control*

Hot water mode indicator Indicates hot water output is turned on*

RF signal indicator Indicates the unit is transmitting a wireless signal to the

iT500RX or is receiving the signal from the iT300*

Touch lock indicator Indicates touch lock is activated

Battery status Indicates battery is low

Holiday indicator Indicates holiday operation mode is selected

Internet indicator Indicates connection to iTG500 and SALUS server

Cooling indicator Indicates cooling output is on*

ON indicator Hot water continuously on*

Once indicator Hot water is on once*

AUTO indicator Automatic program mode

OFF indicator O mode

Setting indicator Manual override or settings mode

LCD Overview

* System conguration specic.

iT500 User Manual 16pp 029.qxp_Layout 1 04/06/2015 11:05 Page 5

06 iT500 User Manual

Controls

Conrm

Backup

Increase

Display ON

Decrease

Settings

iT500 User Manual 16pp 029.qxp_Layout 1 04/06/2015 11:05 Page 6

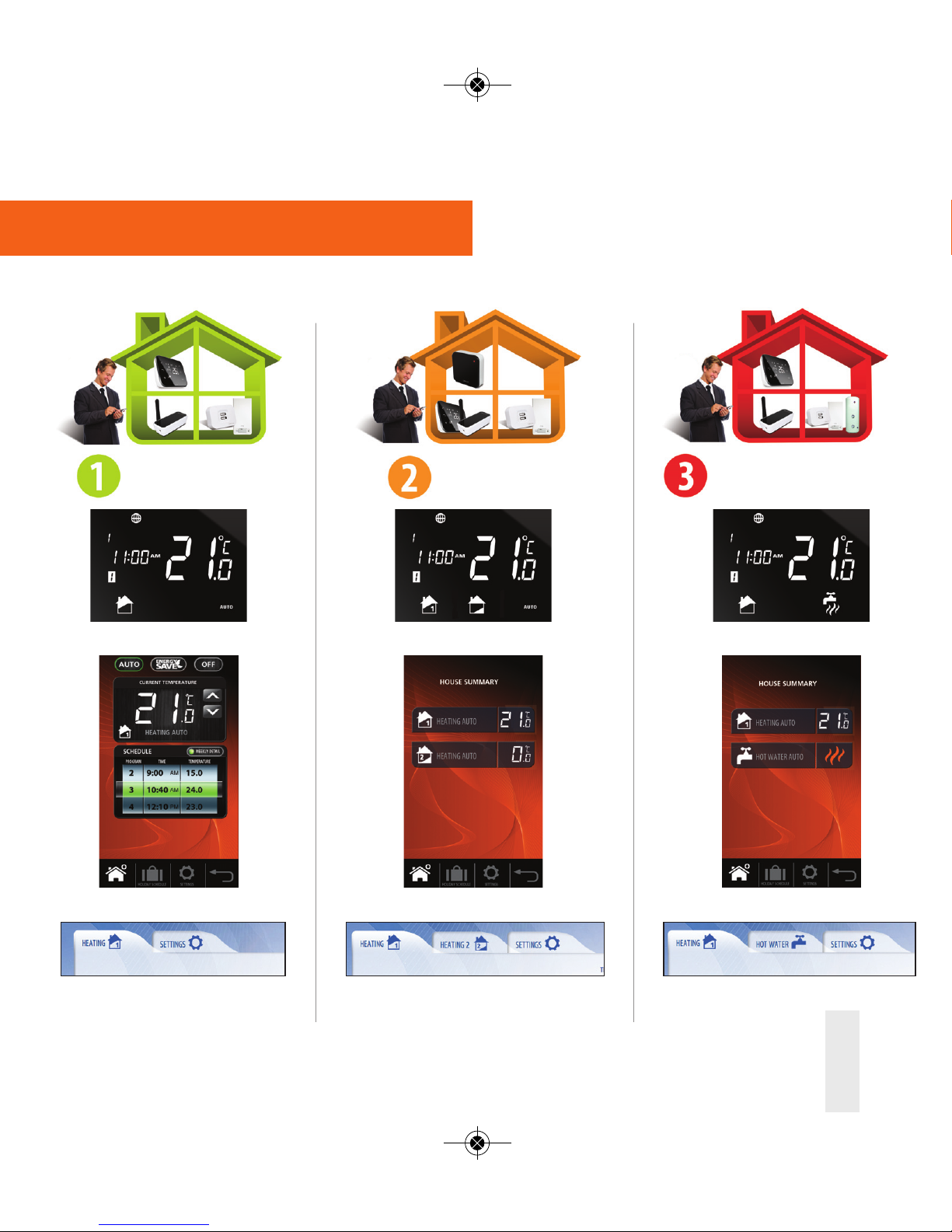

Identify your system type

One central heating zone only.

iT500 Display

Smartphone Display

PC Display

iT500 Display

Smartphone Display

PC Display

iT500 Display

Smartphone Display

PC Display

One central heating zone plus hot water.

Two central heating zones.

iT500 User Manual 07

The system type is unique to your system conguration.

The system will be set by your installer and should only

be changed by your installer.

iT500 User Manual 16pp 029.qxp_Layout 1 04/06/2015 11:05 Page 7

One central heating zone only.

One Central Heating Zone System PC & Smartphone Control

Energy save will use the lowest set

temperature on your daily schedule.

Now that you have identied your system type, you can use

your PC or smartphone to fully control your iT500.

Follows

weekly

schedule

Energy

save

mode

Home Holiday Settings Back

Heating

continuously

o

Override

program

temperature*

Change/view

weekly heating

schedule

Current

program

*Press AUTO to cancel temporary override of program temperature.

Will be displayed when the current program

has been manually overridden

08 iT500 User Manual

iT500 User Manual 16pp 029.qxp_Layout 1 04/06/2015 11:05 Page 8

One Central Heating Zone System Local Control

iT500 User Manual 09

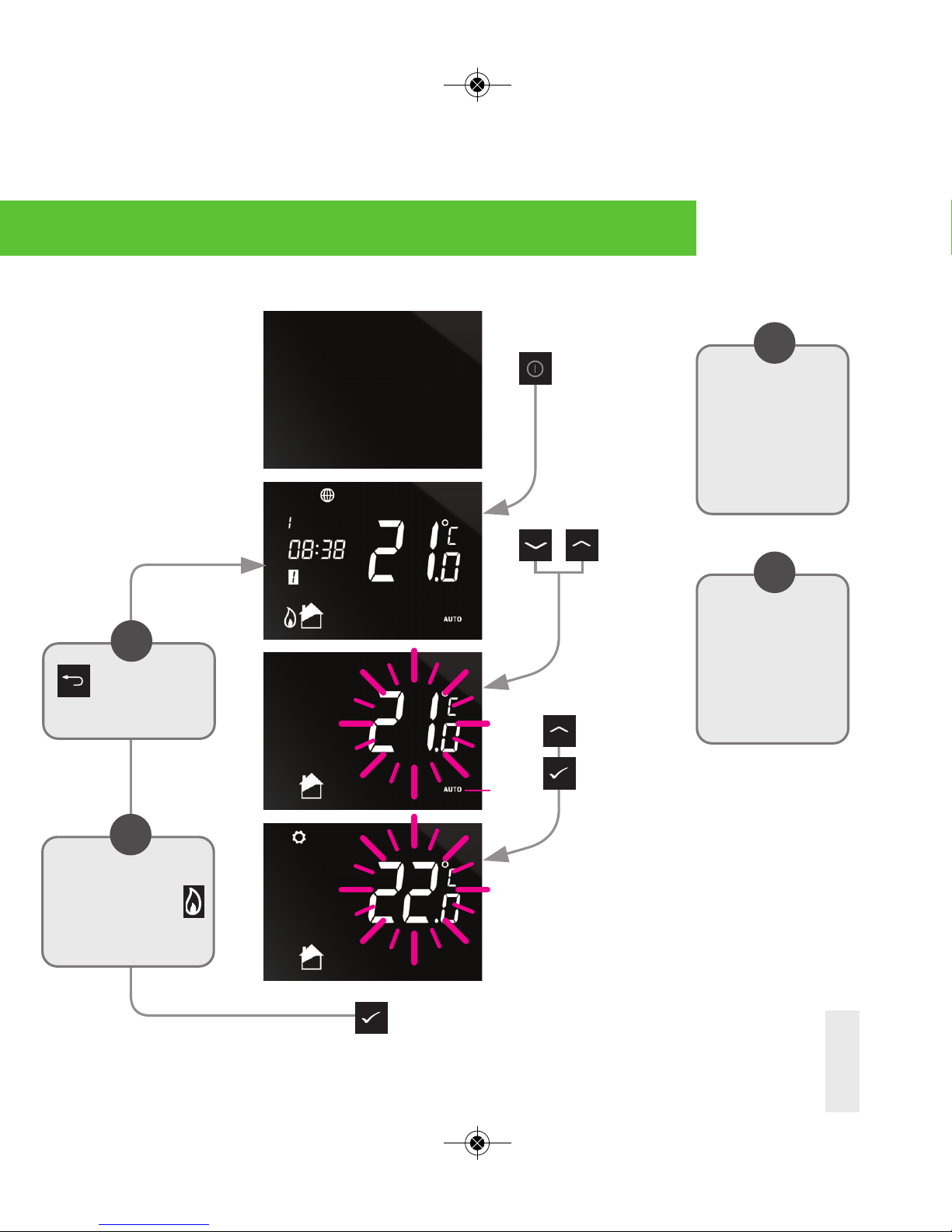

Temporary override

of your temperature

Press the power button to

start and use the buttons

indicated to change the

SET temperature. Then

press the tick to accept.

Note:

Status has

been added.

The unit will return to the

home screen with the

symbol showing.

The operations

described in the next

few pages can be

controlled via your

Smartphone or PC.

All changes made

locally on the iT500

will automatically

update PC and

Smartphone.

Control available on your Smartphone or PC is also available locally on the iT500.

Press to cancel

temporary override.

iT500 User Manual 16pp 029.qxp_Layout 1 04/06/2015 11:06 Page 9

10 iT500 User Manual

Switching your

heating from

AUTO to OFF.

Press the power button to

start and use the buttons

indicated to switch from

AUTO to OFF.

The unit will return to the

home screen.

One Central Heating Zone System Local Control

iT500 User Manual 16pp 029.qxp_Layout 1 04/06/2015 11:06 Page 10
